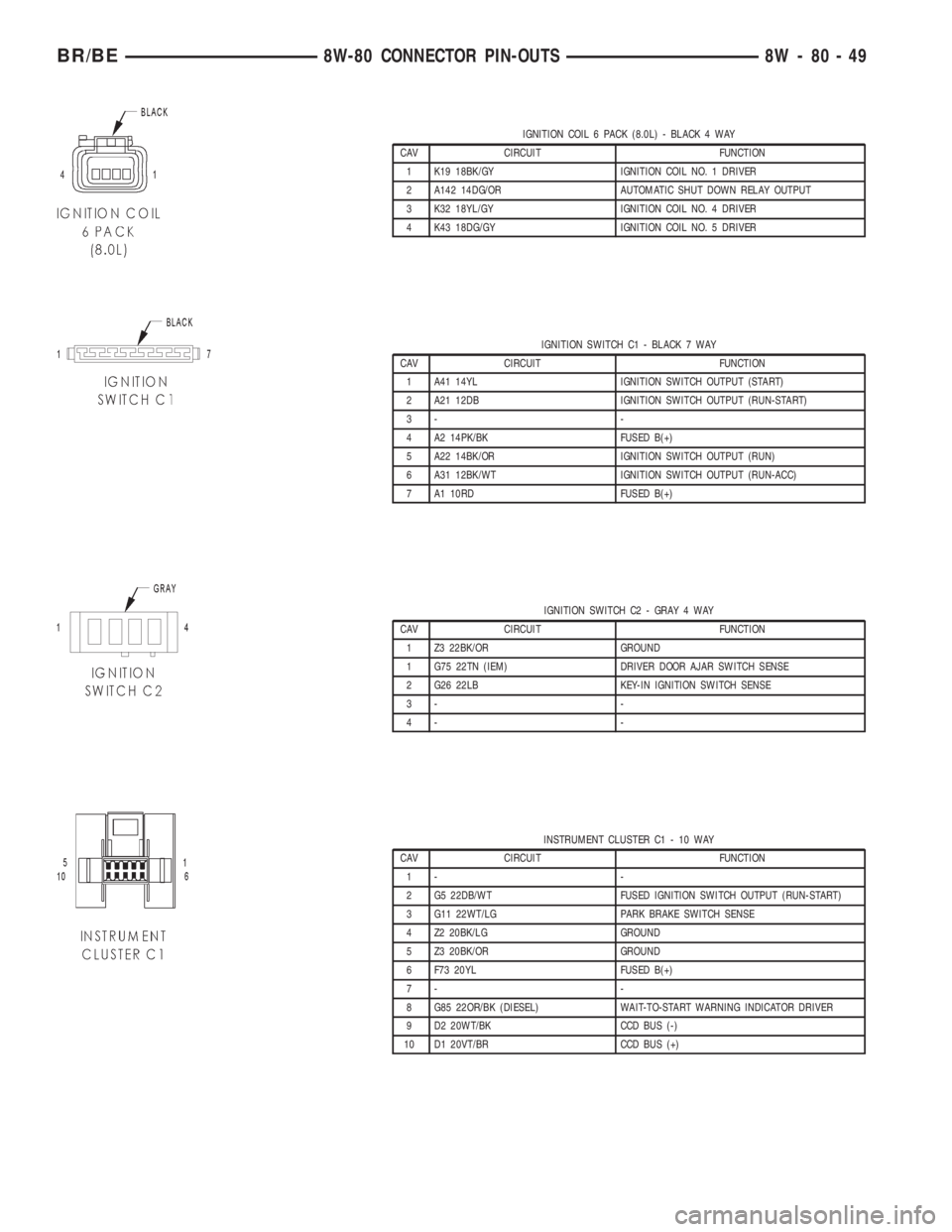

IGNITION COIL 6 PACK (8.0L) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K19 18BK/GY IGNITION COIL NO. 1 DRIVER
2 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K32 18YL/GY IGNITION COIL NO. 4 DRIVER
4 K43 18DG/GY IGNITION COIL NO. 5 DRIVER
IGNITION SWITCH C1 - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 A41 14YL IGNITION SWITCH OUTPUT (START)
2 A21 12DB IGNITION SWITCH OUTPUT (RUN-START)
3- -
4 A2 14PK/BK FUSED B(+)
5 A22 14BK/OR IGNITION SWITCH OUTPUT (RUN)
6 A31 12BK/WT IGNITION SWITCH OUTPUT (RUN-ACC)
7 A1 10RD FUSED B(+)
IGNITION SWITCH C2 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z3 22BK/OR GROUND
1 G75 22TN (IEM) DRIVER DOOR AJAR SWITCH SENSE
2 G26 22LB KEY-IN IGNITION SWITCH SENSE
3- -
4- -
INSTRUMENT CLUSTER C1 - 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 G5 22DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 G11 22WT/LG PARK BRAKE SWITCH SENSE
4 Z2 20BK/LG GROUND
5 Z3 20BK/OR GROUND
6 F73 20YL FUSED B(+)
7- -
8 G85 22OR/BK (DIESEL) WAIT-TO-START WARNING INDICATOR DRIVER
9 D2 20WT/BK CCD BUS (-)
10 D1 20VT/BR CCD BUS (+)
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 49

INSTRUMENT CLUSTER C2 - 10 WAY
CAV CIRCUIT FUNCTION
1 E2 22OR PANEL LAMPS FEED
2 G29 22BK/WT WASHER FLUID SWITCH SENSE
3 G10 22LG/RD SEAT BELT SWITCH SENSE
4- -
5 E17 18YL/BK DAY BRIGHTNESS SENSE
6 L61 18LG LEFT TURN SIGNAL
7 G13 22DB/RD CHIME REQUEST SIGNAL
8 L60 18TN RIGHT TURN SIGNAL
9 G34 16RD/GY HIGH BEAM INDICATOR DRIVER
10 G107 22GY 4WD SWITCH SENSE
INTAKE AIR HEATER RELAYS (DIESEL)-4WAY
CAV CIRCUIT FUNCTION
1 S22 18OR/BK AIR INTAKE HEATER RELAY CONTROL NO. 2
2 Z12 18BK/TN GROUND
3 S21 18YL/BK AIR INTAKE HEATER RELAY CONTROL NO. 1
4 Z12 18BK/TN GROUND
INTAKE AIR TEMPERATURE SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
A K104 18BK/LB SENSOR GROUND
B K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
INTAKE AIR TEMPERATURE SENSOR (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
JOINT CONNECTOR NO. 1 (IN PDC) - 28 WAY
CAV CIRCUIT FUNCTION
1 V40 20WT/PK BRAKE SWITCH SENSE
2 V40 22WT/PK BRAKE SWITCH SENSE
3 V40 22WT/PK BRAKE SWITCH SENSE
4 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
5 L4 16VT/WT DIMMER SWITCH LOW BEAM OUTPUT
5 L4 16VT/WT(QUAD) DIMMER SWITCH LOW BEAM OUTPUT
8W - 80 - 50 8W-80 CONNECTOR PIN-OUTSBR/BE

JOINT CONNECTOR NO. 1 (IN PDC) - 28 WAY
CAV CIRCUIT FUNCTION
6 L4 20VT/WT(QUAD) DIMMER SWITCH LOW BEAM OUTPUT
6 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT
7 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT
8 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
9 L1 18VT/BK BACK-UP LAMP FEED
10 L1 18VT/BK BACK-UP LAMP FEED
11 L1 18VT/BK BACK-UP LAMP FEED
12 X2 18DG/RD HORN RELAY OUTPUT
13 X2 18DG/RD HORN RELAY OUTPUT
14 X2 18DG/RD HORN RELAY OUTPUT
15 K4 22BK/LB SENSOR GROUND
16 K4 22BK/LB SENSOR GROUND
17 K4 20BK/LB SENSOR GROUND
18 K4 20BK/LB SENSOR GROUND
19 Z1 22BK GROUND
20 Z1 20BK (DIESEL) GROUND
21 Z1 18BK GROUND
22 Z1 18BK GROUND
23 Z1 18BK GROUND
24 Z1 22BK (DIESEL) GROUND
25 Z1 16BK GROUND
26 Z1 16BK GROUND
27 - -
28 Z1 18BK GROUND
JOINT CONNECTOR NO. 2 (IN PDC) - 18 WAY
CAV CIRCUIT FUNCTION
1 A16 14RD/LB FUSED B(+)
2 A16 14RD/LB FUSED B(+)
3 A16 14RD/LB FUSED B(+)
4 V5 16DG WIPER PARK SWITCH SENSE
5 V5 16DG WIPER PARK SWITCH SENSE
6 V5 16DG WIPER PARK SWITCH SENSE
7 A14 16RD/WT FUSED B(+)
8 A14 16RD/WT FUSED B(+)
9 A14 16RD/WT FUSED B(+)
10 A6 12RD/OR (TRAILER TOW) FUSED B(+)
11 A6 12RD/OR (TRAILER TOW) FUSED B(+)
12 A6 12RD/OR (TRAILER TOW) FUSED B(+)
13 A6 12RD/OR (TRAILER TOW) FUSED B(+)
14 - -
15 A142 14DG/OR (GAS) AUTOMATIC SHUT DOWN RELAY OUTPUT SENSE
16 A142 14DG/OR (GAS) AUTOMATIC SHUT DOWN RELAY OUTPUT SENSE
16 Z12 18BK/TN (DIESEL) GROUND
17 Z12 18BK/TN (DIESEL) GROUND
17 A142 14DG/OR (GAS) AUTOMATIC SHUT DOWN RELAY OUTPUT SENSE
18 Z12 18BK/TN (DIESEL) GROUND
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 51

JOINT CONNECTOR NO.5-NATURAL 22 WAY
CAV CIRCUIT FUNCTION
1 M1 20PK FUSED B(+)
2 M1 22PK FUSED B(+)
3 M1 22PK FUSED B(+)
4 Z3 20BK/OR GROUND
5 Z3 18BK/OR GROUND
6 Z3 22BK/OR GROUND
7 Z3 18BK/OR GROUND
8 E2 22OR PANEL LAMPS FEED
9 E2 22OR PANEL LAMPS FEED
10 E2 22OR PANEL LAMPS FEED
11 - -
12 M1 22PK FUSED B(+)
13 M1 22PK FUSED B(+)
14 Z3 20BK/OR (HEATED SEATS) GROUND
15 Z3 20BK/OR (HEATED SEATS) GROUND
16 Z3 22BK/OR (EXCEPT BASE/MIDLINE) GROUND
17 Z3 22BK/OR (EXCEPT BASE/MIDLINE) GROUND
18 - -
19 - -
20 E2 22OR PANEL LAMPS FEED
21 E2 22OR PANEL LAMPS FEED
22 E2 22OR PANEL LAMPS FEED
JOINT CONNECTOR NO.6-NATURAL 22 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 L50 16WT/TN BRAKE LAMP SWITCH OUTPUT
5 L50 16WT/TN BRAKE LAMP SWITCH OUTPUT
6 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
7 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
8 Z9 16BK/VT(EXCEPT BASE/LOWLINE) GROUND
9 Z9 20BK/VT(SLT+HIGHLINE) GROUND
10 X3 20BK/RD(EXCEPT BASE/MIDLINE) HORN RELAY CONTROL
10 M22 22WT(BASE/MIDLINE) DOME LAMPS SWITCH SENSE
11 X3 20BK/RD(EXCEPT BASE/MIDLINE) HORN RELAY CONTROL
11 M22 22WT(BASE/MIDLINE) DOME LAMPS SWITCH SENSE
12 M22 22WT(BASE/MIDLINE) DOME LAMPS SWITCH SENSE
12 X3 20BK/RD(EXCEPT BASE/MIDLINE) HORN RELAY CONTROL
13 V10 16BR WASHER SWITCH SENSE
14 V10 16BR WASHER SWITCH SENSE
15 V10 16BR WASHER SWITCH SENSE
16 - -
17 - -
18 Z9 16BK/VT GROUND
19 Z9 16BK/VT(XECEPT BASE/LOWLINE) GROUND
20 G26 22LB KEY-IN IGNITION SWITCH SENSE
21 G26 22LB KEY-IN IGNITION SWITCH SENSE
22 G26 22LB KEY-IN IGNITION SWITCH SENSE
8W - 80 - 52 8W-80 CONNECTOR PIN-OUTSBR/BE

JUNCTION BLOCK C1 - BLUE 15 WAY
CAV CIRCUIT FUNCTION
1- -
2 G31 20VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
3 A20 20RD/DB FUSED IGNITION SWITCH OUTPUT (RUN)
4 L61 18LG LEFT TURN SIGNAL
5 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
6- -
7- -
8- -
9 L7 18BK/YL PARK LAMP RELAY OUTPUT
10 F18 20LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 L1 18VT/BK BACK-UP LAMP FEED
12 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
13 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
14 G32 20BK/VT SENSOR GROUND
15 - -
JUNCTION BLOCK C2 - NATURAL 6 WAY
CAV CIRCUIT FUNCTION
1 A7 10RD/BK FUSED B(+)
2 L9 16BK/VT FUSED FLASHER FEED
3 M1 20PK FUSED B(+)
4- -
5 L60 18TN RIGHT TURN SIGNAL
6- -
JUNCTION BLOCK C3 - 14 WAY
CAV CIRCUIT FUNCTION
1 G32 22BK/LB SENSOR GROUND
2 Z2 20BK/LG GROUND
3 M2 22YL COURTESY LAMPS DRIVER
4- -
5 G31 22VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
6 M1 22PK (BASE) FUSED B(+)
6 M1 20PK (HIGHLINE) FUSED B(+)
7- -
8 L7 18BK/YL PARK LAMP RELAY OUTPUT
9- -
10 - -
11 L1 20VT/BK BACK-UP LAMP FEED
12 - -
13 Z3 18BK (HIGHLINE) GROUND
14 F12 20DB/WT (HIGHLINE) FUSED IGNITION SWITCH OUTPUT (RUN-START)
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSBR/BE

LEFT BACK-UP LAMP - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z13 18BK GROUND
2 L1 18VT/BK BACK-UP LAMP FEED
LEFT FOG LAMP - WHITE 2 WAY
CAV CIRCUIT FUNCTION
A L34 20RD/OR FUSED B(+)
B L39 20LB FOG LAMP SWITCH OUTPUT
LEFT FRONT DOOR SPEAKER (PREMIUM) - 10 WAY
CAV CIRCUIT FUNCTION
1 X83 20YL/RD AMPLIFIED HIGH LEFT FRONT SPEAKER (+)
2 X81 20YL/BK AMPLIFIED HIGH LEFT FRONT SPEAKER (-)
3 X53 18DG LEFT FRONT SPEAKER (+)
4 X55 18BR/RD LEFT FRONT SPEAKER (-)
5 X91 18WT/DG AMPLIFIED LOW LEFT REAR SPEAKER (-)
6 X93 18WT/VT AMPLIFIED LOW LEFT REAR SPEAKER (+)
7 X13 16BK/RD RADIO CHOKE RELAY OUTPUT
8 Z9 16BK/VT GROUND
9 X51 18BR/YL LEFT REAR SPEAKER (+)
10 X57 18BR/LB LEFT REAR SPEAKER (-)
LEFT FRONT DOOR SPEAKER (STANDARD)-2WAY
CAV CIRCUIT FUNCTION
A X55 20BR/RD LEFT FRONT SPEAKER (-)
B X53 20DG LEFT FRONT SPEAKER (+)
LEFT FRONT FENDER LAMP (DUAL REAR WHEELS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z13 18BK GROUND
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 57

LEFT OUTBOARD IDENTIFICATION LAMP-2WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z4 18BK GROUND
LEFT PARK/TURN SIGNAL LAMP - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 L61 18LG/TN LEFT TURN SIGNAL
LEFT POWER MIRROR-6WAY
CAV CIRCUIT FUNCTION
1 P71 22YL LEFT MIRROR UP DRIVER
2 P75 22DB/WT LEFT MIRROR LEFT DRIVER
3 P73 22YL/PK LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
4 C16 20LB/YL HEATED MIRROR
5 Z2 20BK/LG GROUND
6- -
LEFT REAR FENDER LAMP (DUAL REAR WHEELS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z13 18BK GROUND
LEFT REAR SPEAKER (PREMIUM 2 DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X93 18WT/VT AMPLIFIED LOW LEFT REAR SPEAKER (+)
2 X91 18WT/DG AMPLIFIED LOW LEFT REAR SPEAKER (-)
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 59

LEFT TAIL/STOP/TURN SIGNAL LAMP - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z13 18BK GROUND
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 L63 18DG/BR LEFT TURN SIGNAL
LEFT TWEETER (PREMIUM)-2WAY
CAV CIRCUIT FUNCTION
1 X83 20YL/RD AMPLIFIED HIGH LEFT FRONT SPEAKER (+)
2 X81 20YL/BK AMPLIFIED HIGH LEFT FRONT SPEAKER (-)
LEFT VISOR/VANITY LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A M1 20PK FUSED B(+)
B Z4 20BK GROUND
LOW NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X2 18DG/RD HORN RELAY OUTPUT
2 Z1 18BK GROUND
MANIFOLD ABSOLUTE PRESSURE SENSOR (5.9L)-3WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K1 18DG/RD MAP SENSOR SIGNAL
3 K6 20VT/WT 5V SUPPLY
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 61
