2002 CHRYSLER CARAVAN relay

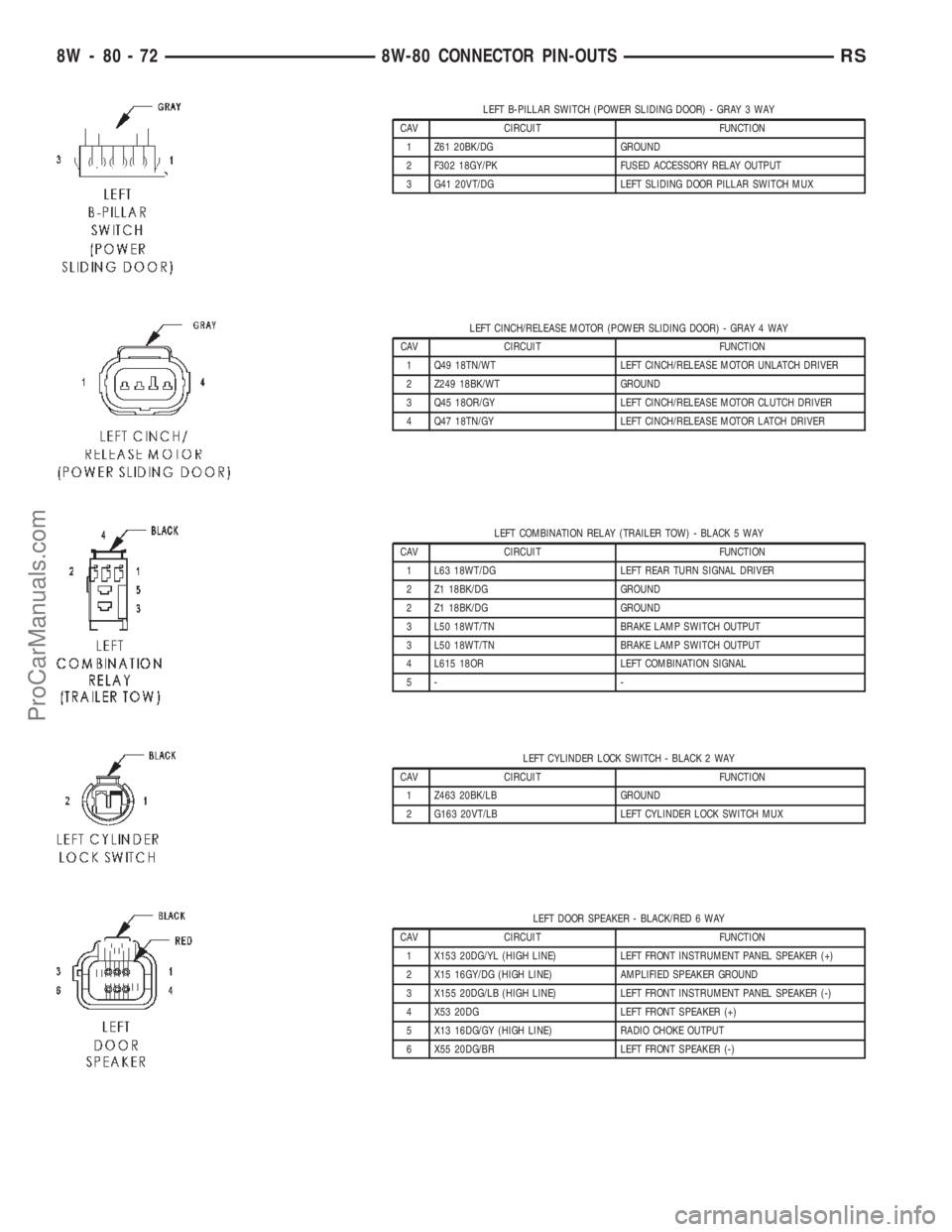

LEFT B-PILLAR SWITCH (POWER SLIDING DOOR) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z61 20BK/DG GROUND
2 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
3 G41 20VT/DG LEFT SLIDING DOOR PILLAR SWITCH MUX
LEFT CINCH/RELEASE MOTOR (POWER SLIDING DOOR) - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Q49 18TN/WT LEFT CINCH/RELEASE MOTOR UNLATCH DRIVER
2 Z249 18BK/WT GROUND
3 Q45 18OR/GY LEFT CINCH/RELEASE MOTOR CLUTCH DRIVER
4 Q47 18TN/GY LEFT CINCH/RELEASE MOTOR LATCH DRIVER
LEFT COMBINATION RELAY (TRAILER TOW) - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
2 Z1 18BK/DG GROUND
2 Z1 18BK/DG GROUND
3 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
3 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
4 L615 18OR LEFT COMBINATION SIGNAL
5- -
LEFT CYLINDER LOCK SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z463 20BK/LB GROUND
2 G163 20VT/LB LEFT CYLINDER LOCK SWITCH MUX
LEFT DOOR SPEAKER - BLACK/RED 6 WAY
CAV CIRCUIT FUNCTION
1 X153 20DG/YL (HIGH LINE) LEFT FRONT INSTRUMENT PANEL SPEAKER (+)
2 X15 16GY/DG (HIGH LINE) AMPLIFIED SPEAKER GROUND
3 X155 20DG/LB (HIGH LINE) LEFT FRONT INSTRUMENT PANEL SPEAKER (-)
4 X53 20DG LEFT FRONT SPEAKER (+)
5 X13 16DG/GY (HIGH LINE) RADIO CHOKE OUTPUT
6 X55 20DG/BR LEFT FRONT SPEAKER (-)
8W - 80 - 72 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

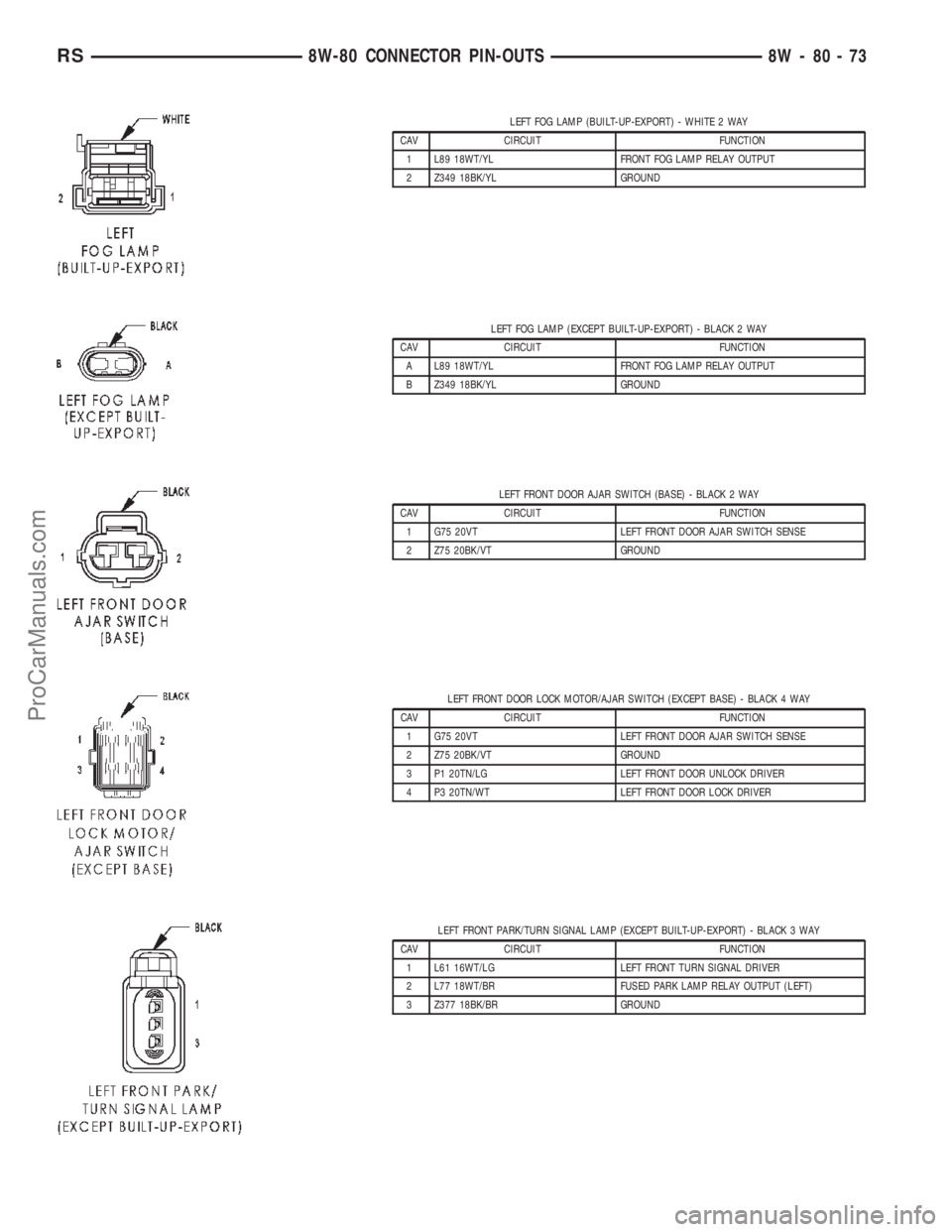

LEFT FOG LAMP (BUILT-UP-EXPORT) - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 L89 18WT/YL FRONT FOG LAMP RELAY OUTPUT
2 Z349 18BK/YL GROUND
LEFT FOG LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A L89 18WT/YL FRONT FOG LAMP RELAY OUTPUT
B Z349 18BK/YL GROUND
LEFT FRONT DOOR AJAR SWITCH (BASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G75 20VT LEFT FRONT DOOR AJAR SWITCH SENSE
2 Z75 20BK/VT GROUND
LEFT FRONT DOOR LOCK MOTOR/AJAR SWITCH (EXCEPT BASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G75 20VT LEFT FRONT DOOR AJAR SWITCH SENSE
2 Z75 20BK/VT GROUND
3 P1 20TN/LG LEFT FRONT DOOR UNLOCK DRIVER
4 P3 20TN/WT LEFT FRONT DOOR LOCK DRIVER
LEFT FRONT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L61 16WT/LG LEFT FRONT TURN SIGNAL DRIVER
2 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 Z377 18BK/BR GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-73
ProCarManuals.com

LEFT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B9 18DG/WT (3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
1 B9 18DG/LG (EXCEPT 3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
LEFT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q53 20OR LEFT FULL OPEN SWITCH SENSE
2 Z77 20BK/GY GROUND
LEFT HEADLAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L43 18WT/DB LEFT LOW BEAM DRIVER
2 Z343 18BK/LG GROUND
3 L33 18WT/LG LEFT HIGH BEAM DRIVER
LEFT HEADLAMP LEVELING MOTOR (BUILT-UP-EXPORT) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 Z203 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L13 16RD HEADLAMP ADJUST SIGNAL
LEFT HIGH BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
1 Z343 16BR GROUND
2 L33 16GY LEFT HIGH BEAM DRIVER
8W - 80 - 74 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

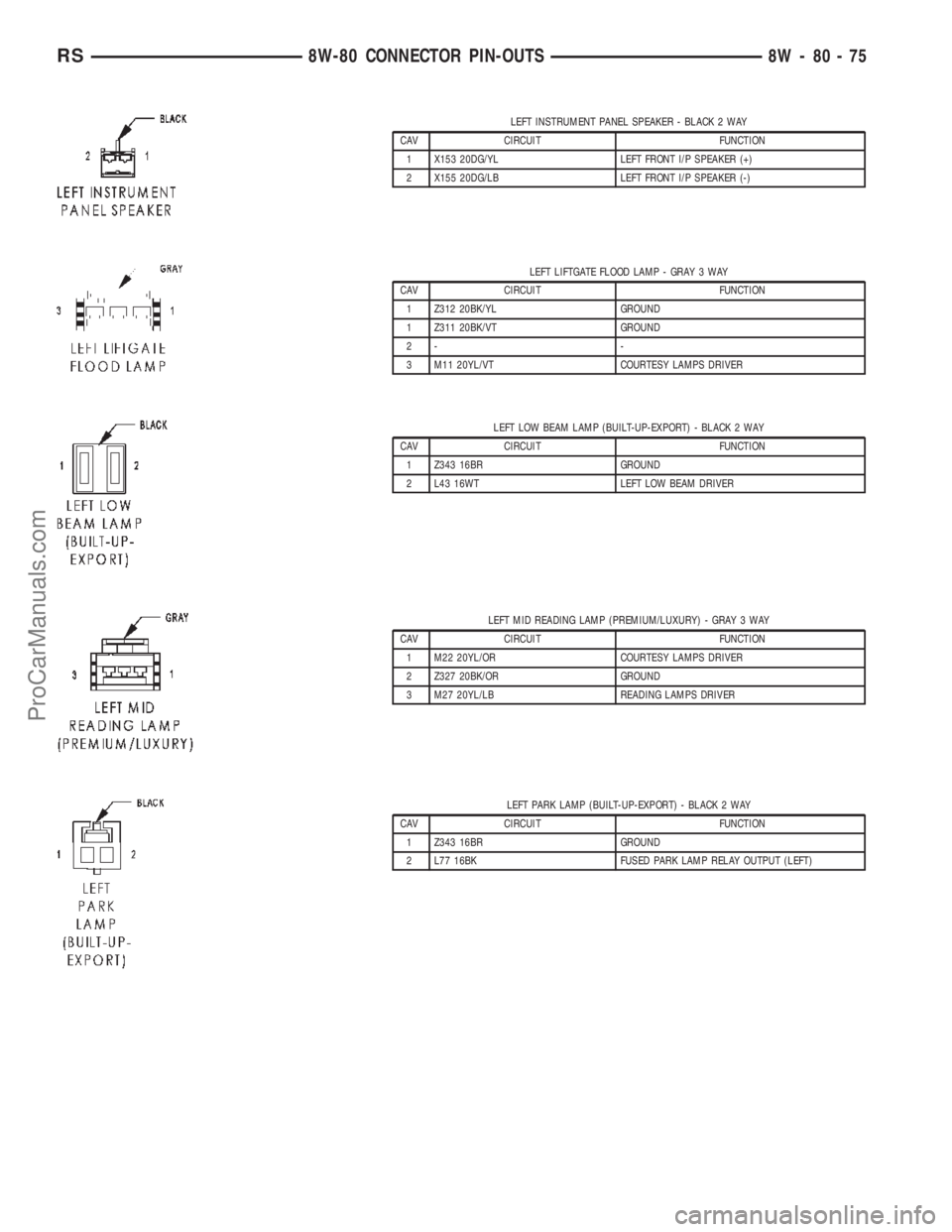

LEFT INSTRUMENT PANEL SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X153 20DG/YL LEFT FRONT I/P SPEAKER (+)
2 X155 20DG/LB LEFT FRONT I/P SPEAKER (-)
LEFT LIFTGATE FLOOD LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z312 20BK/YL GROUND
1 Z311 20BK/VT GROUND
2- -
3 M11 20YL/VT COURTESY LAMPS DRIVER
LEFT LOW BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L43 16WT LEFT LOW BEAM DRIVER
LEFT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
LEFT PARK LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT)
RS8W-80 CONNECTOR PIN-OUTS8W-80-75
ProCarManuals.com

LEFT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P171 20TN/YL (BUILT-UP-EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 20TN/OR (EXCEPT
BUILT-UP-EXPORT/MEMORY)MIRROR B(+)
3 P114 20TN/WT (EXCEPT
BUILT-UP-EXPORT/MEMORY)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P159 20TN/DG (BUILT-UP-EXPORT/
LHD)DRIVER FOLDING MIRROR FOLD DRIVER
7 P160 20TN/LG (BUILT-UP-EXPORT/
RHD)PASSENGER FOLDING MIRROR RELAY OUTPUT
8 Z215 20BK/LG GROUND
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P73 20TN/VT LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR UP DRIVER
12 P75 20TN/LG LEFT MIRROR LEFT DRIVER
LEFT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 L63 18WT/DG (EXCEPT
BUILT-UP-EXPORT)LEFT REAR TURN SIGNAL DRIVER
1 Z363 18BK/DG (BUILT-UP-EXPORT) GROUND
2 L62 18WT/BR (EXCEPT
BUILT-UP-EXPORT)RIGHT REAR TURN SIGNAL DRIVER
2 L63 18WT/DG (BUILT-UP-EXPORT) LEFT REAR TURN SIGNAL DRIVER
3 L77 18WT/BR (EXCEPT
BUILT-UP-EXPORT)FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L50 18WT/TN (BUILT-UP-EXPORT) BRAKE LAMP SWITCH OUTPUT
4 L1 18WT/LG BACK-UP LAMP DRIVER
5 Z363 18BK/DG (EXCEPT
BUILT-UP-EXPORT)GROUND
5 L38 20WT/YL (BUILT-UP-EXPORT) REAR FOG LAMP SWITCH OUTPUT
6 L50 18WT/TN (EXCEPT
BUILT-UP-EXPORT)PRIMARY BRAKE SWITCH SIGNAL
6 L77 18WT/BR (BUILT-UP-EXPORT) FUSED PARK RELAY OUTPUT (LEFT)
LEFT REAR PILLAR SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X157 20DG LEFT REAR PILLAR SPEAKER (+)
2 X151 20DG/WT LEFT REAR PILLAR SPEAKER (-)
LEFT REAR READING LAMP (LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
8W - 80 - 76 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

LEFT STOP/TURN SIGNAL RELAY (TRAILER TOW) - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 Z1 18BK/DG GROUND
2 Z1 18BK/DG GROUND
3 L73 18YL LEFT STOP SIGNAL
4 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
4 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
5 L615 18OR LEFT COMBINATION SIGNAL
LEFT TURN SIGNAL LAMP (BUILT-UP-EXPORT) - ORANGE 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L61 16YL LEFT FRONT TURN SIGNAL DRIVER
LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMP DRIVER
LICENSE LAMP (MANUAL RELEASE) - DK. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT
2 Z367 20BK/BR GROUND
LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 Z294 20BK/LG GROUND
7 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
8 Z78 20BK/OR GROUND
8W - 80 - 80 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
LIFT PUMP MOTOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N2 18OR LIFT PUMP RELAY OUTPUT
2 Z201 18OR GROUND
LIFTGATE AJAR SWITCH (MANUAL RELEASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
LIFTGATE AJAR SWITCH (POWER RELEASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 P31 20TN/YL LIFTGATE RELEASE DRIVER
4 Z231 20BK/YL GROUND
LIFTGATE CINCH/RELEASE MOTOR (POWER LIFTGATE) - BLUE 7 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
4 Z245 18BK/GY GROUND
5 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
6 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
7 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W-80-81
ProCarManuals.com

LIFTGATE CYLINDER LOCK SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z465 20BK/GY GROUND
2 G165 20VT/GY LIFTGATE CYLINDER LOCK SWITCH MUX
LIFTGATE LEFT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Q76 20OR/LB PINCH SENSOR SIGNAL
LIFTGATE RIGHT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Z78 20BK/OR GROUND
LOW NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z298 18BK/DB GROUND
2 X2 18DG/OR HORN RELAY OUTPUT
MANIFOLD ABSOLUTE PRESSURE SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K1 18VT/BR MANIFOLD ABSOLUTE PRESSURE SENSOR SIGNAL
2 K900 18DB/DG SENSOR GROUND
3 F855 18PK/YL (BUILT-UP-EXPORT) 5 VOLT SUPPLY
3 F855 18OR/PK (EXCEPT
BUILT-UP-EXPORT)5 VOLT SUPPLY
8W - 80 - 82 8W-80 CONNECTOR PIN-OUTSRS
