3-17
AUTO VOL (Automatic Volume): With automatic
volume, your audio system adjusts automatically to
make up for road and wind noise as you drive.
Set the volume at the desired level. Press this button to
select LOW, MEDIUM or HIGH. AVOL will appear on
the display. The volume level should always sound the
same to you as you drive. Each higher volume setting
allows for more volume compensation at faster vehicle
speeds. Then as you drive, automatic volume increases
the volume as necessary to overcome noise at any speed.
NONE will appear on the display if the radio cannot
determine the vehicle speed. If you don't want to use
automatic volume, select OFF.
DISP (Display): Press this knob when the ignition is
off to display the clock.Finding a Station
BAND: Press this button to switch between AM,
FM1 and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK : Press the right or left arrow to seek to
the next or previous station and stay there. The radio
will seek to stations with a strong signal only. The sound
will mute while seeking.
PSCAN (Preset Scan): Press and hold one of
the arrows for more than two seconds and the radio will
produce one beep. The radio will scan to the first preset
station stored on your pushbuttons, play for a few
seconds and flash the station frequency, then go on to
the next preset station. Press one of the arrows or one of
the pushbuttons again to stop scanning. SCAN will be
displayed whenever the tuner is in the preset scan mode.
The channel number (P1 through P6) will appear with
the frequency. In FM mode, this function will scan
through the current band such as FM1 or FM2.
The radio will scan preset stations with a strong
signal only. The sound will mute while scanning.
3-18
Setting Preset Stations
The six numbered pushbuttons let you return to
your favorite stations. You can set up to 18 stations
(six AM, six FM1 and six FM2) by performing the
following steps:
1. Turn the radio on.
2. Press BAND to select AM, FM1 or FM2.
3. Tune in the desired station.
4. Press AUTO TONE to choose the bass and treble
equalization that best suits the type of station you are
listening to.
5. Press and hold one of the six numbered pushbuttons.
The radio will produce one beep. Whenever you
press that numbered pushbutton, the station you set
will return and the bass and treble equalization that
you selected will also be automatically selected for
that pushbutton.
6. Repeat the steps for each pushbutton.Setting the Tone (Bass/Treble)
AUDIO: Push and release the AUDIO knob until
BASS or TREB appears on the display. Turn the knob
clockwise or counterclockwise to increase or decrease.
The display will show the bass or treble level. If a
station is weak or noisy, you may want to decrease
the treble.
To adjust bass and treble to the middle position, push
and hold the AUDIO knob. The radio will produce one
beep and adjust the display level to the middle position.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. You will hear one beep
and the radio will display ALL. The bass and treble will
be adjusted to the middle position.
AUTO TONE: This feature allows you to choose
preset bass and treble equalization settings designed
for country/western, jazz, talk, pop, rock and
classical stations.
Each time you press the AUTO TONE button,
this feature will switch to one of these program types.
To return the bass and treble to the manual mode,
push and release the AUDIO knob until the display
goes blank.
3-20
When you are tuned to an RDS station, the station
name will appear on the display, instead of the
frequency. Most RDS stations provide their station
name, the time of day and a Program Type (PTY) for
their current programming. Some stations also provide
the name of the current program.
Finding RDS Stations
To find RDS stations, perform the following steps:
1. Press the SEEK TYPE button or turn the P
-TYPE
LIST knob to display the program type list.
2. Turn the knob either clockwise or counterclockwise
to select a program type. The list is alphabetical.
If you select ANY TYPE your radio will seek to
the first PTY available.
3. Press the SEEK TYPE button to activate search.
DISP (Display): Press this knob to change what appears
on the display while using RDS. Pressing this knob will
also display an RDS station frequency or program type
when the radio is on. The display options are station
name, station frequency, PTY and the name of the
program (if available). Pressing and holding this knob
will activate the RDS default display.Finding a PTY Preset Station
P
-TYPE LIST (Program Type): Turn this knob
clockwise or counterclockwise to select the Program
Type (PTY) you want to listen to. TYPE and a PTY
will appear on the display. Press the SEEK TYPE button
and the radio will seek to the first RDS broadcaster of
the selected program type. If the radio cannot find the
desired program type, NONE will appear on the display
and the radio will return to the last station you were
listening to.
BAND (Alternate Frequency): Alternate frequency
allows the radio to switch to a stronger station with
the same program type. Press and hold BAND for
two seconds to turn alternate frequency on. AF ON will
appear on the display. The radio may switch to stronger
stations. Press and hold BAND again for two seconds
to turn alternate frequency off. AF OFF will appear
on the display. The radio will not switch to other
stations. When you turn the ignition off and then on
again, the alternate frequency feature will automatically
be turned on.

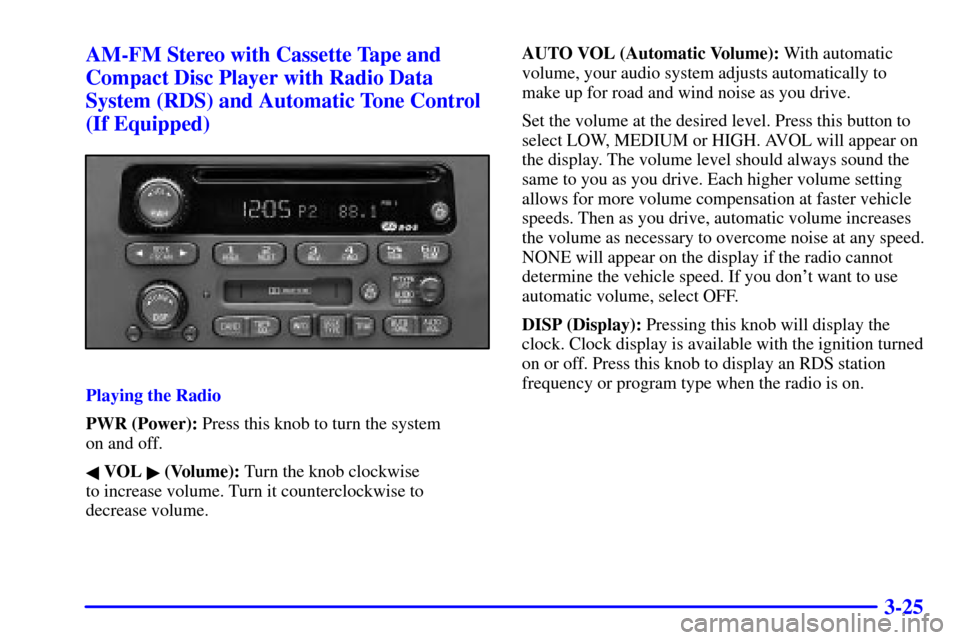

3-25 AM-FM Stereo with Cassette Tape and
Compact Disc Player with Radio Data
System (RDS) and Automatic Tone Control
(If Equipped)
Playing the Radio
PWR (Power): Press this knob to turn the system
on and off.
VOL (Volume): Turn the knob clockwise
to increase volume. Turn it counterclockwise to
decrease volume.AUTO VOL (Automatic Volume): With automatic
volume, your audio system adjusts automatically to
make up for road and wind noise as you drive.
Set the volume at the desired level. Press this button to
select LOW, MEDIUM or HIGH. AVOL will appear on
the display. The volume level should always sound the
same to you as you drive. Each higher volume setting
allows for more volume compensation at faster vehicle
speeds. Then as you drive, automatic volume increases
the volume as necessary to overcome noise at any speed.
NONE will appear on the display if the radio cannot
determine the vehicle speed. If you don't want to use
automatic volume, select OFF.
DISP (Display): Pressing this knob will display the
clock. Clock display is available with the ignition turned
on or off. Press this knob to display an RDS station
frequency or program type when the radio is on.
3-27
Setting the Tone (Bass/Treble)
AUDIO: Push and release the AUDIO knob until BASS
or TREB appears on the display. Turn the knob clockwise
or counterclockwise to increase or decrease. The display
will show the bass or treble level. If a station is weak or
noisy, you may want to decrease the treble.
To adjust bass and treble to the middle position, push
and hold the AUDIO knob. The radio will produce one
beep and adjust the display level to the middle position.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. The radio will produce
one beep and display ALL with the level display in the
middle position.
AUTO TONE (Automatic): This feature allows
you to choose bass and treble equalization settings
designed for country/western, jazz, talk, pop, rock and
classical stations.
Each time you press the AUTO TONE button, this
feature will change to one of the preset equalization
settings previously listed.
To return the bass and treble to the manual mode,
push and release the AUDIO knob until MANUAL
is displayed.Adjusting the Speakers (Balance/Fade)
AUDIO: To adjust the balance between the right
and left speakers, push and release the AUDIO knob
until BAL appears on the display. Turn the knob
clockwise to move the sound to the right speakers and
counterclockwise to move the sound to the left speakers.
To adjust the fade between the front and rear speakers,
push and release the AUDIO knob until FADE appears
on the display. Turn the knob clockwise to move the
sound to the front speakers and counterclockwise to
move the sound to the rear speakers.
The middle position balances the sound between the
speakers. To adjust the balance and fade to the middle
position, push the AUDIO knob then push it again and
hold it until you hear one beep. The balance and fade
will be adjusted to the middle position and the display
will show the speaker balance.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. The radio will produce
one beep and display ALL with the level display in the
middle position.
3-33
SEEK : The right arrow is the same as the
NEXT pushbutton, and the left arrow is the same as the
PREV pushbutton. If the arrows are held or pressed
more than once, the player will continue moving
forward or backward through the tape. SEEK and a
positive or negative number will appear on the display.
BAND: Press this button to listen to the radio when
a tape is playing. The tape will stop but remain in
the player.
TAPE CD: Press this button to play a tape when
listening to the radio. Press TAPE CD to switch
between the tape and compact disc if both are loaded.
The inactive tape or CD will remain safely inside the
radio for future listening.
EJT (Eject): Press this button, located to the right
of the cassette tape slot, to stop a tape when it is playing
or to eject a tape when it is not playing. Eject may be
activated with the radio off. Cassette tapes may be
loaded with the radio off if this button is pressed first.Cassette Tape Messages
CHK TAPE (Check Tape): If this message appears on
the radio display, the tape won't play because of one of
the following errors.
The tape is tight and the player can't turn the tape
hubs. Remove the tape. Hold the tape with the
open end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape over
and repeat. If the hubs do not turn easily, your tape
may be damaged and should not be used in the
player. Try a new tape to make sure your player is
working properly.
The tape is broken. Try a new tape.
The tape is wrapped around the tape head.
Attempt to get the cassette out. Try a new tape.
CLEAN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index.
If any error occurs repeatedly or if an error can't be
corrected, contact your dealer.
