2002 CHEVROLET ASTRO CARGO VAN Owners Manual

1-2
Seats and Seat Controls
This section tells you about the seats -- how to adjust
them, take them out and put them back in. It also tells
you about bucket and bench seats, power seats and
head restraints.
Manual Front Seats
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
Two-Way Front Seat
The bucket seats can
be adjusted forward or
rearward using the lever
located under the front
of the seat.
Move the seat adjustment lever located under the front
of the seat toward the outboard side of the seat to unlock
it. Slide the seat to where you want it. Then release the
lever and try to move the seat with your body, to make
sure that the seat is locked into place.

1-3 Manual Lumbar Support (If Equipped)
If your vehicle has this feature, there will be a knob
located on the inboard side of the driver's and
passenger's bucket seats.
Turn the knob toward the front of the vehicle to increase
lumbar support. Turn the knob toward the rear of the
vehicle to decrease lumbar support.
Power Seat (If Equipped)
If your vehicle has this feature, there will be a control
pad located on the inboard side of the driver's seat.
To raise or lower the front of the seat cushion, raise or
lower the lever located toward the front of the vehicle.
To raise or lower the rear of the seat cushion, raise or
lower the lever located toward the rear of the vehicle.
To move the entire seat backwards, forward, or up or
down, move the center knob.

1-4 Reclining Seatbacks
There is a lever located on the inside of the seat to adjust
the seatback.
You can adjust the seatback
by lifting the lever and
leaning back. Release the
lever to lock the seatback
where you want it. Pull up
on the lever, lean forward
and the seatback will go to
an upright position.
But don't have a seatback reclined if your vehicle
is moving.

1-5

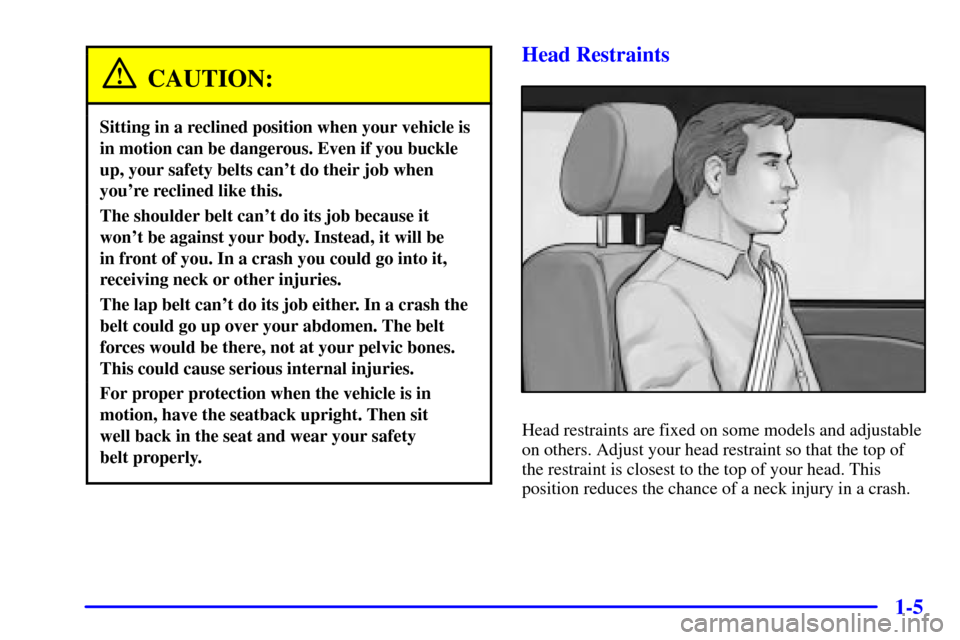

CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Head Restraints
Head restraints are fixed on some models and adjustable
on others. Adjust your head restraint so that the top of
the restraint is closest to the top of your head. This
position reduces the chance of a neck injury in a crash.

1-6 Seatback Latches
The seatback lever is
located on the right rear
of your seat.
To fold your non-touring
bench seatback forward,
pull up on the latch release
lever while pulling the
seatback toward the rear
of the vehicle.After the latch has been released, push the seatback
toward the front of the vehicle until it locks into place.
To raise the seatback, unlock the seatback latch by
pushing up on the lever while pushing down on the
upper edge of the seatback. Move the seatback into the
upright position. Make sure the seatback is locked when
it is back in the upright position.
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.

1-7 Rear Seats
Bucket Seats (If Equipped)
Your vehicle may have rear bucket seats with an
adjustment release bar located under the front of the
seats. These seats can be adjusted forward or rearward
with the release bar. Pull the release bar up to release the
seat bottom. Slide the seat where you want it and then
let go of the release bar. Then try to move the seat with
your body to make sure the seat is locked into place.Bench Seats
Each bench seat can carry up to three passengers.
They can also be removed to increase storage space.
The center bench and rear bench seats can be
adjusted forward or rearward using the lever at the
front of the seat.
Move the seat adjustment
lever located at the front
of the seat toward the
passenger's side to unlock
it. Slide the seat to where
you want it. Then release
the lever and try to move
the seat with your body, to
make sure the seat is locked
into place.
The center bench seat has a pivoting right armrest.
The optional bench seats come with moveable armrests,
individual reclining seatbacks, adjustable headrests and
a fold
-down center armrest console.

1-8
To adjust your seatback, pull up on the lever located on
the outboard side of the seat cushion.
To raise or lower the
center console, press the
button located between the
beverage holders. Sit in the
center seating position only
when the console is in an
upright and locked position.
For details about headrests, see ªHead Restraintsº in
this section.

1-9
Removing the Rear Seats
To remove the rear seats, do the following:
1. If you are removing the
center seat, remove the
right lap
-shoulder belt.
To do this, press the tip
of a key into the release
hole of the safety belt
attachment while pulling
up on the safety belt.
2. If you have a safety
belt guide on your seat,
pull the safety belt all
the way out through
the guide.
3. To store the safety belt while the second row bench
seat is removed, pull the belt out and put both
buckles in the passenger's side rear storage bin.
Route the belt out of the forward edge of the storage
bin. Close the cover to retain the belt.
4. Pull up on the seatback latch on the right rear of the
seat. Push the seatback down until it locks into place.
