2002 CADILLAC SEVILLE engine

2-36

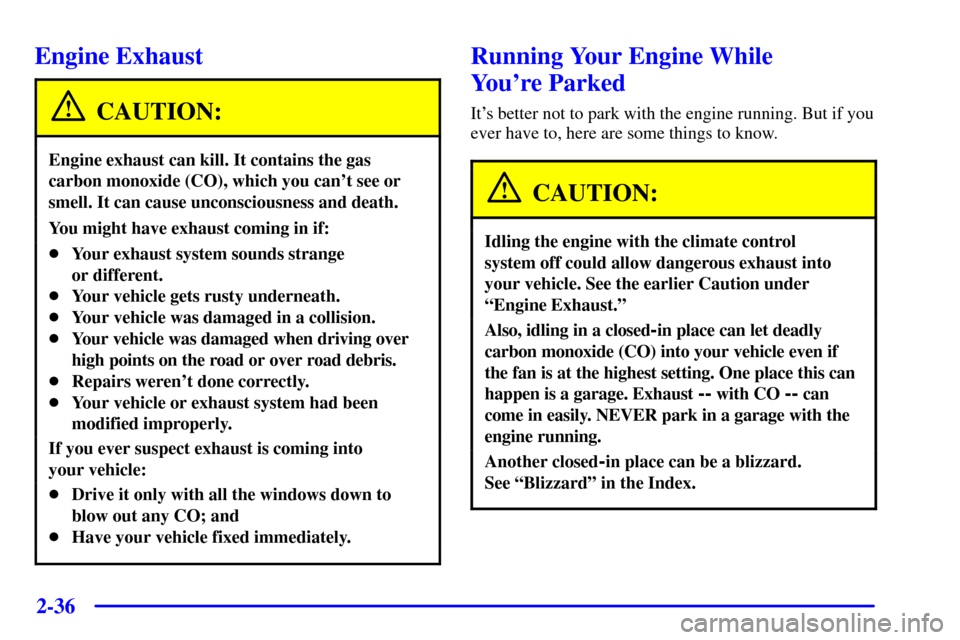

Engine Exhaust
CAUTION:
Engine exhaust can kill. It contains the gas
carbon monoxide (CO), which you can't see or
smell. It can cause unconsciousness and death.
You might have exhaust coming in if:

Your exhaust system sounds strange
or different.

Your vehicle gets rusty underneath.

Your vehicle was damaged in a collision.

Your vehicle was damaged when driving over
high points on the road or over road debris.

Repairs weren't done correctly.

Your vehicle or exhaust system had been
modified improperly.
If you ever suspect exhaust is coming into
your vehicle:

Drive it only with all the windows down to
blow out any CO; and

Have your vehicle fixed immediately.
Running Your Engine While
You're Parked
It's better not to park with the engine running. But if you
ever have to, here are some things to know.
CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust into
your vehicle. See the earlier Caution under
ªEngine Exhaust.º
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the fan is at the highest setting. One place this can
happen is a garage. Exhaust
-- with CO -- can
come in easily. NEVER park in a garage with the
engine running.
Another closed-in place can be a blizzard.
See ªBlizzardº in the Index.

2-37

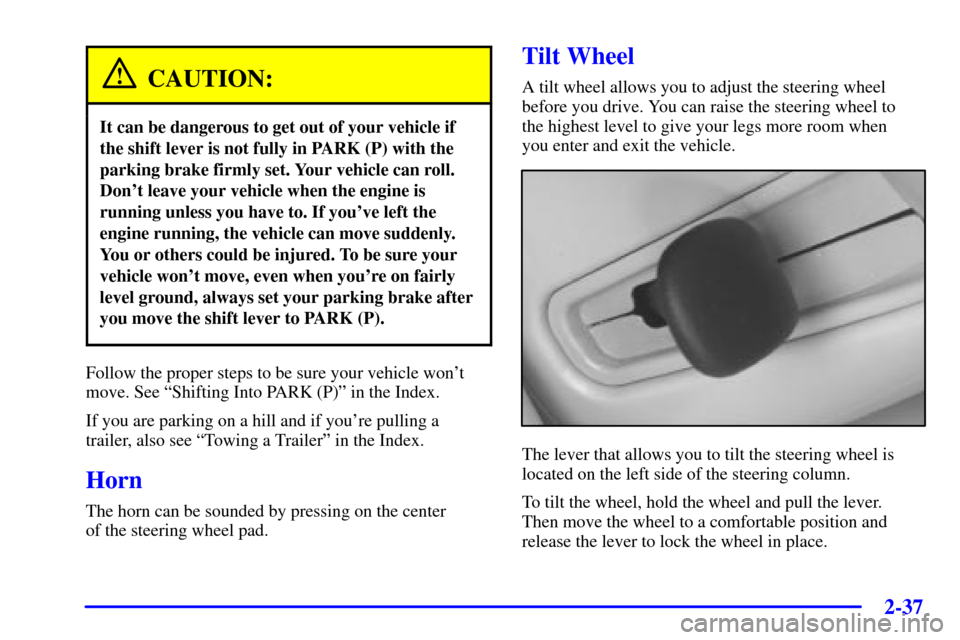

CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you've left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake after
you move the shift lever to PARK (P).
Follow the proper steps to be sure your vehicle won't
move. See ªShifting Into PARK (P)º in the Index.
If you are parking on a hill and if you're pulling a
trailer, also see ªTowing a Trailerº in the Index.
Horn
The horn can be sounded by pressing on the center
of the steering wheel pad.
Tilt Wheel
A tilt wheel allows you to adjust the steering wheel
before you drive. You can raise the steering wheel to
the highest level to give your legs more room when
you enter and exit the vehicle.
The lever that allows you to tilt the steering wheel is
located on the left side of the steering column.
To tilt the wheel, hold the wheel and pull the lever.
Then move the wheel to a comfortable position and
release the lever to lock the wheel in place.

2-47
: Turning the control to this position turns on
the parking lamps together with the following:

Sidemarker Lamps

Taillamps

License Plate Lamps

Instrument Panel Lights
The parking brake indicator light will come on and stay
on when the parking lamps are on with the engine off
and the ignition in ACC or ON.
: Turning the control to this position turns on the
headlamps, together with the previously listed lamps
and lights.
Your vehicle may be equipped with High Intensity
Discharge (HID) headlamps. These headlamps come
on at a lower intensity and gradually increase to
full brightness.Wiper
-Activated Headlamps
This feature activates the headlamps and parking
lamps after the windshield wipers have been in use for
approximately six seconds. To operate, the Twilight
Sentinel
 feature must be turned on. See ªTwilight
Sentinelº in the Index for more information.
When the exterior lamp control is in the off or in the
parking lamp position and the wiper control is on INT,
LO or HI, the HEADLAMPS SUGGESTED message
will appear on the Driver Information Center (DIC).
When the ignition is turned to OFF, the wiper
-activated
headlamps will immediately turn off. The wiper
-activated
headlamps will also turn off if the Twilight Sentinel or
the windshield wipers are turned off.
Lamps On Reminder
A warning chime will sound if the exterior lamp
control is left on in either the headlamp or parking
lamp position and the driver's door is opened with the
ignition off.

2-52 Illuminated Entry
The illuminated entry system turns on the courtesy
lamps and the backlighting to the door switches and to
the exterior lamp control when a door is opened or if
you press the remote keyless entry transmitter unlock
button. If activated due to the transmitter, the lighting
will remain active for about 40 seconds. Since the
illuminated entry system uses the light sensor, it must be
dark outside in order for the courtesy lamps to turn on.
The courtesy lamps turn off approximately 25 seconds
after the last door is closed. They will dim to off if the
ignition key is placed in ON, or immediately deactivate
if the power locks are activated.
Parade Dimming
This feature prohibits dimming of the digital displays
and backlighting during daylight hours when the key is
in the ignition and the headlamps are on. This feature
operates with the light sensor for the Twilight Sentinel
and is fully automatic. When the light sensor reads
darkness outside and the parking lamps are active,
the digital displays can be adjusted by turning the
instrument panel brightness knob counterclockwise
to dim and clockwise to brighten lighting.
Reading Lamps
The front reading lamps are located in the overhead
console. These lamps and the interior courtesy lamps
come on when a door is opened and it is dark outside.
The rear reading lamps will not come on when a front
door is opened.
The rear courtesy lamps are located on the rear headliner
above the rear seat outboard positions. When a rear door
is opened, both the front and rear reading lamps come
on with the courtesy lamps.
Press the button near each lamp to turn it on and off.
If the reading lamps are left on, they automatically shut
off 10 minutes after the ignition has been turned off.
Battery Load Management
The battery load management feature is designed to
monitor the vehicle's electrical load and determine
when the battery is in a heavy discharge condition.
During times of high electrical loading, the engine
may idle at a higher revolutions per minute (rpm)
setting than normal to make sure the battery charges.
High electrical loads may occur when several of the
following are on: headlamps, high beams, fog lamps,
rear window defogger, the climate control fan at high
speeds, heated seats and engine cooling fans.

2-53
If the battery continues to discharge, even with the
engine idling at a higher rpm setting, some electrical
loads will automatically be reduced. When this occurs,
the rear window defogger may take slightly longer
to clear the glass, the heated seats may not get as
warm as they usually do and the fan may cut back to
a lower speed. For more battery saving information,
see ªBattery Message, Saver Activeº in the Index.
Inadvertent Power Battery Saver
This feature is designed to protect your vehicle's battery
against drainage from the interior lamps, trunk lamp,
glove box lamp, cigarette lighters or the garage door
opener. When the ignition is turned off, the power to
these features will automatically turn off after 10 minutes
(three minutes if a new car has 15 miles (24 km) or less).
Power will be restored for an additional 10 minutes if any
door is opened, the trunk is opened or the courtesy lamp
switch is turned on.
Mirrors
Electrochromic Day/Night Rearview Mirror
with Compass and OnStar
System
Your vehicle has an electrochromic inside rearview
mirror with a compass display. The mirror also contains
OnStar

controls. For more information see ªOnStarº
in the Index.
(On/Off): The on/off button is located on the
lower left side of the mirror for the electrochromic and
compass functions of the rearview mirror.

2-64
Roadside Assistance with Location: For vehicle
breakdowns, press the OnStar Services button.
An advisor will contact the appropriate help.
Remote Diagnostics: If an instrument panel light comes
on, press the OnStar Services button. An advisor can
perform a check of the engine on
-board computer,
and recommend what action needs to be taken.
OnStar MED
-NET: Med-Net can store your personal
medical history and provide it to emergency personnel
if necessary. (Requires activation and additional fee).
Accident Assist: An advisor can provide step
-by-step
guidance following an accident.
Remote Door Unlock: To contact the center, call
1
-888-4-ONSTAR. You will be required to provide your
security information. An advisor will send a command
to your vehicle to unlock itself. The advisor can delay
unlocking your vehicle. Remote Door Unlock is
disabled 48 hours after the vehicle is parked to maintain
the battery charge.
Vehicle Locator Service: To contact the center, call
1
-888-4-ONSTAR. You will be required to provide your
security information. An advisor will send a command
to your vehicle to sound the horn and/or flash the lamps.Route Support: An advisor can provide directions or
guidance to most places you want to go. In addition,
they can help you locate gas stations, rest areas, ATMs,
hospitals, hotels, stores, eateries and more.
Ride Assist: An advisor can locate transportation in the
event that you are unable to drive.
Concierge Services: The concierge advisor can obtain
tickets, reservations, or help with vacation/trip planning
and other unique items and services.
OnStar System Limitations
Complete limitations can be found on the Subscriber
Services Agreement.
In order to provide you with excellent service, calls with
the OnStar Center may be monitored or recorded.
OnStar service is:

available in the 48 contiguous United States, Alaska,
Hawaii and Canada;

available when the vehicle is within the operating
range of a cellular provider;

subject to limitations caused by atmospheric
conditions, such as severe weather or topographical
conditions, such as mountainous terrain;

subject to cellular carrier equipment limitations.

2-67
HomeLink
Transmitter (If Equipped)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of
the device.Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the HomeLink Transmitter
Do not use the HomeLink Transmitter with any garage
door opener that does not have the ªstop and reverseº
feature. This includes any garage door opener model
manufactured before April 1, 1982.
Be sure that people and objects are clear of the garage
door you are programming.
It is recommended that a new battery be installed in
your hand
-held transmitter for quicker and more
accurate transmission of the radio frequency.
Your vehicle's engine should be turned off while
programming the transmitter. Follow these steps
to program up to three channels:
1. Decide which one of the three channels
(one of the HomeLink buttons) you want
to program.
2. Press and hold the desired button on HomeLink
through Step 3.

2-74
Display Mode
This button is located
between the RESET
TRIP A/B button and the
ENG/MET button to the
left of the steering wheel
on the instrument panel.
Press DSPL MODE to turn the backlighting and the
digital speed image on and off.English/Metric DisplayBy pressing this button
located to the left of
the steering wheel on
the instrument panel,
you can go back and
forth from English (miles)
to metric (kilometers).
Other readings such as temperature, fuel and trip odometer
also go back and forth between English and metric.
Vehicle Speed Limiter
This feature prevents your vehicle from exceeding
speeds that the tires are not rated for. When this
happens, the engine's fuel supply is shut off.
When the vehicle speed slows, the fuel supply will
come on again.
