2002 CADILLAC ESCALADE EXT key

2-50
Automatic Headlamp System
When it is dark enough outside, your automatic
headlamp system will turn on your headlamps at the
normal brightness along with other lamps such as the
taillamps, sidemarker, parking lamps and the instrument
panel lights. The radio lights will also be dim.
Your vehicle is equipped with a light sensor on the top
of the instrument panel under the radio speaker grill.
Be sure it is not covered or the system will be on
whenever the ignition is on.
The system may also turn on your headlamps when
driving through a parking garage, heavy overcast
weather or a tunnel. This is normal.
There is a delay in the transition between the daytime
and nighttime operation of the Daytime Running Lamps
(DRL) and the automatic headlamp systems so that
driving under bridges or bright overhead street lights
does not affect the system. The DRL and automatic
headlamp system will only be affected when the light
sensor sees a change in lighting lasting longer than
the delay.
To idle your vehicle with the automatic headlamp
system off, set the parking brake while the ignition is
off. Then start your vehicle. The automatic headlamp
system will stay off until you release the parking brake.As with any vehicle, you should turn on the regular
headlamp system when you need it.
You may be able to turn off your automatic headlamp
system. See ªDaytime Running Lamps (DRL)º later in
this section for more information.
Lamps On Reminder
A reminder chime will sound when your headlamps or
parking lamps are manually turned on, the driver's
door is opened and your ignition is in OFF, LOCK or
ACCESSORY. To turn the chime off, turn the
exterior lamps control all the way to the left or turn the
instrument panel thumbwheel down to the fully dimmed
position. In the automatic mode, the headlamps turn off
once the ignition key is in OFF.
Puddle Lamps
Your vehicle is equipped with puddle lamps to help you
see the area near the base of the front doors when it is
dark out. The puddle lamps will illuminate when a door
is opened or when you press the UNLOCK button on the
keyless entry transmitter. The lamps will time out or
turn off once the engine is started.
You can program the puddle lamps not to come on if
you choose. See ªSecondary Information Centerº in the
Index for more information.

2-53
Cargo Lamps
You can use the cargo lamps if you need more light in
the cargo area of your vehicle or in the Top
-Box
Storage units.
Press this button, located
on the instrument panel to
turn the cargo lamps on.
Press the button again to
turn it off.
A message in the message
center will come on and
display CARGO LAMP ON
when the cargo lamps are
turned on and the ignition
key is turned to RUN.
Interior Lamps
Instrument Panel Brightness Control
The instrument panel intensity control is located to the
right of the exterior lamps knob.
Turn the thumbwheel up or down to brighten or dim
the instrument panel lights. To turn on the dome lamps
(with the vehicle doors closed) turn the thumbwheel all
the way up.
Exit Lighting
With exit lighting, the interior lamps will come on when
you remove the key from the ignition. The lights will
not come on if the DOME OVERRIDE button is
pressed in.
Illuminated Entry
Your vehicle is equipped with an illuminated
entry feature.
When the doors are opened, the dome lamps will come
on if the DOME OVERRIDE button is in the out
position. If the DOME OVERRIDE button is pressed in,
the lamps will not come on.

2-62
Storage Compartments
Glove Box
To open your glove box, pull the lever upward and pull
the door downward.
Center Console Storage Area
Your vehicle has a console compartment between the
bucket seats.
To open it, insert the console key into the lock and
unlock the console (if it is locked). Press the button and
swing the console lid open.
To access the cell phone storage area, press the button
on the front of the console. An access lid will pop up.
To store a cell phone, place it inside the net on the inside
of the access lid.
The rear of the console also has a cupholder that swings
down for the rear seat passengers to use.

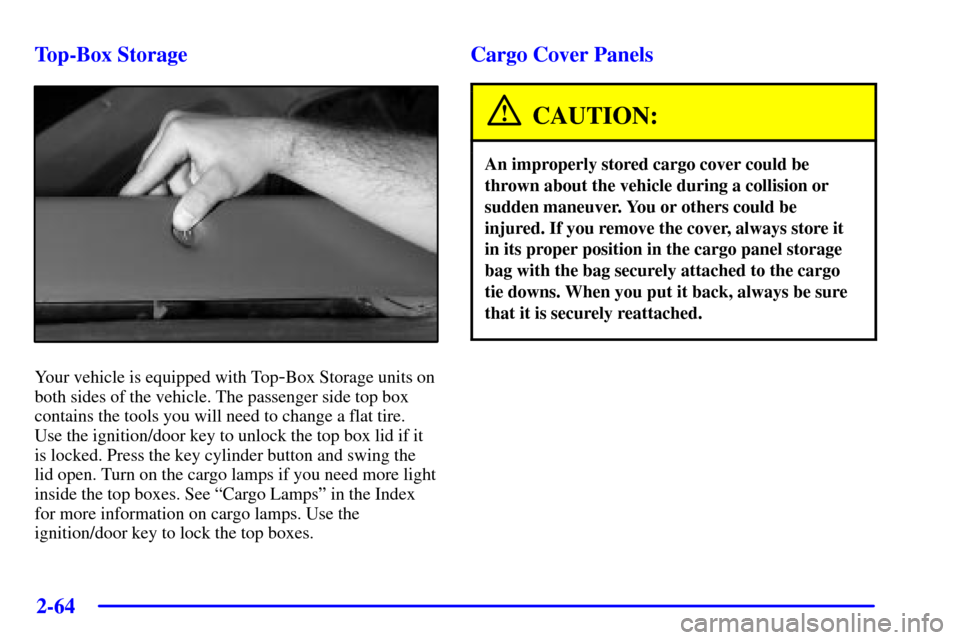

2-64
Top-Box Storage
Your vehicle is equipped with Top-Box Storage units on
both sides of the vehicle. The passenger side top box
contains the tools you will need to change a flat tire.
Use the ignition/door key to unlock the top box lid if it
is locked. Press the key cylinder button and swing the
lid open. Turn on the cargo lamps if you need more light
inside the top boxes. See ªCargo Lampsº in the Index
for more information on cargo lamps. Use the
ignition/door key to lock the top boxes.
Cargo Cover Panels
CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store it
in its proper position in the cargo panel storage
bag with the bag securely attached to the cargo
tie downs. When you put it back, always be sure
that it is securely reattached.

2-65
NOTICE:
The cargo covers are designed to support 250 lbs.
(113 kg) each on top of them. Exceeding the
weight limit can damage the cargo covers.
This damage would not be covered by your
vehicle's warranty.
Your vehicle is equipped with a three-piece cargo cover
system. The cargo panels can be removed and stored in the
cargo area of the vehicle with the cargo panel storage bag.
To remove a cargo panel(s), do the following:
1. Lower the tailgate. Use the ignition/door key to
unlock the tailgate if it is locked. See ªTailgateº in
the Index for more information on the tailgate.
Before removing the cargo panel(s), notice the
numbers embossed on the upper center portion of
each panel. The panels are labeled 1, 2 and 3. There
are also numbered labels on the bottom of the panels.
The numbers on the top and bottom of the panels
will be used as reference when removing, storing and
reinstalling the panels.

2-96
Warning Lights, Gages and
Indicators
This part describes the warning lights and gages on your
vehicle. The pictures will help you locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle's functions. As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they're working. If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one of your vehicle's functions. Often gages and
warning lights work together to let you know when
there's a problem with your vehicle.When one of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow this manual's advice.
Waiting to do repairs can be costly
-- and even
dangerous. So please get to know your warning lights
and gages. They're a big help.
Your vehicle also has a message center that works along
with the warning lights and gages. See ªMessage
Centerº in the Index.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for several seconds to remind people to fasten
their safety belts, unless the driver's safety belt is
already buckled.
The safety belt light will
also come on and stay on
for several seconds, then it
will flash for several more.
If the driver's belt is already buckled, neither the chime
nor the light will come on.

2-97
Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows the air bag symbol. The system
checks the air bag's electrical system for malfunctions.
The light tells you if there is an electrical problem. The
system check includes the air bag sensors, the air bag
modules, the wiring, the passenger air bag suppression
circuit and the crash sensing and diagnostic module. For
more information on the air bag system, see ªAir Bagº
in the Index.
This light will come on
when you start your vehicle,
and it will flash for a few
seconds. Then the light
should go out. This means
the system is ready.
If the air bag readiness light stays on after you start the
vehicle or comes on when you are driving, your air bag
system may not work properly. Have your vehicle
serviced right away.
CAUTION:
If the air bag readiness light stays on after you
start your vehicle, it means the air bag system
may not be working properly. The air bags in
your vehicle may not inflate in a crash, or they
could even inflate without a crash. To help avoid
injury to yourself or others, have your vehicle
serviced right away if the air bag readiness light
stays on after you start your vehicle.
The air bag readiness light should flash for a few
seconds when you turn the ignition key to RUN. If the
light doesn't come on then, have it fixed so it will be
ready to warn you if there is a problem.

2-99
Brake System Warning Light
With the ignition on, the brake system warning light
will flash when you set the parking brake. The light will
flash if the parking brake doesn't release fully. If you
try to drive with the parking brake engaged, a chime
will sound when the vehicle speed is greater than
3 mph (5 km/h).
Your vehicle's hydraulic brake system is divided into
two parts. If one part isn't working, the other part can
still work and stop you. For good braking, though,
you need both parts working well.
If the warning light comes on, there could be a brake
problem. Have your brake system inspected right away.
United States CanadaThis light should come on briefly when you turn the
ignition key to RUN. If it doesn't come on then,
have it fixed so it will be ready to warn you if there's
a problem.
If the light comes on while you are driving, pull off the
road and stop carefully. You may notice that the pedal is
harder to push. Or, the pedal may go closer to the floor.
It may take longer to stop. If the light is still on, have the
vehicle towed for service. See ªTowing Your Vehicleº in
the Index.
CAUTION:
Your brake system may not be working properly
if the brake system warning light is on. Driving
with the brake system warning light on can lead
to an accident. If the light is still on after you've
pulled off the road and stopped carefully, have
the vehicle towed for service.
