2-78
3. When the HomeLink indicator light begins to blink
slowly (this may take up to 30 seconds), hold the
hand
-held transmitter about 1 to 3 inches (3 to 8 cm)
away from HomeLink and then press and hold the
transmit button on the hand
-held transmitter.
Continue to hold both buttons until the indicator
light on HomeLink begins to flash rapidly (this may
take up to 90 seconds).
If you have trouble programming the HomeLink, make
sure that you have followed the directions exactly as
described and that the battery in the hand
-held
transmitter is not weak. If you still cannot program it,
move the hand
-held transmitter to the left or right or
forward or backward or flip it upside down. HomeLink
may not work with older garage door openers that do
not meet current Federal Consumer Safety Standards.
If you cannot program the transmitter after repeated
attempts, refer to ªTraining a Garage Door Opener with
a `Rolling Code' Featureº next in this section or contact
the manufacturer of HomeLink at 1
-800-355-3515, or
on the internet at www.homelink.com.
Be sure to keep the original hand
-held transmitter in
case you need to erase and reprogram HomeLink.
Training a Garage Door Opener with a
ªRolling Codeº Feature (If Equipped)
If you have not previously programmed the hand-held
transmitter to HomeLink, see ªProgramming the
HomeLink Transmitterº listed previously. If you have
completed this programming already, you now need to
train the garage door opener motor head unit to
recognize HomeLink.
1. Find the ªLearnº or ªSmartº button on the garage
door opener motor head unit. The exact location and
color will vary by garage door opener brand. If you
have difficulty finding the Learn or Smart button,
refer to your garage door opener owner's manual or
contact the manufacturer of HomeLink at
1
-800-355-3515, or on the internet at
www.homelink.com. Because of the steps involved,
it may be helpful to have another person assist in
programming the transmitter.
2. Press the Learn or Smart button on the garage
door opener motor head unit. An indicator light will
begin to flash when the motor head unit enters the
training mode.
Following this step, you have 30 seconds to
start Step 3.

2-106
When the ignition is turned to ON or START, the DIC
will display the following:
BUICK: BUICK will be displayed for three seconds.
DRIVER #: This message will be displayed for another
three seconds after BUICK appears in the display. This
display lets the driver know which driver's remote
keyless entry transmitter is being used and the driver's
customization features.
The DIC controls are
located to the left of the
steering column on the
instrument panel.
The DIC will be in the last mode displayed when the
engine was turned off. To select a different mode, press
MODE. The display will cycle through its options at
each press of MODE.MODE: This button lets you cycle through the options
on the display.
SET: This button is used to select and set the options to
your preference.
Driver Information Center (DIC) Messages
The DIC will always display the compass reading and
the outside temperature. If the temperature is below
38
F (3
C), the temperature reading will toggle
between displaying the temperature and the word ICE
for two minutes.
AVG ECONOMY: Average fuel economy is viewed as
a long term approximation of your overall driving
conditions. To learn the average fuel economy from a
new starting point, press and hold the SET button while
the average fuel economy is displayed on the DIC. The
average fuel economy will set to zero.
INST ECONOMY: Instantaneous fuel economy varies
with your driving conditions, such as acceleration,
braking and the grade of the road being traveled.

2-107
FUEL RANGE: The fuel range is an estimated
distance that your vehicle can travel on the remaining
fuel. The fuel economy used to calculate the range is
based on your driving history since the last reset of the
average speed.
FUEL USED: The fuel used display will show you how
much fuel has been used since the last time it was reset.
To reset the fuel used to zero, press and hold the SET
button while the fuel used is displayed on the DIC and
until the display goes to zero.
AVG SPEED: The average speed display will show you
your average speed from when you first started your
vehicle. To reset the average speed, press and hold the
SET button while the average speed is displayed on the
DIC and until the speed resets to your current speed.
OIL LIFE LEFT HOLD SET TO RESET: This
message displays the current percentage of the GM Oil
Life System
. Be careful not to reset this display other
than when the oil has been changed. See ªHow to Reset
the Change Engine Oil Messageº in the Index.TIRE PRESSURE: The check tire pressure system can
alert you to a large change in the pressure of one tire.
The system will not alert you before you drive that a tire
is low or flat. You must begin driving before the system
will work properly. See ªCheck Tire Pressure Systemº
in the Index.
USE SET TO SELECT ENGLISH METRIC: Yo u
can use this display to select English or metric. Press the
SET button to toggle between English or metric. The
DIC, the odometer, the trip odometer and if your vehicle
has the optional head
-up display will change.
OFF: No driver information will be displayed in this
mode. If the DIC is left in this mode for more than three
seconds, the display will turn off. Press the MODE
button to start the DIC.

2-108

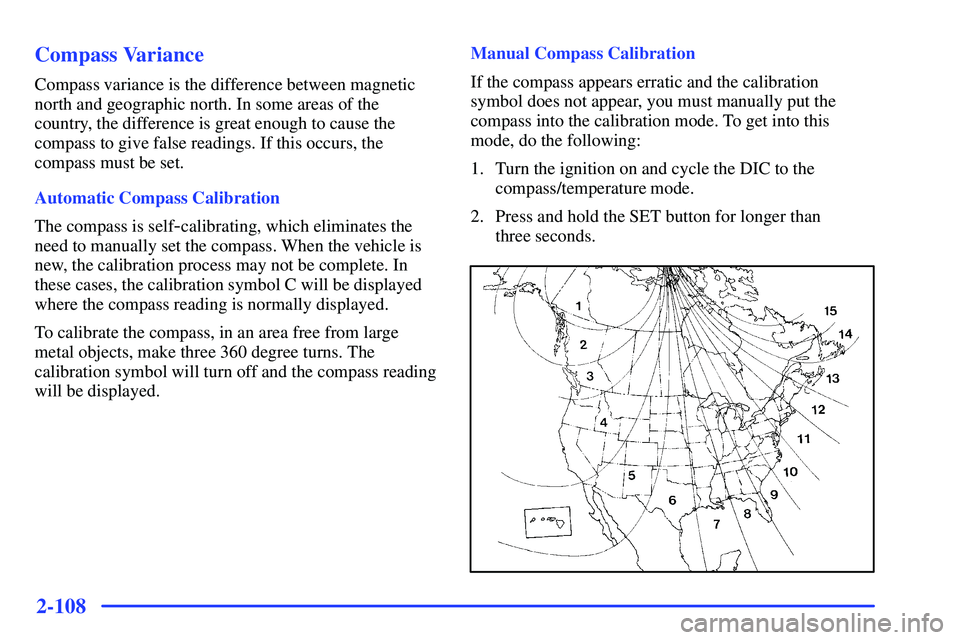

Compass Variance
Compass variance is the difference between magnetic
north and geographic north. In some areas of the
country, the difference is great enough to cause the
compass to give false readings. If this occurs, the
compass must be set.
Automatic Compass Calibration
The compass is self
-calibrating, which eliminates the
need to manually set the compass. When the vehicle is
new, the calibration process may not be complete. In
these cases, the calibration symbol C will be displayed
where the compass reading is normally displayed.
To calibrate the compass, in an area free from large
metal objects, make three 360 degree turns. The
calibration symbol will turn off and the compass reading
will be displayed.Manual Compass Calibration
If the compass appears erratic and the calibration
symbol does not appear, you must manually put the
compass into the calibration mode. To get into this
mode, do the following:
1. Turn the ignition on and cycle the DIC to the
compass/temperature mode.
2. Press and hold the SET button for longer than
three seconds.

2-109
ZONE # PRESS & HOLD SET TO CHANGE: This
display mode will be displayed when you are manually
calibrating the system. The current zone number for
compass variance will be displayed in place of the
# symbol. Use the SET button to select the zone number
from the graphic shown to select the current area of the
country that you are driving in.
PRESS SET TO CALIBRATE COMPASS: After
selecting your zone, press the MODE button and this
will be displayed on the DIC. Press the SET button and
complete three 360 degree turns in an area free from
large metal objects.
The following two messages will toggle in the display
until you calibrate the compass:

DRIVE VEHICLE IN CIRCLE

CALIBRATING COMPASS
When calibration is complete, the display will return to
its normal mode.Driver Information Center (DIC)
Vehicle Customization
The DIC is used to program the choices of two drivers.
The drivers are recognized as DRIVER 1 and
DRIVER 2 in the DIC display. You will let the DIC
know which driver you are by using your remote keyless
entry transmitter. Each remote keyless entry transmitter
was pre
-programmed to belong to DRIVER 1 or
DRIVER 2. Each transmitter may be programmed
differently for each driver's preferences.
After you press the LOCK button on your transmitter
and the ignition key is in ON, the DIC will display the
identified driver number. The vehicle will also recall the
vehicle customization features that were last
programmed to correspond to your transmitter.
If you unlock your vehicle using your key instead of
your transmitter, the DIC will not change drivers and
your vehicle will recall the information from the last
transmitter used.

2-111
Headlamp Exit Delay
This feature allows you to customize the headlamps and
parking lamps. This feature can be programmed to one
of the following modes:
OFF: The headlamps and parking lamps will not turn on
at the same instant that the ignition is turned to OFF.
15: The headlamps and parking lamps will stay on for
15 seconds when the ignition is turned to OFF.
30: The headlamps and parking lamps will stay on for
30 seconds when the ignition is turned to OFF.
60: The headlamps and parking lamps will stay on for
60 seconds when the ignition is turned to OFF.Before your vehicle was shipped from the factory, it
was programmed in 30
-second activation mode. The
mode to which the vehicle has been programmed
may have been changed since it left the factory.
To determine the mode to which your vehicle is
programmed or to program your vehicle to a different
mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press the MODE button until HEADLMP EXIT
DELAY appears in the DIC.
3. Press the SET button until the arrow is before the
mode you prefer.
The mode you selected is now set. You can either exit
programming mode by following the instructions later in
this section or program the next feature available on
your vehicle.

2-112
Interior Lighting Delay
The interior lighting delay feature can be programmed
to one of the following modes:
ON: Continue to illuminate the interior lamps for
25 seconds after all doors have been closed so that
you can find your ignition and buckle your safety belt
at night.
Interior lighting delay will not occur while the ignition
is in ON. After 25 seconds have passed, the interior
lamps will slowly fade out. The lamps will fade out
before the 25 seconds have passed if the following
conditions are met:

The ignition is turned to ON,

all doors are locked using the optional remote
keyless entry transmitter, or

there is no occupant activity detected for an
illumination period of 25 seconds.
OFF: The interior will not illuminate your vehicle when
all of the doors are closed.Before your vehicle was shipped from the factory, it was
programmed in ON. The mode to which the vehicle has
been programmed may have been changed since it left
the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press the MODE button until INTERIOR
LIGHTING DELAY appears on the DIC.
3. Press the SET button until the arrow is before ON
or OFF.
The mode you selected is now set. You can either exit
programming mode by following the instructions later in
this section or program the next feature available on
your vehicle.

2-113
Interior Lighting On
The interior lighting on feature can be programmed to
one of the following modes:
KEY OUT: The interior lamps will come on for
about 25 seconds whenever you remove the key from
the ignition.
DOOR: The interior lamps will come on for about
25 seconds when any door is opened.
Interior lighting on will not occur while the ignition is in
ON. After 25 seconds have passed, the interior lamps
will slowly fade out. The lamps will fade out before the
25 seconds have passed if the following conditions
are met:

The ignition is turned to ON,

LOCK is pressed on the optional remote keyless
entry transmitter, or

there is no occupant activity detected for an
illumination period of 25 seconds.Before your vehicle was shipped from the factory, it was
programmed in DOOR. The mode to which the vehicle
has been programmed may have been changed since it
left the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press the MODE button until INTERIOR
LIGHTING ON appears on the DIC.
3. Press the SET button until the arrow is before KEY
OUT or DOOR.
The mode you selected is now set. You can either exit
programming mode by following the instructions later in
this section or program the next feature available on
your vehicle.
