2002 BMW MOTORRAD R 1150 RT check engine light

i
2
Introduction
General information and con-
trols
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6
Telltale and warning lights ..... 7
Ignition switch and steering
lock .................................... 8-9
Left handlebar fitting ........... 10
Right handlebar fitting ......... 11
Seats ............................. 12-13
System case .................. 14-15
Adjusting the windshield ..... 16
Hazard warning flashers ...... 17Safety check
Checklist ........................ 18-19
Engine oil ....................... 20-21
Fuel ................................ 22-23
Handlebar levers ............ 24-25
Brake system
- general ........................ 26-27
- with BMW Integral
ABS ............................ 28-31
Clutch ................................. 32
Lights ............................. 33-35
Shock absorbers ................ 36
Suspension spring
preload ............................... 37
Wheels ........................... 38-39
Loads............................. 40-41
Contents
10r22bkg3.book Seite 2 Freitag, 27. Januar 2006 12:43 12

2
19
Safety check

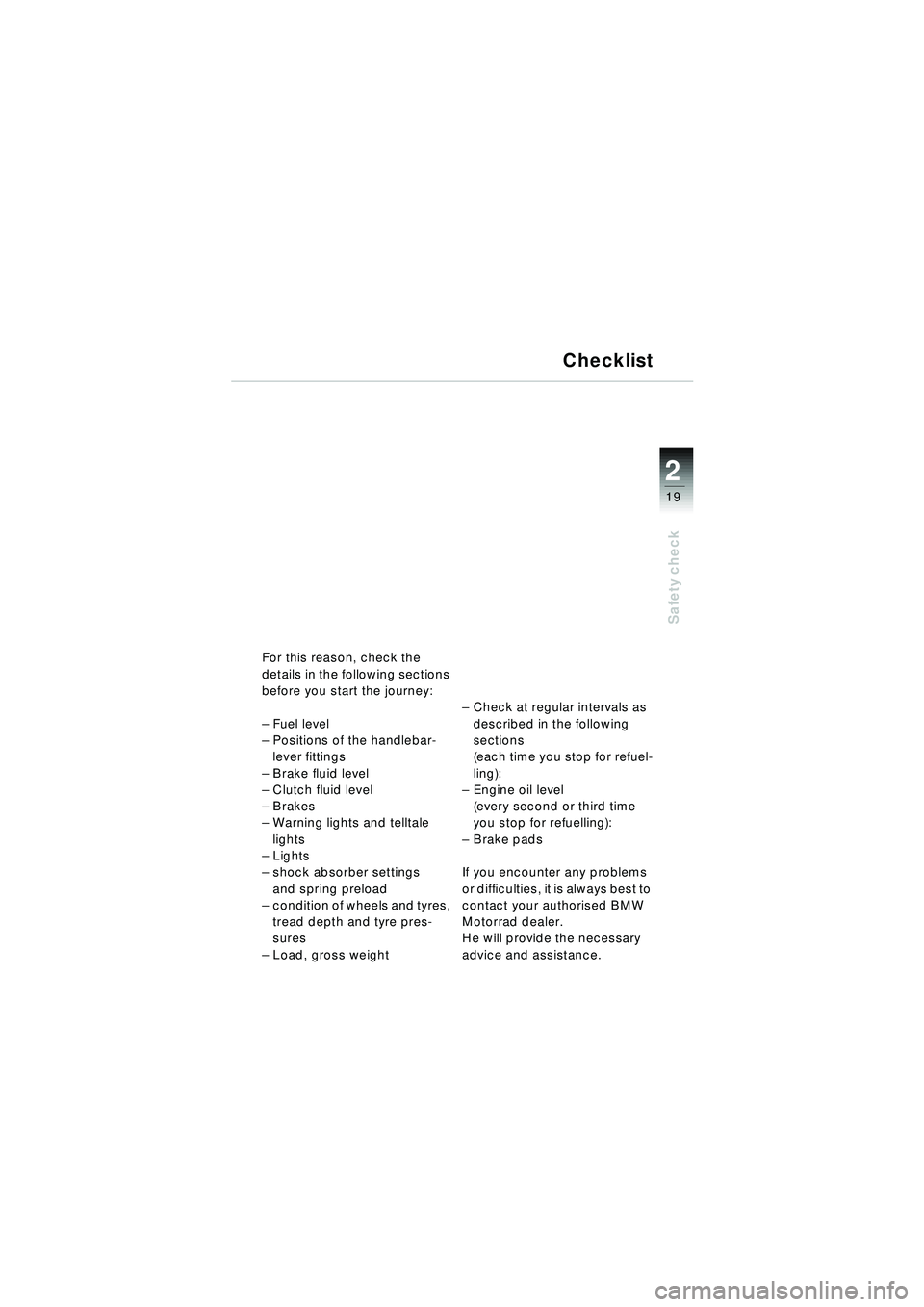

For this reason, check the
details in the following sections
before you start the journey:
–Fuel level
– Positions of the handlebar-
lever fittings
– Brake fluid level
– Clutch fluid level
– Brakes
– Warning lights and telltale
lights
– Lights
– shock absorber settings
and spring preload
– condition of wheels and tyres,
tread depth and tyre pres-
sures
– Load, gross weight –
Check at regular intervals as
described in the following
sections
(each time you stop for refuel-
ling):
– Engine oil level
(every second or third time
you stop for refuelling):
– Brake pads
If you encounter any problems
or difficulties, it is always best to
contact your authorised BMW
Motorrad dealer.
He will provide the necessary
advice and assistance.
Checklist
10r22bkg3.book Seite 19 Freitag, 27. Januar 2006 12:43 12

2
21
Safety check
1
MAXMIN
2
Engine oil

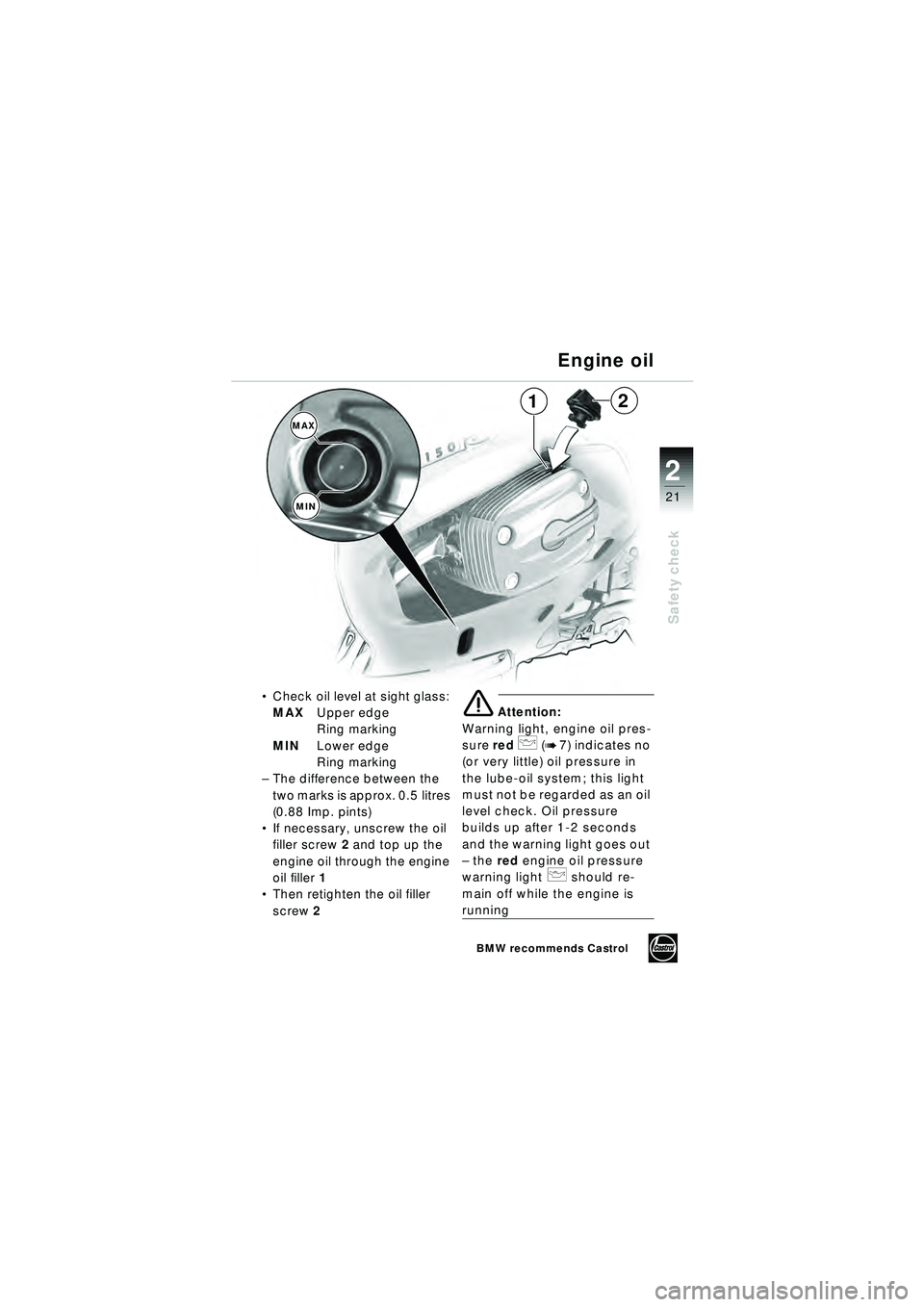

Check oil level at sight glass:
MAX Upper edge
Ring marking
MIN Lower edge
Ring marking
– The difference between the
two marks is approx. 0.5 litres
(0.88 Imp. pints)
 If necessary, unscrew the oil
filler screw 2 and top up the
engine oil through the engine
oil filler 1
 Then retighten the oil filler
screw 2
e Attention:
Warning light, engine oil pres-
sure red
p\b(b 7)\bindicates no
(or very little) oil pressure in
the lube-oil system; this light
m u s t n o t b e r e g a r d e d a s a n o i l
level check. Oil pressure
builds up after 1-2 seconds
and the warning light goes out
– the redengine oil pressure
warning light
p should re-
main off while the engine is
running
BMW recommends Castrol
10r22bkg3.book Seite 21 Freitag, 27. Januar 2006 12:43 12

3
57
Starting – Riding – Parking
5

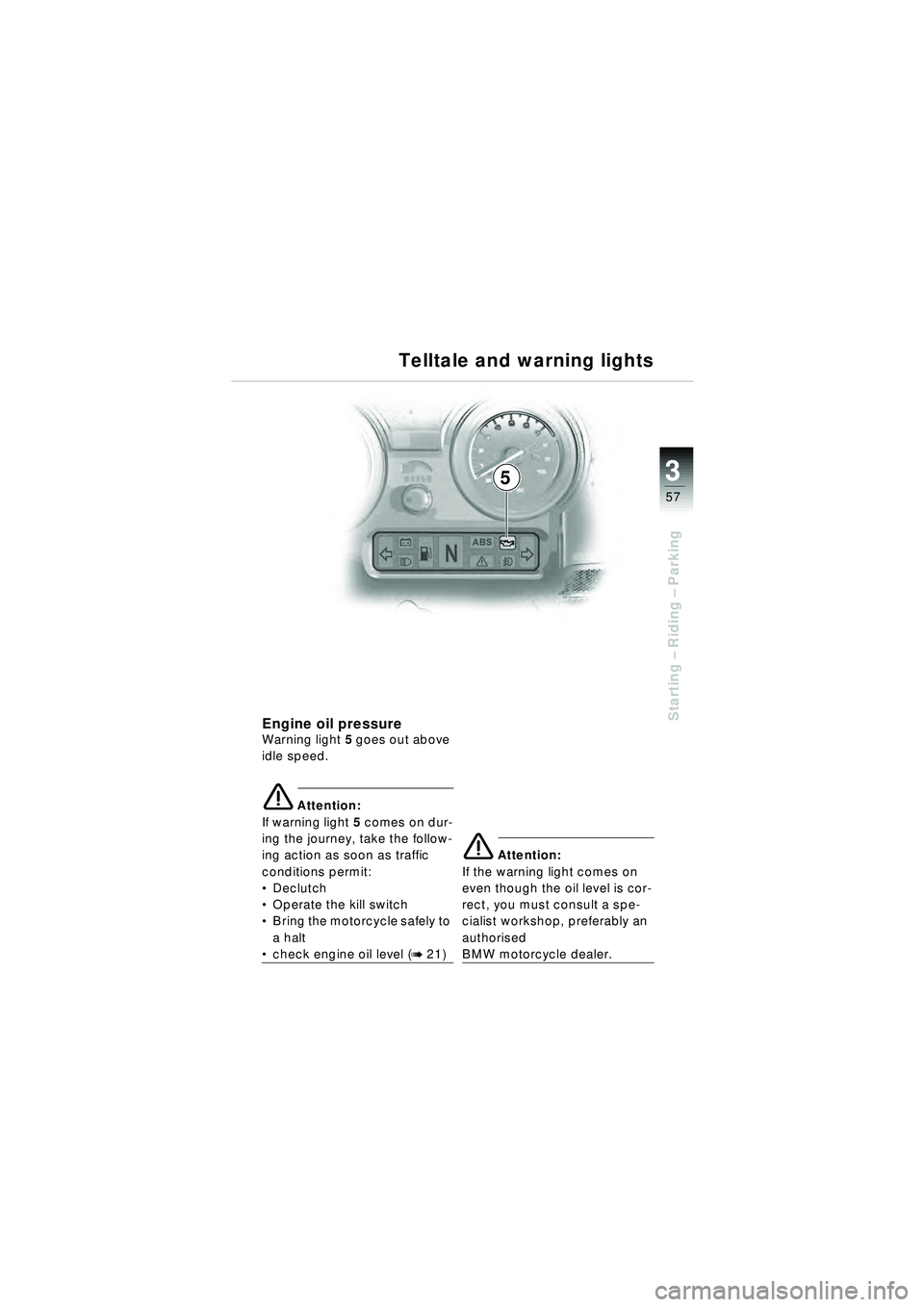

Engine oil pressureWarning light 5 goes out above
idle speed.
e Attention:
If warning light 5 comes on dur-
ing the journey, take the follow-
ing action as soon as traffic
conditions permit:
 Declutch
 Operate the kill switch
 Bring the motorcycle safely to
a halt
check engine oil level (b 21)
e Attention:
If the warning light comes on
even though the oil level is cor-
rect, you must consult a spe-
cialist workshop, preferably an
authorised
BMW motorcycle dealer.
Telltale and warning lights
10r22bkg3.book Seite 57 Freitag, 27. Januar 2006 12:43 12

80
Index
i

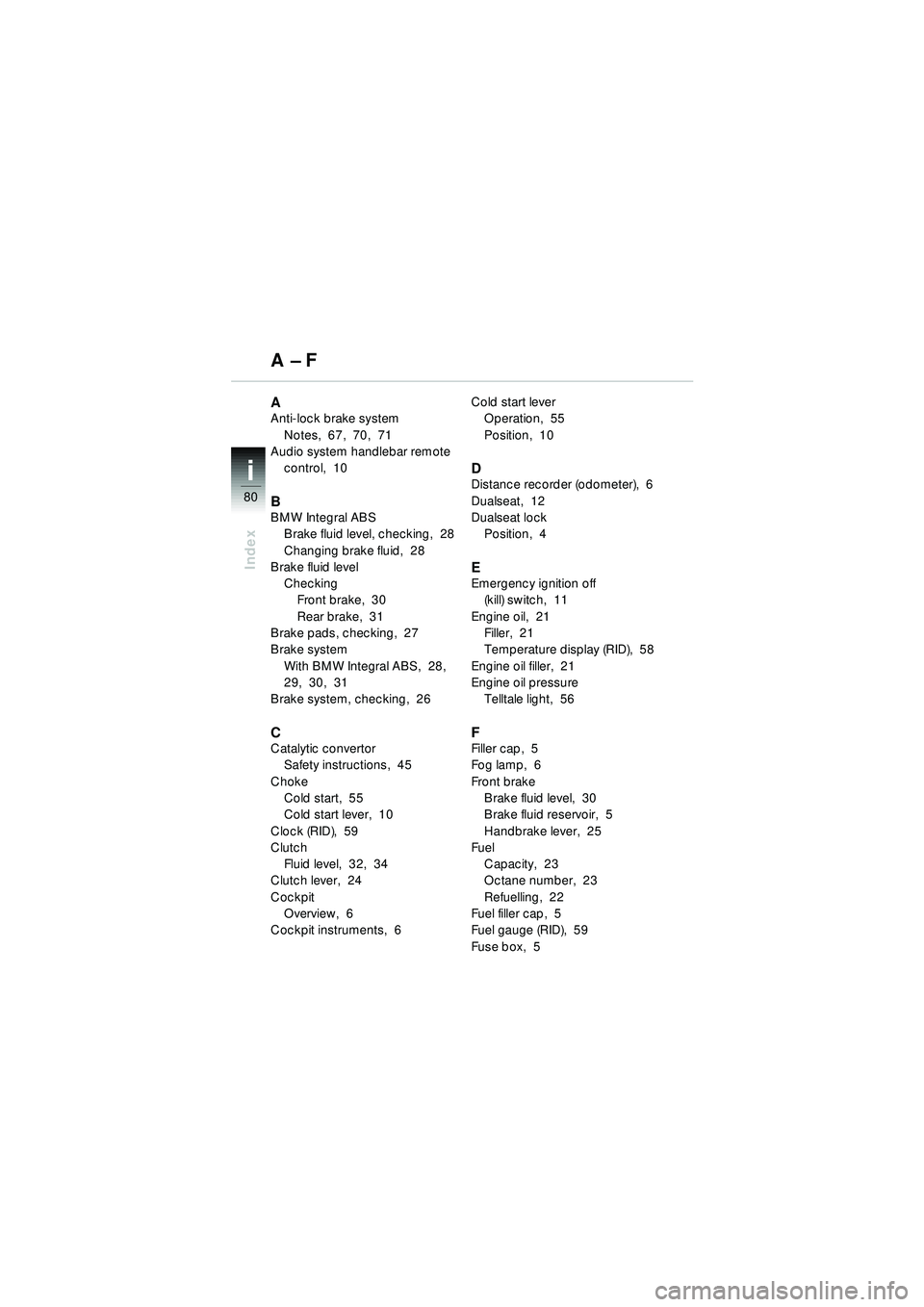

AAnti-lock brake systemNotes, 67, 70, 71
Audio system handlebar remote
control, 10
BBMW Integral ABSBrake fluid level, checking, 28
Changing brake fluid, 28
Brake fluid level
CheckingFront brake, 30
Rear brake, 31
Brake pads, checking, 27
Brake system With BMW Integral ABS, 28,
29, 30, 31
Brake system, checking, 26
CCatalytic convertor Safety instructions, 45
Choke Cold start, 55
Cold start lever, 10
Clock (RID), 59
Clutch Fluid level, 32, 34
Clutch lever, 24
Cockpit
Overview, 6
Cockpit instruments, 6 Cold start lever
Operation, 55
Position, 10
DDistance recorder (odometer), 6
Dualseat, 12
Dualseat lockPosition, 4
EEmergency ignition off(kill) switch, 11
Engine oil, 21 Filler, 21
Temperature display (RID), 58
Engine oil filler, 21
Engine oil pressure Telltale light, 56
FFiller cap, 5
Fog lamp, 6
Front brakeBrake fluid level, 30
Brake fluid reservoir, 5
Handbrake lever, 25
Fuel
Capacity, 23
Octane number, 23
Refuelling, 22
Fuel filler cap, 5
Fuel gauge (RID), 59
Fuse box, 5
