2002 BMW MOTORRAD R 1100 S ignition

i
Introduction
12
2
12
i
General information and
controls
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6
Telltale and warning lights ..... 7
Ignition switch and
steering lock ...................... 8-9
Handlebar fittings ........... 10-11
Hazard warning flashers ...... 12
Dualseat cover ............... 13-14
Dualseat ......................... 15-16
System case .................. 17-19 Safety check
Checklist ........................ 20-21
Engine oil ...................... 22-23
Fuel ................................ 24-25
Handlebar levers ............ 26-27
Brake system - general.... 28-29
Brake system - without
BMW Integral ABS ......... 30-32
Brake system - with
BMW Integral ABS ......... 33-36
Clutch ................................ 37
Lights ............................ 38-39
Shock absorbers ........... 40-41
Suspension spring
preload ............................... 42
Wheels ........................... 43-44
Accessories and
loads ............................. 45-46
Contents
10sbkg6.bk.fm Seite 2 Montag, 23. Januar 2006 4:27 16

11
6
General information and controls
12356
79
4
8
1Telltale and warning lights (b 7)
2 Speedometer
3 Odometer
4 Trip meter
5 Trip meter reset knob
6 Rev. counter (
b 56) 7
Warning light, fuel level/with
approx. 5 litres (1.1 Imp. gal) in
reserve yellow
m
(
b 25, 63)
8 Warning light, engine oil pressure
red
p (b 63)
9 Ignition switch and steering lock
(
b 8)
( ) Figures in brackets bpage number for
description
Cockpit
10sbkg6.bk.fm Seite 6 Montag, 23. Januar 2006 4:27 16

11
8
General information and controls
Vehicle keysYou will receive two master
keys and one spare key.
The key number is on the
accompanying plastic tag.
OAOptional accessories
OEOptional extra
L Note:
The ignition switch and steering lock,
fuel filler cap and the helmet/seat lock
are all operated with the same key.
System cases
OA with locks for the
same key can be ordered on request.
d Warning:
If the motorcycle is fitted with
BMW Integral ABS
OE, only RE-
SIDUAL BRAKING FUNCTION-
ALITY is available when the
ignition is switched off (b 71)
Ignition switch and steering lock
10sbkg6.bk.fm Seite 8 Montag, 23. Januar 2006 4:27 16

11
9
General information and controls
Ignition switch and steering lock
Key positions
d Warning:
Never turn the key to OFF or
I while riding the
motorcycle!
ON Operating position,
ignition, ligh ts and all
electrical circuits
switched on
R * Ignition and lights off,
steering lock disengaged
(handlebars can be turned
freely to left or right)
* The key can be removed in these
positions
• Turn the handlebars to full left lock.
e Attention:
Engage the steer ing lock with
the handlebars in this position
only.
OFF* Ignition and lights off,
steering locked
I**Parking light on,
steering locked
L Note:
Switch the parking light on
only for limited periods. Note
state of battery charge.
10sbkg6.bk.fm Seite 9 Montag, 23. Januar 2006 4:27 16

11
11
General information and controls
7
B
C
A
68
910
C
B
d Warning:
To prevent air from entering
the brake circuit: do not turn
the fitting on the handlebars.

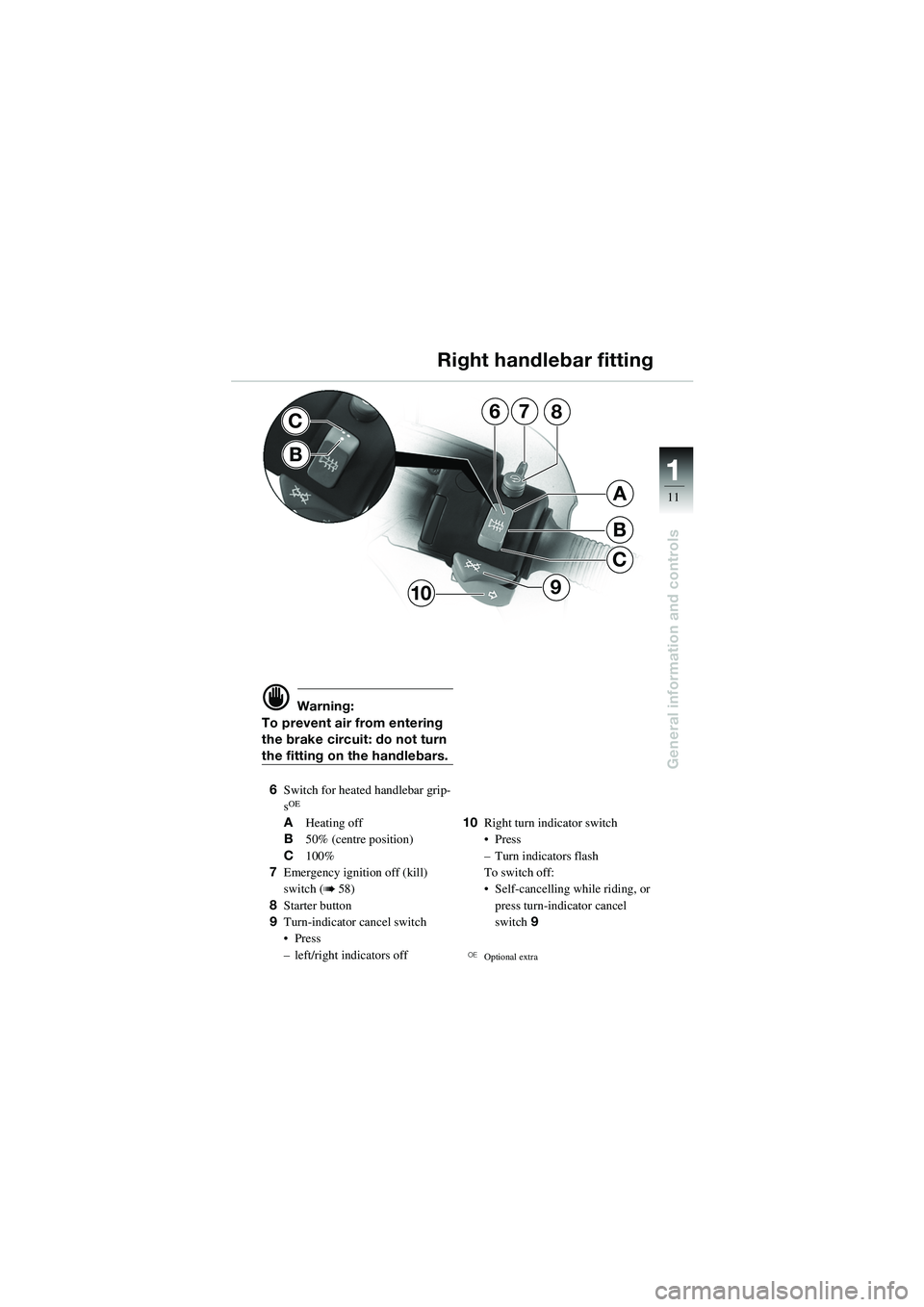

6 Switch for heated handlebar grip-
s
OE
A Heating off
B 50% (centre position)
C 100%
7 Emergency ignition off (kill)
switch (
b 58)
8 Starter button
9 Turn-indicator cancel switch
•Press
– left/right indicators off 10
Right turn indicator switch
•Press
– Turn indicators flash
To switch off:
• Self-cancelling while riding, or
press turn-indicator cancel
switch 9
OEOptional extra
Right handlebar fitting
10sbkg6.bk.fm Seite 11 Montag, 23. Januar 2006 4:27 16

11
12
General information and controls
1

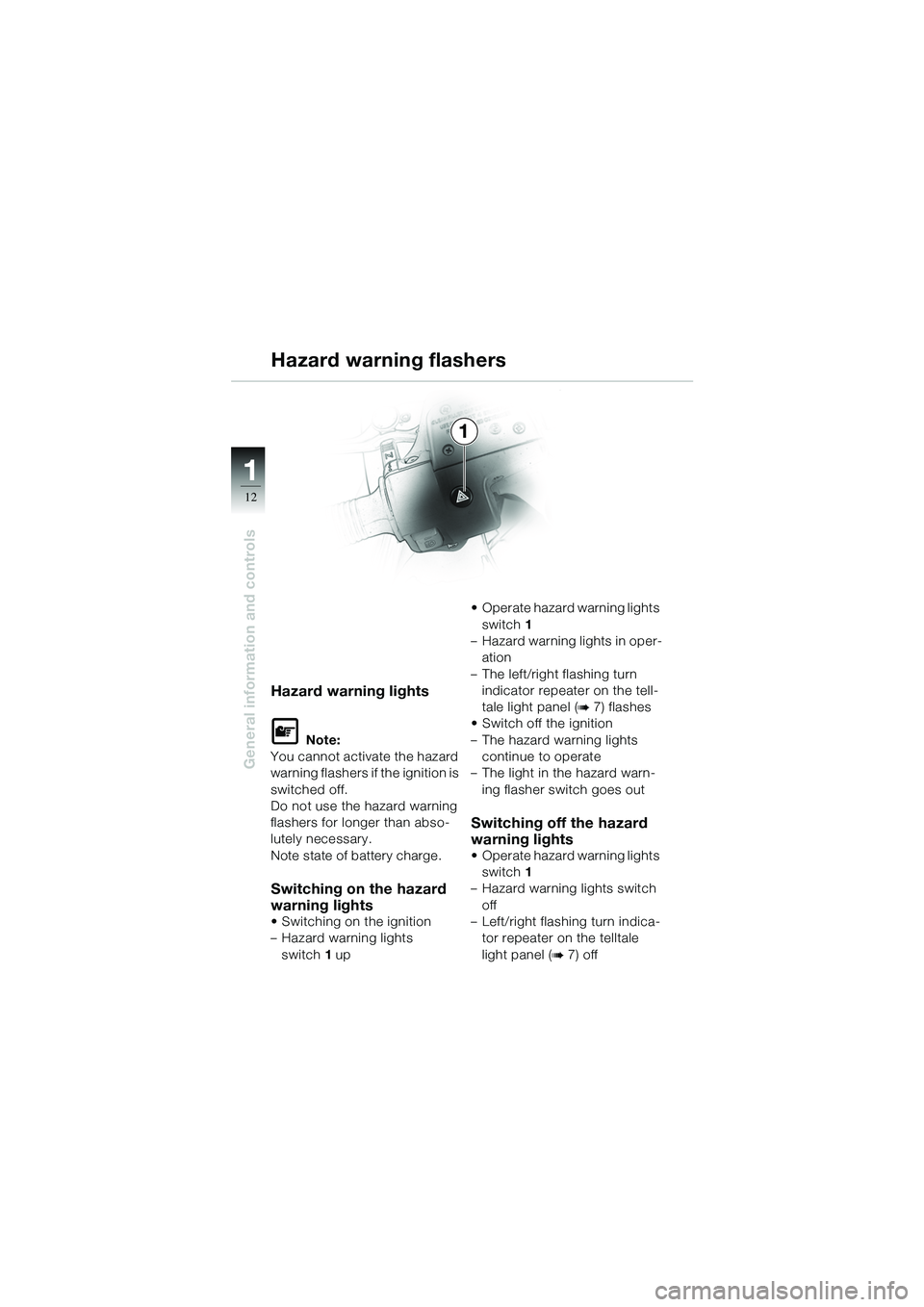

Hazard warning lights
L Note:
You cannot activate the hazard
warning flashers if the ignition is
switched off.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note state of battery charge.
Switching on the hazard
warning lights
• Switching on the ignition
– Hazard warning lights switch 1 up • Operate hazard warning lights
switch 1
– Hazard warning lights in oper- ation
– The left/right flashing turn indicator repeater on the tell-
tale light panel (
b 7) flashes
• Switch off the ignition
– The hazard warning lights
continue to operate
– The light in the hazard warn- ing flasher switch goes out
Switching off the hazard
warning lights
• Operate hazard warning lights switch 1
– Hazard warning lights switch off
– Left/right flashing turn indica- tor repeater on the telltale
light panel (
b 7) off
Hazard warning flashers
10sbkg6.bk.fm Seite 12 Montag, 23. Januar 2006 4:27 16

2
25

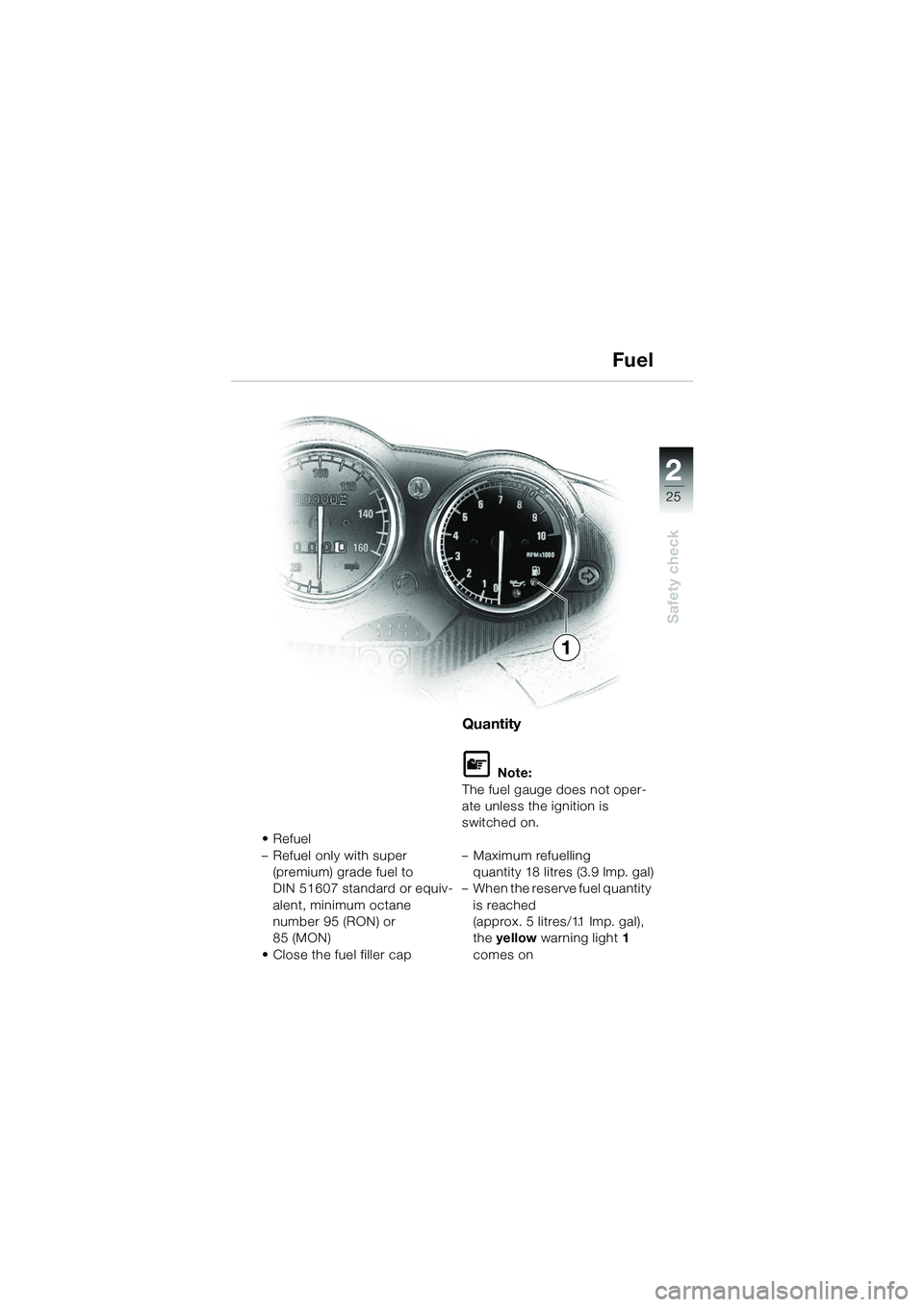

Safety check
1
•Refuel
– Refuel only with super (premium) grade fuel to
DIN 51607 standard or equiv-
alent, minimum octane
number 95 (RON) or
85 (MON)
• Close the fuel filler cap
Quantity
L Note:
The fuel gauge does not oper-
ate unless the ignition is
switched on.
–Maximum refuelling quantity 18 litres (3.9 Imp. gal)
– When the reserve fuel quantity is reached
(approx. 5 litres/1. 1 Imp. gal),
the yellow warning light 1
comes on
Fuel
10sbkg6.bk.fm Seite 25 Montag, 23. Januar 2006 4:27 16

2
34
Safety check
2

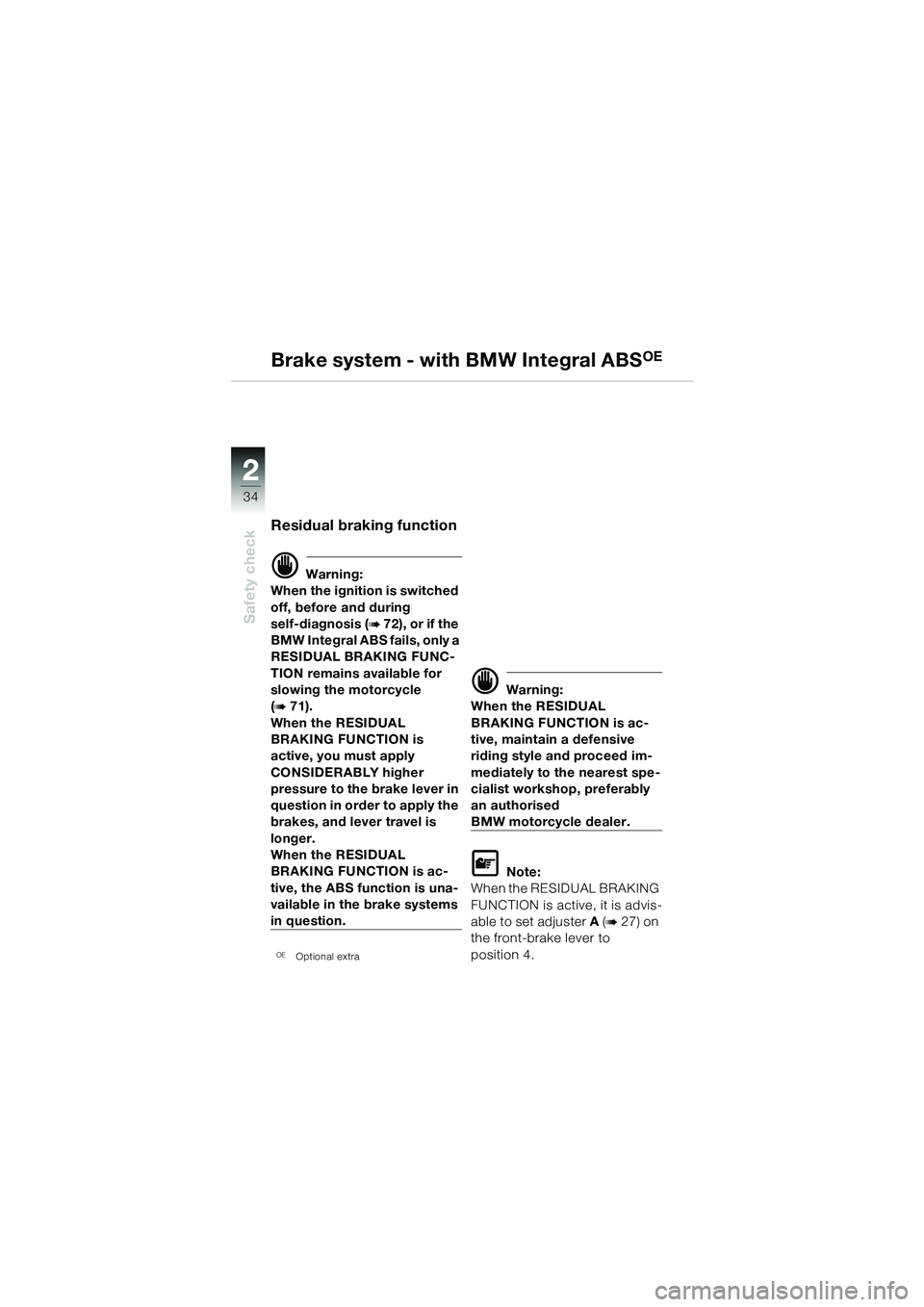

Brake system - with BMW Integral ABSOE
Residual braking function
d Warning:
When the ignition is switched
off, before and during
self-diagnosis (
b 72), or if the
BMW Integral ABS fails, only a
RESIDUAL BRAKING FUNC-
TION remains available for
slowing the motorcycle
(
b 71).
When the RESIDUAL
BRAKING FUNCTION is
active, you must apply
CONSIDERABLY higher
pressure to the brake lever in
question in order to apply the
brakes, and lever travel is
longer.
When the RESIDUAL
BRAKING FUNCTION is ac-
tive, the ABS function is una-
vailable in the brake systems
in question.
OE Optional extra
d Warning:
When the RESIDUAL
BRAKING FUNCTION is ac-
tive, maintain a defensive
riding style and proceed im-
mediately to the nearest spe-
cialist workshop, preferably
an authorised
BMW motorcycle dealer.
L Note:
When the RESIDUAL BRAKING
FUNCTION is active, it is advis-
able to set adjuster A (
b 27) on
the front-brake lever to
position 4.
10sbkg6.bk.fm Seite 34 Montag, 23. Januar 2006 4:27 16
