2002 Acura RL audio

To store a f requency:Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each Preset
button.
Use the TUNE or SEEK f unction
to tune the radio to a desired
station.
Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM.
Once a station’s f requency is stored,
simply press and release the proper
Preset button to tune to it.
The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed. 1.
2.
3.
4.
Audio System
Comf ort and Convenience Feat ures140
P P W
WR R//V
V O
OL L K
KNNO OBB
A
A M
M /
/F
FM M B
BUUT TT
TO
ON N
T
T
U
UN NEE/
/S
SE EE
EK
K B
BAA R
R
S
ST
TE
ER
RE EO
O
I
IN ND DI
ICCA A T
TO
OR R P
P
R
RE ES
SE ET
T B
BUUT TT
TO
ON NSS
01/09/28 19:47:31 31SZ3660_143

µIf you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
To activate Auto Select, press the
A. SELECT button. A. SELECT will
appear in the display, and the system
will go into scan mode f or several
seconds. It automatically scans both
bands, looking f or stations with
strong signals. It stores the f requen-
cies of six AM stations and twelve
FM stations in the preset buttons.
You can then use the preset buttons
to select those stations.
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press any preset
button that does not have a station
stored. With Auto Select on, you cannot
manually store any f requencies in
the preset buttons. If you do not like
the stations found by Auto Select,
you can use the TUNE and SEEK
f unctions to f ind other stations.
Auto Select does not erase the
f requencies that you preset pre-
viously. When you return home, turn
of f Auto Select by pressing the
A. SELECT button. The preset
buttons will then select the fre-
quencies you originally set.
AUTO SELECT
Audio System
Comf ort and Convenience Feat ures141
A A
M
M /
/F
FM M B
BUUT TT
TO
ON N
T
T
U
UN NEE/
/S
SE EE
EK
K B
BAA R
R
A
AU
UT TO
O S
SEEL
LEE C
CT T B
BUUT TT
TO
ON N
P
P
R
RE ES
SE ET
T B
BUUT TT
TO
ON NSS
A
A U
UT TO
O S
SEEL
LEE C
CT T
I
IN ND DI
ICCA A T
TO
OR R
01/09/28 19:47:39 31SZ3660_144

µµ
These two
controls adjust the strength of the
sound coming f rom each speaker.
The Balance control adjusts the side-
to-side strength, while the Fader
control adjusts the f ront-to-back
strength.
To adjust the fader, push on the
BASS/FADER control knob to get it
to pop out. Pull it out slightly f arther,
and adjust the f ront-to-back sound to
your liking. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.
To adjust the balance, push on the
TREBLE/BALANCE control knob
to get it to pop out. Pull it out slightly
f arther, and adjust the side-to-side
sound to your liking. Push the knob
back in when you are done so you
cannot change the setting by
accidentally bumping it. Use these controls
to adjust the tone to your liking.
To adjust the Treble level, push on
the TREBLE/BALANCE control
knob to get it to pop out. Without
pulling it out f arther, turn the knob
to adjust the treble level. Push the
knob back in when you are done so
you cannot change the setting by
accidentally bumping it. To adjust the Bass level, push on the
BASS/FADER control knob to get it
to pop out. Without pulling it out
f arther, turn the knob to adjust the
bass level. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.
Adjusting the Sound
Balance/Fader
Treble/Bass
Audio System
Comf ort and Convenience Feat ures142
B BAA S
SSS//F
FA A D
DE
ER
R
C
CO ON NTTR
RO OL L T
T
R
RE EB
BL LEE /
/B
BA A L
LAA N
NC CEE
C
CO ON NTTR
RO OL L
01/09/28 19:47:48 31SZ3660_145

You can use the instrument panel
brightness control dial to adjust the il-
lumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
Your Acura’s radio can receive the
complete AM and FM bands.
Those bands cover these f requen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned f requencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
How well your Acura’s radio receives
stations is dependent on many
f actors, such as the distance f rom
the station’s transmitter, nearby
large objects, and atmospheric
conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator willgo of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
66
CONT INUED
A udio System L ighting
Radio Frequencies Radio Reception
Audio System
Comf ort and Convenience Feat ures143
01/09/28 19:48:02 31SZ3660_146

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Audio System
Comf ort and Convenience Feat ures144
01/09/28 19:48:10 31SZ3660_147

Ûµ

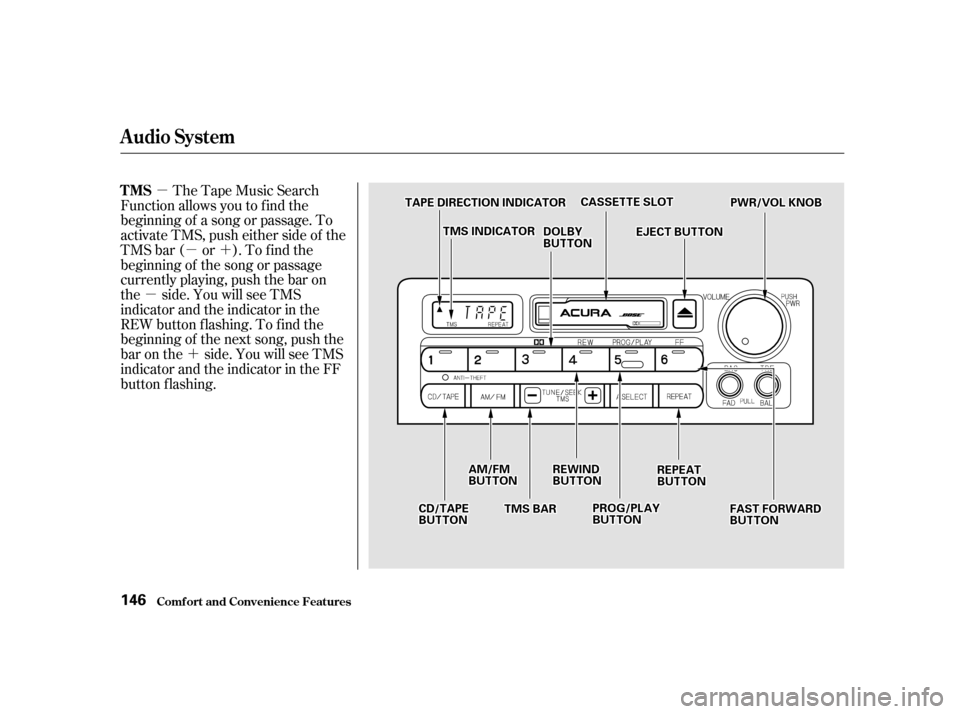

Make sure the tape opening on the
cassette is facing to the right, then
insert the cassette most of the way
into the slot. The system will pull it
in the rest of the way, and begin to
play. The ignition switch must be in
ACCESSORY (I) or ON (II).
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG/
PLAY button. When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button.
With a cassette playing, you can use
the FF, REW, TMS, or REPEAT
f unction to f ind a desired program.
If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the tape will begin playing
where it lef t of f .
To switch to the radio or CD
changer while listening to a tape,
press the AM/FM or CD/TAPE but-
ton. To change back to the cassette
player, press the CD/TAPE button. Fast Forward and
Rewind move the tape rapidly. To
rewind the tape, push the REW
button. The indicator in this button
will light. To f ast f orward the tape,
push the FF button. The indicator in
this button will light. Press the
PROG/PLAY button to take the
system out of rewind or f ast f orward.
When the system reaches the end of
the tape, it reverses direction and
begins to play if in f ast f orward, or it
begins to play if in rewind.
Dolby B noise reduction turns on
when you insert a cassette. The
indicator in the button will light.
If thetapewasnotrecordedwith
Dolby B noise reduction, turn it of f
by pressing the button.
CONT INUED
Operating the Cassette Player Tape Search Functions
FF/REW
Audio System
Comf ort and Convenience Feat ures145
01/09/28 19:48:22 31SZ3660_148

µµ´
µ
´
TheTapeMusicSearch
Function allows you to f ind the
beginning of a song or passage. To
activate TMS, push either side of the
TMSbar( or ).Tofindthe
beginning of the song or passage
currently playing, push the bar on
the side. You will see TMS
indicator and the indicator in the
REW button f lashing. To f ind the
beginning of the next song, push the
bar on the side. You will see TMS
indicator and the indicator in the FF
button f lashing.
Audio System
Comf ort and Convenience Feat ures
TMS
146
C CA A S
SSSEET
TT
TE
E S
SLLOOT T
E
E J
JEE C
CT T B
BUUT TT
TO
ON N P
P
W
WR R//V
V O
OL L K
KNNO OBB
P
P R
RO OG G//P
P L
LAA Y
Y
B
BU UT TT
TO
ON N
R
RE
EW
WI INND D
B
BU UT TT
TO
ON N
T
T
A
A P
PE
E D
DI
IRRE EC
CT TI
IOON N I
INND DI
ICCA A T
TO
OR R
R
REEP
PE
EA
A T
T
B
BU UT TT
TO
ON N
T
T M
M S
SB
BAA R
R F
FAA S
STT F
FOOR RWWA AR
RDD
B
BU UT TT
TO
ON N
T
T
M
M S
SI
INND DI
ICCA A T
TO
OR R
D
DO
OL LBBY Y
B
BU UT TT
TO
ON N
C
CD D /
/T
T A
A P
PE
E
B
BU UT TT
TO
ON N A
A
M
M /
/F
FM M
B
BU UT TT
TO
ON N
01/09/28 19:48:29 31SZ3660_149

µ
The TMS and REPEAT f unctions
use silent periods on the tape to f ind
the end of a song or passage. These
f eatures may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection. The Repeat f unction
continuously replays the current
song or passage. Press the REPEAT
button to activate it; you will see
REPEAT displayed as a reminder.
When the system reaches the end of
the song or passage currently
playing, it will automatically go into
rewind. When it senses the
beginning of the same song or
passage, the system returns to PLAY
mode. It will continue to repeat this
same program until you deactivate
REPEAT by pressing the button
again.
Pressing the REW or FF button also
turns off REPEAT.
Audio System
Comf ort and Convenience Feat ures
REPEAT
147
R RE EP
PE
EA
A T
T I
INND DI
ICCA A T
TO
OR R
R
REEP
PE
EA
A T
T B
BUUT TT
TO
ON N
F
FA
A S
STT F
FOOR RWWA AR
RDD
B
BU UT TT
TO
ON N
T
T M
M S
SB
BAA R
R
R
RE
EW
WI INND D B
BUUT TT
TO
ON N
01/09/28 19:48:36 31SZ3660_150
