2002 Acura RL light

To remove the f ront turn signal/
parking light bulb, push it in
slightly and turn it
counterclockwise. To remove the
side marker bulb, pull it straight
out of its socket.
Install the new bulb into the
socket.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise. Pull the inner f ender cover back.
Use a f lat-tipped screwdriver to
remove the holding clip f rom the
inner f ender.
If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left. Put the inner f ender cover in place.
Install the holding clip. Lock it in
placebypushingonthecenter. Testthelightstomakesurethe
new bulb is working. Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
1. 2. 3.
4.5.
6.
7.
8.
9.
Lights
Maint enance
Replacing Front Turn Signal/
Parking and Side Marker Light
Bulbs
265
H H
O
OL LDD I
INNG G C
CLLIIPP
01/09/28 20:08:43 31SZ3660_268

Open the trunk.Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Testthelightstomakesurethe
new bulb is working.
Undo the f astener on the side of
the trunk lining by pushing on the
center of the f astener’s head until
it pops in. Pull the lining back. Remove the socket by turning it one-quarter turn counterclockwise. Determine which of the f our bulbs
is burned out: stop/taillights, back-
up light, or turn signal.Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal.
1.
3. 2.4.
5.
6.
7.
Replacing Rear Bulbs
Lights
Maint enance266
F FA
A S
STTE
EN
NE ER
R
01/09/28 20:08:54 31SZ3660_269

Open the trunk and remove the
socket f rom the light assembly by
turning it one-quarter turn counter-
clockwise.
Reset the f astener by pushing on
the pointed end until it pops back
almost f lush with the f ingers on
the housing.
Put the f astener in the hole in the
side of the trunk lining and push
on the center until it locks (the
center is f lush with the head). Reinstall the socket. Turn it
clockwise until it locks.
Install the new bulb in the socket. Remove the bulb by pushing it in
slightly and turning it counter-
clockwise. Testthelightstomakesurethe
new bulb is working.
1.
2.
8.
9. 3.
4.
Replacing a High-mount Brake
Light Bulb
Lights
Maint enance267
01/09/28 20:09:06 31SZ3660_270

Pull the bulb straight out of its
socket. Push the new bulb in until
it bottoms in the socket.
Put the lens back on the bulb
holder and push it until it latches.
Slide the right side of the light
assembly into the hole. Push on
theleftsidetolatchtheassembly
into place. Turn on the parking lights and
check that the new bulb is
working.

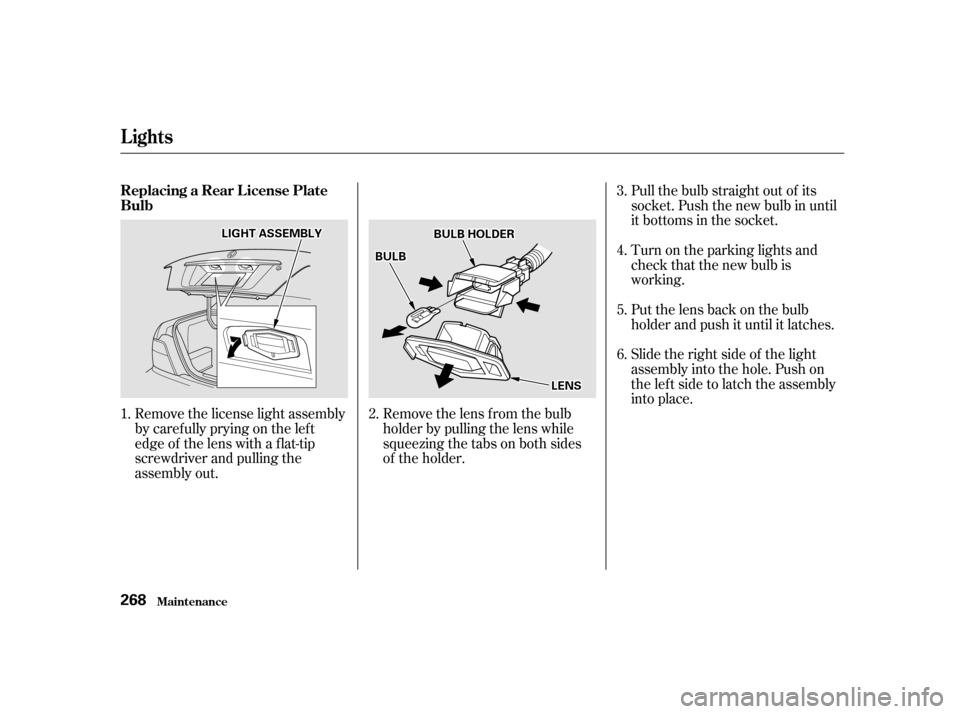

Remove the license light assembly
by caref ully prying on the lef t
edge of the lens with a f lat-tip
screwdriver and pulling the
assembly out. Remove the lens f rom the bulb
holder by pulling the lens while
squeezing the tabs on both sides
of the holder.
1. 2. 3.
5. 4.
6.
Replacing a Rear License Plate
Bulb
Lights
Maint enance268
L LI
IGGH HT
T A
AS
SSSEEM
M B
BLLYY
B
BUUL LBB H
HO
OL LDD E
ER
R
B
BU UL LBB
L
LEE N
NS S
01/09/28 20:09:17 31SZ3660_271

Removethelensbycarefully
prying on the edge of the lens with
a f ingernail f ile or a small f lat-tip
screwdriver. Do not pry on the
edge of the housing around the
lens.Door light:
Pry on the top middle of the lens.
Front ceiling light: Pry on the f ront edge of the lens
in the middle. Rear ceiling light:
Pryontherearedgeof thelens
in the middle. Remove the bulb
cover by pulling it straight down.
The courtesy lights in the doors and
roof come apart the same way. They
do not use the same type of bulb.
Vanity mirror light:Pry on the top middle of the lens.
1.
CONT INUED
Replacing Bulbs in the Interior
Courtesy Lights
Maint enance
Lights
269
D D
O
OO ORR L
LIIGGH HT
T F
FRRO ON NTT R
REEA
A R
R
01/09/28 20:09:30 31SZ3660_272

Removethelensbycarefully
prying on the edge of the lens in
the middle with a f ingernail f ile or
a small f lat-tip screwdriver. Do not
pry on the edge of the housing
around the lens.Remove the bulb by pulling it
straight out of its metal tabs.
Push the new bulb into the metal
tabs. Snap the lens back in place.
Push the new bulb into the metal
tabs. Snap the lens back in place. Remove the bulb by pulling it
straight out of its metal tabs. 1. 2.
3.
2.
3. Replacing the T runk L ight Bulb
Maint enance
Lights
270
T T
R
RU UN NKK
V
V A
AN
NI ITT Y
Y M
M I
IRRR ROOR R L
LIIGGH HT
T
01/09/28 20:09:39 31SZ3660_273

Block the rear wheels.
Fill the f uel tank.
Change the engine oil and f ilter
(see page ).
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc. are
completely dry.
Leave the parking brake off. Put
the transmission in Park.
If you need to park your car f or an
extended period (more than one
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your car back on the road. If
possible, store your car indoors.
If the car is to be stored for a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open slightly (if
the car is being stored indoors).Coverthecarwitha‘‘breathable’’
cover, one made f rom a porous
material such as cotton.
Nonporous materials, such as
plastic sheeting, trap moisture,
which can damage the paint.
Disconnect the battery.
Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals. If possible, run the engine f or a
while periodically (pref erably once
amonth).
If you store your car f or 12 months
or longer, have your Acura dealer
perf orm the inspections called f or in
the 24 months/30,000 miles (48,000
km) maintenance schedule (Normal
Conditions) as soon as you take it
out of storage (see page ). The
replacements called f or in the
maintenance schedule are not
needed unless the car has actually
reached that time or mileage.
229
218
Maint enance
St oring Your Car
271
01/09/28 20:09:53 31SZ3660_274

When you have washed and rinsed
the whole exterior, dry it with a
chamois or sof t towel. Letting it
air-dry will cause dulling and water
spots.
Fill a bucket with cool water. Mix
in a mild detergent, such as
dishwashing liquid or a product
made especially f or car washing.
Only use the solvents and cleaners
recommendedinthisOwner’s
Manual. Wash your car in a shady area, not in
direct sunlight. If the car is parked in
the sun, move it into the shade and
let the exterior cool down bef ore you
start. Wash the car using the water and
detergent solution and a sof t-
bristle brush, sponge, or sof t cloth.
Start at the top and work your way
down. Rinse f requently.
Frequent washing helps preserve
your car’s beauty. Dirt and grit can
scratch the paint, while tree sap and
bird droppings can permanently ruin
the f inish.
Rinse the car thoroughly with cool
water to remove loose dirt.
As you dry the car, inspect it f or
chips and scratches that could allow
corrosion to start. Repair them with
touch-up paint (see page ).
Check the body f or road tar, tree
sap, etc. Remove these stains with
tar remover or turpentine. Rinse it
of f immediately so it does not
harm the f inish. Remember to re-
wax these areas, even if the rest of
the car does not need waxing. 275
Exterior Care
Appearance Care
Washing
274
Chemical solvents and strong cleaners
can damage the paint, metal, and
plastic on your car.
