INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU00185
CAUTION:@ Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-
es or plastic parts. @
EAU00191
NOTE:@ If knocking (or pinging) occurs, use
gasoline of a different brand or with a
higher octane grade. @
EAU02969

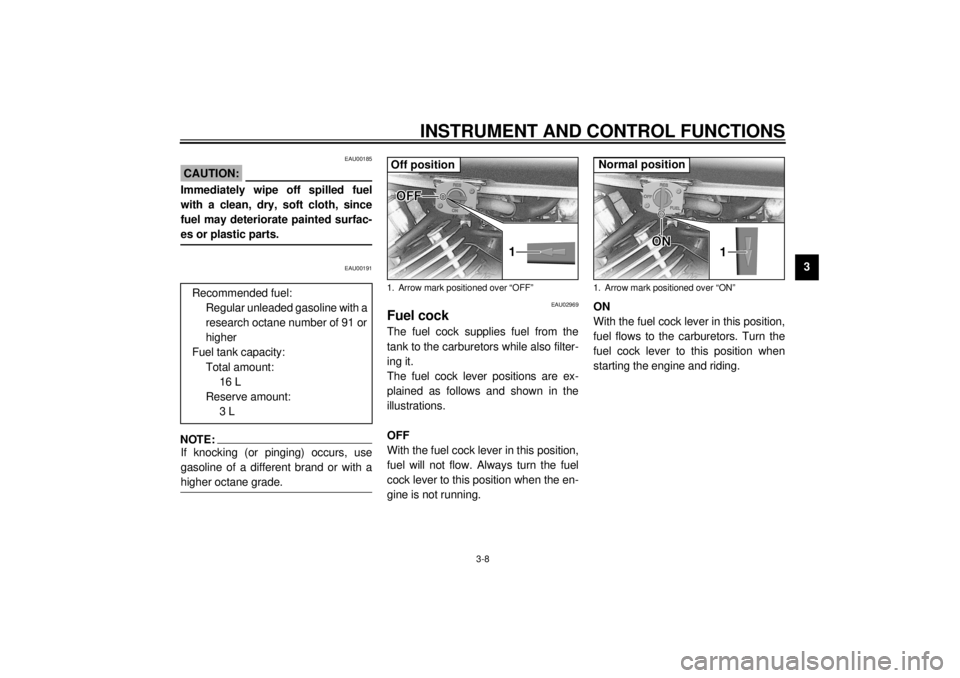

Fuel cock The fuel cock supplies fuel from the
tank to the carburetors while also filter-
ing it.
The fuel cock lever positions are ex-
plained as follows and shown in the
illustrations.
OFF
With the fuel cock lever in this position,
fuel will not flow. Always turn the fuel
cock lever to this position when the en-
gine is not running.ON
With the fuel cock lever in this position,
fuel flows to the carburetors. Turn the
fuel cock lever to this position when
starting the engine and riding. Recommended fuel:
Regular unleaded gasoline with a
research octane number of 91 or
higher
Fuel tank capacity:
Total amount:
16 L
Reserve amount:
3 L1. Arrow mark positioned over “OFF”Off position
1. Arrow mark positioned over “ON”Normal position
E_5bn.book Page 8 Wednesday, October 4, 2000 7:51 PM

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU00424
Tips for reducing fuel
consumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:l
Thoroughly warm up the engine.
l
Turn the starter (choke) off as
soon as possible.
l
Shift up swiftly, and avoid high en-
gine speeds during acceleration.
l
Do not rev the engine while shift-
ing down, and avoid high engine
speeds with no load on the engine.
l
Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAU01128
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1,600 km. For this rea-
son, you should read the following ma-
terial carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1,600 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full-throttle oper-
ation or any condition that might result
in engine overheating must be avoided.
EAU01171*
0–1,000 km
Avoid prolonged operation above
1/3 throttle.
1,000–1,600 km
Avoid prolonged operation above
1/2 throttle.
EC000056*
CAUTION:@ After 1,000 km of operation, the en-
gine oil and final gear oil must be
changed, and the oil filter element
replaced. @1,600 km and beyond
The vehicle can now be operated
normally.
EC000049
CAUTION:@ If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle. @
E_5bn.book Page 4 Wednesday, October 4, 2000 7:51 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU03685
Periodic maintenance and lubrication chart
NOTE:_ l
The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
l
From 50,000 km, repeat the maintenance intervals starting from 10,000 km.
l
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_CP-03ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel line• Check fuel hoses for cracks or damage.ÖÖÖÖ Ö
2*Fuel filter• Check condition.ÖÖ
3 Spark plugs• Check condition.
• Clean and regap.ÖÖ
• Replace.ÖÖ
4*Valves• Check valve clearance.
•Adjust.ÖÖÖÖ
5 Air filter element•Clean.ÖÖ
• Replace.ÖÖ
6Clutch• Check operation.
•Adjust.ÖÖÖÖÖ
7*Front brake• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)ÖÖÖÖÖ Ö
• Replace brake pads. Whenever worn to the limit
8*Rear brake• Check operation and adjust brake pedal freeplay.ÖÖÖÖÖ Ö
• Replace brake shoes. Whenever worn to the limit
9*Brake hose• Check for cracks or damage.ÖÖÖÖ Ö
• Replace. (See NOTE on page 6-4.) Every 4 years
E_5bn_Periodic.fm Page 2 Thursday, December 14, 2000 1:31 PM

SPECIFICATIONS
8-2
8
Quantity
Without oil filter element
replacement 2.6 L
With oil filter element
replacement 2.8 L
Total amount (dry engine) 3.2 L
Final gear oil
Type Hypoid gear oil SAE 80
(API GL4) or multigrade hypoid
gear oil SAE 80W-90
Final gear case capacity 0.19 L
Air filterDry type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 16 L
Reserve amount 3 L
Carburetor
Manufacturer MIKUNI
Model ´ quantity BDS28 ´ 2
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“ENERGY CONSERVING II”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage, result-
ing in reduced component life and poor engine performance.
Spark plug
Manufacturer/model NGK / DPR7EA-9 or
DENSO / X22EPR-U9
Gap 0.8– 0.9 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.789
Secondary reduction system Shaft drive
Secondary reduction ratio 3.070
Transmission type Constant-mesh 5-speed
Operation Left foot
Gear ratio 1st 2.714
2nd 1.900
3rd 1.458
4th 1.167
5th 0.967
Chassis
Frame type Double cradle
Caster angle 35°
Tr a i l
XVS650 153 mm
XVS650A 145 mm
E_5bn.book Page 2 Wednesday, October 4, 2000 7:51 PM

10-INDEXAAir filter element, cleaning ...................... 6-13
Anti-theft alarm ........................................3-3BBattery ................................................... 6-29
Brake and clutch levers, checking
and lubricating ..................................... 6-26
Brake and shift pedals, checking
and lubricating ..................................... 6-26
Brake fluid, changing ............................. 6-25
Brake fluid level, checking...................... 6-24
Brake lever...............................................3-6
Brake lever free play, adjusting .............. 6-20
Brake light switch (rear), adjusting ......... 6-22
Brake pads and shoes, checking ........... 6-23
Brake pedal..............................................3-6
Brake pedal position and free play,
adjusting .............................................. 6-21CCables, checking and lubricating............ 6-25
Carburetors, adjusting............................ 6-14
Care.........................................................7-1
Clutch lever ..............................................3-5
Clutch lever free play, adjusting ............. 6-19
Conversion table ......................................8-6DDimmer switch .........................................3-4EEngine break-in........................................5-4
Engine oil and oil filter element.................6-9
Engine stop switch ...................................3-4
Engine trouble warning light .................... 3-2FFinal gear oil .......................................... 6-11
Front fork, checking ............................... 6-27
Fuel ......................................................... 3-7
Fuel cock ................................................. 3-8
Fuel consumption, tips for reducing ......... 5-4
Fuel tank cap ........................................... 3-7
Fuses, replacing .................................... 6-31HHandlebar switches ................................. 3-3
Headlight bulb, replacing ....................... 6-32
Helmet holder ........................................ 3-12
High beam indicator light ......................... 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................. 9-1
Idling speed, adjusting ........................... 6-15
Ignition circuit cut-off system.................. 3-16
Indicator and warning lights ..................... 3-2KKey identification number ........................ 9-1LLight switch.............................................. 3-4
Luggage strap holders ........................... 3-15MMain switch/steering lock ......................... 3-1
Model label .............................................. 9-2
NNeutral indicator light ...............................3-2PPanels, removing and installing ................6-5
Parking.....................................................5-5
Part locations ...........................................2-1
Pass switch ..............................................3-4
Periodic maintenance and
lubrication chart .....................................6-2
Pre-operation check list ............................4-1SSafety information ....................................1-1
Seats (XVS650) .....................................3-10
Passenger seat.................................3-10
Rider seat .........................................3-10
Seats (XVS650A) ...................................3-11
Passenger seat.................................3-11
Rider seat .........................................3-11
Shifting .....................................................5-3
Shift pedal (XVS650)................................3-5
Shift pedal (XVS650A) .............................3-5
Shock absorber assembly, adjusting ......3-14
Sidestand ...............................................3-15
Sidestand, checking and lubricating .......6-27
Spark plugs, checking ..............................6-7
Specifications ...........................................8-1
Speedometer unit.....................................3-3
Starter (choke) knob.................................3-9
Starting a warm engine ............................5-2
Starting the engine ...................................5-1
Start switch ..............................................3-4
Steering, checking..................................6-28
