If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer 's directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or anyother substitute because it may dam-age your vehicle's paint.
Replacing light bulbsÐ
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if scratched
or dropped. Hold a bulb only by its
plastic or metal case. Do not touch
the glass part of a bulb with bare
hands.
NOTICE
Only use a bulb of the listed type.

2001MY ECHO (U) L/O0008
2082001 ECHO (OM52440U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
HeadlightsHB260/55A
Parking/front side
marker/front turn
signal lights
1157NA5/21B
Rear turn signal
lightsWY21W21C
Rear side marker/
stop/tail lights74435/21C
Back±up lights744021C
License plate lightsW5W5C
High mounted
stoplight92118C
Interior lightÐ8D
Trunk light1943.8C
A: HB2 halogen bulbs
B: Single end bulbs (amber)
C: Wedge base bulbs
D: Double end bulbs
ÐHeadlights
SU73036
1. Unplug the connector. Remove the
rubber cover.
If the connector is tight, wiggle it.

2001MY ECHO (U) L/O0008
2092001 ECHO (OM52440U)
SU73037
2. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
SU73038
3. Install the rubber cover as shown and snuggle on the boss. Insert the
connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
SU73013
ÐParking/front side marker/
front turn signal lights

2001MY ECHO (U) L/O0008
2102001 ECHO (OM52440U)

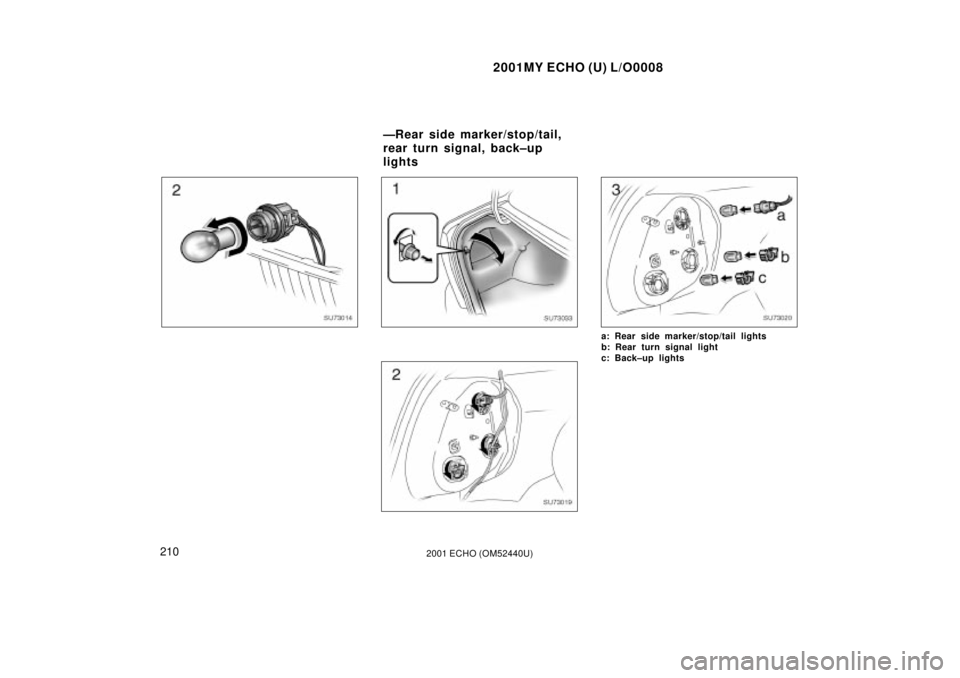

SU73014SU73033
SU73019
SU73020
a: Rear side marker/stop/tail lights
b: Rear turn signal light
c: Back±up lights
ÐRear side marker/stop/tail,
rear turn signal, back±up
lights

2001MY ECHO (U) L/O0008
2112001 ECHO (OM52440U)

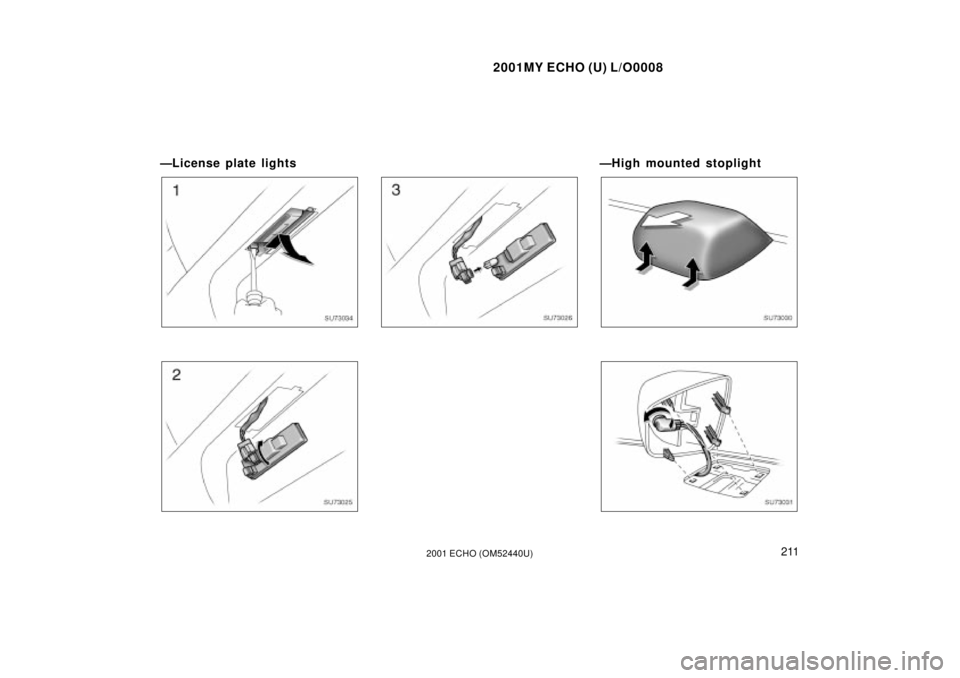

ÐLicense plate lights
SU73034
SU73025
SU73026
ÐHigh mounted stoplight
SU73030
SU73031

2001MY ECHO (U) L/O0008
2152001 ECHO (OM52440U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15±0.25 (0.006±0.010)
Exhaust 0.25±0.35 (0.010±0.014)
Spark plug type: DENSO K16R±U
NGK BKR5EYA
Spark plug gap, mm(in.): 0.8 (0.031)
Drive belt tension measured with Bor-
roughs drive belt tension gauge No.
BT±33±73F (used belt), lbf: Generator belt 100
20
Power steering pump belt 65
10 ENGINE LUBRICATION
Oil capacity (drain and ref
ill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
Oil grade: API grade SJ, ªEnergy±Conservingº or
ILSAC multigrade engine oil is recom-
mended.
Recommended oil viscosity (SAE):COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): Manual transmission 4.4 (4.7, 3.9)
Automatic transmission 4.3 (4.5, 3.8)
Coolant type:
ªTOYOTA Long Life Coolantº or equiva-
lent
With ethylene±glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
* at 20
C (68
F):
12.6±12.8 V Fully charged
12.2±12.4 V Half charged
11.8±12.0 V Discharged
*: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

2001MY ECHO (U) L/O0008
2172001 ECHO (OM52440U)
Tires
Tire size:Compact spare tireT115/70D14
Except compact spare tire P175/65R14 81S
Tire pressure, kPa (kgf/cm
2 or bar, psi):
Compact spare tire 420 (4.2, 60)
Except compact spare tire 220 (2.2, 32)
Wheel size: Compact spare tire14 x 4T
Except compact Spare tire 14 x 5.5J
14 x 5.5JJ
Wheel nut torque, N´m (kgf´m, ft´lbf):
103 (10.5, 76)
Fuses
SU81001
Engine room J/B
Fuses (type A)1. H±LP (RH) 10 A: Right±hand headlight
2. H±LP (LH) 10 A: Left±hand headlight
3. ST 30 A: Starter system
4. AM2 15 A: Starter system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, engine immobiliser system,
discharge warning system
5. HORN 15 A: Horn
6. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
SU81002
Instrument panel J/B
7. DOME 15 A: Clock, radio, interior light,
gauges of meters, wireless remote con-
trol system
8. SPARE 15 A: Spare
9. SPARE 30 A: Spare
10. GAUGE 10 A: Back±up lights, charging
system, air c onditioning system, power
window system, gauges of meters
11. ACC 15 A: Clock, radio, outside rear
view mirror system, cigarette lighter
12. A/C 7.5 A: Air conditioning system

2001MY ECHO (U) L/O0008
2182001 ECHO (OM52440U)
SU81003
Fuse box
13. WIPER 20 A: Windshield wipers and
washer, rear window wipers and wash-
er
14. ECU±IG 7.5 A: Anti±lock brake system,
electric cooling fan
15. D/L 25 A: Power door lock system
16. ECU±B 7.5 A: Rear fog lights, SRS
airbag system
17. OBD 7.5 A: On±board diagnosis sys-
tem
18. TAIL 7.5 A: Tail lights, parking lights,
license plate lights, radio, headlight
beam level control, illuminations 19. HAZ 10 A:
Turn signal lights, emergen-
cy flashers
20. STOP 10 A: Stop lights, high mounted
stop light, anti±lock brake system, shift
lock system, multiport fuel injection
system/s equential multiport fuel injec-
tion system
Fuses (type B)
21. HTR SUB1 50 A: Air conditioning sys-
tem (PTC 1)
22. RDI 30 A: Electric cooling fan
23. AM1 50 A: ªACCº, ªGAUGEº, ªWIPERº,
and ªECU±IGº fuses
24. POWER 30 A: Power windows
25. HTR 40 A: Air conditioning system
26. DEF 30 A: Rear window defogger sys-
tem.
Fuses (type C)
27. MAIN 60 A: ªEFIº, ªDOMEº, ªHORNº,
ªSTº, ªAM2º, ªH±LP LHº, and ªH±LP
RHº fuse
28. ALT 100 or 120 A: ªECU±Bº, ªTAILº,
ªD/Lº, ªOBDº, ªA.Cº, ªHTRº, ªPOWERº,
ªSTOPº and ªFL DEFº fuses
29. ABS 60 A: Anti±lock brake system
