2001 TOYOTA CELICA brake sensor

’01MY CELICA U (L/O 0008)
782001 CELICA (20766U)
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
Vehicles with anti −lock brake sys-
tem—
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the anti −lock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light and Buzzer
This light reminds you to buckle up the
driver ’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt, the light keeps flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Front Passenger ’s Seat Belt Reminder Light
This light reminds you to buckle up the
front passenger ’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Unless
the front passenger fastens the belt, the
light stays flashing.
If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, built −in
sensors in the seat cushion may detect
the pressure, causing the reminder light to
come on. (d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
802001 CELICA (20766U)
(i) Open Door Warning Light
This light remains on until both side doors
and back door are completely closed.
(j) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the systems of the air-
bag and front seat belt pretensioners
are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side airbag sensors, door side air-
bag sensors, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on or flashes while
driving.(k) Automatic Transmission Fluid
Temperature Warning Light
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in “P”. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
(l) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the “ACC” or “LOCK”
position.
(m) Light reminder buzzer
The buzzer will sound if the headlight
switch is left on and the driver’s door is
opened with the key removed from the
ignition switch. CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light)
1. Apply the parking brake.
2. Open either side door or the back door.
The open door warning light should
come
on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on. The “ABS” warning light goes
off after a few seconds. The SRS
warning light goes off after about 6
seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
1332001 CELICA (20766U)

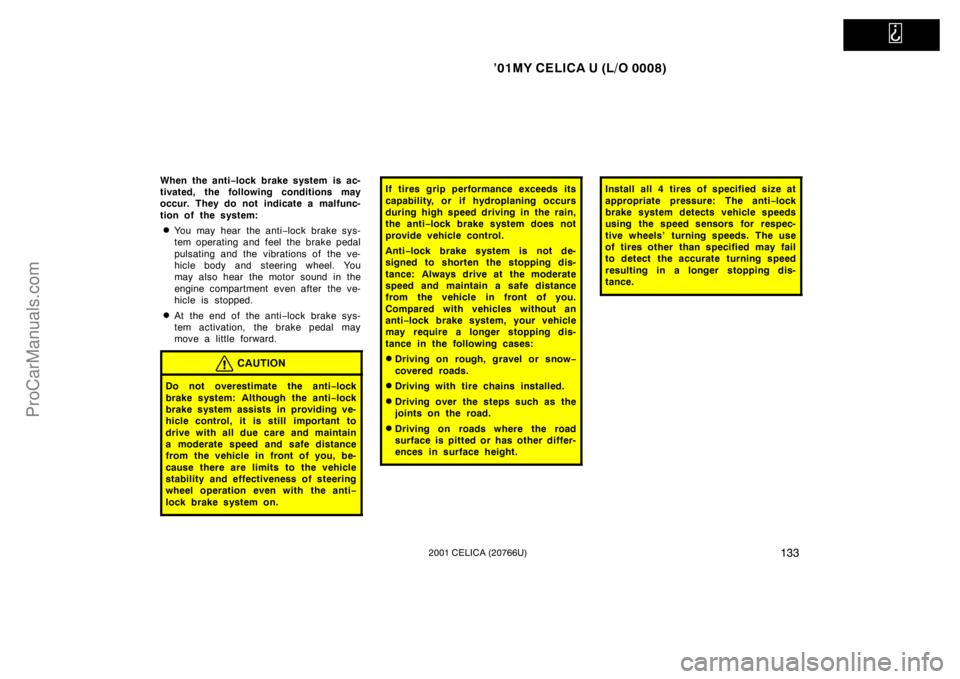

When the anti−lock brake system is ac-
tivated, the following conditions may
occur. They do not indicate a malfunc-
tion of the system:
You may hear the anti −lock brake sys-
tem operating and feel the brake pedal
pulsating and the vibrations of the ve-
hicle body and steering wheel. You
may also hear the motor sound in the
engine compartment even after the ve-
hicle is stopped.
At the end of the anti −lock brake sys-
tem activation, the brake pedal may
move a little forward.
CAUTION
Do not overestimate the anti −lock
brake system: Although the anti −lock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti −
lock brake system on.
If tires grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the anti −lock brake system does not
provide vehicle control.
Anti −lock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at the moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
anti −lock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow−
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The anti −lock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.
