2001 TOYOTA CELICA Owners Manual

’01MY CELICA U (L/O 0008)
2122001 CELICA (20766U)

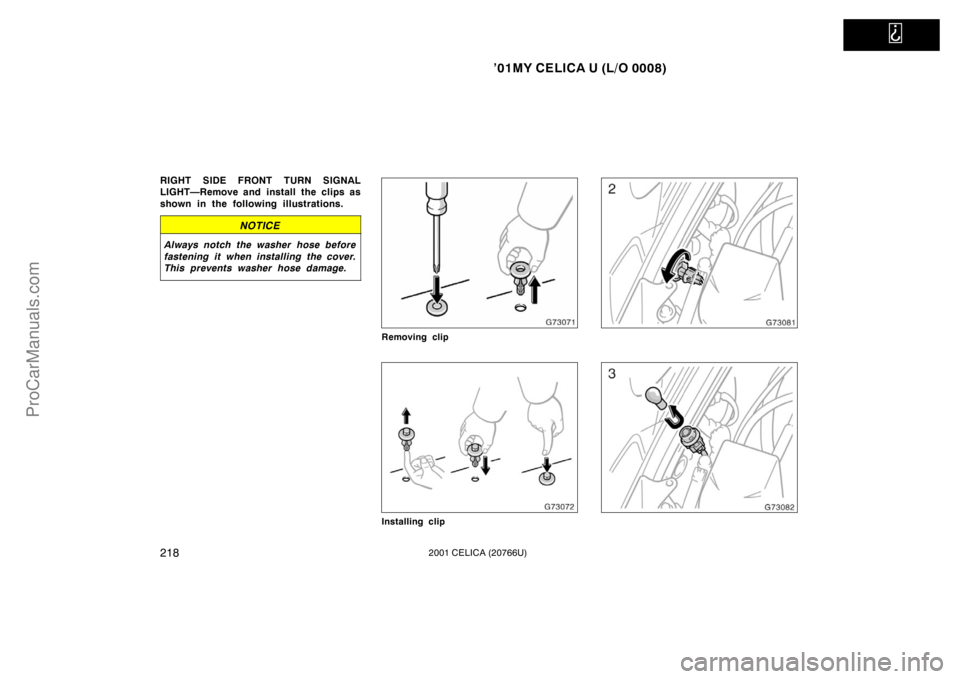

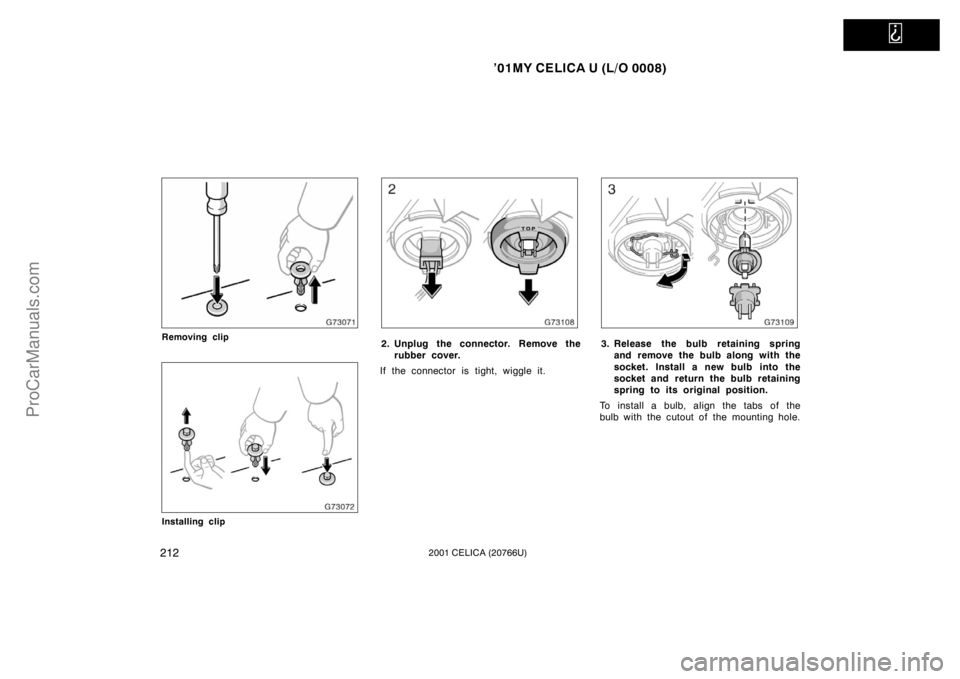

Removing clip
Installing clip
2. Unplug the connector. Remove therubber cover.
If the connector is tight, wiggle it.3. Release the bulb retaining spring and remove the bulb along with the
socket. Install a new bulb into the
socket and return the bulb retaining
spring to its original position.
To install a bulb, align the tabs of the
bulb with the cutout of the mounting hole.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2132001 CELICA (20766U)
4. Install the rubber cover with the“TOP” mark upward, and snuggle on
the boss. Insert the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.5. RIGHT SIDE HEADLIGHT—Install the cover.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
—Headlights (high beam)
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2142001 CELICA (20766U)

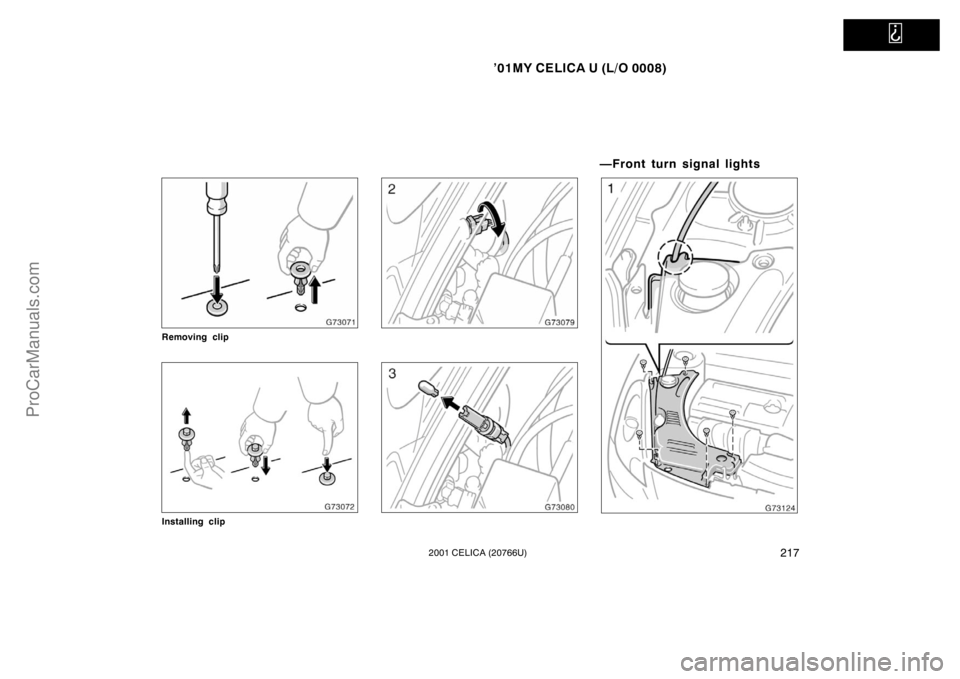

1. Open the hood.
RIGHT SIDE HEADLIGHT—Remove the
clips and take out the cover. In doing
so, remove the washer hose from the
notch on the cover.
Remove and install the cover clips as
shown in the following illustrations.
Removing clip
Installing clip
2. Turn the bulb base counterclockwise and remove it.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2152001 CELICA (20766U)
3. Pull the bulb out of the bulb baseand install a new bulb.
If the connector is tight, wiggle it.4. Insert the bulb base into the mount- ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.5. RIGHT SIDE HEADLIGHT—Install the cover.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2162001 CELICA (20766U)
If either the left or right front fog or
front side marker lights burns out, con-
tact your Toyota dealer.
NOTICE
Do not try to replace the front fog or
front side marker light bulbs by your-
self. You may damage the vehicle.
—Parking lights
RIGHT SIDE PARKING LIGHT—Remove
and install the clips as shown in the
following illustrations.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
—Front fog and front side
marker lights
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2172001 CELICA (20766U)
Removing clip
Installing clip
—Front turn signal lights
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2182001 CELICA (20766U)
RIGHT SIDE FRONT TURN SIGNAL
LIGHT—Remove and install the clips as
shown in the following illustrations.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
Removing clip
Installing clip
ProCarManuals.com

’01MY CELICA U (L/O 0008)
2192001 CELICA (20766U)

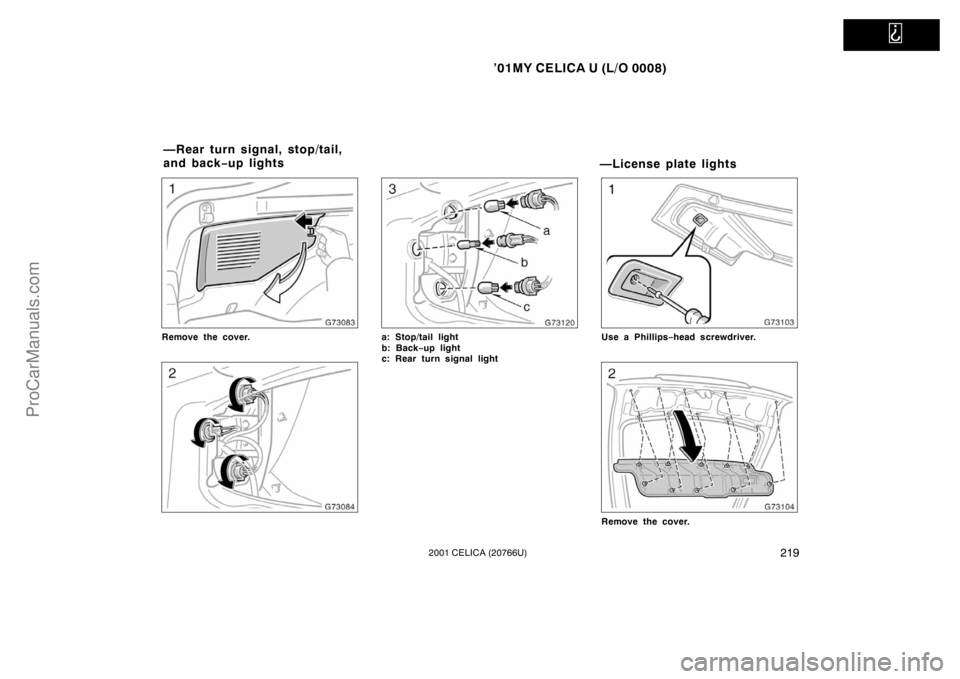

Remove the cover.a: Stop/tail light
b: Back−up light
c: Rear turn signal light
—License plate lights
Use a Phillips −head screwdriver.
Remove the cover.
—Rear turn signal, stop/tail,
and back− up lights
