2001 TOYOTA CAMRY check engine

’01Camry_U (L/O 0009)
i2001 MY CAMRY (OM33528U)
Model Code
Check the model code to see what type of model your vehicle is.
The model code appears on the manufacturer ’s plate with the heading “MODEL”.
See “Your Toyota’s identification” in Section 2 for the manufacturer ’s plate location.
Basic code
SXV20: Models with 5S−FE engine
MCV20: Models with 1MZ−FE engine
S X V 2 0 − N
Grade
N: LE
G: XLE
D: CE
ProCarManuals.com

’01Camry_U (L/O 0009)
232001 MY CAMRY (OM33528U)
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK”
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
for details.)
2. Have all passengers get out of the
vehicle.
3. Close and lock all the doors, trunk and
hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked.
ProCarManuals.com

’01Camry_U (L/O 0009)
872001 MY CAMRY (OM33528U)
(k) Add washer fluid.
(l) Take vehicle to
Toyota dealer.
(m) Remove key.Key reminder
buzzer
If the indicator or
buzzer comes on...Do this.(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following case:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
CAUTION
If the light does not turn off even
after the parking brake is released
while the engine is running, immedi-
ately stop your vehicle at a safe
place and contact your Toyota dealer.
In this case, the brakes may not work
properly and your stopping distance
will become longer. Depress the brake
pedal firmly and bring the vehicle to
an immediate stop.
(b) Seat Belt Reminder Light and Buzz-
er
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light and buzzer
come on if the driver’s seat belt is not
fastened. Unless the driver fastens the
belt, the light stays on and the buzzer
stops after about 4 to 8 seconds.
ProCarManuals.com

’01Camry_U (L/O 0009)
882001 MY CAMRY (OM33528U)
(c) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(d) Malfunction Indicator Lamp
This lamp comes on in the following
cases.
a. The fuel tank is completely empty.
(See “Fuel gauge” in this section for
instructions.)
b. The fuel tank cap is not tightened se-
curely. (See “Fuel tank cap” in Section
1−2 for instructions.)
c. There is a problem somewhere in your
engine or automatic transmission elec-
trical system.
If it comes on while you are driving in
case c, have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible.
(e) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.(f) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
ProCarManuals.com

’01Camry_U (L/O 0009)
902001 MY CAMRY (OM33528U)
(k) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” in Section 7−3.)
(l) “TRAC OFF” Indicator/Warning Light
This light comes on when the ignition key
is turned to “ON”, and will go off after a
few seconds. This means that the system
is operating properly.
If one of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light remains on more than a few
seconds after the ignition switch is
turned on.
The light comes on while driving even
if the “TRAC OFF” switch is not
pushed.
The light flashes.
(m) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the “ACC” or “LOCK”
position.CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the doors.
The open door warning light should
come on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to “ACC”.
The SRS warning light should come on.
It goes off after about 6 seconds.
5. Turn the ignition key to “ON”, but do
not start the engine.
All the service reminder indicators ex-
cept the open door warning light and
SRS warning light should come on. The
“ABS” warning light, “TRAC OFF” and
slip indicator lights go off after a few
seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
ProCarManuals.com

’01Camry_U (L/O 0009)
1002001 MY CAMRY (OM33528U)
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESETTING TO A FASTER SPEED
Push the lever up in the “RES/ACC” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held up, the vehicle will gradually
gain speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “SET/COAST” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “SET/COAST”
direction and hold it. Release the lever
when the desired speed is attained. While
the lever is held down, the vehicle speed
will gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “SET/COAST” direction.On vehicles with automatic transmission,
even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.
RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal or clutch pedal, pushing the
lever up in the “RES/ACC” direction will
restore the speed set prior to cancellation.
However, once the vehicle speed falls be-
low about 40 km/h (25 mph), the preset
speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light in the
instrument cluster flashes when using the
cruise control, press the “CRUISE ON−
OFF” button to turn the system off and
then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.
ProCarManuals.com

’01Camry_U (L/O 0009)
1532001 MY CAMRY (OM33528U)
Grocery bag hooks
This hook is designed to hang things
like grocery bags.
NOTICE
To prevent damage to the hook, avoid
hanging heavy loads on it.
Traction control system
Slip indicator light
“TRAC OFF” indicator/warning light
AUTOMATIC TRACTION CONTROL
SYSTEM
The traction control system automatical-
ly helps control the spinning of the
front wheels which may occur when ac-
celerating on slippery road surfaces,
thus assisting driver to control the driv-
ing power of the front wheels. When
you turn the ignition switch on, the
traction control system always turns on
automatically, and the slip indicator
light and “TRAC OFF” indicator/warning
light will come on. The indicator lights
will go off after a few seconds.
Leave the system on during ordinary
driving so that it can operate when
needed. When traction control is ap-
plied, the slip indicator light blinks.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
is started. This means that the traction
control system is in the self−check mode,
and does not indicate malfunction. When
the traction control system is operating,
you may feel vibration or noise of your
vehicle, caused by operation of the
brakes. This indicates the system is func-
tioning properly.
ProCarManuals.com

’01Camry_U (L/O 0009)
1622001 MY CAMRY (OM33528U)
Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel system could cause an ex-
tremely high three−way catalytic
converter temperature.
If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a check−up as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
three−way catalytic converter sys-
tem best.
To ensure that the three−way cata-
lytic converter and the entire emis-
sion control system operate proper-
ly, your vehicle must receive the
periodic inspections required by the
Toyota Maintenance Schedule. For
scheduled maintenance information,
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-
ment”.

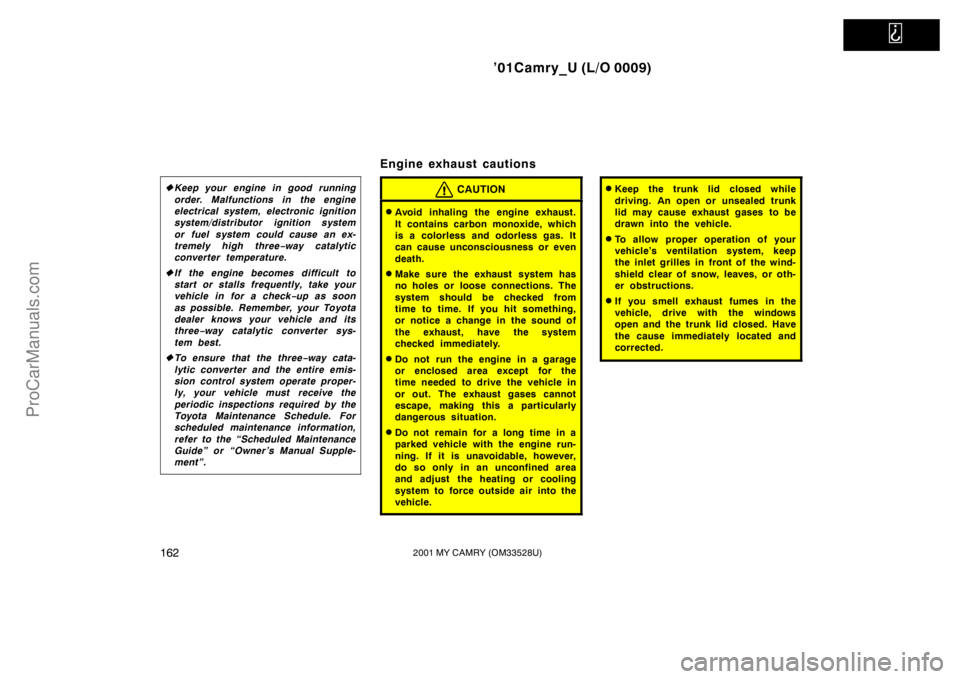

Engine exhaust cautions
CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.
Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
Keep the trunk lid closed while
driving. An open or unsealed trunk
lid may cause exhaust gases to be
drawn into the vehicle.
To allow proper operation of your
vehicle’s ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, drive with the windows
open and the trunk lid closed. Have
the cause immediately located and
corrected.
ProCarManuals.com
