YOUR 306 CABRIOLET AT A GLANCE9
9
FUEL FILLER FLAP
To open: firmly pull the handle on the floor to the outside of the drivers seat.
To close: from outside, push the flap back and check that it is secured
correctly. Filling with fuel Switch off the engine. There is a holder for the fuel filler cap.
A label on the inside of the flap shows which fuels are permitted and which are not allowed.
The capacity of the tank is approximately 11 gallons (50 litres).
Fuel low warning light The fuel low warning light indicates that the quantity of fuel remaining in the tank is approximately 1.3 gallons (6 litres).
81
Outside the vehicle Raise the catch 1and
support the bonnet as it rises.
OPENING THE BONNET Inside the vehicle:
Pull the
handle.
88
1

MAINTENANCE OF YOUR 306 CABRIOLET
18
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals:
¥ Every 20 000 miles (30 000km) or every 2 years for petrol engines. The extension of the service intervals means that the engine oil level must be checked regularly; topping up of the oil between oil changes is normal.
It is for this reason, and for your complete peace of mind, that your PEUGEOT dealer will carry out a levels check and top-up midway between each routine service, at the time or distance intervals specified. This will be undertaken free of charge, provided that the maintenance of your vehicle has been carried out within the
Peugeot network. At the same time, your Peugeot dealer will offer you a PEUGEOT Safety Check, for a nominal fee.
A PEUGEOT professional will carry out a quick check and will top up the levels if necessary (oil up to 1 litre, coolant and screen wash).
If the oil level is too low, there is a risk of serious damage to the engine: check the engine oil level at least every 1 500 m iles
(2 500km), depending on the conditions of use.
The date of the intermediate visit is not shown by the service indicator. It is to be carried out at least every 10 000 miles (15 000km) for petrol engines.

MAINTENANCE OF YOUR 306 CABRIOLET19
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked during each regular service at the PEUGEOT dealer. NB:
the coolant does not need to be renewed.

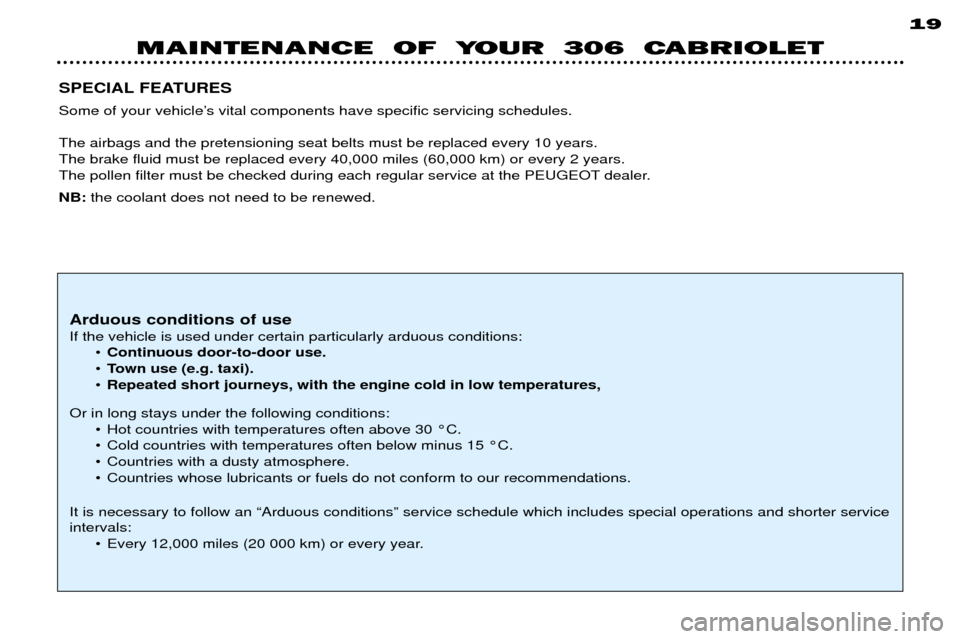

Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.

MAINTENANCE OF YOUR 306 CABRIOLET19
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked during each regular service at the PEUGEOT dealer. NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.

MAINTENANCE OF YOUR 306 CABRIOLET21
PEUGEOT SERVICING LEVELS A AND C
Level
Operations Description of operations for 1st serviceServicesACIntermediate visit
DRAIN AND REFILL- Engine drain and refill.- Oil filter.
REPLACEMENT- Fuel filter (Petrol).
- Air filter element.
- Spark plugs (Petrol).
- Engine oil (check + top up).
- Manual gearbox oil (check + top up).
- Battery (check + top up) if plug is removable.
LEVEL- Front/rear windscreen wash (check + top up).
- Coolant (check + top up).
- Brake fluid (check + top up).
- Power steering fluid (check + top up according to specification).
- Operation of lights and indicators.
- Condition of glass, headlamp and light lenses and mirrors.
- Horn.
- Windscreen washer jets.
- Condition of wiper blades.
- Condition and tension of ancillary drive belts.
- Handbrake.
- Condition of hydraulic circuits (hoses and covers), check for leaks.
CHECK- Condition of rubber boots and gaiters.
- Brake pad wear.
- Clearances, hubs, rods, ball joints, flxible mountings.
- Sealing of dampers.
- Wear of rear linings.
- Condition and pressure of tyres (including spare wheel).
- Emission control check according to current legislation (Petrol).
- Pollen filter check (according to specification).
- Visual check of the whole vehicle by a PEUGEOT dealer.
ROAD TEST
: All driving conditions : Specific conditions

91
YOUR 306 CABRIOLET IN DETAIL
Anti-lock braking system (ABS) warninglight It comes on for 3 seconds
each time the ignition is switched on. If it comes on at over 8 m.p.h. (12 km/h.) it indicates a malfunction
of the ABS.
However, the vehicle retains conven- tional servo-assisted braking.
Contact a PEUGEOT dealer.
Front airbags* and disarming ofpassenger airbag* For operation, see section on AIR BAGS
Side air bags** For operation, see
section on AIR BAGS.
* According to specification.
Oil gauge* When the ignition is on, this indicates the oil level: The reading is only valid if the vehicle is on level ground and the engine has
been switched off for 10 minutes.
- needle in zone
C, the oil level is
correct
- needle in zone D, check the oil level
using the dipstick and top up if
necessary.
Never exceed the maximum level onthe dipstick.
The oil level indicator switches off approximately 15 seconds after star-ting the engine.
Front brake pad wearwarning light*
For your safety, change the brake pads when thewarning light comes on.
Contact a PEUGEOT dealer.
DC
* According to specification.
Coolant temperature gauge
- needle in zone
A, the temperature
is correct.
- needle in zone B, the temperature
is too high.
The STOP warning light comes on.
You must stop.
Contact a PEUGEOT dealer.A
B

91
YOUR 306 CABRIOLET IN DETAIL
Anti-lock braking system (ABS) warninglight It comes on for 3 seconds
each time the ignition is switched on. If it comes on at over 8 m.p.h. (12 km/h.) it indicates a malfunction
of the ABS.
However, the vehicle retains conven- tional servo-assisted braking.
Contact a PEUGEOT dealer.
Front airbags* and disarming ofpassenger airbag* For operation, see section on AIR BAGS
Side air bags** For operation, see
section on AIR BAGS.
* According to specification.
Oil gauge* When the ignition is on, this indicates the oil level: The reading is only valid if the vehicle is on level ground and the engine has
been switched off for 10 minutes.
- needle in zone
C, the oil level is
correct
- needle in zone D, check the oil level
using the dipstick and top up if
necessary.
Never exceed the maximum level onthe dipstick.
The oil level indicator switches off approximately 15 seconds after star-ting the engine.
Front brake pad wearwarning light*
For your safety, change the brake pads when thewarning light comes on.
Contact a PEUGEOT dealer.
DC
* According to specification.
Coolant temperature gauge
- needle in zone
A, the temperature
is correct.
- needle in zone B, the temperature
is too high.
The STOP warning light comes on.
You must stop.
Contact a PEUGEOT dealer.A
B

MAINTENANCE OF YOUR 306 CABRIOLET
26
CHECKING THE LEVELS Engine Checking the oil level Check the level regularly and top up between changes
(maximum
consumption is 0.5 litres per 600 miles (1,000 km). The oil level should be checked with the vehicle level, engine cold. There are two marks on the dipstick:
A= maximum.
B = minimum. Oil change:
according to the manu-
facturerÕs servicing schedule.
Ð Dipstick. Never fill past the maximum mark A.
Ð Oil level gauge on the instrument panel.
Viscosity selection In all cases, the oil selected must meet the manufacturer's require-ments. Oil filter Change the filter regularly in accor- dance with the maintenance schedule. Used oil Prevent used oil from coming into pro- longed contact with the skin. Do not dispose of used oil into drains or into the ground.
To maintain the reliability of engines and emission control systems, the useof additives in the engine oil is pro-hibited. Brake fluid reservoir
Ð The level should always be above
the DANGER mark on the reser-
voir.
Ð If the level drops substantially, contact a PEUGEOT dealer imme-
diately.
Fluid change
Ð must be carried out according to the manufacturerÕs schedule.
Ð use fluids approved by the manu- facturer, which fulfil DOT4 stan- dards.
Coolant reservoir Use the fluid approved by the manu-
facturer. When the engine is warm, the tem- perature of the coolant is controlledby the engine fan: because this fancan operate with the ignition keyremoved, and because the coolingsystem is pressurised, wait for at leastone hour after the engine has stoppedbefore carrying out any work.
If necessary, in a breakdown, slacken the cap to the first notch to releasethe pressure to prevent any risk ofscalding. When the pressure hasdropped remove the cap and top upthe level.
A
B
A
B
