2001 Peugeot 306 C Dag driver seat adjustment

82
5
3
21
4
82

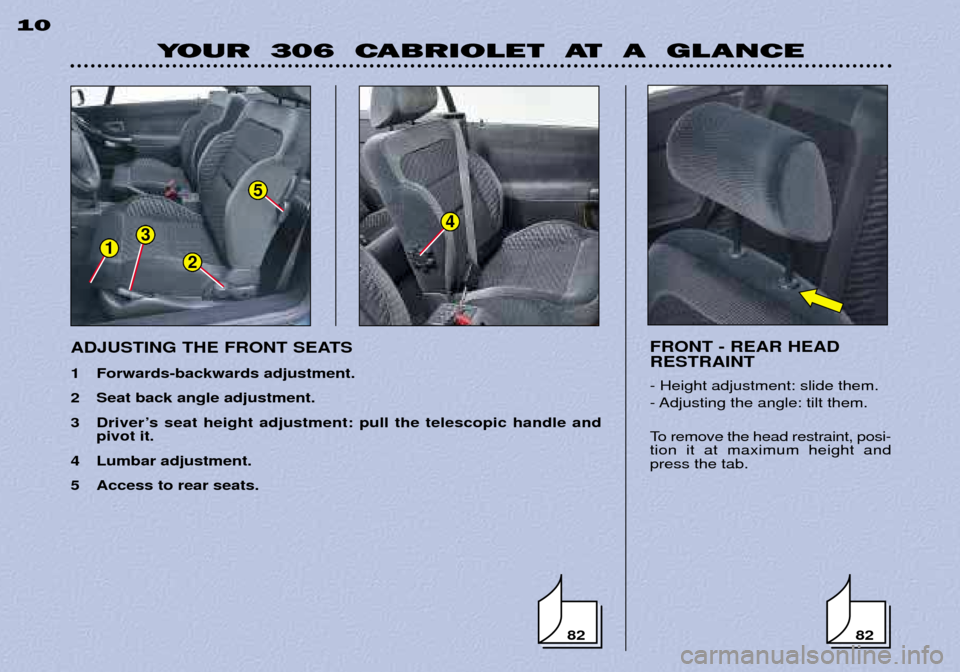

YOUR 306 CABRIOLET AT A GLANCE
10
FRONT - REAR HEAD RESTRAINT - Height adjustment: slide them.
- Adjusting the angle: tilt them.
To remove the head restraint, posi- tion it at maximum height andpress the tab.
ADJUSTING THE FRONT SEATS
1 Forwards-backwards adjustment.
2 Seat back angle adjustment.
3 DriverÕs seat height adjustment: pull the telescopic handle and
pivot it.
4 Lumbar adjustment.
5 Access to rear seats.

Adjusting the height of the steering wheel Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handle tolock it into position.
1
2
96
YOUR 306 CABRIOLET IN DETAIL
1 - Lighting rheostat* Dim or brighten the instru- ment panel lighting by turningthe knob.
This only operates when the exteriorlights are on. 2 - Headlight heightadjustment*
Depending on the vehicleÕs load, it is advisable to adjust
the headlight beam. 0 - 1 or 2 people in the front seats.
- - 3 people.
1 - 4 people.
2 - 4 people + maximum authorised
load.
3 - Driver + maximum authorised
load.
This adjustment can only be carried out with the lighting stalk in thedipped/main beam headlights posi-tion. Initial setting: 0.
* According to specification.

6
5
2
1
3
4
YOUR 306 CABRIOLET IN DETAIL
82

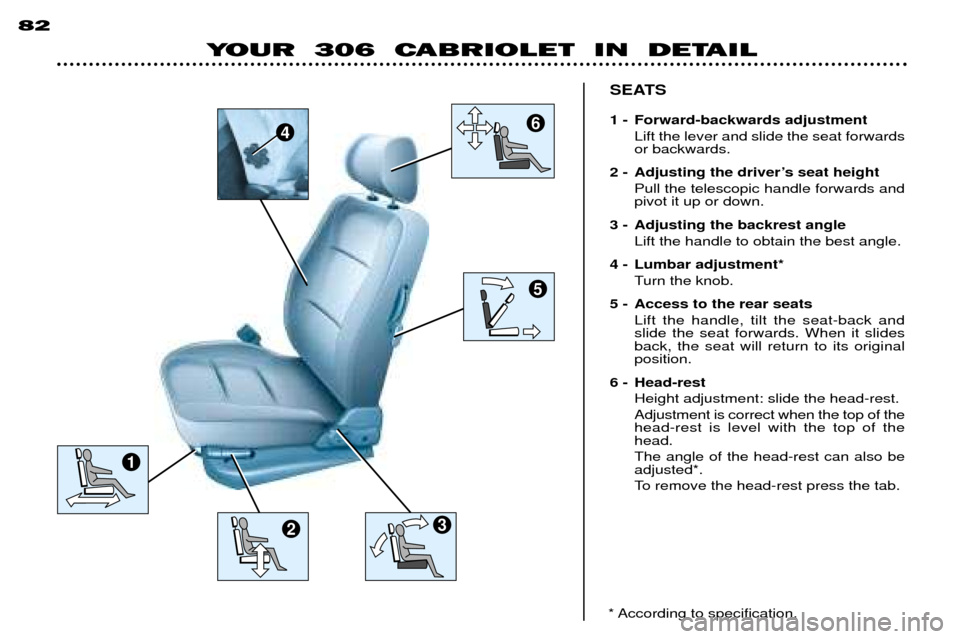

SEATS
1 - Forward-backwards adjustmentLift the lever and slide the seat forwards or backwards.
2 - Adjusting the driver Õs seat height
Pull the telescopic handle forwards andpivot it up or down.
3 - Adjusting the backrest angle Lift the handle to obtain the best angle.
4 - Lumbar adjustment* Turn the knob.
5 - Access to the rear seats Lift the handle, tilt the seat-back andslide the seat forwards. When it slidesback, the seat will return to its originalposition.
6 - Head-rest Height adjustment: slide the head-rest. Adjustment is correct when the top of the head-rest is level with the top of thehead. The angle of the head-rest can also be adjusted*.
To remove the head-rest press the tab.
* According to specification.

82
5
3
21
4
82
YOUR 306 CABRIOLET AT A GLANCE
10
FRONT - REAR HEAD RESTRAINT - Height adjustment: slide them.
- Adjusting the angle: tilt them.
To remove the head restraint, posi- tion it at maximum height andpress the tab.
ADJUSTING THE FRONT SEATS
1 Forwards-backwards adjustment.
2 Seat back angle adjustment.
3 DriverÕs seat height adjustment: pull the telescopic handle and
pivot it.
4 Lumbar adjustment.
5 Access to rear seats.
