2001 PEUGEOT 206 CC lock

1Side windows demisting vents
2 Adjustable side vent
3 Passenger air bag
4 Windscreen demisting vents
5 Multi-function display
6 Central locking control*
7 Hazard warning lights switch
8 Radio
9 Central adjustable vents
10 Instrument panel lightingrheostat
11 Lighting and fog lamps switch
12 Driver's air bag/ horn 13
Steering lock
14 Passenger air bag disarmingswitch*
15 Windscreen wash/wipe stalk
16 Alarm button*
17 Radio steering column stalk
18 Headlamp height adjustment
19 Steering wheel heightadjustment control
20 Fuse box
21 Glove box
22 Electric retractable roofcontrol
23 Electric windows switch
24 Electric mirrors switch 25
Lighter
26 Handbrake
27 Gear lever
28 Front ashtray
29 Switch for heating, ventila-tion, air conditioning andrear screen and mirrorsdemisting
30 Glove box
31 Bonnet opening control
* According to specification.
3YOUR AT A GLANCE

7YOUR AT A GLANCE
STARTING The four positions of the key in the ignition:
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the accesso-ries can be used.
2nd notch, Running position:
the ignition is on.
Starting position:
operates the starter. Steering lock Before starting, unlock the stee-
ring if necessary, by gentlyturning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier. Starting an engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until theengine turns.
THE KEYS The keys operate
independently
the locks for the boot (opening), the fuel filler flap, the steeringlock and the glove box as well asoperating the passenger air bagdisarming switch. Central locking
From the driver's door, the keys allow you to:
Ð simultaneously lock the doors and the boot,
Ð simultaneously unlock the doors alone.
You can only unlock the boot by using the boot lock. The remote control* Pressing button A
allows you to lock the doors and bootby remote control.This is confirmed bythe fixed lighting ofthe direction indica-tors for approxima-tely two seconds. Pressing button B
allows you to unlock
the doors alone. This is confir-med by the rapid flashing ofthe direction indicators forapproximately two seconds.
* According to specification.
68
Never race a cold engine.
Never run the engine in anenclosed space. Do not make any modications to the steering lock.

4THE ELECTRIC
RETRACTABLE ROOF Opening the roof Ensure that the screen 1is hoo-
ked on (nothing must be placed on the screen; if there is luggagein the boot, it must not cause thescreen to lift up).
 Check that there are noobjects on the rear shelf.
When stationary, with the
handbrake applied, turn theignition key to position M.
 Completely release the twohooks 2; this operation is vali-
dated by an audible signal.
 Press on button 3until you
hear a signal to indicate thatthe roof opening operation iscomplete.
Note:during this operation, thewindows open. Closing the roof
When stationary , with the
handbrake applied, turn the ignition key to position M.
 Press button 3 until you hear a
signal to indicate that the roofopening operation is complete.
 Lock the two hooks 2.
Note: the window control
switches become operationalagain after the roof manoeuvre.YOUR AT A GLANCE
72
The roof must not be operated when a loa-ded luggage carrier isfitted on the boot lid.
During roof opening or closingoperations, to avoid risk of inju-
ry, ensure that no-one is in theproximity of the moving parts.
If there is any danger, relea- se the control switch; the
operation will stop instantly. Never release button 3 for any length of time, nor swit-
ch off the ignition, when theroof is in an intermediateposition (neither completelyopen nor completely closed).

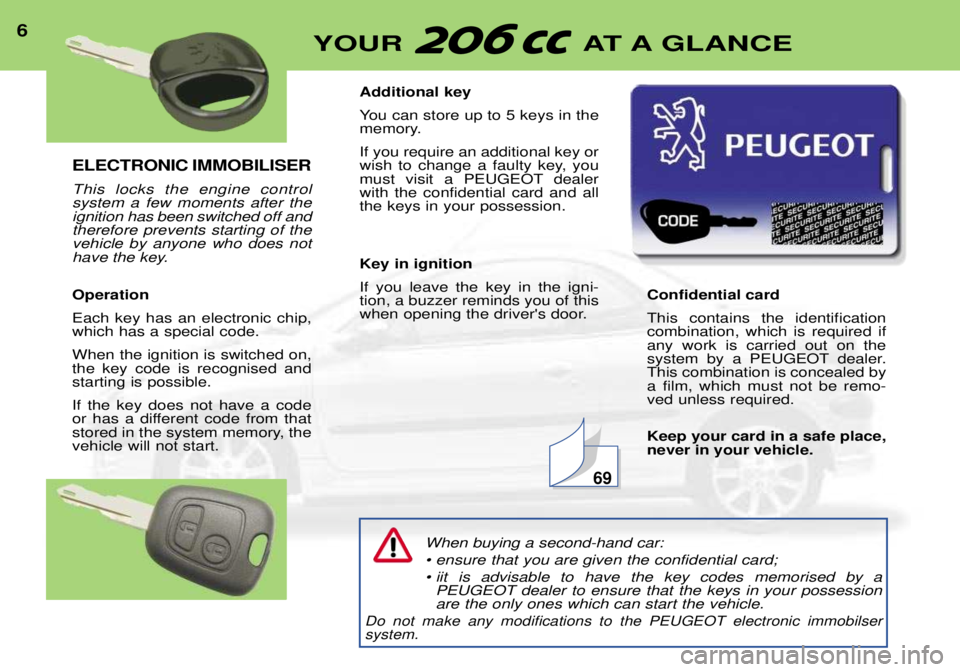

ELECTRONIC IMMOBILISER This locks the engine control system a few moments after theignition has been switched off andtherefore prevents starting of thevehicle by anyone who does not
have the key. Operation Each key has an electronic chip, which has a special code. When the ignition is switched on, the key code is recognised andstarting is possible. If the key does not have a code
or has a different code from that
stored in the system memory, thevehicle will not start.Additional key
You can store up to 5 keys in the
memory. If you require an additional key or
wish to change a faulty key, you
must visit a PEUGEOT dealerwith the confidential card and allthe keys in your possession. Key in ignition If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door.
Confidential card This contains the identification combination, which is required ifany work is carried out on the
system by a PEUGEOT dealer.This combination is concealed bya film, which must not be remo-ved unless required. Keep your card in a safe place, never in your vehicle.
6YOUR AT
A GLANCE
When buying a second-hand car:
¥ ensure that you are given the confidential card;
¥ iit is advisable to have the key codes memorised by a
PEUGEOT dealer to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the PEUGEOT electronic immobilser system.
69

9YOUR AT A GLANCE
STEERING WHEEL HEIGHT ADJUSTMENT Lower the lever to release the steering wheel. Adjust to the required height and raise the lever to lock the stee-ring wheel. OPENING THE BONNET Inside the vehicle:
pull the
handle. Outside the vehicle: lift the catch
and lift the bonnet. Secure the strut to hold the bonnet open.
8271

11YOUR AT A GLANCE
FRONT AIR BAGS Disarming the passenger air bag Insert the ignition key in the switch 1and turn it to:
Ð the ONposition; the passenger
air bagis armed,
Ð tthe OFF position; the passenger
air bag is disarmed.
Operating check
With the ignition on (2nd notch), illu-mination of this warning light,accompanied by an audible signaland the message "Passenger air
bag disarmed" on the multi-func-
tion display, indicates that the pas-senger air bag is disarmed (switch inthe "OFF" position).
The warning light remains on throu-ghout the disarming process. Precautions regarding thepassenger air bag
Vehicle fitted with a passenger air bag disarming switch:
Ð disarm the air
bag if you install a rearwards-facing child seat
Ð arm the air bag for an adult pas-
senger.
Vehicle not fitted with a passen-ger air bag disarming switch:
Ð do not install a rearwards-facing child seat on thefront passengerseat.
Never place your feet or anyobject on the fascia panel. ''ISOFIX'' MOUNTINGS
Available on the front passenger seat, Isofix mountings allow fit-ting of a
special child seat* sold
by PEUGEOT dealers. The locks incorporated in the child seat fit onto the ''Isofix''mountings, ensuring reliable,
safe and fast assembly. Thechild seat must be fitted in therearwards facing position for chil-dren less than 13kg (in this
event it is essential to disarmthe passenger air bag). Follow the instructions for fitting the child seat in the installationbrochure.
8864

INSTRUMENTS AND CONTROLS
26
1.Seat belt not fastened* warning light
2. Passenger air bag disarming* indi- cator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator 9.
Right-hand direction indicator
10. Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat
24. Fuel gauge
25. Low fuel level warning light
* According to specification.
Instrument panel

INSTRUMENTS AND CONTROLS27
1. Seat belt not fastened* warning light
2. Passenger air bag disarming* indicator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indicator and engine oil level indicator 9.
Right-hand direction indicator
10. Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light
17. Operating programmes 18.
Gear lever position indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat
25. Fuel gauge
26. Fuel low warning light
* According to specification.
Instrument panel: Automatic Gearbox
