1Side windows demisting vents
2 Adjustable side vent
3 Passenger air bag
4 Windscreen demisting vents
5 Multi-function display
6 Central locking control*
7 Hazard warning lights switch
8 Radio
9 Central adjustable vents
10 Instrument panel lightingrheostat
11 Lighting and fog lamps switch
12 Driver's air bag/ horn 13
Steering lock
14 Passenger air bag disarmingswitch*
15 Windscreen wash/wipe stalk
16 Alarm button*
17 Radio steering column stalk
18 Headlamp height adjustment
19 Steering wheel heightadjustment control
20 Fuse box
21 Glove box
22 Electric retractable roofcontrol
23 Electric windows switch
24 Electric mirrors switch 25
Lighter
26 Handbrake
27 Gear lever
28 Front ashtray
29 Switch for heating, ventila-tion, air conditioning andrear screen and mirrorsdemisting
30 Glove box
31 Bonnet opening control
* According to specification.
3YOUR AT A GLANCE

4THE ELECTRIC
RETRACTABLE ROOF Opening the roof Ensure that the screen 1is hoo-
ked on (nothing must be placed on the screen; if there is luggagein the boot, it must not cause thescreen to lift up).
 Check that there are noobjects on the rear shelf.
When stationary, with the
handbrake applied, turn theignition key to position M.
 Completely release the twohooks 2; this operation is vali-
dated by an audible signal.
 Press on button 3until you
hear a signal to indicate thatthe roof opening operation iscomplete.
Note:during this operation, thewindows open. Closing the roof
When stationary , with the
handbrake applied, turn the ignition key to position M.
 Press button 3 until you hear a
signal to indicate that the roofopening operation is complete.
 Lock the two hooks 2.
Note: the window control
switches become operationalagain after the roof manoeuvre.YOUR AT A GLANCE
72
The roof must not be operated when a loa-ded luggage carrier isfitted on the boot lid.
During roof opening or closingoperations, to avoid risk of inju-
ry, ensure that no-one is in theproximity of the moving parts.
If there is any danger, relea- se the control switch; the
operation will stop instantly. Never release button 3 for any length of time, nor swit-
ch off the ignition, when theroof is in an intermediateposition (neither completelyopen nor completely closed).

PEUGEOT SERVICING23
- Engine oil
Level
Operations Operation descriptions 1st
service
AC
Intermediate visit
- Oil filter- Fuel filter- Air filter element- Spark plugs
- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if removable cap- Coolant level (check + top-up)- Front windscreen wash (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top-up according to specification)
- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Condition of wiper blades- Windscreen jets- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers) and check for leaks- Condition of rubber boots and gaiters- Brake pad wear o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers: check for leaks- Rear drum brake lining wear- Condition and pressure of tyres (including spare tyre)- Emission control check according to current legislation- Pollen filter (according to specification)o- Visual check of the whole vehicle by a PEUGEOT dealer
- Courtesy vehicle

All driving conditions. oArduous conditions
DRAIN AND REFILL
REPLACE
LEVELS
CHECK
SERVICE
ROAD TEST
TYPE A AND C SERVICES AND THE INTERMEDIATE VISIT

INSTRUMENTS AND CONTROLS
26
1.Seat belt not fastened* warning light
2. Passenger air bag disarming* indi- cator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator 9.
Right-hand direction indicator
10. Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat
24. Fuel gauge
25. Low fuel level warning light
* According to specification.
Instrument panel

INSTRUMENTS AND CONTROLS27
1. Seat belt not fastened* warning light
2. Passenger air bag disarming* indicator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indicator and engine oil level indicator 9.
Right-hand direction indicator
10. Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light
17. Operating programmes 18.
Gear lever position indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat
25. Fuel gauge
26. Fuel low warning light
* According to specification.
Instrument panel: Automatic Gearbox

INSTRUMENTS AND CONTROLS
28
Handbrake and low brake fluid level or fault inElectronic Brake ForceDistribution systemwarning light
Indicates either:
- that the handbrake is on or has not been released correctly,
- an excessive drop in the brake fluid level (if the light remains lit even with the handbrake released),
- a fault in the Electronic Brake Force Distribution system if lit simulta-
neously with the ABS warning light.
Stop immediately.
Contact a PEUGEOT dealer.
Instruments and controls
A permantly lit warning light or one that flashes with the engine run-ning, indicates an operating fault inthe relevant unit. Some warninglights may be accompanied by anaudible signal and a message onthe multifunction screen. Do notignore this warning: contact a PEU-GEOT dealer as soon as possible.
If the Central STOP warning lightcomes on when you are driving,stop immediately where it is safe todo so.
Anti-lock brake system (ABS) warning light*
When this is lit continuously, it
indicates a malfunction of the ABS system.
However, the vehicle retains conventional servo-assisted bra-king.
Contact a PEUGEOT dealer.
* According to specification
Engine oil pressure warning light
Linked with the central STOP
warning light.
Stop immediately.This warning light indicates either:
- insufficient oil pressure,
- lack of oil in the lubrication circuit. Top up the oil level.
- oil temperature which is too high. Switching on of the warning light isaccompanied by an audible signal.
To lower the oil temperature, reduceyour speed.
Contact a PEUGEOT dealer as soon aspossible.
Temperature andcoolant low levelwarning light
Linked with the the central STOP war-ning light.
Stop immediately.Allow the engine to cool before top- ping up. The cooling system is pressurised.In the event of breakdown and to pre-
vent the risk of scalding , turn the
cap twice to allow the pressure to drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Central STOP warning light Linked with the warning
light for the "engine oil pressure", the ''coolant temperature and low levelgauge'', the ''handbrake'', the ''brakefluid low level'' and ''electronic brakingsystem fault'' as well as the ''dooropen'' warning indicated by a symbol
on the multifunction display. Stop immediately if the light is fla- shing with the engine running.
Contact a PEUGEOT dealer.

YOUR 206 CC IN DETAIL
72

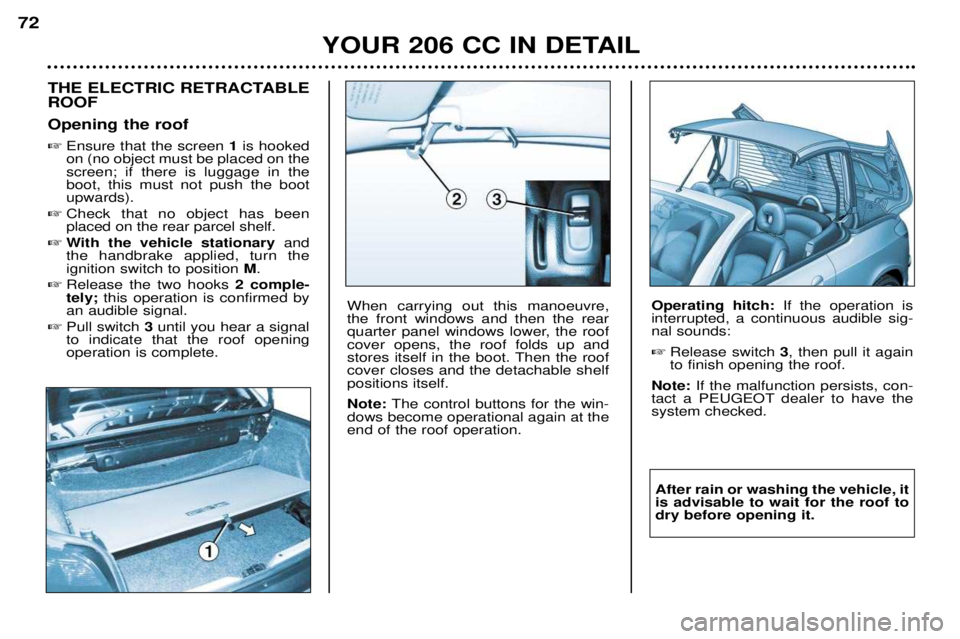

THE ELECTRIC RETRACTABLE ROOF Opening the roof
Ensure that the screen 1is hooked
on (no object must be placed on the screen; if there is luggage in theboot, this must not push the bootupwards).
 Check that no object has been placed on the rear parcel shelf.
 With the vehicle stationary and
the handbrake applied, turn theignition switch to position M.
 Release the two hooks 2 comple-
tely; this operation is confirmed by
an audible signal.
 Pull switch 3 until you hear a signal
to indicate that the roof openingoperation is complete.
When carrying out this manoeuvre, the front windows and then the rear
quarter panel windows lower, the roofcover opens, the roof folds up and
stores itself in the boot. Then the roofcover closes and the detachable shelfpositions itself. Note: The control buttons for the win-
dows become operational again at the end of the roof operation.Operating hitch: If the operation is
interrupted, a continuous audible sig- nal sounds:  Release switch 3, then pull it again
to finish opening the roof.
Note: If the malfunction persists, con-
tact a PEUGEOT dealer to have the system checked.
After rain or washing the vehicle, it is advisable to wait for the roof todry before opening it.

YOUR 206 CC IN DETAIL73
Closing the roof
With the vehicle stationary and
the handbrake applied, turn the ignition key to position M.
 Press switch 3 until you hear a
signal to indicate that the roof clo-sing operation is complete.
When carrying out this operation, thefront windows and then the rear quar-ter panel windows open, the detacha-ble parcel shelf folds up, the roof coveropens, the roofs unfolds and positionsitself, then the roof cover closes again.  Lock the two hooks 2.
Note: The control buttons for the win-
dows become operational again at the end of the roof operation. Operating hitch : If the operation is
interrupted, a continuous audible signal sounds:  Release switch 3, then press it
again to finish closing the roof.
If the problem persists, contact a
PEUGEOT dealer to have the systemchecked. When the vehicle is moving, if a conti-nuous audible signal can be heard,this means that the roof or the roof
cover, or both, are not locked:
Stop the vehicle and apply the handbrake,
 Open the roof and close it again
completely, in accordance with theprocedure.
If the problem persists, contact a

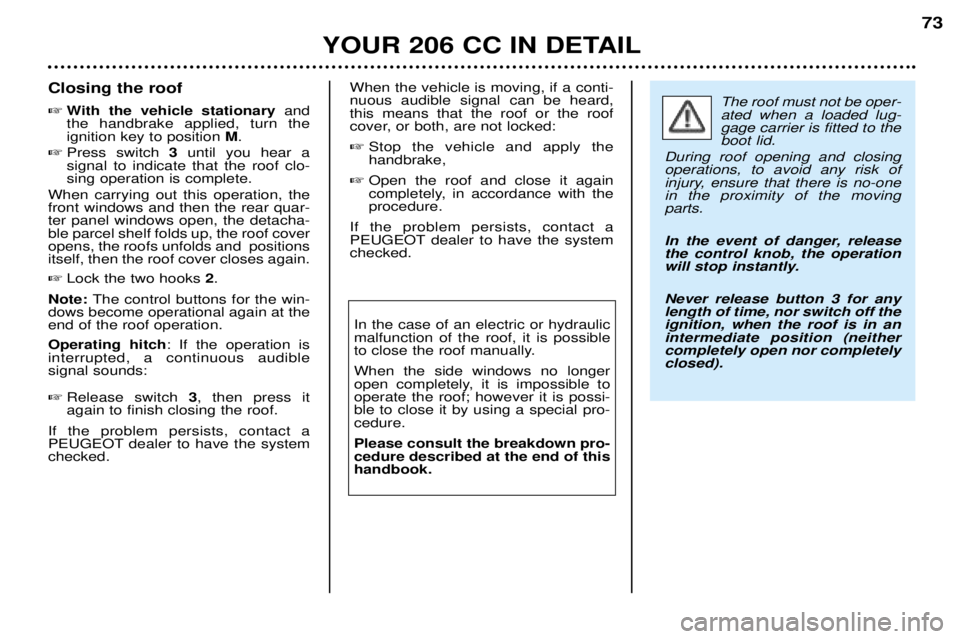

PEUGEOT dealer to have the systemchecked.The roof must not be oper- ated when a loaded lug-gage carrier is fitted to theboot lid.
During roof opening and closingoperations, to avoid any risk of
injury, ensure that there is no-onein the proximity of the movingparts.
In the event of danger, release the control knob, the operation
will stop instantly. Never release button 3 for any
length of time, nor switch off theignition, when the roof is in anintermediate position (neithercompletely open nor completelyclosed).
In the case of an electric or hydraulic malfunction of the roof, it is possible
to close the roof manually. When the side windows no longer
open completely, it is impossible tooperate the roof; however it is possi-ble to close it by using a special pro-cedure. Please consult the breakdown pro- cedure described at the end of thishandbook.
