Page 89 of 123
YOUR 206 CC IN DETAIL89

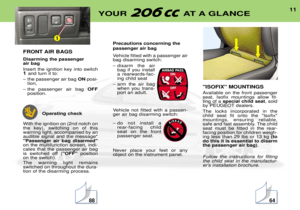

In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as you remove the rear-fac- ing child seat from the front passengerseat, turn the air bag switch to the"ON" position, to arm the air bag
again and thus ensure the safety ofyour passenger in an impact. Operating check This is provided by an indicator light, accompanied by an audible signal anda message on the multifunction dis-
play. When the ignition is on (2nd notch on the ignition key), switching on of thiswarning light, accompanied by anaudible signal and the message ''Pas-
senger air bag disarmed'' on the
multifunction screen, indicates that thepassenger air bag is disarmed ( ''OFF''
position on the control).SIDE AIRBAGS* These are incorporated into the frame of the front seat back, on the doorside. They are deployed independently of each other depending on which sidethe collision occurs, in collisions whichcould cause injury to the chest, theabdomen or the head. Operating check This is confirmed by an indica-
tor light on the instrument panel. It comes on for 6 seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after 6 seconds or,
Ð flashes for 5 minutes then stays on,
Contact a PEUGEOT dealer.
*According to specification
Page 90 of 123
YOUR 206 CC IN DETAIL
90

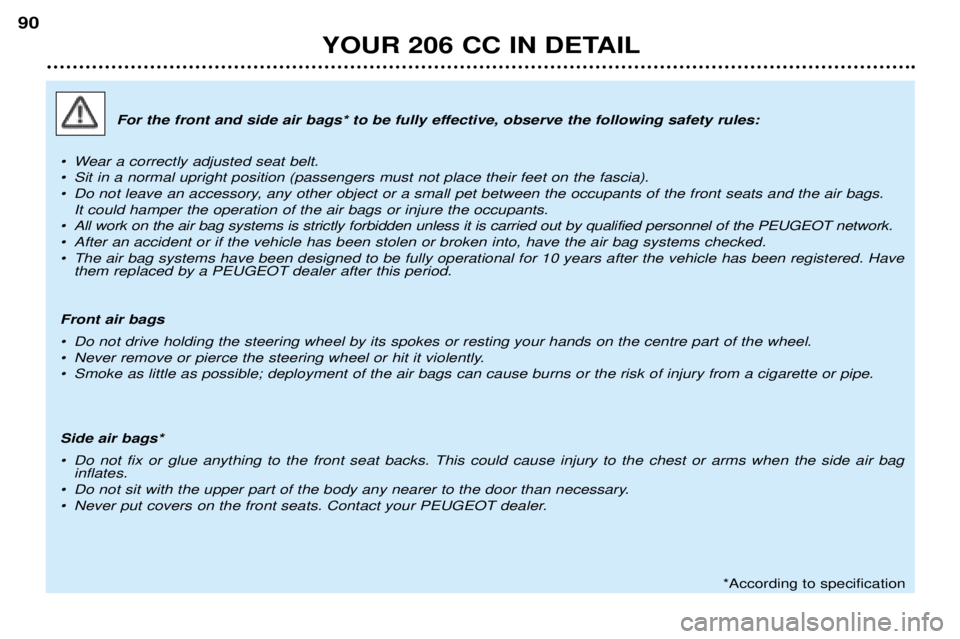

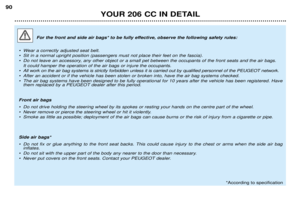

For the front and side air bags* to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position (passengers must not place their feet on the fascia).
¥ Do not leave an accessory, any other object or a small pet between the occupants of the front seats and the air bags. It could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag systems is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered. Have them replaced by a PEUGEOT dealer after this period.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Never remove or pierce the steering wheel or hit it violently.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe. Side air bags*
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
¥ Never put covers on the front seats. Contact your PEUGEOT dealer.
*According to specification
Page 91 of 123
YOUR 206 CC IN DETAIL89
In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as you remove the rear-fac- ing child seat from the front passengerseat, turn the air bag switch to the"ON" position, to arm the air bag
again and thus ensure the safety ofyour passenger in an impact. Operating check This is provided by an indicator light, accompanied by an audible signal anda message on the multifunction dis-
play. When the ignition is on (2nd notch on the ignition key), switching on of thiswarning light, accompanied by anaudible signal and the message ''Pas-
senger air bag disarmed'' on the
multifunction screen, indicates that thepassenger air bag is disarmed ( ''OFF''
position on the control).SIDE AIRBAGS* These are incorporated into the frame of the front seat back, on the doorside. They are deployed independently of each other depending on which sidethe collision occurs, in collisions whichcould cause injury to the chest, theabdomen or the head. Operating check This is confirmed by an indica-
tor light on the instrument panel. It comes on for 6 seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after 6 seconds or,
Ð flashes for 5 minutes then stays on,
Contact a PEUGEOT dealer.
*According to specification
Page 92 of 123
YOUR 206 CC IN DETAIL
90
For the front and side air bags* to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position (passengers must not place their feet on the fascia).
¥ Do not leave an accessory, any other object or a small pet between the occupants of the front seats and the air bags. It could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag systems is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered. Have them replaced by a PEUGEOT dealer after this period.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Never remove or pierce the steering wheel or hit it violently.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe. Side air bags*
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
¥ Never put covers on the front seats. Contact your PEUGEOT dealer.
*According to specification
Page 93 of 123

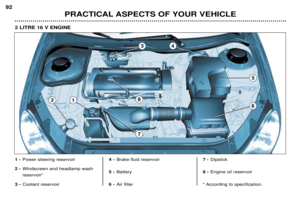

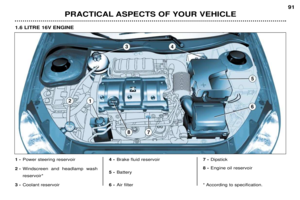

PRACTICAL ASPECTS OF YOUR VEHICLE91
1 -
Power steering reservoir
2 - Windscreen and headlamp wash reservoir*
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Air filter 7 -
Dipstick
8 - Engine oil reservoir
* According to specification.
1.6 LITRE 16V ENGINE
Page 94 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE
92
1 -
Power steering reservoir
2 - Windscreen and headlamp wash reservoir*
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Air filter 7 -
Dipstick
8 - Engine oil reservoir
* According to specification.
2 LITRE 16 V ENGINE
Page 95 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE93
Checking levels Engine Oil level Carry out this check regularly and top up between oil changes
(the
maximum consumption is 0.5 litre per
600 miles (1000 km)). The check mustbe carried out with the vehicle leveland the engine cold.

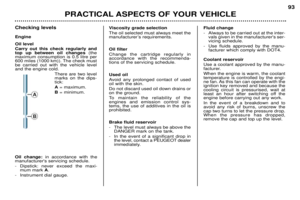

There are two levelmarks on the dips-tick: A= maximum.

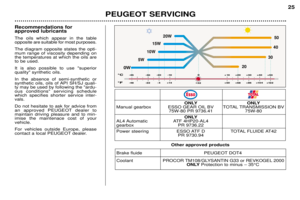

B = minimum. Viscosity grade selectionThe oil selected must always meet the
manufacturerÕs requirements. Oil filter Change the cartridge regularly in accordance with the recommenda-tions of the servicing schedule. Used oil
Avoid any prolonged contact of used oil with the skin. Do not discard used oil down drains or on the ground.
To maintain the reliability of the engines and emission control sys-tems, the use of additives in the oil isprohibited. Brake fluid reservoir
- The level must always be above the
DANGER mark on the tank.
- In the event of a significant drop in the level, contact a PEUGEOT dealer
immediately. Fluid change
- Always to be carried out at the inter-
vals given in the manufacturer's ser- vicing schedule.
- Use fluids approved by the manu- facturer which comply with DOT4.
Coolant reservoir Use a coolant approved by the manu-
facturer. When the engine is warm, the coolant temperature is controlled by the engi-
ne fan. As this fan can operate with theignition key removed and because thecooling circuit is pressurised, wait at
least an hour after switching off theengine before carrying out any work. In the event of a breakdown and to avoid any risk of burns, unscrew thecap two turns to let the pressure drop.When the pressure has dropped,remove the cap and top up the level.
Oil change: in accordance with the
manufacturer's servicing schedule.
- Dipstick: never exceed the maxi- mum mark A.

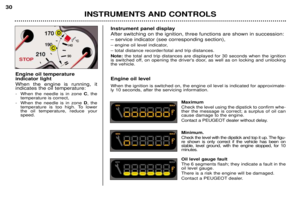

- Instrument dial gauge.
Page 96 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE
94
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 2.8 litres or 6.6 litres withheadlamp wash). Battery
At the start of winter, have your batte-
ry checked by a PEUGEOT dealer. Air filter Regular replacement of the filter ele- ment is essential.
If you drive in very
dusty conditions, change it twice asoften. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town, for short jour-neys. It may be necessary to checkthe thickness of the pads even bet-ween services.

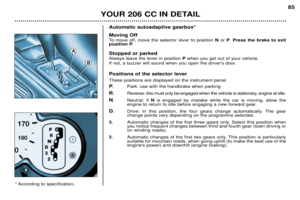

* According to specification. Manual gearbox This does not need an oil change. Check the level according to themanufacturer's servicing schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a

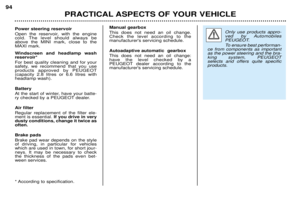

PEUGEOT dealer according to themanufacturer's servicing schedule.Only use products appro-
ved by Automobiles
PEUGEOT.
To ensure best performan-
ce from components as important as the power steering and the bra-king system, PEUGEOTselects and offers quite specificproducts.
