P R A C T I C A L I N F O R M AT I O N86
Beware of incompatible additional electrical acces-sories!
Your vehicleÕs electrical
circuit is designed to operate with standard or optional equip-ment. Before installing additionalelectrical equipment or accesso-ries, consult a PEUGEOT dea-
ler. Some electrical accessories, or the way in which they are Þtted,may adversely affect the opera-
tion of your vehicle, namely, theelectronic control circuits, theradio circuit and the electricalcharging circuit. PEUGEOT does not accept any responsibility for expensesincurred by repairs or for anyfaults resulting from the installa-tion of additional accessorieswhich are not supplied orrecommended by PEUGEOTand which were not installed inaccordance with the manufactu-
rerÕs instructions, in particularequipment with a consumptiongreater than 10 milliamps. Themaxi fuses provide additionalprotection for the electrical sys-tems. Any work must be carriedout by a specialist.
Before removing a fuse the cause of the fault must be found and corrected. The fuse numbers are on the fuse box.Always change a faulty fuse for one of the same rating.

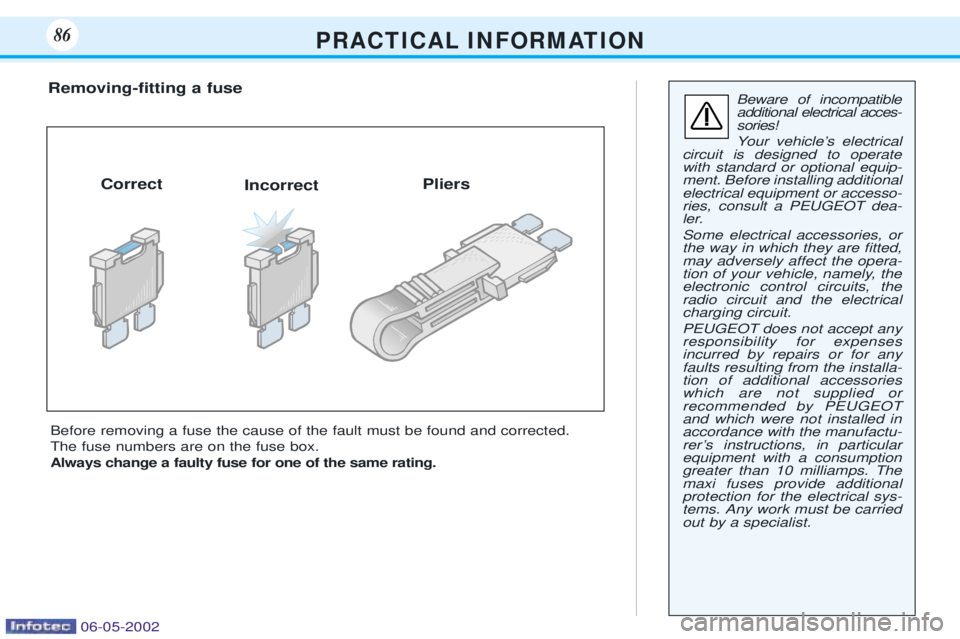

Removing-Þtting a fuse
Correct Incorrect Pliers
06-05-2002

The 16 fuse boxes and maxi fuse boxes are located under thebonnet.
To gain access to the fuses, unhook the covers.16 fuse box Maxi fuse box
P R A C T I C A L I N F O R M AT I O N89
F2
F1
F4 F6 F8
F10 F12 F14
MF1
MF3
MF2
MF4 F3 F5 F7 F9
F11
F13 F15
F16
06-05-2002

P R A C T I C A L I N F O R M AT I O N90
FuseRating* Functions*
1ÑNot used
2 30A Anti-lock braking system
3 25A Engine cooling
4 20A Anti-lock braking system
5 25A Fan unit
6 20A Additional driving lamps
7 ÑNot used
8 ÑNot used
9 10A Fuel pump
10 ÑNot used
11 10A Oxygen sensor
12 10A Left-hand main beam
13 10A Right-hand main beam
14 10A Left-hand dipped beam
15 10A Right-hand dipped beam
16 30A Pulsair pump
16 fuse box (engine compartment)
Maxi fuse (engine compartment)
MF1 20A Lighting switch
MF2 80A Ignition supply (starter +ve)
MF3 40A Ignition supply (ignition controlled +ve)
MF4 40A Battery +ve feed to 13-fuse box
* According to speciÞcation.06-05-2002

13 fuse box
13 fuse box in the passenger compartment
To gain access to the passenger compartment fuse box, press thelug on the upper section and pullthe ßap towards you.
P R A C T I C A L I N F O R M AT I O N87
F7
F2
F3F10
F11
F4F9F5
F8
F6
F1
F12 F13
06-05-2002

P R A C T I C A L I N F O R M AT I O N88

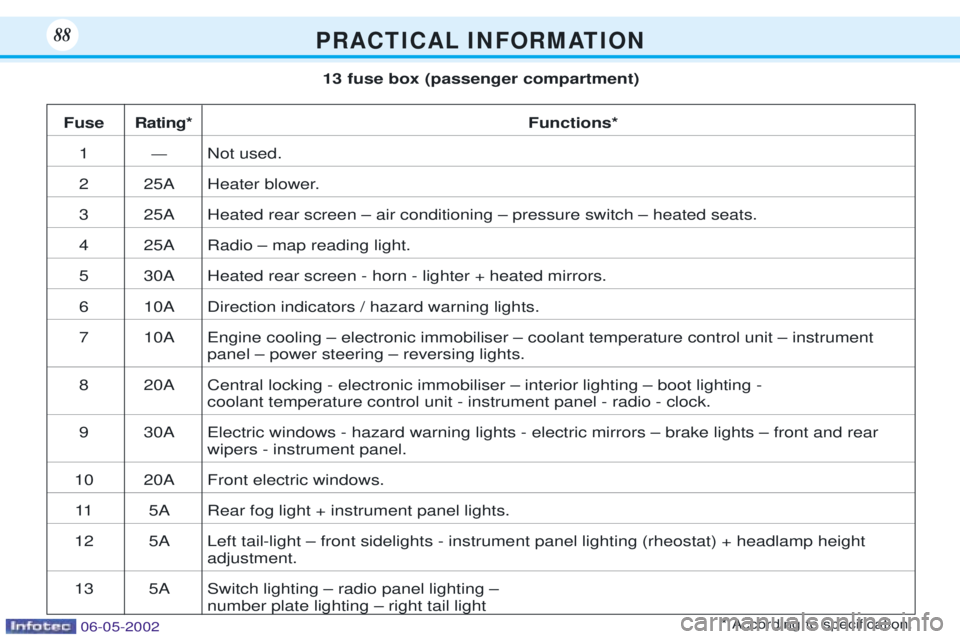

Fuse Rating*Functions*
1ÑNot used.
2 25A Heater blower.
3 25A Heated rear screen Ð air conditioning Ð pressure switch Ð heated seats.
4 25A Radio Ð map reading light.
5 30A Heated rear screen - horn - lighter + heated mirrors.
6 10A Direction indicators / hazard warning lights.
7 10A Engine cooling Ð electronic immobiliser Ð coolant temperature control unit Ð instrument
panel Ð power steering Ð reversing lights.
8 20A Central locking - electronic immobiliser Ð interior lighting Ð boot lighting - coolant temperature control unit - instrument panel - radio - clock.
9 30A Electric windows - hazard warning lights - electric mirrors Ð brake lights Ð front and rearwipers - instrument panel.
10 20A Front electric windows.
11 5A Rear fog light + instrument panel lights.
12 5A Left tail-light Ð front sidelights - instrument panel lighting (rheostat) + headlamp height adjustment.
13 5A Switch lighting Ð radio panel lighting Ð number plate lighting Ð right tail light
13 fuse box (passenger compartment)
* According to speciÞcation.
