2001 PEUGEOT 106 DAG ECO mode

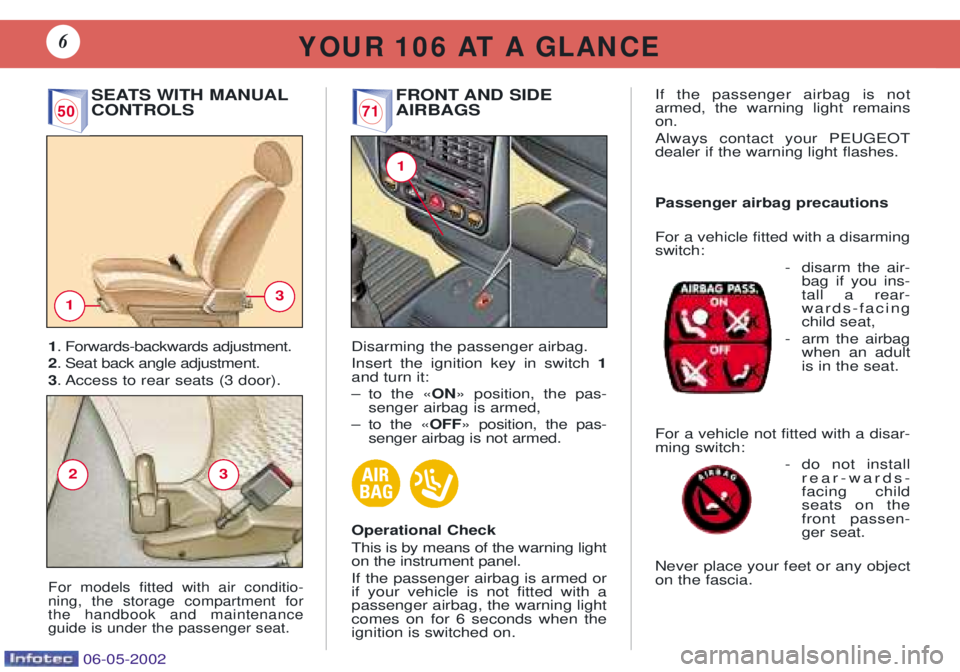

SEATS WITH MANUAL CONTROLS
1 . Forwards-backwards adjustment.
2 . Seat back angle adjustment.
3 . Access to rear seats (3 door).
For models fitted with air conditio- ning, the storage compartment forthe handbook and maintenanceguide is under the passenger seat.
FRONT AND SIDE AIRBAGS
Disarming the passenger airbag. Insert the ignition key in switch 1
and turn it:
Ð to the Ç ONÈ position, the pas-
senger airbag is armed,
Ð to the Ç OFFÈ position, the pas-
senger airbag is not armed.
Operational Check This is by means of the warning light on the instrument panel. If the passenger airbag is armed or if your vehicle is not fitted with apassenger airbag, the warning lightcomes on for 6 seconds when theignition is switched on. If the passenger airbag is notarmed, the warning light remainson. Always contact your PEUGEOT dealer if the warning light flashes. Passenger airbag precautions For a vehicle fitted with a disarming switch:
- disarm the air-bag if you ins-tall a rear-wards-facingchild seat,
- arm the airbag when an adultis in the seat.
For a vehicle not fitted with a disar-ming switch: - do not installrear-wards-facing childseats on thefront passen-ger seat.
Never place your feet or any objecton the fascia.
Y O U R 1 0 6 AT A G L A N C E6
50
23
13
1
71
06-05-2002

TOTAL14
F
NL
SF
GR
A
D
CH
I
N
P
E
B
DK
GB
L
S
IRL
ACTIVA DIESEL 7000 10W 40
ACTIVA DIESEL 9000 5W 40
ACTIVA 9000 5W 30*
ULTRA DIESEL
10W 40
ULTRA 5W 30*
ULTRON DIESEL 5W 40
QUARTZ DIESEL 7000 10W 40
QUARTZ 9000 5W 40
QUARTZ 9000 5W 30*
ACTIVA 7000 10W 40
ACTIVA 9000 5W 40
ACTIVA 9000 5W 30*
QUARTZ 7000 15W 50
ULTRA
10W 40
ULTRA 5W 30*
ULTRON 5W 40
ULTRON 0W 30
QUARTZ 7000 10W 40
QUARTZ 9000 0W 40
QUARTZ 9000 5W 40
QUARTZ 9000 5W 30*

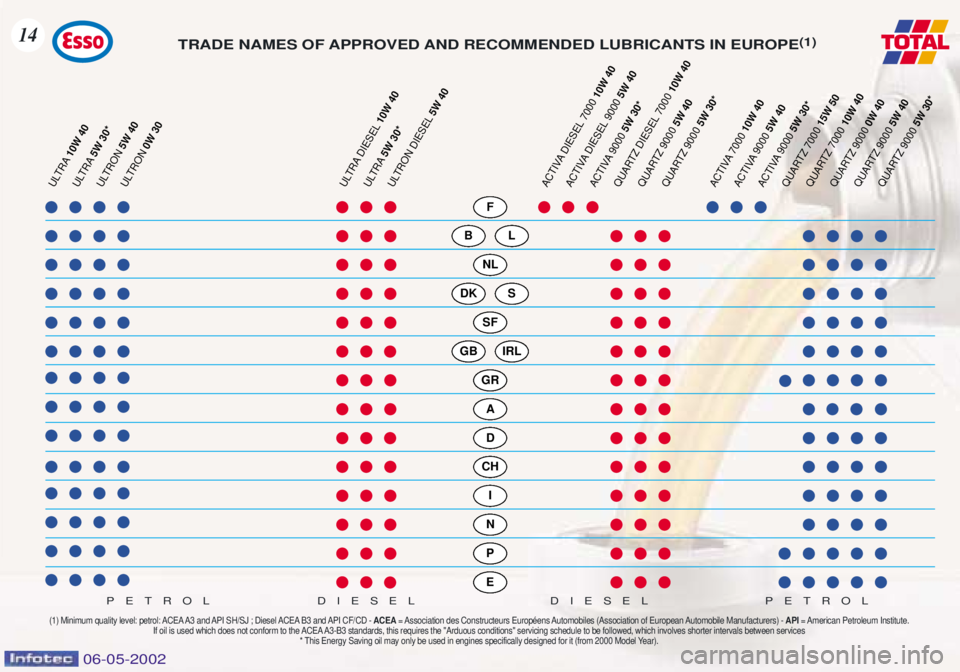

TRADE NAMES OF APPROVED AND RECOMMENDED LUBRICANTS IN EUROPE (1)
(1) Minimum quality level: petrol: ACEA A3 and API SH/SJ ; Diesel ACEA B3 and API CF/CD -
ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) - API= American Petroleum Institute.
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous conditions" servicing schedule to be followed, which involves shorter intervals between services * This Energy Saving oil may only be used in engines specifically designed for it (from 2000 Model Year).
DIESEL
DIESEL
PETROL PETROL
06-05-2002

I N S T R U M E N T S A N D C O N T R O L S18
123456791011812
131415161718192021
Instrument panel (Petrol) 1-Maximum coolant temperature
2- Display control:
- total distance display- trip recorder - trip recorder reset- service indicator
3- Speedometer
4- Display:
- digital clock- service indicator
- total distance
- trip recorder
5- Left-hand indicator 6-
Low fuel level
7- Fuel gauge
8- Right-hand indicator
9- Rev. counter
10 -
Clock adjustment, lighting rheostat
11 - Oil pressure
12 - Engine autodiagnostics* (petrol)
13 - Front* and side** airbag warning light and passenger airbagdisarm*
14 - ABS* (Anti-lock Braking System)
15 - Handbrake, low brake fluid leveland engine not running
16 - Battery charge 17 -
Rear fog lamp
18 - Front fog lamps*
19 - Main beam
20 - Dipped beam
21 - Passenger airbag disarm
* According to speciÞcation or country. ** According to model.
06-05-2002

I N S T R U M E N T S A N D C O N T R O L S19
123456781011129
1416171819202122231315
Instrument panel (Petrol) 1-Coolant temperature gauge
2- Maximum coolant temperature
3- Display control:
- total distance display
- trip recorder - trip recorder reset
- service indicator
4- Speedometer
5- Display:
- digital clock
- service indicator - oil level gauge
- total distance
- trip recorder 6-
Left-hand indicator
7- Low fuel level
8- Fuel gauge
9- Right-hand indicator
10 - Rev. counter
11 -
Clock adjustment, lighting rheostat
12 - Oil temperature gauge
13 - Engine autodiagnostics* (petrol)
14 - Front* and side** airbag warning light and passenger airbagdisarm*
15 - Oil pressure 16 -
ABS* (Anti-lock Braking System)
17 - Handbrake, low brake ßuid level and engine not running
18 - Battery charge
19 - Rear fog lamp
20 - Front fog lamps*
21 - Main beam
22 - Dipped beam
23 - Passenger airbag disarm
* According to speciÞcation or country. ** According to model.
06-05-2002

I N S T R U M E N T S A N D C O N T R O L S20
12345910118
13121415161718192021
67
Instrument panel (Diesel) 1-Maximum coolant temperature
2- Display control:
- total distance display- trip recorder - trip recorder reset- service indicator
3- Speedometer
4- Display:- digital clock- service indicator- total distance- trip recorder
5- Left-hand indicator 6-
Low fuel level
7- Fuel gauge
8- Right-hand indicator
9- Rev. counter
10 - Clock adjustment, lighting rheostat
11 - Oil pressure
12 - Pre-heat (diesel)
13 - Front* and side** airbag warning light and passenger airbagdisarm*
14 - ABS* (Anti-lock Braking System) 15 -
Handbrake, low brake fluid level and engine not running
16 - Battery charge
17 - Rear fog lamp
18 - Front fog lamps*
19 - Main beam
20 - Dipped beam
21 - Passenger airbag disarm
* According to speciÞcation or country. ** According to model.
06-05-2002

Y O U R 1 0 6 I N D E TA I L27
jjj
kkk
jjjkkk


k
j
Button Function
AT ATraffic information priority on/off.
B RDS RDS on/off.
Press for more than 2 seconds: regional following mode on/off.
C BND/AST Selection of wavebands FM1, FM2, FM3, AM.Press for more than 2 seconds: autostore, automatic storing of stations.
D SRC Source selection; radio, cassette or CD*.
Press for more than 2 seconds: CD* shuffle.
E Press fully: cassette fast rewind.
F Press fully:cassette fast fowards.
E + F Press half-way: reverses the direction of play of the cassette. Press fully: ejects the cassette.
G Increase the audio setting.
H Decrease the audio setting.
I AUDIO Selects the bass, treble, loudness and sound distribution.
J Higher frequency automatic search. Selection of next CD* track.
K Lower frequency automatic search.Selection of previous CD* track.
L MAN Manual/automatic operation of button J and K.
M Audio system on/off. Volume adjustment.
1 to 6 Selects a stored station.Press for more than 2 seconds.Selects a CD*.
* Available as an accessory.
06-05-2002

Y O U R 1 0 6 I N D E TA I L28

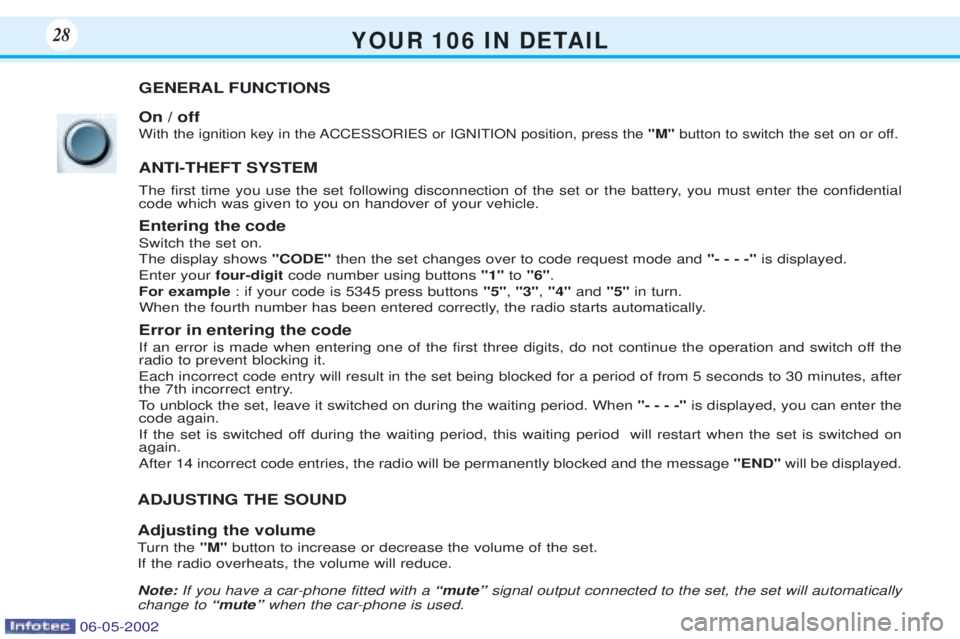

GENERAL FUNCTIONS On / off
With the ignition key in the ACCESSORIES or IGNITION position, press the "M"button to switch the set on or off.
ANTI-THEFT SYSTEM
The first time you use the set following disconnection of the set or the battery, you must enter the confidential code which was given to you on handover of your vehicle. Entering the code Switch the set on. The display shows "CODE"then the set changes over to code request mode and "- - - -"is displayed.
Enter your four-digitcode number using buttons "1"to "6" .
For example : if your code is 5345 press buttons "5", "3" , "4" and "5"in turn.
When the fourth number has been entered correctly, the radio starts automatically.
Error in entering the code
If an error is made when entering one of the first three digits, do not continue the operation and switch off the radio to prevent blocking it. Each incorrect code entry will result in the set being blocked for a period of from 5 seconds to 30 minutes, after
the 7th incorrect entry.
To unblock the set, leave it switched on during the waiting period. When "- - - -"is displayed, you can enter the
code again.
If the set is switched off during the waiting period, this waiting period will restart when the set is switched on again. After 14 incorrect code entries, the radio will be permanently blocked and the message "END"will be displayed.
ADJUSTING THE SOUND Adjusting the volume
Turn the "M"button to increase or decrease the volume of the set.
If the radio overheats, the volume will reduce. Note: If you have a car-phone fitted with a ÒmuteÓsignal output connected to the set, the set will automatically
change to ÒmuteÓwhen the car-phone is used.
06-05-2002

Y O U R 1 0 6 I N D E TA I L29

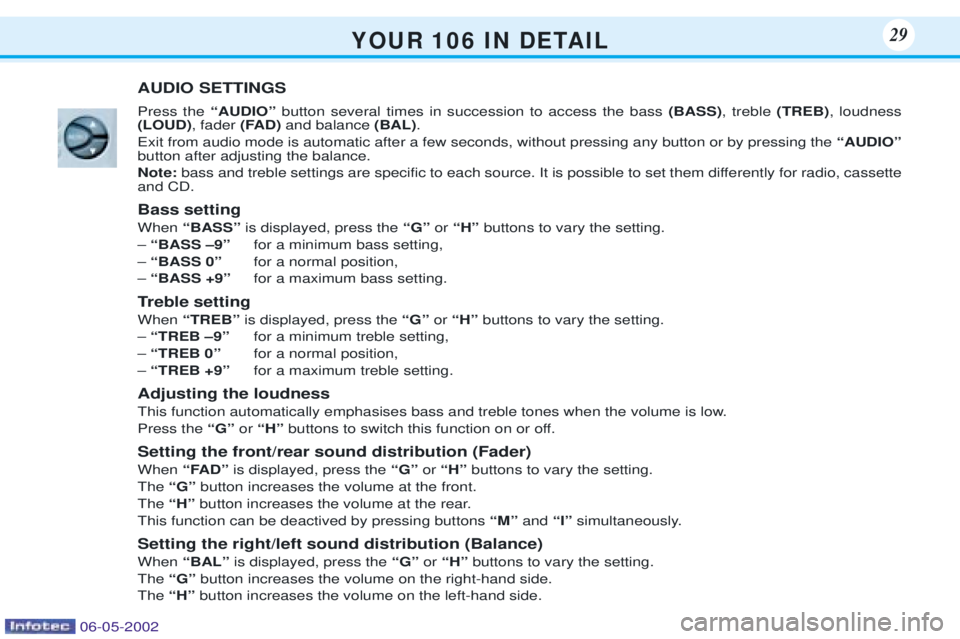

AUDIO SETTINGS Press the ÒAUDIOÓbutton several times in succession to access the bass (BASS), treble (TREB), loudness
(LOUD) , fader (FAD)and balance (BAL).
Exit from audio mode is automatic after a few seconds, without pressing any button or by pressing the ÒAUDIOÓ
button after adjusting the balance. Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cassette
and CD.
Bass setting When ÒBASSÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
Ð ÒBASS Ð9Ó for a minimum bass setting,
Ð ÒBASS 0Ó for a normal position,
Ð ÒBASS +9Ó for a maximum bass setting.
Treble settingWhen ÒTREBÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
Ð ÒTREB Ð9Ó for a minimum treble setting,
Ð ÒTREB 0Ó for a normal position,
Ð ÒTREB +9Ó for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Press the ÒGÓor ÒHÓ buttons to switch this function on or off.
Setting the front/rear sound distribution (Fader) When ÒFADÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
The ÒGÓ button increases the volume at the front.
The ÒHÓbutton increases the volume at the rear.
This function can be deactived by pressing buttons ÒMÓandÒIÓ simultaneously.
Setting the right/left sound distribution (Balance)When ÒBALÓ is displayed, press the ÒGÓorÒHÓ buttons to vary the setting.
The ÒGÓ button increases the volume on the right-hand side.
The ÒHÓ button increases the volume on the left-hand side.
