2001 Oldsmobile Silhouette index

1-46 Servicing Your Air Bag-Equipped Vehicle
Air bags affect how your vehicle should be serviced.
There are parts of the air bag systems in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
air bag systems. To purchase a service manual, see
ªService and Owner Publicationsº in the Index.
CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected,
an air bag can still inflate during improper
service. You can be injured if you are close to an
air bag when it inflates. Avoid yellow connectors.
They are probably part of the air bag systems.
Be sure to follow proper service procedures, and
make sure the person performing work for you
is qualified to do so.
The air bag systems do not need regular maintenance.
Safety Belt Pretensioners
Your vehicle has safety belt pretensioners. You'll find
them on the buckle end of the safety belts for the driver
and right front passenger. They help the safety belts
reduce a person's forward movement in a moderate
to severe crash in which the front of the vehicle
hits something.
Pretensioners work only once. If they activate in a crash,
you'll need to get new ones, and probably other new
parts for your safety belt system. See ªReplacing
Restraint System Parts After a Crashº in the Index.

1-66

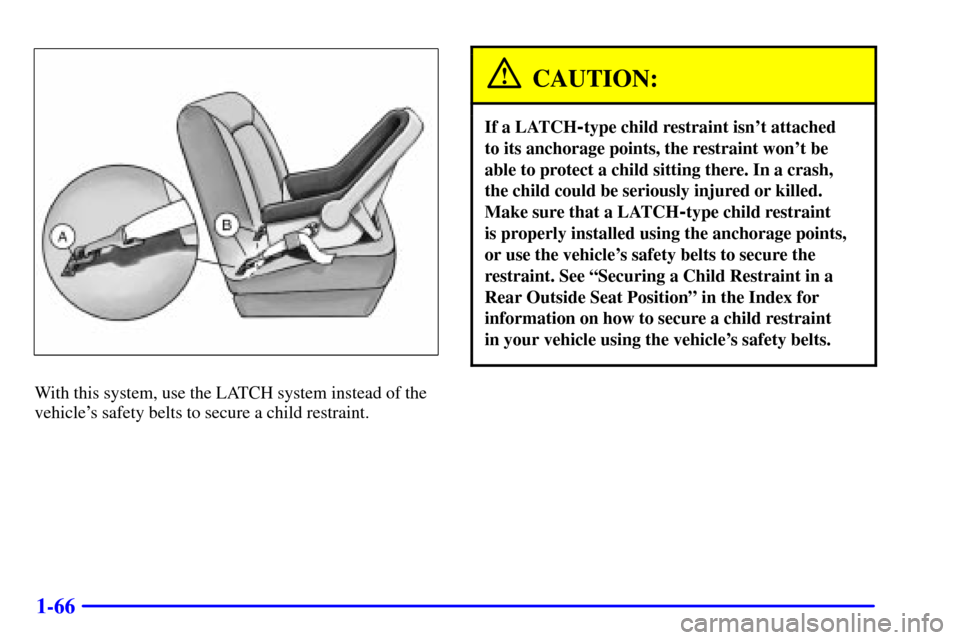

With this system, use the LATCH system instead of the
vehicle's safety belts to secure a child restraint.
CAUTION:
If a LATCH-type child restraint isn't attached
to its anchorage points, the restraint won't be
able to protect a child sitting there. In a crash,
the child could be seriously injured or killed.
Make sure that a LATCH
-type child restraint
is properly installed using the anchorage points,
or use the vehicle's safety belts to secure the
restraint. See ªSecuring a Child Restraint in a
Rear Outside Seat Positionº in the Index for
information on how to secure a child restraint
in your vehicle using the vehicle's safety belts.

1-67
Securing a Child Restraint Designed for the
LATCH System
1. Find the anchors for the seating position you want to
use, where the bottom of the seatback meets the back
of the seat cushion.
2. Put the child restraint on the seat.
3. If the child restraint is forward
-facing, attach the
anchor points on the child restraint to the anchors in
the vehicle. The child restraint instructions will show
you how.
4. Attach the top strap to the top strap anchor.
See ªTop Strapº in the Index. Tighten the top
strap according to the child restraint instructions.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
strap from the top tether anchor and then disconnect the
anchor points.
Securing a Child Restraint in a Rear
Outside Seat Position
You'll be using the lap-shoulder belt. See the earlier
part about the top strap if the child restraint has one.
Be sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.

1-73 Securing a Child Restraint in the Right
Front Seat Position
Your vehicle has a front passenger air bag. Never put a
rear
-facing child restraint in this seat. Here's why:
CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the front passenger's
air bag inflates. This is because the back of the
rear
-facing child restraint would be very close to
the inflating air bag. Always secure a rear
-facing
child restraint in a rear seat.
Although a rear seat is a safer place, you can secure a
forward
-facing child restraint in the right front seat.
You'll be using the lap
-shoulder belt. See the earlier
part about the top strap if the child restraint has one.
Be sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1. Because your vehicle has a right front passenger
air bag, always move the seat as far back as it will
go before securing a forward
-facing child restraint.
See ªSeatsº in the Index.
2. Put the restraint on the seat.

1-78
Q:What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt is
very close to the child's face or neck?
A:Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child's
shoulder, so that in a crash the child's upper body
would have the restraint that belts provide. If the
child is sitting in a rear seat outside position, see
ªRear Safety Belt Comfort Guidesº in the Index.
If the child is so small that the shoulder belt is still
very close to the child's face or neck, you might
want to place the child in a seat that has a lap belt,
if your vehicle has one.

2-3
Power WindowsThe switches on the driver's door armrest control
the front windows when the ignition is in RUN,
ACCESSORY or when Retained Accessory Power
(RAP) is active. See ªRetained Accessory Powerº in
the Index. The left switch controls the driver's window.
The right switch controls the passenger's window.
The driver's power window switch has two down
positions. Push the switch to the first position to
lower the window normally.
To raise the window, pull up the front of the switch.
Express
-Down Windows
To activate the express
-down feature, push the switch
all the way down, to the second position, then release it.
The window will lower completely. To stop the window
from lowering all the way, pull up the front of the switch.

2-4 Side Window Latches
The rear of each side window swings open.
To open, push the latch
forward to release it,
then swing the window
outward. Press the center
of the latch to secure
the window in the
open position.
To close, pull the center of the latch forward and then
close the latch. Press the center of the latch to secure
the window in the closed position.
Power Rear Quarter Windows
(If Equipped)
This switch, located
in the overhead console
switchbank, is used
for opening and
closing the power
rear quarter windows.
Press the top ribbed side of the switch to open the
windows; both windows will open. The windows can
be opened fully or partway depending on how long the
switch is pushed.
Press the bottom of the switch to close both windows.
The windows can be closed fully or partway depending
on how long the switch is pushed.
The ignition must be in RUN, ACCESSORY or when
Retained Accessory Power (RAP) is active to use the
power rear quarter windows. See ªRetained Accessory
Powerº in the Index.

2-6
The master key can be
used for the ignition
as well as all door locks,
the liftgate lock and the
storage compartments.
If you need a new key, contact your Oldsmobile dealer,
who can obtain the correct key code. In an emergency,
call Oldsmobile Roadside Assistance. See ªRoadside
Assistanceº in the Index for more information.Your vehicle has the PASS-Key
III vehicle theft
system. The key has a transponder in the key head that
matches a decoder in the vehicle's steering column.
If a replacement key or any additional key is needed,
you must purchase this key from your dealer. The key
will have PK3 stamped on it. Keep the bar code tag that
came with the original keys. Give this tag to your dealer
if you need a new key made.
Any new PASS
-Key III key must be programmed before it
will start your vehicle. See ªPASS
-Key
IIIº in the Index
for more information on programming your new key.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever lock
your key inside. You may even have to damage
your vehicle to get in. So be sure you have an
extra key.
