Your Driving and the Road
Table of Contents (cont'd)
Defensive Driving
Drunken Driving
Control of Vehicle
Braking
SteeringDriving Tips for Various Road Conditions
Recreational Vehicle Towing
Loading Your Vehicle
Towing a Trailer Heating and Air Conditioning
Setting the Radio Clock
Radio/Cassette Player/CD PlayerRadio Theft-Deterrent Feature
Steering Wheel Controls (If Equipped)
Hazard Warning Flashers
Jump Starting
Towing Your VehicleEngine Overheating
Changing a Flat Tire
If You're Stuck
Problems on the Road
Comfort Controls and Audio Systems
Section
3
Section
4
Section
5
iii

3-
3-1
Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your vehicle.
Be sure to read about the particular systems supplied with your vehicle.
3
-2 Comfort Controls
3
-2 Air Conditioning with Electronic Controls
3
-4 Air Conditioning
3
-5 Air Conditioning with Automatic and
Auxiliary Temperature Control (If Equipped)
3
-9 Rear Window Defogger
3
-10 Ventilation System
3
-11 Audio Systems
3
-11 Setting the Clock
3
-11 AM-FM Stereo with Cassette Tape Player and
Automatic Tone Control3
-15 AM-FM Stereo with Cassette Tape and
Compact Disc Player with Automatic Tone
Control (If Equipped)
3
-22 Theft-Deterrent Feature
3
-24 Audio Steering Wheel Controls (If Equipped)
3
-24 Understanding Radio Reception
3
-24 Tips About Your Audio System
3
-25 Care of Your Cassette Tape Player
3
-26 Care of Your Compact Discs
3
-26 Care of Your Compact Disc Player
3
-27 Backglass Antenna

3-2

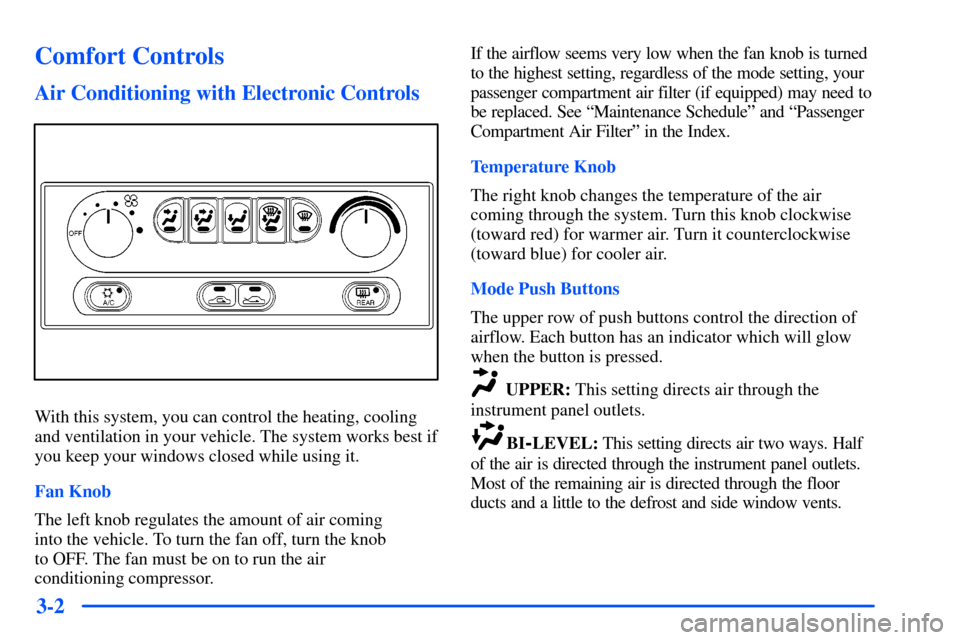

Comfort Controls
Air Conditioning with Electronic Controls
With this system, you can control the heating, cooling
and ventilation in your vehicle. The system works best if
you keep your windows closed while using it.
Fan Knob
The left knob regulates the amount of air coming
into the vehicle. To turn the fan off, turn the knob
to OFF. The fan must be on to run the air
conditioning compressor.If the airflow seems very low when the fan knob is turned
to the highest setting, regardless of the mode setting, your
passenger compartment air filter (if equipped) may need to
be replaced. See ªMaintenance Scheduleº and ªPassenger
Compartment Air Filterº in the Index.
Temperature Knob
The right knob changes the temperature of the air
coming through the system. Turn this knob clockwise
(toward red) for warmer air. Turn it counterclockwise
(toward blue) for cooler air.
Mode Push Buttons
The upper row of push buttons control the direction of
airflow. Each button has an indicator which will glow
when the button is pressed.
UPPER: This setting directs air through the
instrument panel outlets.
BI-LEVEL: This setting directs air two ways. Half
of the air is directed through the instrument panel outlets.
Most of the remaining air is directed through the floor
ducts and a little to the defrost and side window vents.

3-5 Air Conditioning with Automatic
and Auxiliary Temperature Control
(If Equipped)
With this system, you can control the temperature inside
your vehicle. The temperature and fan speed can be
adjusted manually or you can let the system make the
adjustments for you. The system works best if you keep
your windows closed while using it.
Driver Temperature Knob
The DRIVER knob regulates the temperature for the
entire system when the PASS knob is in the center or
neutral position. Turn the DRIVER knob clockwise
(toward red) to raise the temperature. Turn it counterclockwise (toward blue) to lower the
temperature. The display will show your selection for a
few seconds, then it will show the outside temperature.
If you push the knob the set temperature will again be
displayed for a few seconds, then the outside
temperature will be displayed.
Passenger Temperature Knob
The PASS knob adjusts
the air temperature on the
passenger's side so it is
warmer or cooler than
the temperature set by
the driver.
Turn the PASS knob clockwise (toward red) to raise the
temperature. Turn it counterclockwise (toward blue) to
lower the temperature. The passenger temperature will
not be shown in the display.

3-11
Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all its controls, to be sure you're getting the
most out of the advanced engineering that went into it.
Setting the Clock
Press and hold HR until the correct hour appears.
The letter A or P may appear on the display for AM
or PM. Then, press and hold MN until the correct
minute appears. The clock may be set with the
ignition on or off.
AM-FM Stereo with Cassette Tape Player
and Automatic Tone Control
Playing the Radio
PWR VOL: Press this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume.

3-12
RCL: Press this button briefly to recall the station being
played or to display the clock. To change what is
normally shown on the display (station or time), press
the RCL button until you see the display you want, then
hold the RCL button until the display flashes. If you
press the button when the ignition is off, the clock will
show for a few seconds.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you're not using it.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.
SCAN: Press this button and release it to listen to
stations for a few seconds. The radio will go to a station,
stop for a few seconds, then go on to the next station.
Press the button again to stop scanning. The sound will
mute while scanning, and SCAN will appear on the
display. If you press SCAN for more than two seconds,
the radio will change to P SCAN mode. P SCAN will
appear on the display.PUSHBUTTONS: The five numbered pushbuttons let
you return to your favorite stations. You can set up to
15 stations (five AM, five FM1 and five FM2). Just do
the following:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press TONE to select the equalization that best suits
the type of station selected.
5. Press and hold one of the five numbered buttons.
The sound will mute. When it returns, release the
button. Whenever you press that numbered button,
the station you set will return and the tone that
you selected will also be automatically selected for
that button.
6. Repeat the steps for each pushbutton.
P SCAN: Press SCAN for more than two seconds, and
P SCAN will appear on the display. The radio will go to
the first preset station stored on your pushbuttons, stop
for a few seconds, then go on to the next preset station.
Press SCAN again to stop scanning.

3-14
While the tape is playing, use the VOL, FADE, BAL,
TREB, BASS, TONE, SEEK and SCAN controls just as
you do for the radio. Other controls may have different
functions when a tape is inserted. The display will show
TP with a box around it and an arrow to show which
side of the tape is playing.
Your tape bias is set automatically. When a metal or
chrome tape is inserted, HI
-BIAS appears on the
display. If you want to insert a tape when the ignition
is off, first press EJECT or RCL.
If E and a number appear on the radio display, the tape
won't play because of an error.

E10: The tape is tight and the player can't turn the
tape hubs. Remove the tape. Hold the tape with the
open end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape over
and repeat. If the hubs do not turn easily, your tape
may be damaged and should not be used in the
player. Try a new tape to make sure your player is
working properly.

E11: The tape is broken. Try a new tape.
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer. If your radio
displays an error number, write it down and provide it to
your dealer when reporting the problem.REV (1): Press this button to reverse the tape rapidly.
Press it again to return to playing speed. The radio
will play the last selected station while the tape reverses.
You may select stations during REV operation by
using TUNE.
FWD (2): Press this button to advance quickly to
another part of the tape. Press the button again to return
to playing speed. The radio will play the last selected
station while the tape advances. You may select stations
during FWD operation by using TUNE.
PROG (3): Press this button to play the other side
of the tape.

(4): Press this button to reduce background noise.
The double
-D symbol will appear on the display.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
TONE: Press this button to select a tone while playing a
cassette. The tone that you set will be activated each
time you play a cassette tape.
SEEK: Press the up or down arrow to search for the
next or previous selection on the tape. Your tape must
have at least three seconds of silence between each
selection for SEEK to work.

3-16
Playing the Radio
PWR VOL: Press this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume.
RCL: Press this button briefly to recall the station being
played or to display the clock. To change what is
normally shown on the display (station or time), press
the RCL button until you see the display you want, then
hold the RCL button until the display flashes. If you
press the button when the ignition is off, the clock will
show for a few seconds.
MUTE: Press this button to silence the system. Press it
again to turn on the sound. (This button is available on
the Bose

radio only.)
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you're not using it.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.SCAN: Press this button and release it to listen to
stations for a few seconds. The radio will go to a station,
stop for a few seconds, then go on to the next station.
Press the button again to stop scanning. The sound will
mute while scanning, and SCAN will appear on the
display. If you press SCAN for more than two seconds,
the radio will change to P SCAN mode. P SCAN will
appear on the display.
PUSHBUTTONS: The five numbered pushbuttons let
you return to your favorite stations. You can set up to
15 stations (five AM, five FM1 and five FM2). Just do
the following:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press TONE to select the equalization that best suits
the type of station selected. (This function is not
available on the Bose radio.)
5. Press and hold one of the five numbered buttons. The
sound will mute. When it returns, release the button.
Whenever you press that numbered button, the station
you set will return and the tone that you selected will
also be automatically selected for that button. (The
tone will not automatically return on the Bose radio.)
6. Repeat the steps for each pushbutton.
