2001 Oldsmobile Alero CD player

3-14 AM-FM Stereo with Cassette Tape and
Compact Disc Player with Programmable
Equalization and Radio Data System (RDS)
(If Equipped)
Playing the Radio
VOLUME
-PWR: Press this knob to turn the system
on and off. To increase volume, turn the knob clockwise.
Turn it counterclockwise to decrease volume.
SCV: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Press this button to select MIN, MED
or MAX. Each choice allows for more volume compensation
at faster vehicle speeds. Then, as you drive, SCV
automatically increases the volume, as necessary, to
overcome noise at any particular speed. The volume
level should always sound the same to you as you drive.
If you don't want to use SCV, select OFF.
Finding a Station
AM FM: Press this button to switch between AM,
FM1 and FM2. The display shows your selection.
TUNE: Turn this knob to select radio stations.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.
SCAN: Press and hold the SEEK button for two seconds
until the SC icon appears on the display and you hear a
beep. Use SCAN to listen to stations for a few seconds.
The radio will go to a station, stop for a few seconds,
then go on to the next station. Press the SEEK button
again to stop scanning. If you press SEEK for more than
four seconds, the radio will change to PRESET SCAN
mode. The sound will mute while scanning.

3-16

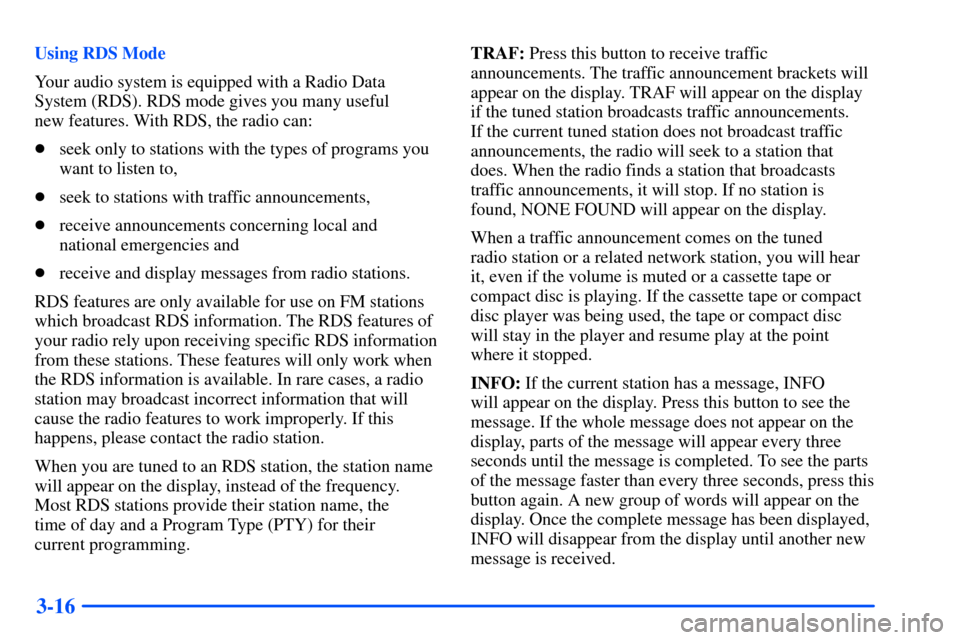

Using RDS Mode
Your audio system is equipped with a Radio Data
System (RDS). RDS mode gives you many useful
new features. With RDS, the radio can:

seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies and

receive and display messages from radio stations.
RDS features are only available for use on FM stations
which broadcast RDS information. The RDS features of
your radio rely upon receiving specific RDS information
from these stations. These features will only work when
the RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, please contact the radio station.
When you are tuned to an RDS station, the station name
will appear on the display, instead of the frequency.
Most RDS stations provide their station name, the
time of day and a Program Type (PTY) for their
current programming.TRAF: Press this button to receive traffic
announcements. The traffic announcement brackets will
appear on the display. TRAF will appear on the display
if the tuned station broadcasts traffic announcements.
If the current tuned station does not broadcast traffic
announcements, the radio will seek to a station that
does. When the radio finds a station that broadcasts
traffic announcements, it will stop. If no station is
found, NONE FOUND will appear on the display.
When a traffic announcement comes on the tuned
radio station or a related network station, you will hear
it, even if the volume is muted or a cassette tape or
compact disc is playing. If the cassette tape or compact
disc player was being used, the tape or compact disc
will stay in the player and resume play at the point
where it stopped.
INFO: If the current station has a message, INFO
will appear on the display. Press this button to see the
message. If the whole message does not appear on the
display, parts of the message will appear every three
seconds until the message is completed. To see the parts
of the message faster than every three seconds, press this
button again. A new group of words will appear on the
display. Once the complete message has been displayed,
INFO will disappear from the display until another new
message is received.

3-17

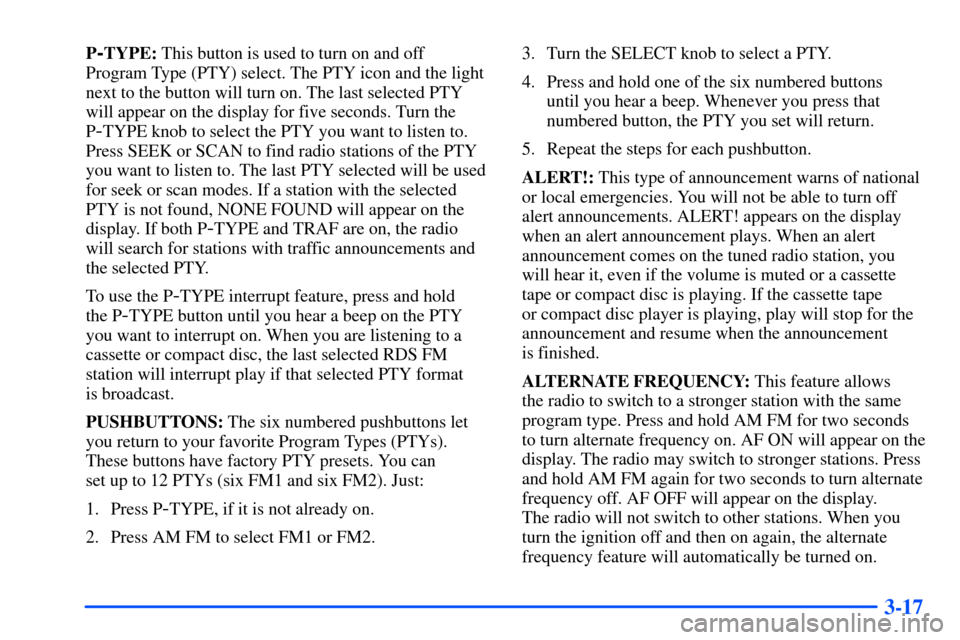

P-TYPE: This button is used to turn on and off
Program Type (PTY) select. The PTY icon and the light
next to the button will turn on. The last selected PTY
will appear on the display for five seconds. Turn the
P
-TYPE knob to select the PTY you want to listen to.
Press SEEK or SCAN to find radio stations of the PTY
you want to listen to. The last PTY selected will be used
for seek or scan modes. If a station with the selected
PTY is not found, NONE FOUND will appear on the
display. If both P
-TYPE and TRAF are on, the radio
will search for stations with traffic announcements and
the selected PTY.
To use the P
-TYPE interrupt feature, press and hold
the P
-TYPE button until you hear a beep on the PTY
you want to interrupt on. When you are listening to a
cassette or compact disc, the last selected RDS FM
station will interrupt play if that selected PTY format
is broadcast.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite Program Types (PTYs).
These buttons have factory PTY presets. You can
set up to 12 PTYs (six FM1 and six FM2). Just:
1. Press P
-TYPE, if it is not already on.
2. Press AM FM to select FM1 or FM2.3. Turn the SELECT knob to select a PTY.
4. Press and hold one of the six numbered buttons
until you hear a beep. Whenever you press that
numbered button, the PTY you set will return.
5. Repeat the steps for each pushbutton.
ALERT!: This type of announcement warns of national
or local emergencies. You will not be able to turn off
alert announcements. ALERT! appears on the display
when an alert announcement plays. When an alert
announcement comes on the tuned radio station, you
will hear it, even if the volume is muted or a cassette
tape or compact disc is playing. If the cassette tape
or compact disc player is playing, play will stop for the
announcement and resume when the announcement
is finished.
ALTERNATE FREQUENCY: This feature allows
the radio to switch to a stronger station with the same
program type. Press and hold AM FM for two seconds
to turn alternate frequency on. AF ON will appear on the
display. The radio may switch to stronger stations. Press
and hold AM FM again for two seconds to turn alternate
frequency off. AF OFF will appear on the display.
The radio will not switch to other stations. When you
turn the ignition off and then on again, the alternate
frequency feature will automatically be turned on.

3-18
Adjusting the Speakers
BAL
-FADE: The AUDIO button adjusts balance
and fade. To adjust balance, press and hold the AUDIO
button until BAL appears on the display. Turn the knob
to adjust the sound to the left or right speakers. The
middle position balances the sound between the speakers.
To adjust fade, press and hold the AUDIO button until
FAD appears on the display. Turn the knob to adjust the
sound to the front or rear speakers. The middle position
balances the sound between the speakers.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this
player. The longer side with the tape visible should face
to the right. If the ignition is on, but the radio is off,
the tape can be inserted and will begin playing. If you
hear nothing but a garbled sound, the tape may not be in
squarely. Press EJECT to remove the tape and start over.
While the tape is playing, use the VOL, FAD, BAL,
TREB, MID, BASS, TONE, SEEK and SCAN controls
just as you do for the radio. The display will show TAPE
and an arrow showing which side of the tape is playing.
The tape player automatically begins playing the other
side when it reaches the end of the tape.Your tape bias is set automatically when a metal or
chrome tape is inserted. If you want to insert a tape when
the ignition is off, first press EJECT or the RCL knob.
If an error appears on the radio display, the tape won't
play because of an error.
TIGHT TAPE is displayed when the tape is tight and the
player can't turn the tape hubs. Remove the tape. Hold
the tape with the open end down and try to turn the right
hub counterclockwise with a pencil. Turn the tape over
and repeat. If the hubs do not turn easily, your tape may
be damaged and should not be used in the player. Try a
new tape to make sure your player is working properly.
BROKEN TAPE is displayed when the tape is broken.
Try a new tape.
WRAPPED is displayed when the tape is wrapped
around the tape head. Attempt to get the cassette out.
Try a new tape.
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer. If your radio
displays an error message, write it down and provide
it to your dealer when reporting the problem.

3-19

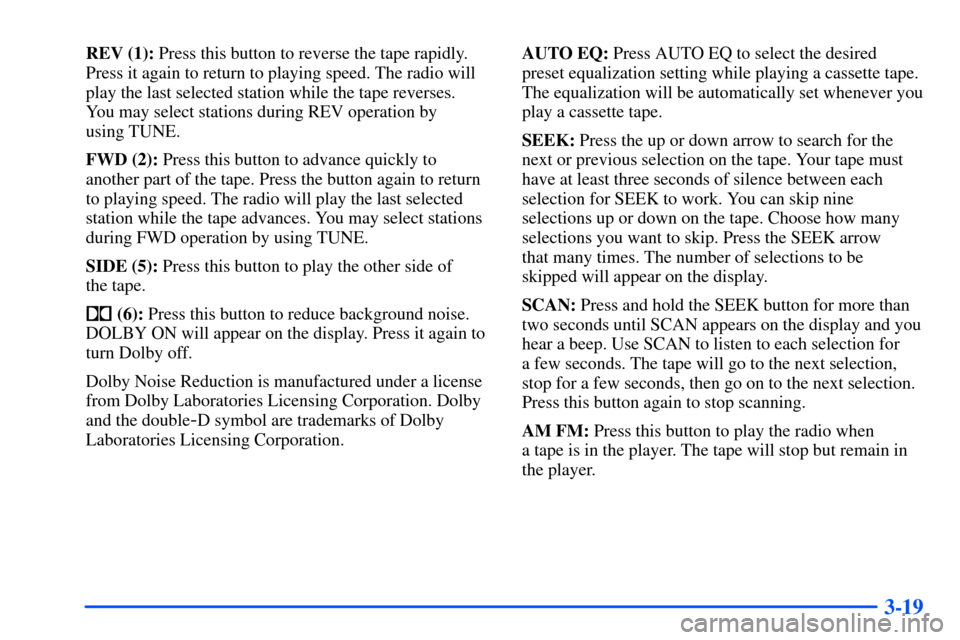

REV (1): Press this button to reverse the tape rapidly.
Press it again to return to playing speed. The radio will
play the last selected station while the tape reverses.
You may select stations during REV operation by
using TUNE.
FWD (2): Press this button to advance quickly to
another part of the tape. Press the button again to return
to playing speed. The radio will play the last selected
station while the tape advances. You may select stations
during FWD operation by using TUNE.
SIDE (5): Press this button to play the other side of
the tape.

(6): Press this button to reduce background noise.
DOLBY ON will appear on the display. Press it again to
turn Dolby off.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.AUTO EQ: Press AUTO EQ to select the desired
preset equalization setting while playing a cassette tape.
The equalization will be automatically set whenever you
play a cassette tape.
SEEK: Press the up or down arrow to search for the
next or previous selection on the tape. Your tape must
have at least three seconds of silence between each
selection for SEEK to work. You can skip nine
selections up or down on the tape. Choose how many
selections you want to skip. Press the SEEK arrow
that many times. The number of selections to be
skipped will appear on the display.
SCAN: Press and hold the SEEK button for more than
two seconds until SCAN appears on the display and you
hear a beep. Use SCAN to listen to each selection for
a few seconds. The tape will go to the next selection,
stop for a few seconds, then go on to the next selection.
Press this button again to stop scanning.
AM FM: Press this button to play the radio when
a tape is in the player. The tape will stop but remain in
the player.

3-20

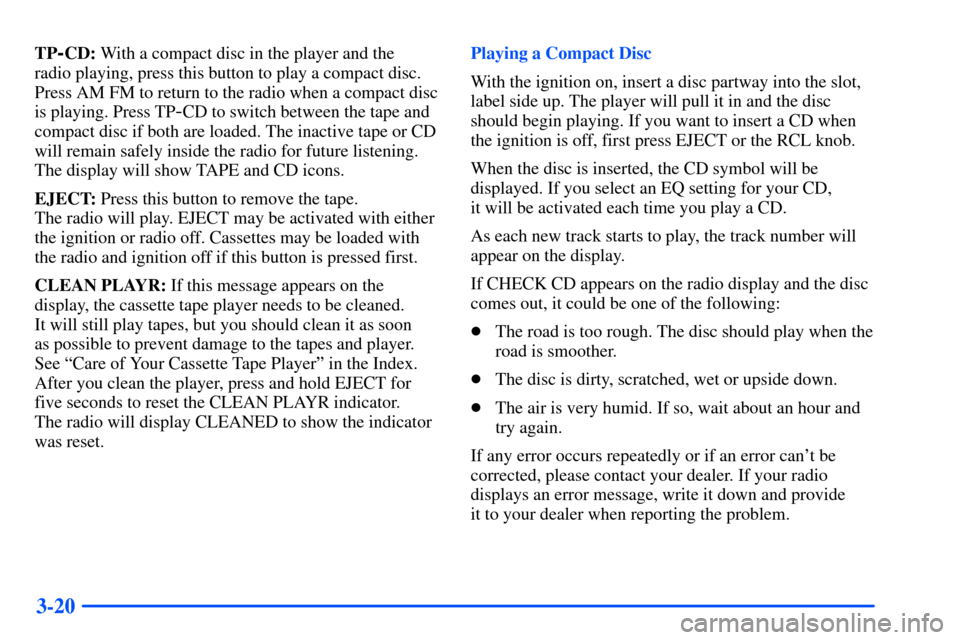

TP-CD: With a compact disc in the player and the
radio playing, press this button to play a compact disc.
Press AM FM to return to the radio when a compact disc
is playing. Press TP
-CD to switch between the tape and
compact disc if both are loaded. The inactive tape or CD
will remain safely inside the radio for future listening.
The display will show TAPE and CD icons.
EJECT: Press this button to remove the tape.
The radio will play. EJECT may be activated with either
the ignition or radio off. Cassettes may be loaded with
the radio and ignition off if this button is pressed first.
CLEAN PLAYR: If this message appears on the
display, the cassette tape player needs to be cleaned.
It will still play tapes, but you should clean it as soon
as possible to prevent damage to the tapes and player.
See ªCare of Your Cassette Tape Playerº in the Index.
After you clean the player, press and hold EJECT for
five seconds to reset the CLEAN PLAYR indicator.
The radio will display CLEANED to show the indicator
was reset.Playing a Compact Disc
With the ignition on, insert a disc partway into the slot,
label side up. The player will pull it in and the disc
should begin playing. If you want to insert a CD when
the ignition is off, first press EJECT or the RCL knob.
When the disc is inserted, the CD symbol will be
displayed. If you select an EQ setting for your CD,
it will be activated each time you play a CD.
As each new track starts to play, the track number will
appear on the display.
If CHECK CD appears on the radio display and the disc
comes out, it could be one of the following:

The road is too rough. The disc should play when the
road is smoother.

The disc is dirty, scratched, wet or upside down.

The air is very humid. If so, wait about an hour and
try again.
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer. If your radio
displays an error message, write it down and provide
it to your dealer when reporting the problem.

3-21

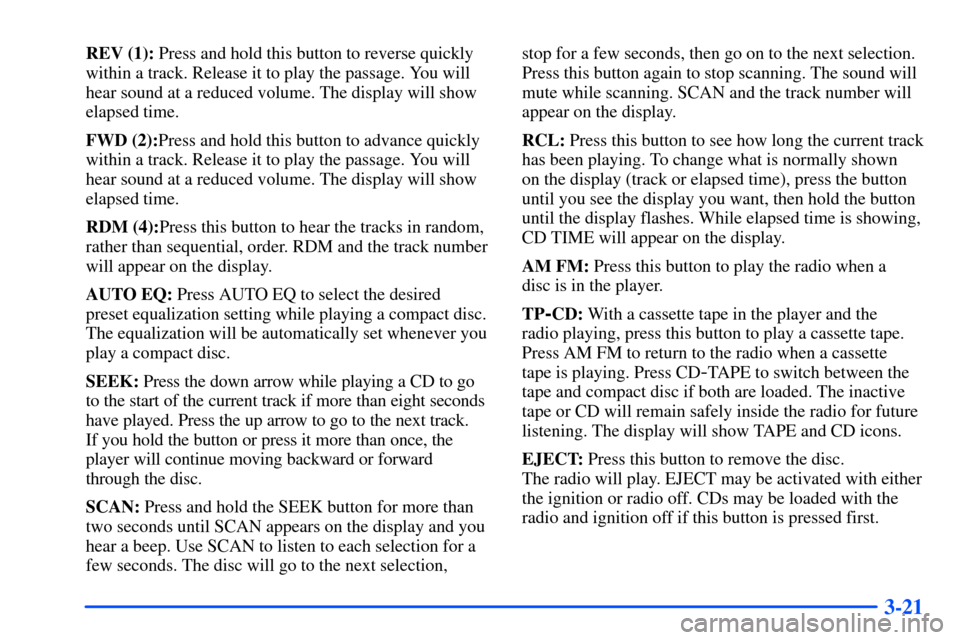

REV (1): Press and hold this button to reverse quickly
within a track. Release it to play the passage. You will
hear sound at a reduced volume. The display will show
elapsed time.
FWD (2):Press and hold this button to advance quickly
within a track. Release it to play the passage. You will
hear sound at a reduced volume. The display will show
elapsed time.
RDM (4):Press this button to hear the tracks in random,
rather than sequential, order. RDM and the track number
will appear on the display.
AUTO EQ: Press AUTO EQ to select the desired
preset equalization setting while playing a compact disc.
The equalization will be automatically set whenever you
play a compact disc.
SEEK: Press the down arrow while playing a CD to go
to the start of the current track if more than eight seconds
have played. Press the up arrow to go to the next track.
If you hold the button or press it more than once, the
player will continue moving backward or forward
through the disc.
SCAN: Press and hold the SEEK button for more than
two seconds until SCAN appears on the display and you
hear a beep. Use SCAN to listen to each selection for a
few seconds. The disc will go to the next selection, stop for a few seconds, then go on to the next selection.
Press this button again to stop scanning. The sound will
mute while scanning. SCAN and the track number will
appear on the display.
RCL: Press this button to see how long the current track
has been playing. To change what is normally shown
on the display (track or elapsed time), press the button
until you see the display you want, then hold the button
until the display flashes. While elapsed time is showing,
CD TIME will appear on the display.
AM FM: Press this button to play the radio when a
disc is in the player.
TP
-CD: With a cassette tape in the player and the
radio playing, press this button to play a cassette tape.
Press AM FM to return to the radio when a cassette
tape is playing. Press CD
-TAPE to switch between the
tape and compact disc if both are loaded. The inactive
tape or CD will remain safely inside the radio for future
listening. The display will show TAPE and CD icons.
EJECT: Press this button to remove the disc.
The radio will play. EJECT may be activated with either
the ignition or radio off. CDs may be loaded with the
radio and ignition off if this button is pressed first.

3-23
To help avoid hearing loss or damage:

Adjust the volume control to the lowest setting.

Increase volume slowly until you hear comfortably
and clearly.
NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two
-way radio -- be sure you
can add what you want. If you can, it's very
important to do it properly. Added sound
equipment may interfere with the operation of
your vehicle's engine, Delphi Delco Electronics
radio or other systems, and even damage them.
Your vehicle's systems may interfere with the
operation of sound equipment that has been
added improperly.
So, before adding sound equipment, check with
your dealer and be sure to check Federal rules
covering mobile radio and telephone units.
Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases away from contaminants, direct sunlight and
extreme heat. If they aren't, they may not operate
properly or may cause failure of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN to indicate
that you have used your tape player for 50 hours without
resetting the tape clean timer. If this message appears
on the display, your cassette tape player needs to be
cleaned. It will still play tapes, but you should clean it as
soon as possible to prevent damage to your tapes and
player. If you notice a reduction in sound quality, try a
known good cassette to see if it is the tape or the tape
player at fault. If this other cassette has no improvement
in sound quality, clean the tape player.
The recommended cleaning method for your
cassette tape player is the use of a scrubbing action,
non
-abrasive cleaning cassette with pads which scrub
the tape head as the hubs of the cleaner cassette turn.
The recommended cleaning cassette is available through
your dealer (GM Part No. 12344789).
