2001 NISSAN X-TRAIL engine control

INTAKE MANIFOLD
EM-19
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
●Do not bend or twist the tube during installation and removal.
●Do not remove the remaining retainer on tube.
●When the tube is replaced, also replace the retainer with a new one.
●To keep clean the connecting portion and to avoid
damage and foreign materials, cover them completely
with plastic bags or something similar.
7. Loosen mounting bolts diagonally in reverse order shown, and
remove electric throttle control actuator.
CAUTION:
●Handle carefully to avoid any shock.
●Do not disassemble.
8. Disconnect intake manifold collector harness, vacuum hose, and PCV hose.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
9. Remove intake manifold collector mounting bolts on the support.
For QR20DE
Loosen mounting bolts and nuts in order from No. 5 to 1, and
remove intake manifold collector.
●Disregard No. 6 when loosening.
For QR25DE
Loosen mounting bolts and nuts in order from No. 7 to 1, and
remove intake manifold collector.
●Disregard No. 8 when loosening.
10. Disconnect harness and power steering piping from intake man-
ifold and fuel tube assembly, and move them a side.
11. Remove intake manifold mounting bolts on the support.
PBIC0163E
EMJ1612D
KBIA0234E
SBIA0230E

INTAKE MANIFOLD
EM-21
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
For QR25DE
Tighten in numerical order as shown in the figure.
NOTE:
No. 6 means double tightening of bolt No. 1.
Intake Manifold Collector Bolts and Nuts
For QR20DE
Tighten in numerical order as shown in the figure.
NOTE:
No. 6 means double tightening of bolts No. 1.
For QR25DE
Tighten in numerical order as shown in the figure.
NOTE:
No. 8 means double tightening of bolts No. 1.
Electric Throttle Control Actuator
●Tighten fixing bolts of electric throttle control actuator equally
and diagonally in several steps and in order shown.
●After installation perform procedure, refer to EM-22, "INSPEC-
TION AFTER INSTALLATION" .
Connecting Quick Connector of Fuel Hose (Engine side)
Install quick connector as follows.
1. Make sure no foreign substances are deposited in and around tube and quick connector and no damage
on them.
2. Thinly apply new engine oil around the fuel tube tip end.
SBIA0231E
KBIA0234E
SBIA0230E
EMJ1612D

TIMING CHAIN
EM-37
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
TIMING CHAINPFP:13028
Removal and InstallationEBS00KNL
CAUTION:
Apply new engine oil to parts marked in illustration before installation.

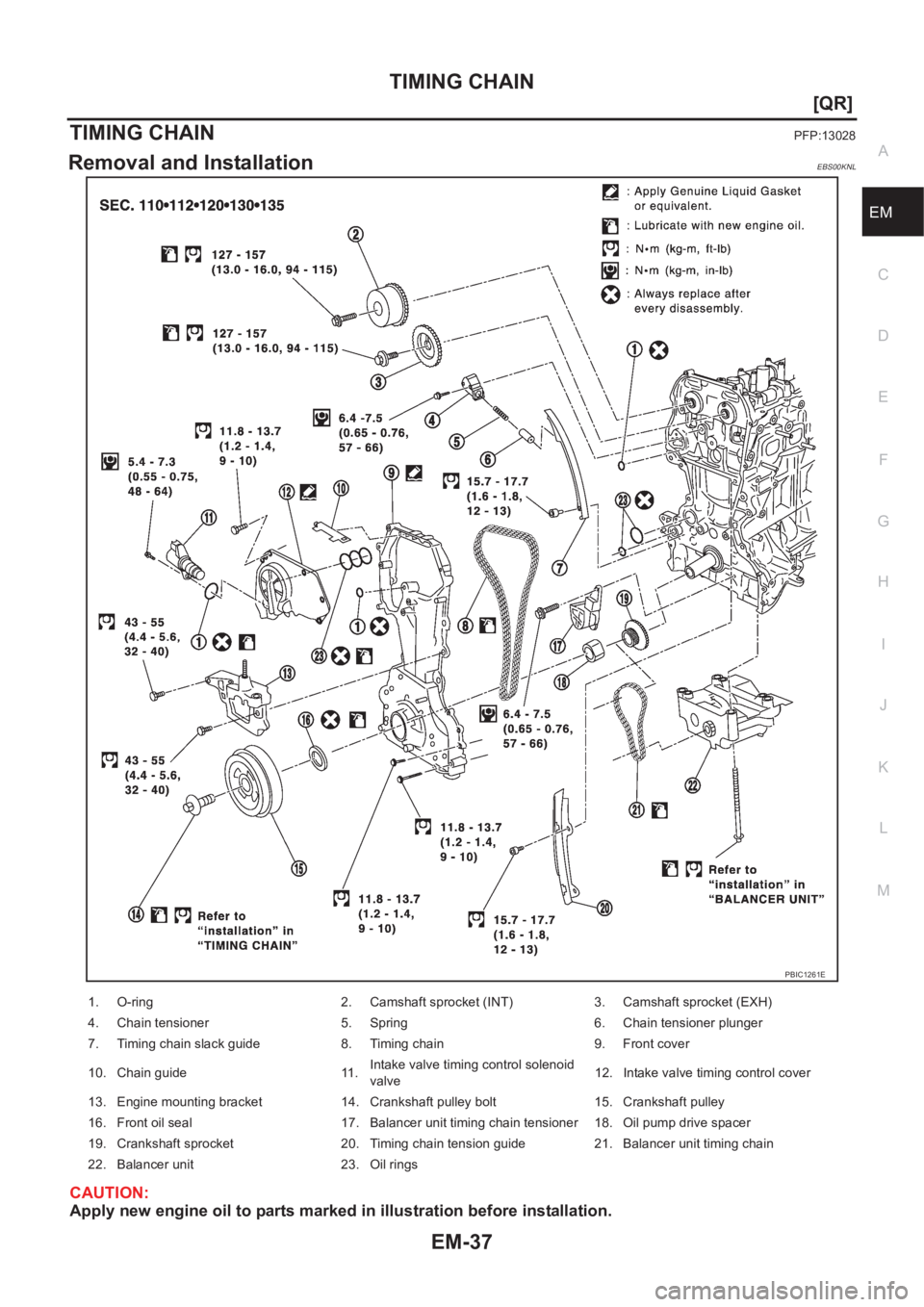

PBIC1261E
1. O-ring 2. Camshaft sprocket (INT) 3. Camshaft sprocket (EXH)
4. Chain tensioner 5. Spring 6. Chain tensioner plunger
7. Timing chain slack guide 8. Timing chain 9. Front cover
10. Chain guide 11.Intake valve timing control solenoid
valve12. Intake valve timing control cover
13. Engine mounting bracket 14. Crankshaft pulley bolt 15. Crankshaft pulley
16. Front oil seal 17. Balancer unit timing chain tensioner 18. Oil pump drive spacer
19. Crankshaft sprocket 20. Timing chain tension guide 21. Balancer unit timing chain
22. Balancer unit 23. Oil rings

EM-38
[QR]
TIMING CHAIN

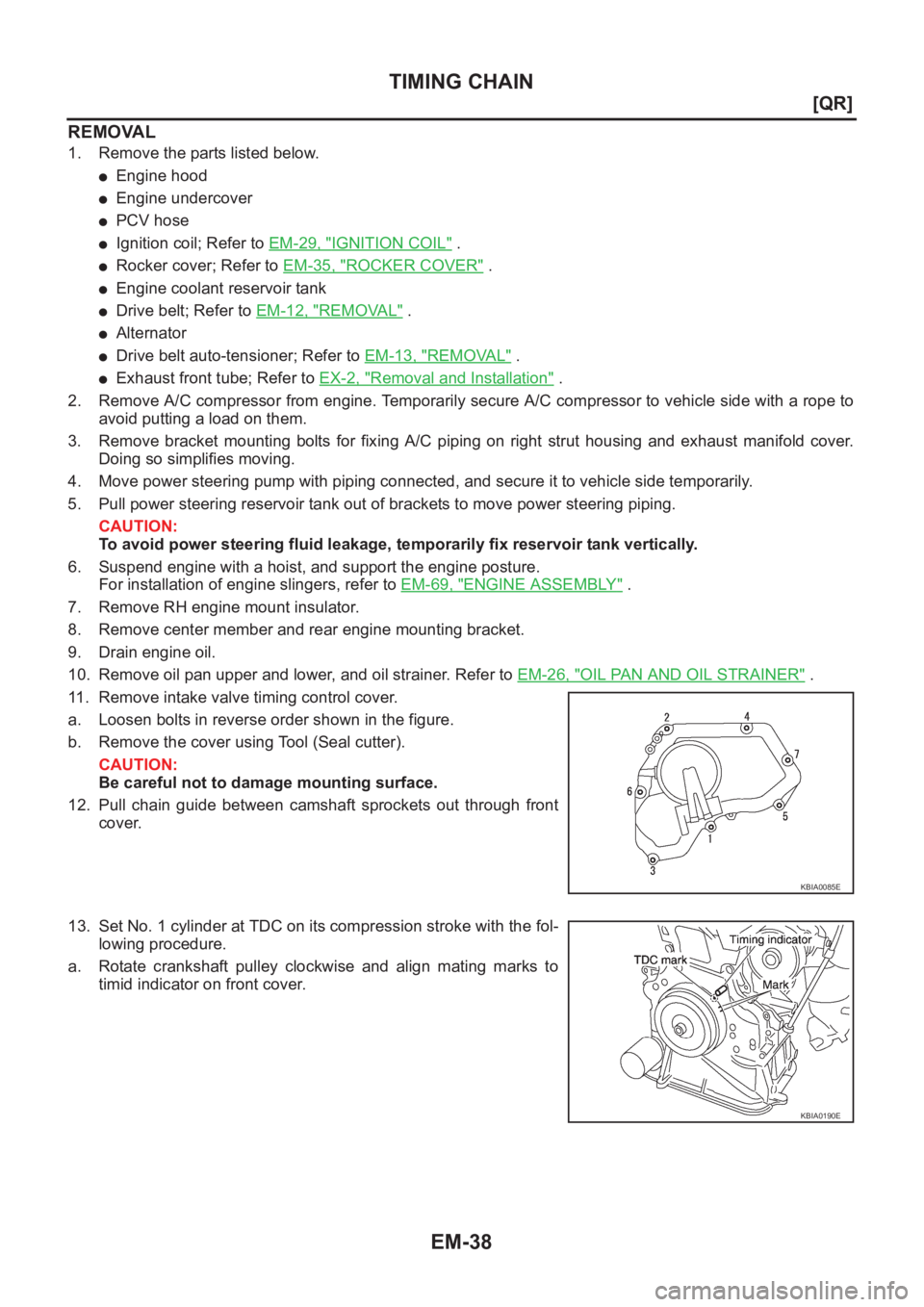

REMOVAL
1. Remove the parts listed below.
●Engine hood
●Engine undercover
●PCV hose
●Ignition coil; Refer to EM-29, "IGNITION COIL" .
●Rocker cover; Refer to EM-35, "ROCKER COVER" .
●Engine coolant reservoir tank
●Drive belt; Refer to EM-12, "REMOVAL" .
●Alternator
●Drive belt auto-tensioner; Refer to EM-13, "REMOVAL" .
●Exhaust front tube; Refer to EX-2, "Removal and Installation" .
2. Remove A/C compressor from engine. Temporarily secure A/C compressor to vehicle side with a rope to
avoid putting a load on them.
3. Remove bracket mounting bolts for fixing A/C piping on right strut housing and exhaust manifold cover.
Doing so simplifies moving.
4. Move power steering pump with piping connected, and secure it to vehicle side temporarily.
5. Pull power steering reservoir tank out of brackets to move power steering piping.
CAUTION:
To avoid power steering fluid leakage, temporarily fix reservoir tank vertically.
6. Suspend engine with a hoist, and support the engine posture.
For installation of engine slingers, refer to EM-69, "
ENGINE ASSEMBLY" .
7. Remove RH engine mount insulator.
8. Remove center member and rear engine mounting bracket.
9. Drain engine oil.
10. Remove oil pan upper and lower, and oil strainer. Refer to EM-26, "
OIL PAN AND OIL STRAINER" .
11. Remove intake valve timing control cover.
a. Loosen bolts in reverse order shown in the figure.
b. Remove the cover using Tool (Seal cutter).
CAUTION:
Be careful not to damage mounting surface.
12. Pull chain guide between camshaft sprockets out through front
cover.
13. Set No. 1 cylinder at TDC on its compression stroke with the fol-
lowing procedure.
a. Rotate crankshaft pulley clockwise and align mating marks to
timid indicator on front cover.
KBIA0085E
KBIA0190E

EM-46
[QR]
CAMSHAFT
CAMSHAFT
PFP:13001
Removal and InstallationEBS00LS2
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
REMOVAL
The following procedure describes removing and installing camshaft without removing front cover. If the front
cover is removed or installed, removal of No. 1 camshaft bracket is easier before step 8. Installation is easier
after step 3. Regarding removal and installation of front cover, refer to EM-37, "
TIMING CHAIN" .
1. Release fuel pressure. Refer to EC-775, "
FUEL PRESSURE RELEASE" [QR20DE (WITH EURO-OBD)],
EC-1139, "
FUEL PRESSURE RELEASE" [QR20DE (WITHOUT EURO-OBD)], EC-42, "FUEL PRES-
SURE RELEASE" [QR25DE (WITH EURO-OBD)] or EC-452, "FUEL PRESSURE RELEASE" [QR25DE
(WITHOUT EURO-OBD)].
2. Remove parts listed below.
●Ignition coil; Refer to EM-29, "IGNITION COIL" .
●Rocker cover; Refer to EM-35, "ROCKER COVER" .
3. Remove power steering reservoir tank.
KBIA0244E
1. Camshaft bracket 2. Washer 3. Front cover
4. Chain guide 5. Chain tensioner 6. O-ring
7. Spring 8. Chain tensioner plunger 9.Intake valve timing control solenoid
valve
10. Intake valve timing control cover 11. Camshaft sprocket (EXH) 12. Camshaft sprocket (INT)
13. Valve lifter 14. Camshaft (EXH) 15. Camshaft (INT)
16. Camshaft position sensor (PHASE)

CYLINDER HEAD
EM-61
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
●Intake manifold collector, intake manifold and fuel tube assembly; Refer to EM-16, "INTAKE MANI-
FOLD" .
●Water control valve and housing; Refer to CO-20, "THERMOSTAT AND WATER CONTROL VALVE" .
4. Remove front cover and timing chain. Refer to EM-37, "
TIMING CHAIN" .
5. Remove camshaft. Refer to EM-46, "
CAMSHAFT" .
6. Securely support bottom of cylinder block with a jack or equivalent tool, and remove the hoist that was
supporting it.
7. Remove cylinder head loosening bolts in reverse order shown in
the figure.
INSPECTION AFTER REMOVAL
Outer Diameter of Cylinder Head Bolts
●Cylinder head bolts are tightened by plastic zone tightening
method. Whenever the size difference between d1 and d2
exceeds the limit, replace them with new one.
●If reduction of outer diameter appears in a position other than
d2, use it as d2 point.
INSTALLATION
1. Install cylinder head gasket.
2. Follow the steps below to tighten fixing bolts in the order shown
in figure to install cylinder head.
CAUTION:
●If cylinder head bolts are re-used, check their outer diam-
eters before installation. Refer to EM-61, "
Outer Diameter
of Cylinder Head Bolts" .
●In step “c”, loosen bolts in the reverse order of that indi-
cated in figure.
a. Apply new engine oil to threads and seating surface of mounting
bolts.
b. Tighten all bolts to 98.1 N·m (10 kg-m, 72 ft-lb).
c. Completely loosen to 0 N·m (0 kg-m, 0 ft-lb).
d. Tighten all bolts to 34.3 to 44.1 N·m (3.5 to 4.5 kg-m, 26 to 32 ft-lb).
e. Turn all bolts 75° to 80° (target: 75°) degrees clockwise.
KBIA0058E
Limit (d1 – d2): More than 0.23 mm (0.0091 in).
SBIA0269E
KBIA0058E

INTAKE MANIFOLD
EM-123
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
INTAKE MANIFOLDPFP:14003
Removal and InstallationEBS00LRF
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain the engine coolant when the engine is hot.
1. Drain engine coolant. Refer to CO-29, "
Changing Engine Coolant" .
2. Remove air duct. Refer to EM-120, "
Removal and Installation" .
3. Remove charge air cooler and bracket. Refer to EM-122, "
Removal and Installation" .
4. Remove air inlet pipes. Refer to EM-127, "
Removal and Installation" .
5. Remove exhaust manifold cover.
6. Disconnect electronic EGR control valve water hoses and harness.
7. Disconnect heater hose.
8. Remove EGR Cooler.
PBIC0675E
1. Vacuum & fuel gallery 2. Water hose 3. Electronic EGR volume control valve
4. Gasket 5. EGR passage 6. EGR support
7. Water pipe 8. EGR Cooler 9. Intake manifold

EM-124
[YD22DDTi]
INTAKE MANIFOLD
9. Remove vacuum hose.
10. Remove injection tube. Refer to EM-144, "
Removal and Installa-
tion" .
11. Remove water pipe.
12. Remove fuel hose.
●To prevent fuel from flowing out, plug the opening of the hose
with plug after disconnection.
CAUTION:
Be careful not to spill fuel in the engine component.
13. Loosen bolts and nuts in the reverse order of that shown in the
figure.
CAUTION:
Do not disassemble or adjust swirl control valve.
14. Remove electronic EGR volume control valve from intake mani-
fold.
INSPECTION AFTER REMOVAL
Surface Distortion
Check distortion on the mounting surface with a straightedge and
feeler gauge.
INSTALLATION
Following instructions below, install in reverse order of removal.
1. Install electronic EGR volume control valve.
●Handle with care avoiding any shocks.
●Do not disassemble or adjust.
2. Install intake manifold.
●Tighten fixing bolts and nuts in numerical order as shown in the figure.
●When stud bolts come off, install with the following torque.
PBIC0982E
PBIC0676E
Limit : 0.1 mm (0.004 in)
PBIC0677E
: 10 - 11 N·m (1.0 - 1.2 kg-m, 87 - 104 in-lb)
