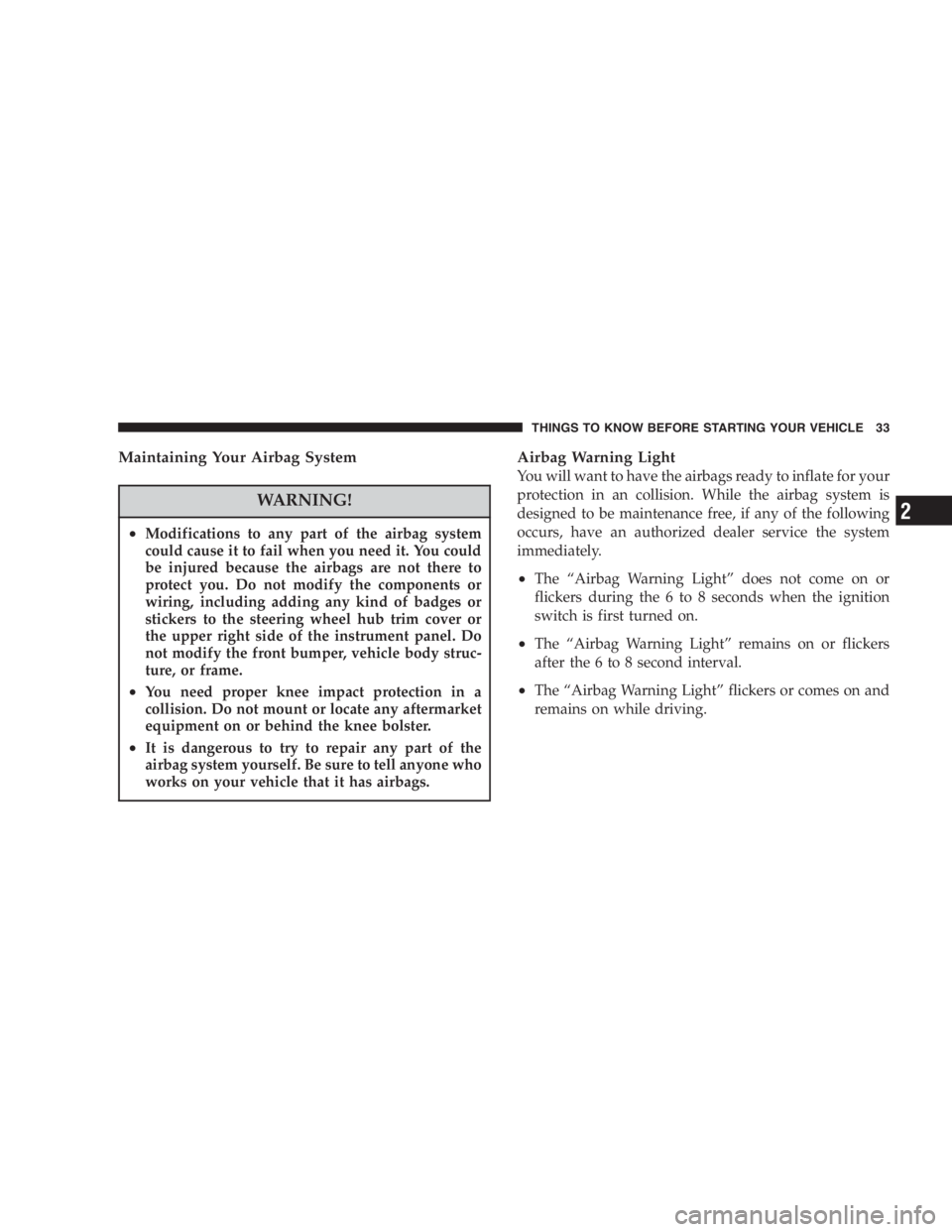

2001 JEEP WRANGLER Owners Manual

Cavity Fuse Description
12 10 Amp Red Power Distribution Relays,
Skim (Sentry Key)
13 10 Amp Red Turn Signals
14 10 Amp Red Radio
15 10 Amp Red HBL (Rear Window De-
froster) Switch
16 10 Amp Red Headlamp Aim (Export
Only)
17 25 Amp
NaturalFront Wiper
18 20 Amp Yel-
lowCigar Lighter
19 20 Amp Yel-
lowSpare
20 20 Amp Yel-
lowSpare
MAINTAINING YOUR VEHICLE 287

Cavity Fuse/Color Description
1 40 Amp Green HEVAC
2 40 Amp Green HBL (Rear Window De-
froster)
3 40 Amp Green Exterior Lighting
4 40 Amp Green Radiator Fan
5 20 Amp Yellow Transmission
6 30 Amp Pink Starter
7 Open
8 40 Amp Green ABS Motor
9 20 Amp Yellow ASD
10 40 Amp Green HD/LP
11 Open IOD Storage
12 30 Amp Pink ABS Valve

Cavity Fuse/Color Description
29 Relay ASD
30 Relay A/C Clutch
31 Relay Transmission
32 Relay Starter
33 Relay ABS
34 Open
35 Relay Fog Lamp
36 Relay Horn
37 Relay Fuel Pump
38 Relay HBL (Rear Window De-
froster)
39 Relay Front Differential Locker
(Rubicon) or High Speed
Fan (2.4L Engines)
40 Relay Rear Differential Locker
(Rubicon) or Low Speed
Fan (2.4L Engines)
MAINTAINING YOUR VEHICLE 289
