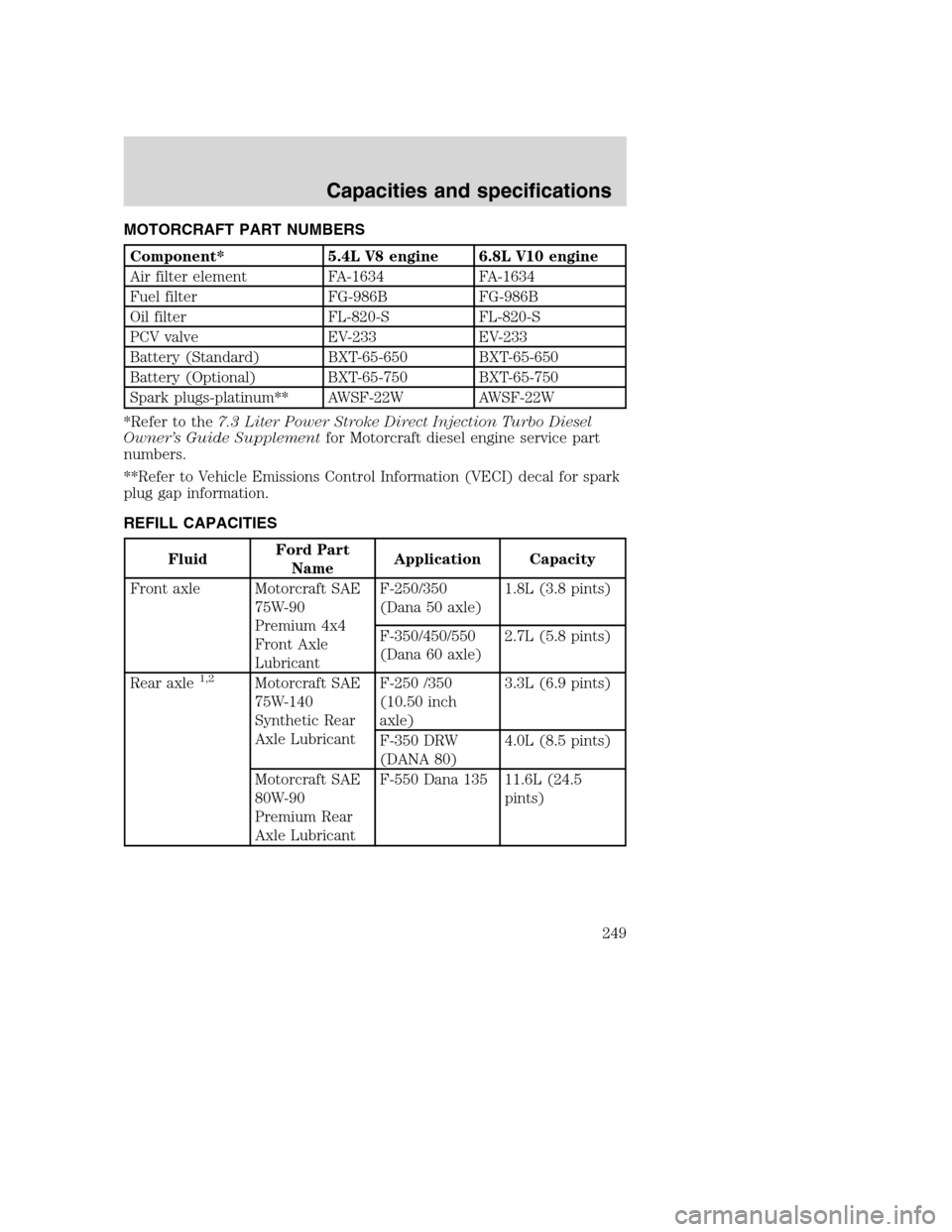

MOTORCRAFT PART NUMBERS
Component* 5.4L V8 engine 6.8L V10 engine
Air filter element FA-1634 FA-1634
Fuel filter FG-986B FG-986B
Oil filter FL-820-S FL-820-S
PCV valve EV-233 EV-233
Battery (Standard) BXT-65-650 BXT-65-650
Battery (Optional) BXT-65-750 BXT-65-750
Spark plugs-platinum** AWSF-22W AWSF-22W
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor Motorcraft diesel engine service part
numbers.
**Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
REFILL CAPACITIES
FluidFord Part
NameApplication Capacity
Front axle Motorcraft SAE
75W-90
Premium 4x4
Front Axle
LubricantF-250/350
(Dana 50 axle)1.8L (3.8 pints)
F-350/450/550
(Dana 60 axle)2.7L (5.8 pints)
Rear axle
1,2Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantF-250 /350
(10.50 inch
axle)3.3L (6.9 pints)
F-350 DRW
(DANA 80)4.0L (8.5 pints)
Motorcraft SAE
80W-90
Premium Rear
Axle LubricantF-550 Dana 135 11.6L (24.5
pints)
Capacities and specifications
249

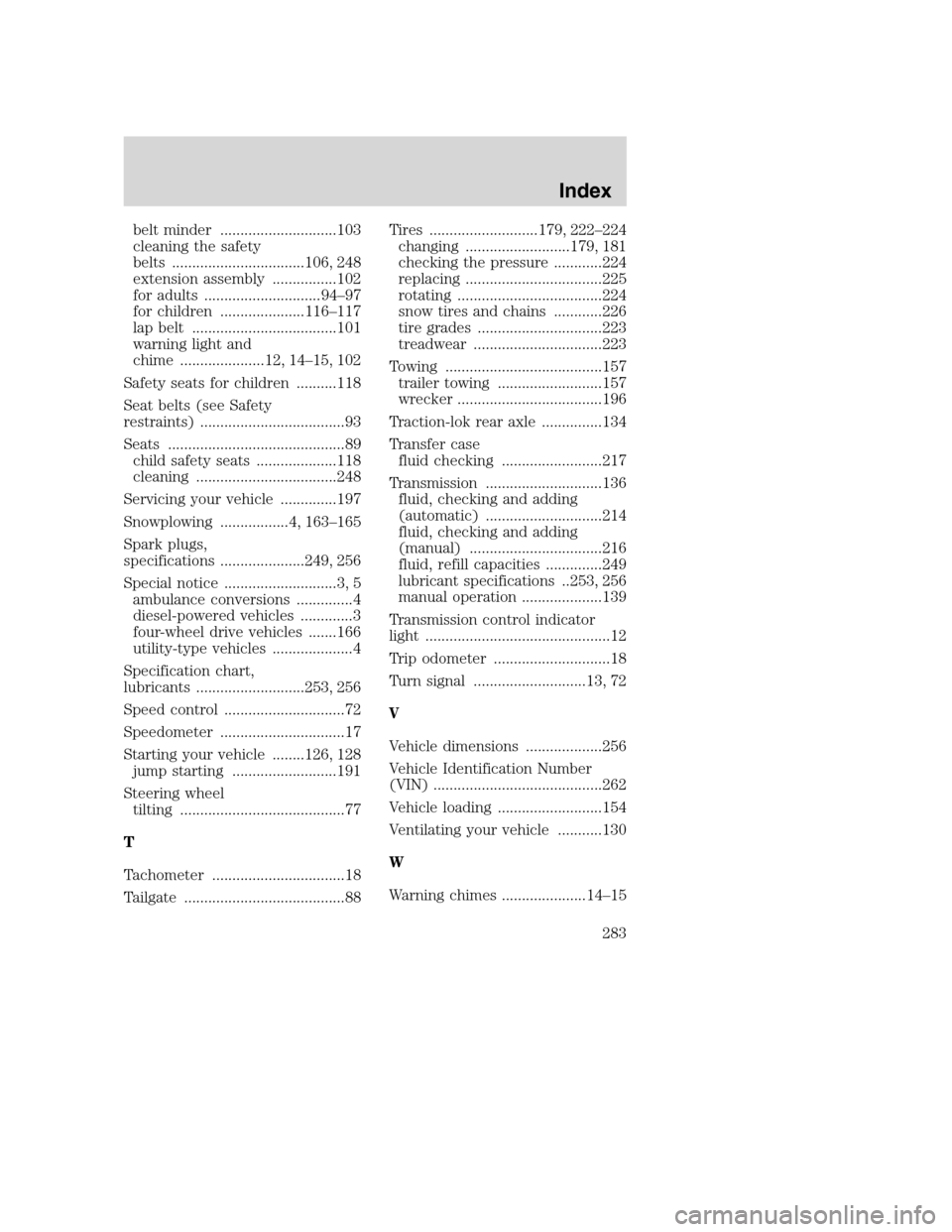

belt minder .............................103
cleaning the safety
belts .................................106, 248
extension assembly ................102
for adults .............................94–97
for children .....................116–117
lap belt ....................................101
warning light and
chime .....................12, 14–15, 102
Safety seats for children ..........118
Seat belts (see Safety
restraints) ....................................93
Seats ............................................89
child safety seats ....................118
cleaning ...................................248
Servicing your vehicle ..............197
Snowplowing .................4, 163–165
Spark plugs,
specifications .....................249, 256
Special notice ............................3, 5
ambulance conversions ..............4
diesel-powered vehicles .............3
four-wheel drive vehicles .......166
utility-type vehicles ....................4
Specification chart,
lubricants ...........................253, 256
Speed control ..............................72
Speedometer ...............................17
Starting your vehicle ........126, 128
jump starting ..........................191
Steering wheel
tilting .........................................77
T
Tachometer .................................18
Tailgate ........................................88Tires ...........................179, 222–224
changing ..........................179, 181
checking the pressure ............224
replacing ..................................225
rotating ....................................224
snow tires and chains ............226
tire grades ...............................223
treadwear ................................223
Towing .......................................157
trailer towing ..........................157
wrecker ....................................196
Traction-lok rear axle ...............134
Transfer case
fluid checking .........................217
Transmission .............................136
fluid, checking and adding
(automatic) .............................214
fluid, checking and adding
(manual) .................................216
fluid, refill capacities ..............249
lubricant specifications ..253, 256
manual operation ....................139
Transmission control indicator
light ..............................................12
Trip odometer .............................18
Turn signal ............................13, 72
V
Vehicle dimensions ...................256
Vehicle Identification Number
(VIN) ..........................................262
Vehicle loading ..........................154
Ventilating your vehicle ...........130
W
Warning chimes .....................14–15
Index
283
