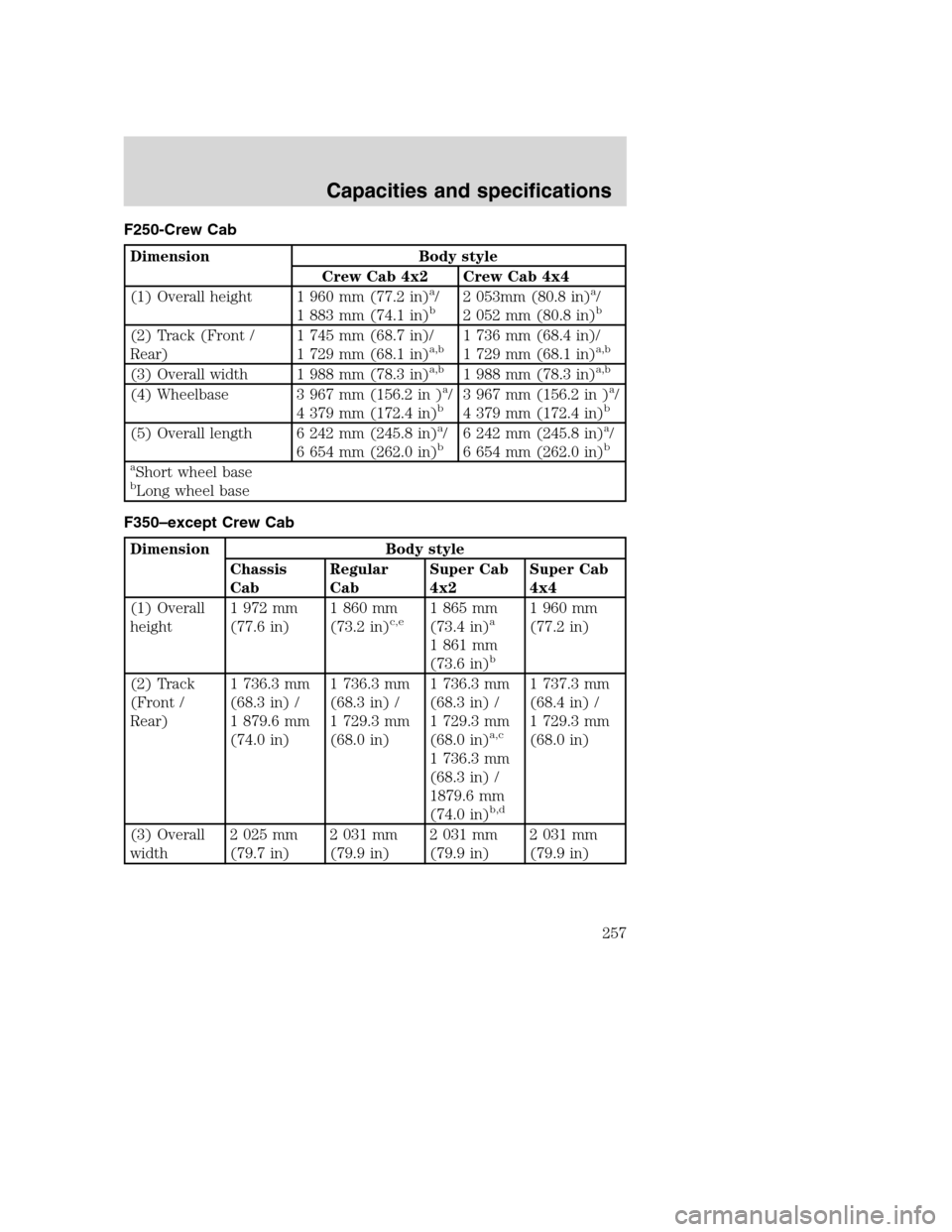

2001 FORD SUPER DUTY Owners Manual

F250-Crew Cab
Dimension Body style
Crew Cab 4x2 Crew Cab 4x4
(1) Overall height 1 960 mm (77.2 in)
a/
1 883 mm (74.1 in)b2 053mm (80.8 in)a/
2 052 mm (80.8 in)b
(2) Track (Front /
Rear)1 745 mm (68.7 in)/
1 729 mm (68.1 in)a,b1 736 mm (68.4 in)/
1 729 mm (68.1 in)a,b
(3) Overall width 1 988 mm (78.3 in)a,b1 988 mm (78.3 in)a,b
(4) Wheelbase 3 967 mm (156.2 in )a/
4 379 mm (172.4 in)b3 967 mm (156.2 in )a/
4 379 mm (172.4 in)b
(5) Overall length 6 242 mm (245.8 in)a/
6 654 mm (262.0 in)b6 242 mm (245.8 in)a/
6 654 mm (262.0 in)b
a
Short wheel basebLong wheel base
F350–except Crew Cab
Dimension Body style
Chassis
CabRegular
CabSuper Cab
4x2Super Cab
4x4
(1) Overall
height1 972 mm
(77.6 in)1 860 mm
(73.2 in)
c,e1 865 mm
(73.4 in)a
1 861 mm
(73.6 in)b
1 960 mm
(77.2 in)
(2) Track
(Front /
Rear)1 736.3 mm
(68.3 in) /
1 879.6 mm
(74.0 in)1 736.3 mm
(68.3 in) /
1 729.3 mm
(68.0 in)1 736.3 mm
(68.3 in) /
1 729.3 mm
(68.0 in)
a,c
1 736.3 mm
(68.3 in) /
1879.6 mm
(74.0 in)
b,d
1 737.3 mm
(68.4 in) /
1 729.3 mm
(68.0 in)
(3) Overall
width2 025 mm
(79.7 in)2 031 mm
(79.9 in)2 031 mm
(79.9 in)2 031 mm
(79.9 in)
Capacities and specifications
257

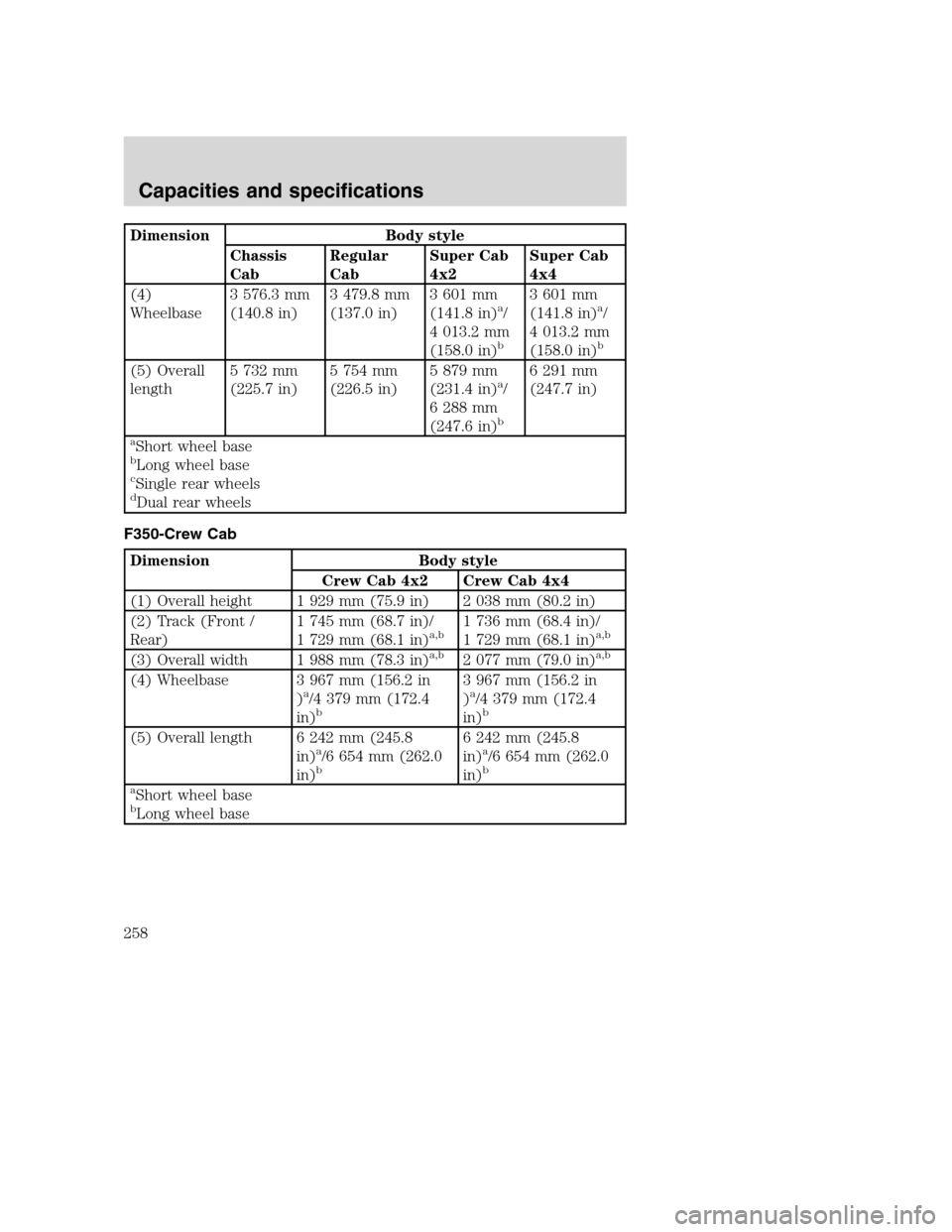

Dimension Body style
Chassis
CabRegular
CabSuper Cab
4x2Super Cab
4x4
(4)
Wheelbase3 576.3 mm
(140.8 in)3 479.8 mm
(137.0 in)3 601 mm
(141.8 in)
a/
4 013.2 mm
(158.0 in)
b
3 601 mm
(141.8 in)a/
4 013.2 mm
(158.0 in)
b
(5) Overall
length5 732 mm
(225.7 in)5 754 mm
(226.5 in)5 879 mm
(231.4 in)a/
6 288 mm
(247.6 in)
b
6 291 mm
(247.7 in)
aShort wheel basebLong wheel basecSingle rear wheelsdDual rear wheels
F350-Crew Cab
Dimension Body style
Crew Cab 4x2 Crew Cab 4x4
(1) Overall height 1 929 mm (75.9 in) 2 038 mm (80.2 in)
(2) Track (Front /
Rear)1 745 mm (68.7 in)/
1 729 mm (68.1 in)
a,b1 736 mm (68.4 in)/
1 729 mm (68.1 in)a,b
(3) Overall width 1 988 mm (78.3 in)a,b2 077 mm (79.0 in)a,b
(4) Wheelbase 3 967 mm (156.2 in
)a/4 379 mm (172.4
in)b
3 967 mm (156.2 in
)a/4 379 mm (172.4
in)b
(5) Overall length 6 242 mm (245.8
in)a/6 654 mm (262.0
in)b
6 242 mm (245.8
in)a/6 654 mm (262.0
in)b
a
Short wheel basebLong wheel base
Capacities and specifications
258

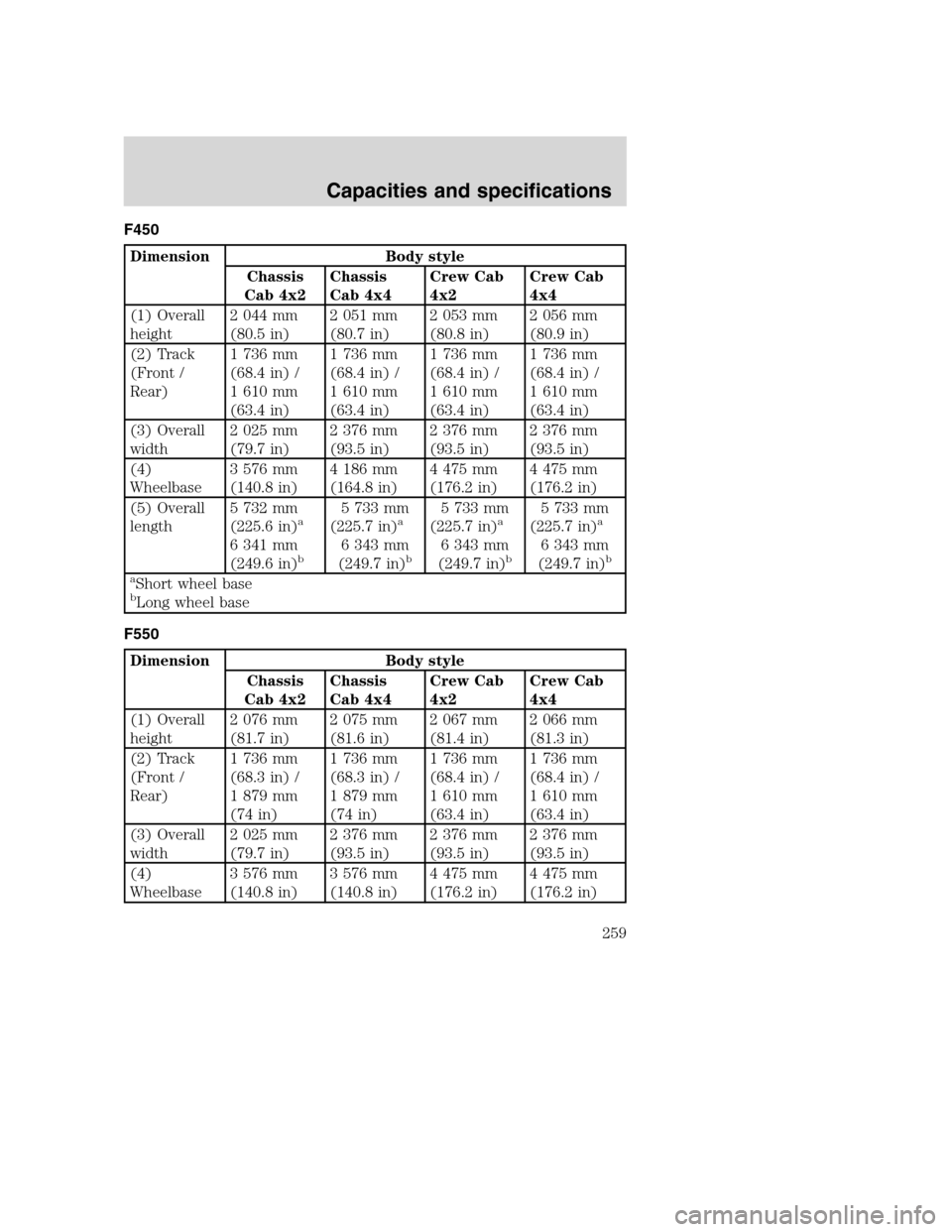

F450
Dimension Body style
Chassis
Cab 4x2Chassis
Cab 4x4Crew Cab
4x2Crew Cab
4x4
(1) Overall
height2 044 mm
(80.5 in)2 051 mm
(80.7 in)2 053 mm
(80.8 in)2 056 mm
(80.9 in)
(2) Track
(Front /
Rear)1 736 mm
(68.4 in) /
1 610 mm
(63.4 in)1 736 mm
(68.4 in) /
1 610 mm
(63.4 in)1 736 mm
(68.4 in) /
1 610 mm
(63.4 in)1 736 mm
(68.4 in) /
1 610 mm
(63.4 in)
(3) Overall
width2 025 mm
(79.7 in)2 376 mm
(93.5 in)2 376 mm
(93.5 in)2 376 mm
(93.5 in)
(4)
Wheelbase3 576 mm
(140.8 in)4 186 mm
(164.8 in)4 475 mm
(176.2 in)4 475 mm
(176.2 in)
(5) Overall
length5 732 mm
(225.6 in)
a
6 341 mm
(249.6 in)b
5 733 mm
(225.7 in)a
6 343 mm
(249.7 in)b
5 733 mm
(225.7 in)a
6 343 mm
(249.7 in)b
5 733 mm
(225.7 in)a
6 343 mm
(249.7 in)b
a
Short wheel basebLong wheel base
F550
Dimension Body style
Chassis
Cab 4x2Chassis
Cab 4x4Crew Cab
4x2Crew Cab
4x4
(1) Overall
height2 076 mm
(81.7 in)2 075 mm
(81.6 in)2 067 mm
(81.4 in)2 066 mm
(81.3 in)
(2) Track
(Front /
Rear)1 736 mm
(68.3 in) /
1 879 mm
(74 in)1 736 mm
(68.3 in) /
1 879 mm
(74 in)1 736 mm
(68.4 in) /
1 610 mm
(63.4 in)1 736 mm
(68.4 in) /
1 610 mm
(63.4 in)
(3) Overall
width2 025 mm
(79.7 in)2 376 mm
(93.5 in)2 376 mm
(93.5 in)2 376 mm
(93.5 in)
(4)
Wheelbase3 576 mm
(140.8 in)3 576 mm
(140.8 in)4 475 mm
(176.2 in)4 475 mm
(176.2 in)
Capacities and specifications
259

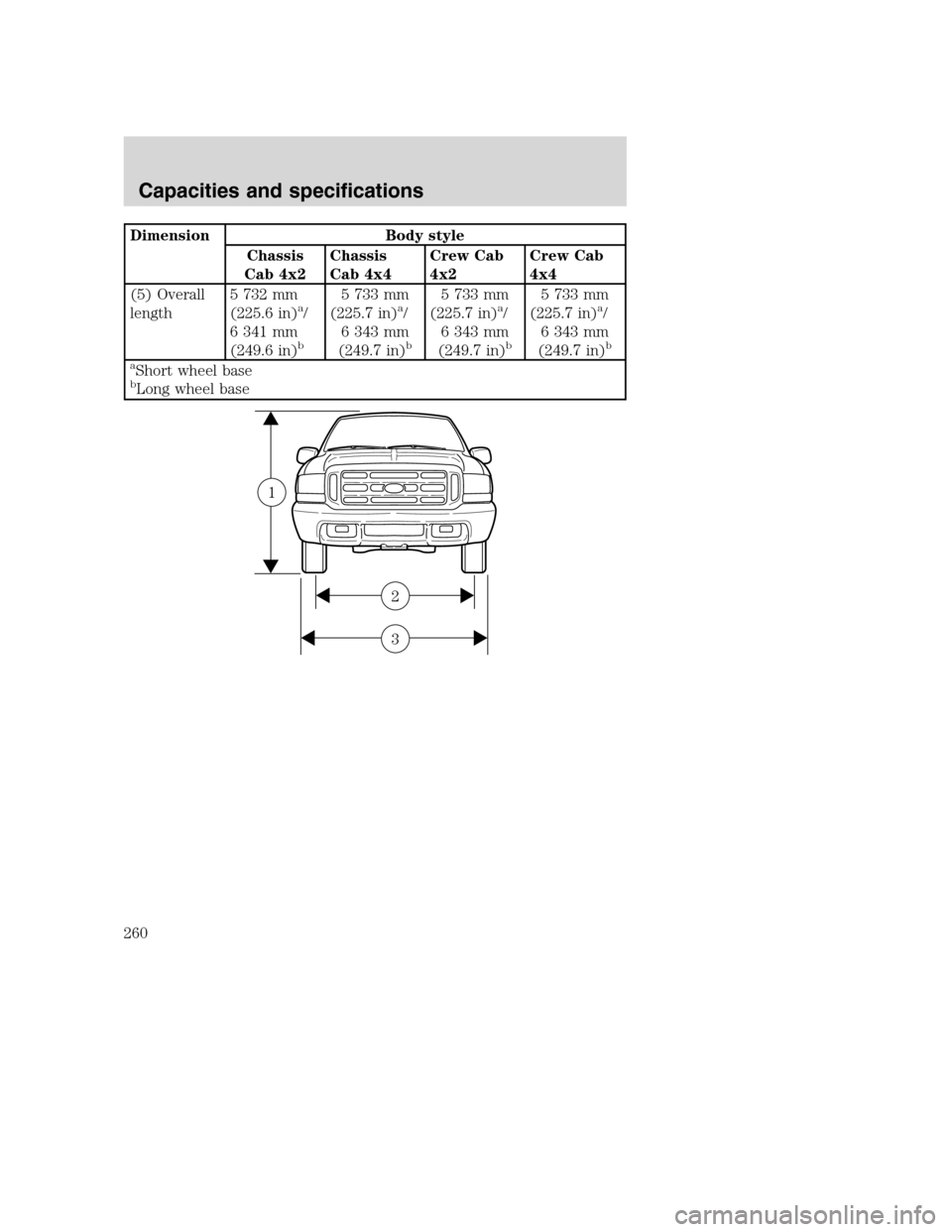

Dimension Body style
Chassis
Cab 4x2Chassis
Cab 4x4Crew Cab
4x2Crew Cab
4x4
(5) Overall
length5 732 mm
(225.6 in)
a/
6 341 mm
(249.6 in)
b
5 733 mm
(225.7 in)a/
6 343 mm
(249.7 in)
b
5 733 mm
(225.7 in)a/
6 343 mm
(249.7 in)
b
5 733 mm
(225.7 in)a/
6 343 mm
(249.7 in)
b
a
Short wheel basebLong wheel base
3
2
1
Capacities and specifications
260

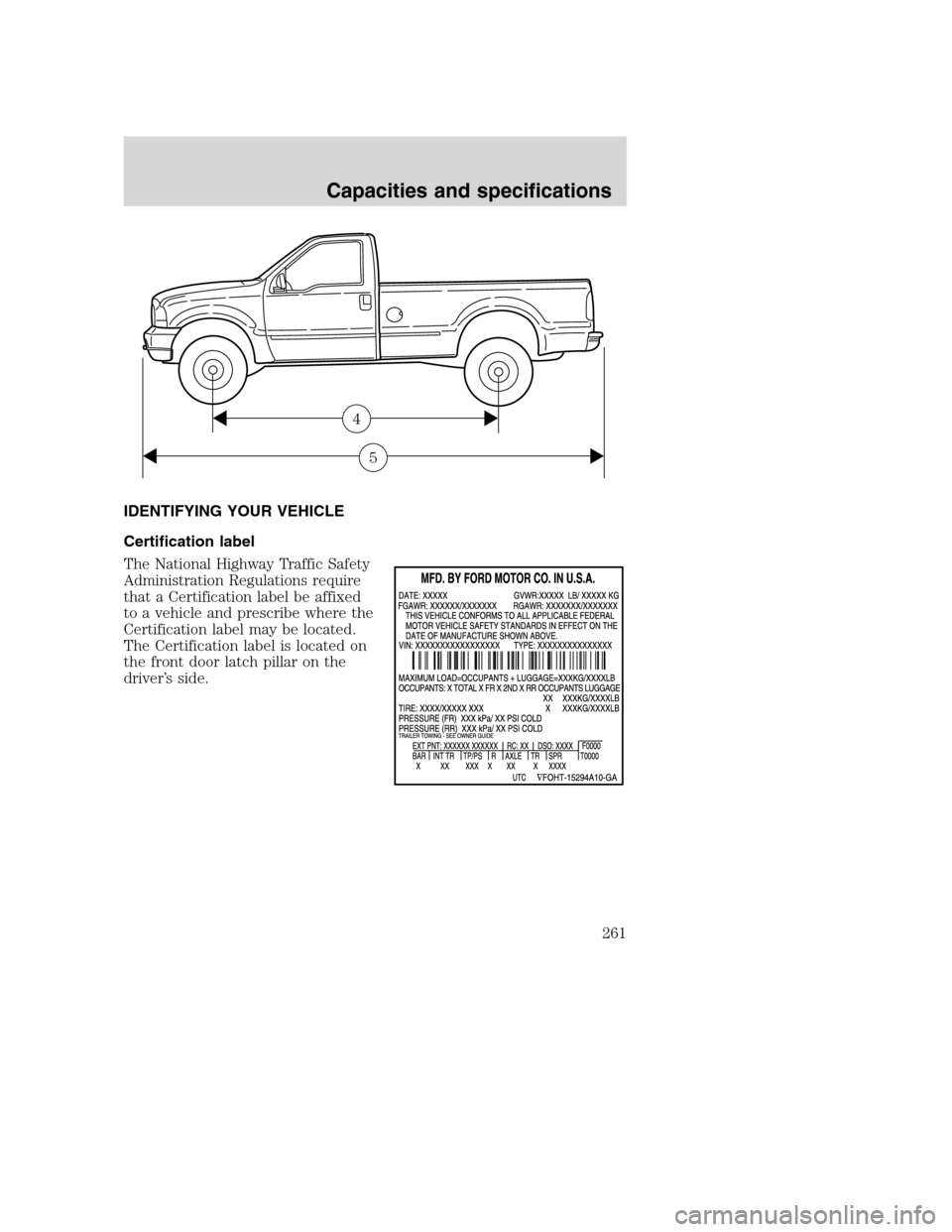

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
5
4
Capacities and specifications
261

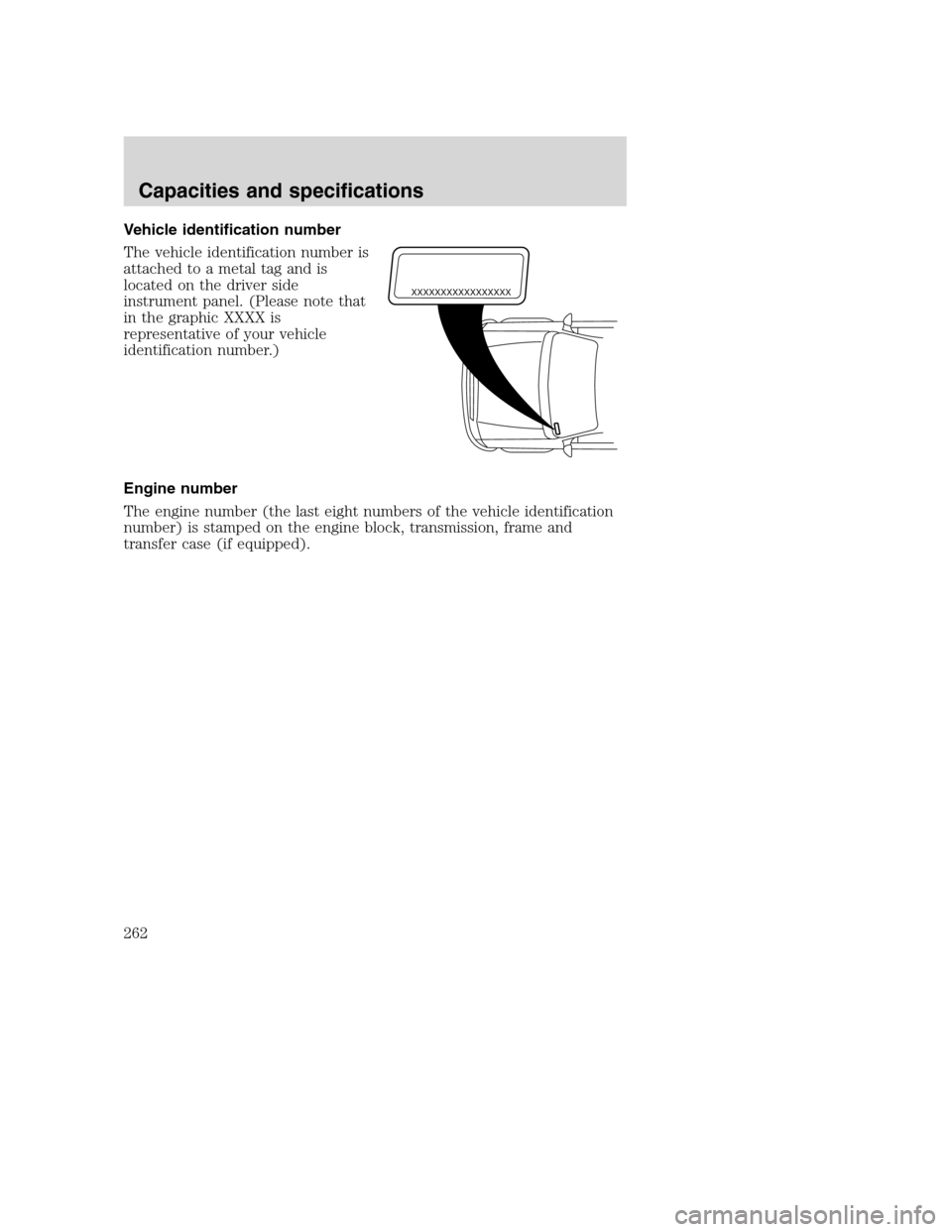

Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
Capacities and specifications
262

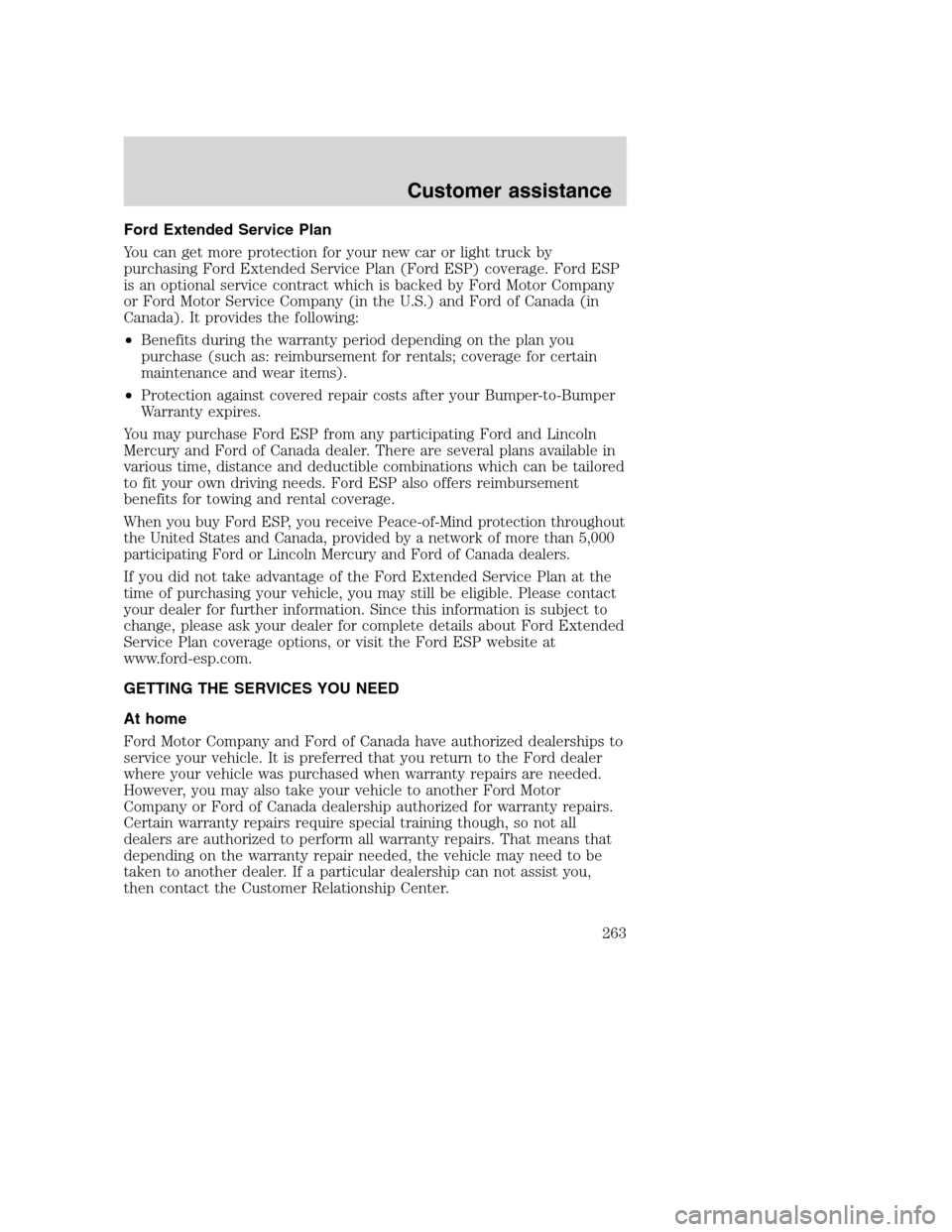

Ford Extended Service Plan
You can get more protection for your new car or light truck by
purchasing Ford Extended Service Plan (Ford ESP) coverage. Ford ESP
is an optional service contract which is backed by Ford Motor Company
or Ford Motor Service Company (in the U.S.) and Ford of Canada (in
Canada). It provides the following:
•Benefits during the warranty period depending on the plan you
purchase (such as: reimbursement for rentals; coverage for certain
maintenance and wear items).
•Protection against covered repair costs after your Bumper-to-Bumper
Warranty expires.
You may purchase Ford ESP from any participating Ford and Lincoln
Mercury and Ford of Canada dealer. There are several plans available in
various time, distance and deductible combinations which can be tailored
to fit your own driving needs. Ford ESP also offers reimbursement
benefits for towing and rental coverage.
When you buy Ford ESP, you receive Peace-of-Mind protection throughout
the United States and Canada, provided by a network of more than 5,000
participating Ford or Lincoln Mercury and Ford of Canada dealers.
If you did not take advantage of the Ford Extended Service Plan at the
time of purchasing your vehicle, you may still be eligible. Please contact
your dealer for further information. Since this information is subject to
change, please ask your dealer for complete details about Ford Extended
Service Plan coverage options, or visit the Ford ESP website at
www.ford-esp.com.
GETTING THE SERVICES YOU NEED
At home
Ford Motor Company and Ford of Canada have authorized dealerships to
service your vehicle. It is preferred that you return to the Ford dealer
where your vehicle was purchased when warranty repairs are needed.
However, you may also take your vehicle to another Ford Motor
Company or Ford of Canada dealership authorized for warranty repairs.
Certain warranty repairs require special training though, so not all
dealers are authorized to perform all warranty repairs. That means that
depending on the warranty repair needed, the vehicle may need to be
taken to another dealer. If a particular dealership can not assist you,
then contact the Customer Relationship Center.
Customer assistance
263

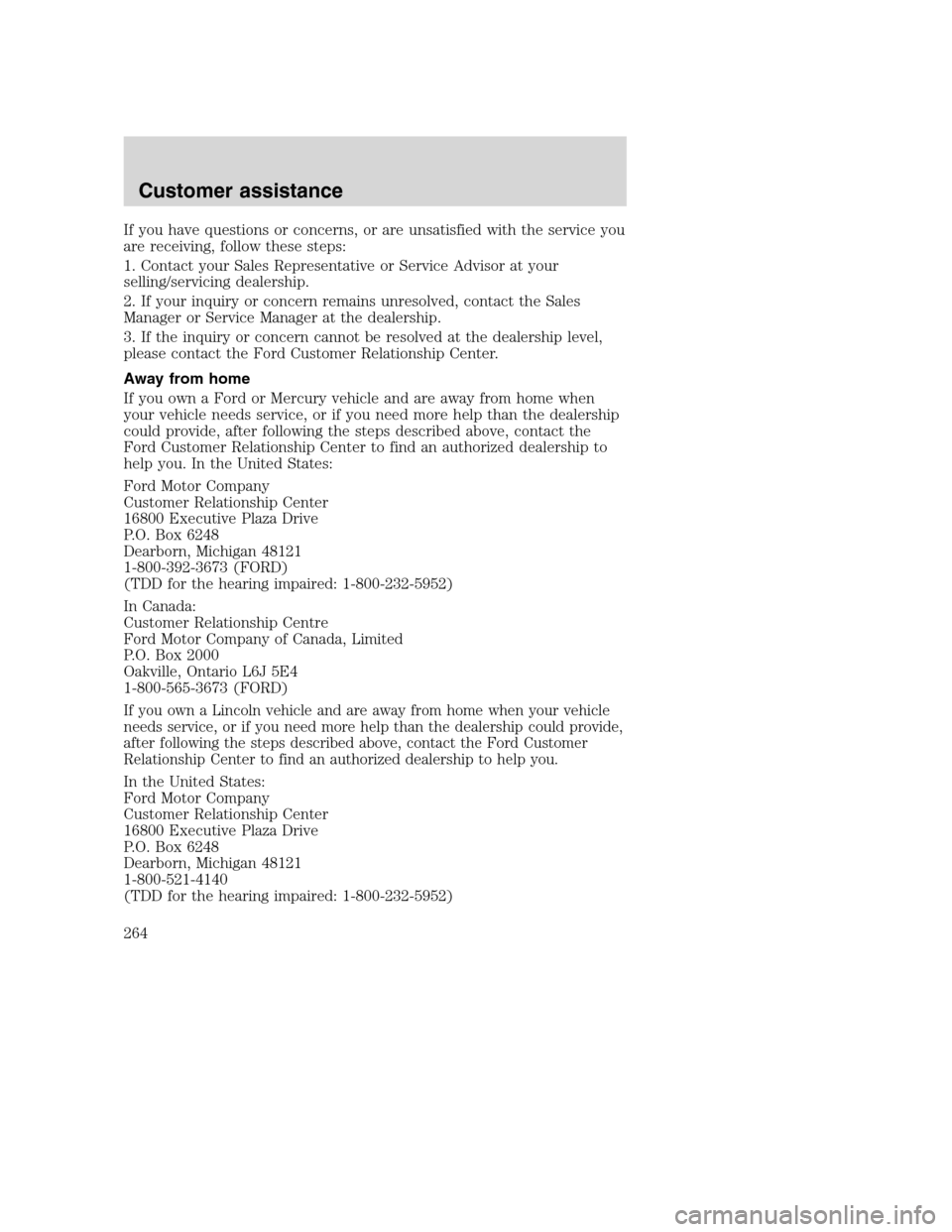

If you have questions or concerns, or are unsatisfied with the service you
are receiving, follow these steps:
1. Contact your Sales Representative or Service Advisor at your
selling/servicing dealership.
2. If your inquiry or concern remains unresolved, contact the Sales
Manager or Service Manager at the dealership.
3. If the inquiry or concern cannot be resolved at the dealership level,
please contact the Ford Customer Relationship Center.
Away from home
If you own a Ford or Mercury vehicle and are away from home when
your vehicle needs service, or if you need more help than the dealership
could provide, after following the steps described above, contact the
Ford Customer Relationship Center to find an authorized dealership to
help you. In the United States:
Ford Motor Company
Customer Relationship Center
16800 Executive Plaza Drive
P.O. Box 6248
Dearborn, Michigan 48121
1-800-392-3673 (FORD)
(TDD for the hearing impaired: 1-800-232-5952)
In Canada:
Customer Relationship Centre
Ford Motor Company of Canada, Limited
P.O. Box 2000
Oakville, Ontario L6J 5E4
1-800-565-3673 (FORD)
If you own a Lincoln vehicle and are away from home when your vehicle
needs service, or if you need more help than the dealership could provide,
after following the steps described above, contact the Ford Customer
Relationship Center to find an authorized dealership to help you.
In the United States:
Ford Motor Company
Customer Relationship Center
16800 Executive Plaza Drive
P.O. Box 6248
Dearborn, Michigan 48121
1-800-521-4140
(TDD for the hearing impaired: 1-800-232-5952)
