Speedometer
Indicates the current vehicle speed.
Engine coolant temperature gauge
Indicates the temperature of the
engine coolant. At normal operating
temperature, the needle remains
within the normal area (the area
between the“H”and“C”). If it
enters the red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch off
the engine immediately and let the
engine cool. Refer toEngine
coolantin theMaintenance and
carechapter.
Never remove the coolant reservoir cap while the engine is
running or hot.
This gauge indicates the temperature of the engine coolant, not the
coolant level. If the coolant is not at its proper level the gauge indication
will not be accurate. If the gauge enters the red section, the oil
pressure/engine coolant andCheck Engine/Service Engine Soon
indicators illuminate, refer toWhat you should know about fail-safe
coolingin theMaintenance and carechapter.
Odometer
Registers the total kilometers
(miles) of the vehicle.
0
MPHkm/h
20406080
00
20
40
60
C
H
Instrumentation
17

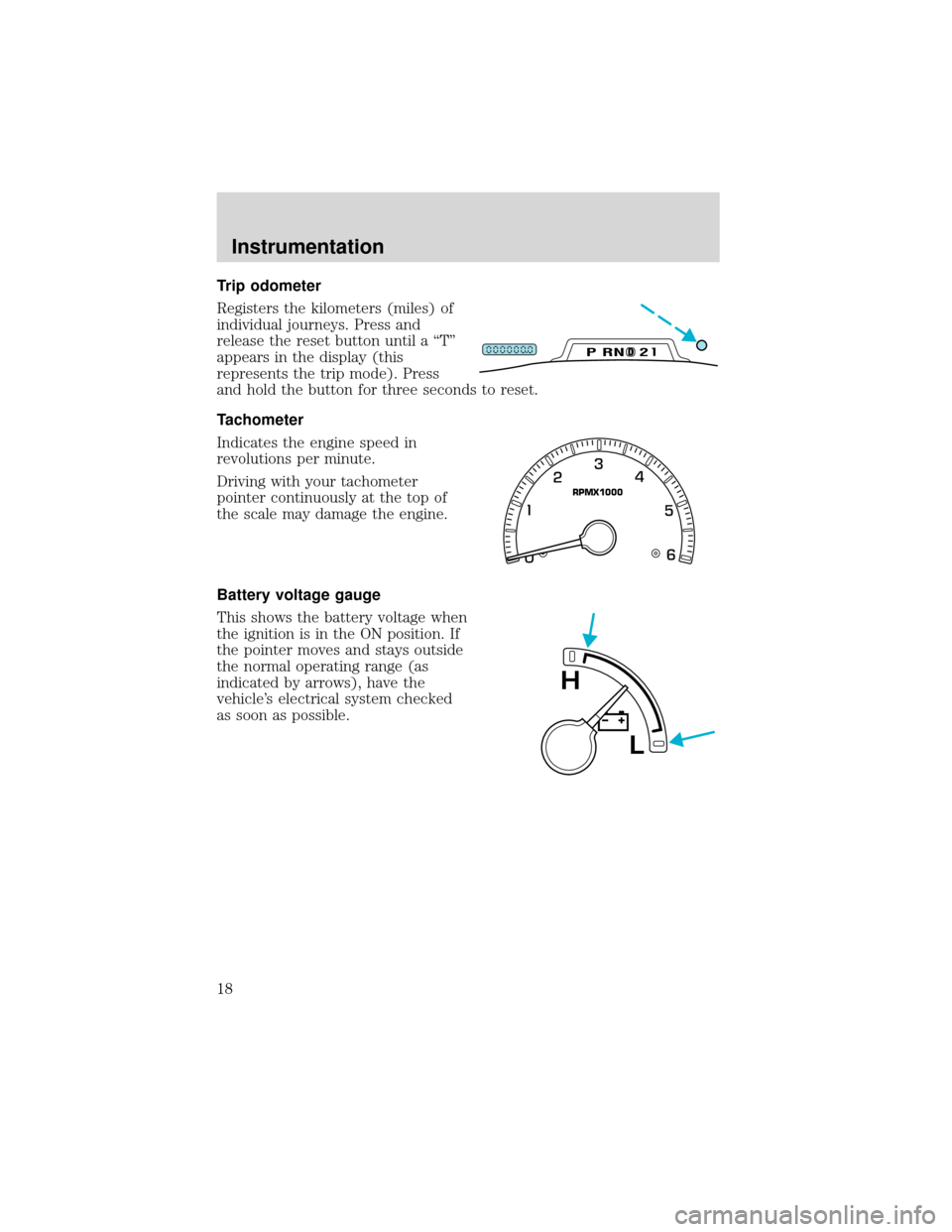

Trip odometer
Registers the kilometers (miles) of
individual journeys. Press and
release the reset button until a“T”
appears in the display (this
represents the trip mode). Press
and hold the button for three seconds to reset.
Tachometer
Indicates the engine speed in
revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.
Battery voltage gauge
This shows the battery voltage when
the ignition is in the ON position. If
the pointer moves and stays outside
the normal operating range (as
indicated by arrows), have the
vehicle’s electrical system checked
as soon as possible.
DPRND2
RPMX1000
L
H
Instrumentation
18

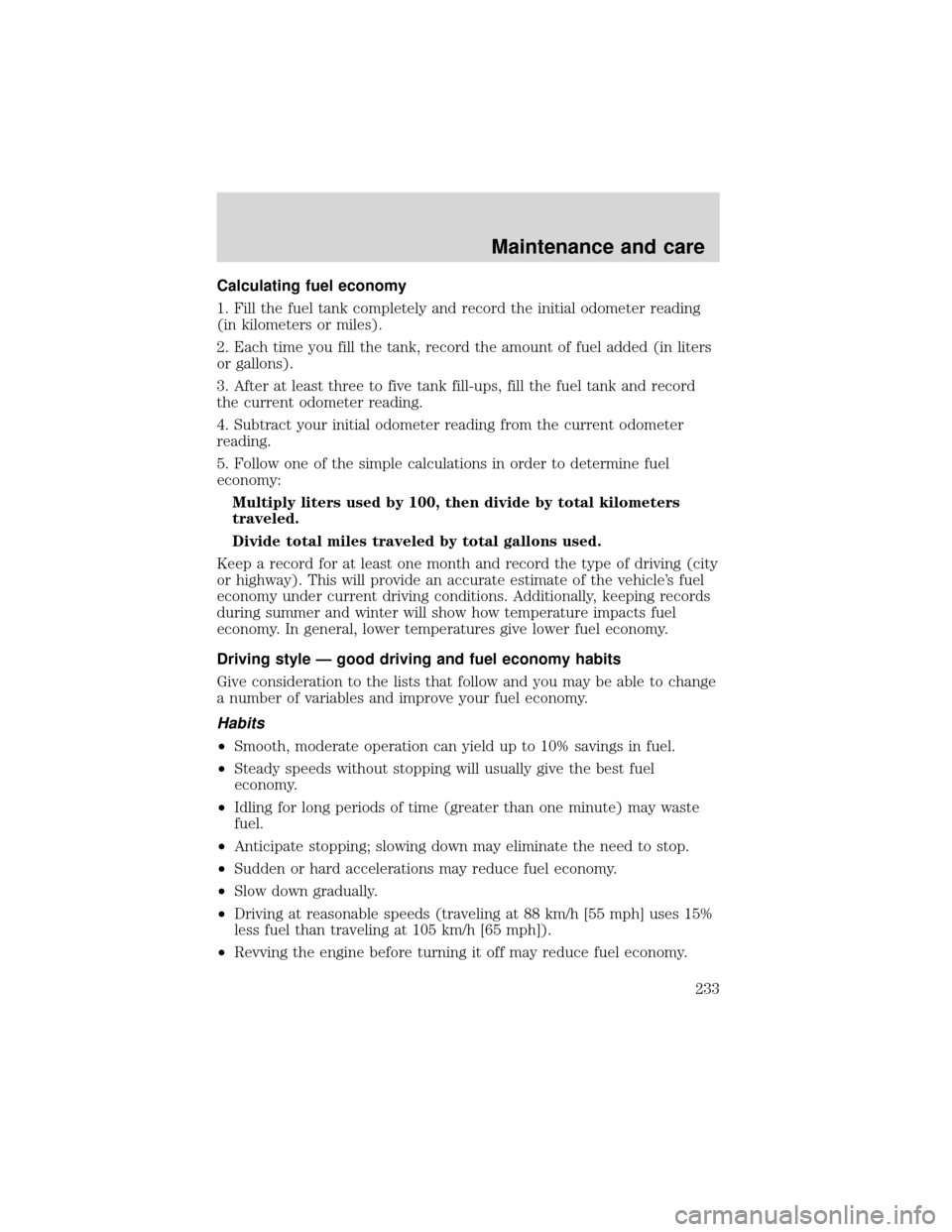

Calculating fuel economy
1. Fill the fuel tank completely and record the initial odometer reading
(in kilometers or miles).
2. Each time you fill the tank, record the amount of fuel added (in liters
or gallons).
3. After at least three to five tank fill-ups, fill the fuel tank and record
the current odometer reading.
4. Subtract your initial odometer reading from the current odometer
reading.
5. Follow one of the simple calculations in order to determine fuel
economy:
Multiply liters used by 100, then divide by total kilometers
traveled.
Divide total miles traveled by total gallons used.
Keep a record for at least one month and record the type of driving (city
or highway). This will provide an accurate estimate of the vehicle’s fuel
economy under current driving conditions. Additionally, keeping records
during summer and winter will show how temperature impacts fuel
economy. In general, lower temperatures give lower fuel economy.
Driving style—good driving and fuel economy habits
Give consideration to the lists that follow and you may be able to change
a number of variables and improve your fuel economy.
Habits
•Smooth, moderate operation can yield up to 10% savings in fuel.
•Steady speeds without stopping will usually give the best fuel
economy.
•Idling for long periods of time (greater than one minute) may waste
fuel.
•Anticipate stopping; slowing down may eliminate the need to stop.
•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 88 km/h [55 mph] uses 15%
less fuel than traveling at 105 km/h [65 mph]).
•Revving the engine before turning it off may reduce fuel economy.
Maintenance and care
233

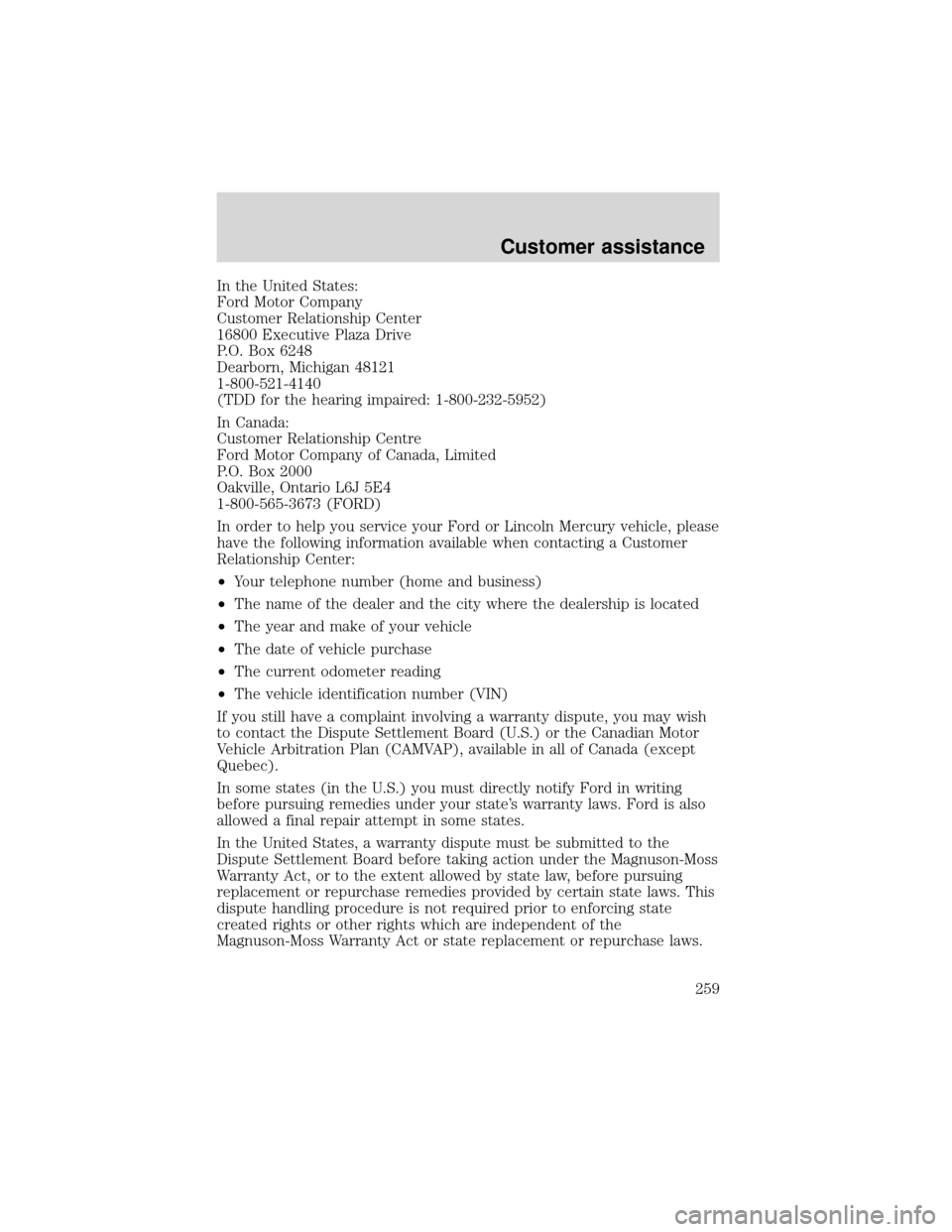

In the United States:
Ford Motor Company
Customer Relationship Center
16800 Executive Plaza Drive
P.O. Box 6248
Dearborn, Michigan 48121
1-800-521-4140
(TDD for the hearing impaired: 1-800-232-5952)
In Canada:
Customer Relationship Centre
Ford Motor Company of Canada, Limited
P.O. Box 2000
Oakville, Ontario L6J 5E4
1-800-565-3673 (FORD)
In order to help you service your Ford or Lincoln Mercury vehicle, please
have the following information available when contacting a Customer
Relationship Center:
•Your telephone number (home and business)
•The name of the dealer and the city where the dealership is located
•The year and make of your vehicle
•The date of vehicle purchase
•The current odometer reading
•The vehicle identification number (VIN)
If you still have a complaint involving a warranty dispute, you may wish
to contact the Dispute Settlement Board (U.S.) or the Canadian Motor
Vehicle Arbitration Plan (CAMVAP), available in all of Canada (except
Quebec).
In some states (in the U.S.) you must directly notify Ford in writing
before pursuing remedies under your state’s warranty laws. Ford is also
allowed a final repair attempt in some states.
In the United States, a warranty dispute must be submitted to the
Dispute Settlement Board before taking action under the Magnuson-Moss
Warranty Act, or to the extent allowed by state law, before pursuing
replacement or repurchase remedies provided by certain state laws. This
dispute handling procedure is not required prior to enforcing state
created rights or other rights which are independent of the
Magnuson-Moss Warranty Act or state replacement or repurchase laws.
Customer assistance
259

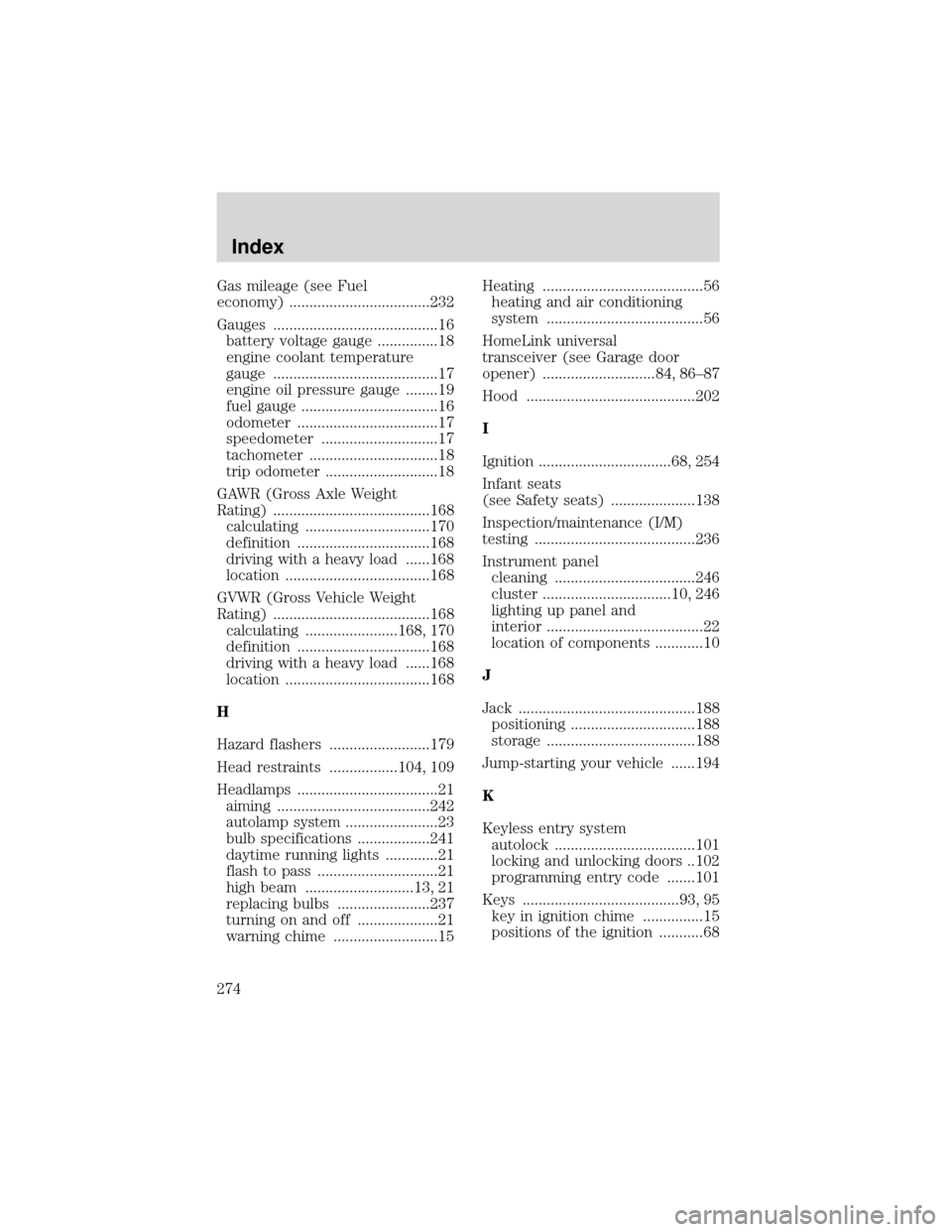

Gas mileage (see Fuel
economy) ...................................232
Gauges .........................................16
battery voltage gauge ...............18
engine coolant temperature
gauge .........................................17
engine oil pressure gauge ........19
fuel gauge ..................................16
odometer ...................................17
speedometer .............................17
tachometer ................................18
trip odometer ............................18
GAWR (Gross Axle Weight
Rating) .......................................168
calculating ...............................170
definition .................................168
driving with a heavy load ......168
location ....................................168
GVWR (Gross Vehicle Weight
Rating) .......................................168
calculating .......................168, 170
definition .................................168
driving with a heavy load ......168
location ....................................168
H
Hazard flashers .........................179
Head restraints .................104, 109
Headlamps ...................................21
aiming ......................................242
autolamp system .......................23
bulb specifications ..................241
daytime running lights .............21
flash to pass ..............................21
high beam ...........................13, 21
replacing bulbs .......................237
turning on and off ....................21
warning chime ..........................15Heating ........................................56
heating and air conditioning
system .......................................56
HomeLink universal
transceiver (see Garage door
opener) ............................84, 86–87
Hood ..........................................202
I
Ignition .................................68, 254
Infant seats
(see Safety seats) .....................138
Inspection/maintenance (I/M)
testing ........................................236
Instrument panel
cleaning ...................................246
cluster ................................10, 246
lighting up panel and
interior .......................................22
location of components ............10
J
Jack ............................................188
positioning ...............................188
storage .....................................188
Jump-starting your vehicle ......194
K
Keyless entry system
autolock ...................................101
locking and unlocking doors ..102
programming entry code .......101
Keys .......................................93, 95
key in ignition chime ...............15
positions of the ignition ...........68
Index
274

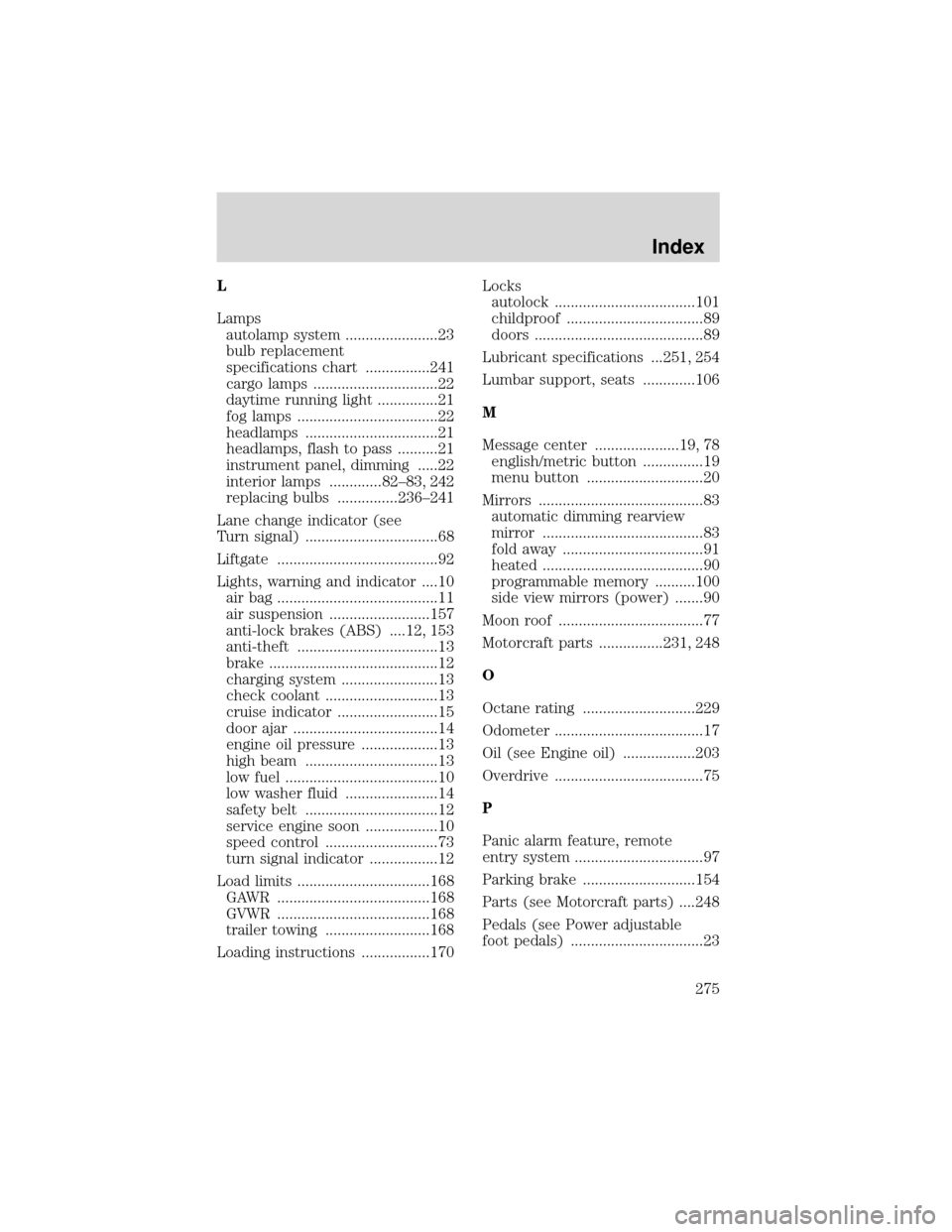

L
Lamps
autolamp system .......................23
bulb replacement
specifications chart ................241
cargo lamps ...............................22
daytime running light ...............21
fog lamps ...................................22
headlamps .................................21
headlamps, flash to pass ..........21
instrument panel, dimming .....22
interior lamps .............82–83, 242
replacing bulbs ...............236–241
Lane change indicator (see
Turn signal) .................................68
Liftgate ........................................92
Lights, warning and indicator ....10
air bag ........................................11
air suspension .........................157
anti-lock brakes (ABS) ....12, 153
anti-theft ...................................13
brake ..........................................12
charging system ........................13
check coolant ............................13
cruise indicator .........................15
door ajar ....................................14
engine oil pressure ...................13
high beam .................................13
low fuel ......................................10
low washer fluid .......................14
safety belt .................................12
service engine soon ..................10
speed control ............................73
turn signal indicator .................12
Load limits .................................168
GAWR ......................................168
GVWR ......................................168
trailer towing ..........................168
Loading instructions .................170Locks
autolock ...................................101
childproof ..................................89
doors ..........................................89
Lubricant specifications ...251, 254
Lumbar support, seats .............106
M
Message center .....................19, 78
english/metric button ...............19
menu button .............................20
Mirrors .........................................83
automatic dimming rearview
mirror ........................................83
fold away ...................................91
heated ........................................90
programmable memory ..........100
side view mirrors (power) .......90
Moon roof ....................................77
Motorcraft parts ................231, 248
O
Octane rating ............................229
Odometer .....................................17
Oil (see Engine oil) ..................203
Overdrive .....................................75
P
Panic alarm feature, remote
entry system ................................97
Parking brake ............................154
Parts (see Motorcraft parts) ....248
Pedals (see Power adjustable
foot pedals) .................................23
Index
275

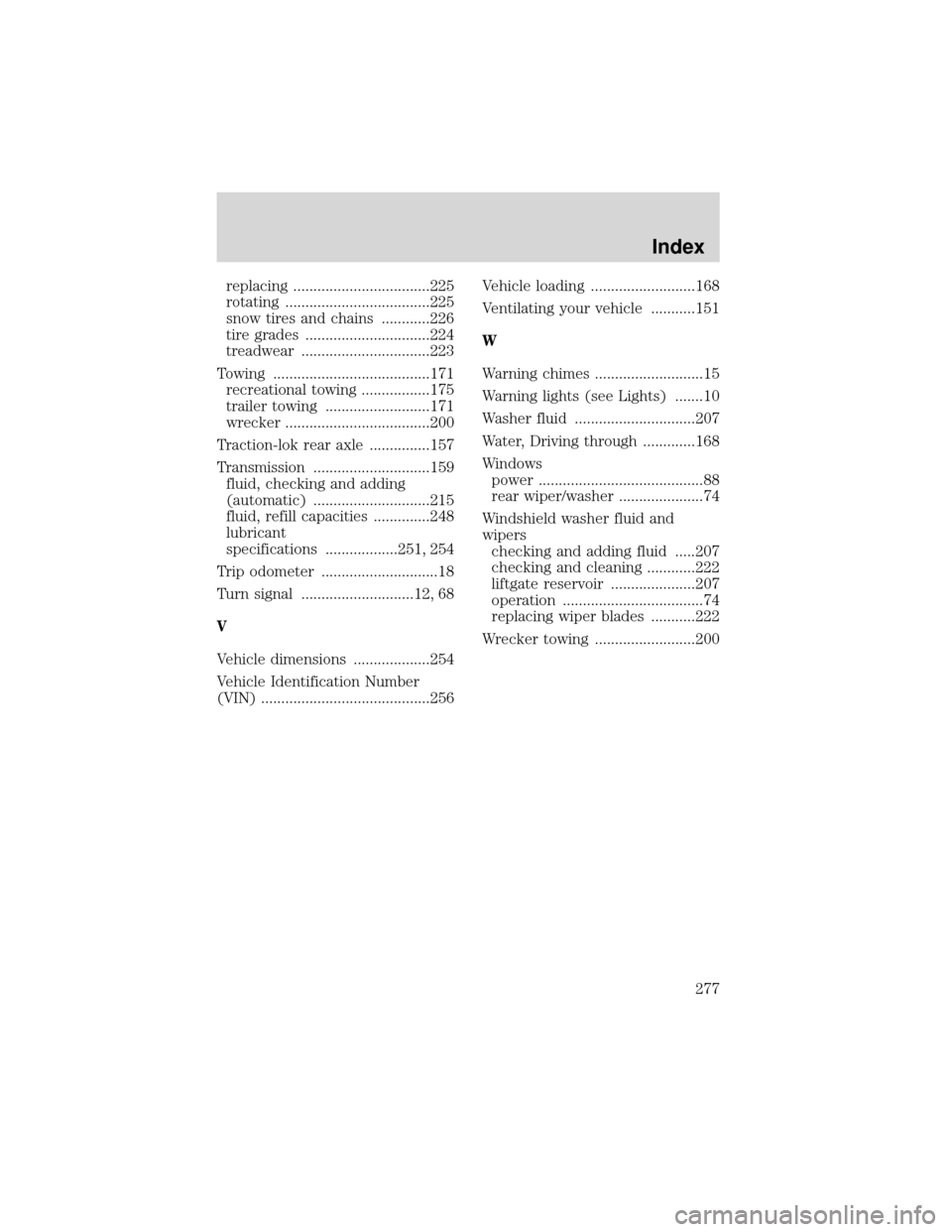

replacing ..................................225
rotating ....................................225
snow tires and chains ............226
tire grades ...............................224
treadwear ................................223
Towing .......................................171
recreational towing .................175
trailer towing ..........................171
wrecker ....................................200
Traction-lok rear axle ...............157
Transmission .............................159
fluid, checking and adding
(automatic) .............................215
fluid, refill capacities ..............248
lubricant
specifications ..................251, 254
Trip odometer .............................18
Turn signal ............................12, 68
V
Vehicle dimensions ...................254
Vehicle Identification Number
(VIN) ..........................................256Vehicle loading ..........................168
Ventilating your vehicle ...........151
W
Warning chimes ...........................15
Warning lights (see Lights) .......10
Washer fluid ..............................207
Water, Driving through .............168
Windows
power .........................................88
rear wiper/washer .....................74
Windshield washer fluid and
wipers
checking and adding fluid .....207
checking and cleaning ............222
liftgate reservoir .....................207
operation ...................................74
replacing wiper blades ...........222
Wrecker towing .........................200
Index
277
