Page 38 of 460

1-26
Replacing the Stowable Seat
Do not put the stowable seat in so it faces rearward
because it will not latch that way. The stowable seat has
to go in before the convenience center. See ªConvenience
Centerº in the Index for more information.
The stowable seat has seat position labels, located on
the back of the seat, showing where the seat must go.
Follow the floor pin diagram. Use the front floor pins
of the floor cups and the rear floor cups in the third row.
Use G, H, I, and J sets of floor cups.
See ªRear Seatsº in the beginning of this section for
more information. The seat must be placed in the proper
location for the legs to attach correctly.
Make sure the seat is in its upright position before
beginning this procedure.
1. Place the front hooks of the seat onto the front floor
pins in the third row. To do this, the seat will need to
be angled so the front hooks clear the floor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of floor pins.
2. Firmly push the rear hooks into the rear floor pins
by pushing down on the rear of the seat.3. Try to raise the seat to make sure that it is
locked down.
4. Push and pull on the seatback to make sure that
it is locked into place.
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
Page 60 of 460

1-48
How does an air bag restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The air bag supplements the protection
provided by safety belts. Air bags distribute the force of
the impact more evenly over the occupant's upper body,
stopping the occupant more gradually. But the frontal air
bags would not help you in many types of collisions,
including rollovers, rear impacts, and side impacts,
primarily because an occupant's motion is not toward
the air bag. Side impact air bags would not help you in
many types of collisions, including frontal or near
frontal collisions, rollovers, and rear impacts, primarily
because an occupant's motion is not toward those air
bags. Air bags should never be regarded as anything
more than a supplement to safety belts, and then only in
moderate to severe frontal or near
-frontal collisions for
the driver's and right front passenger's frontal air bags,
and only in moderate to severe side collisions for the
driver's and right front passenger's side impact air bags.What will you see after an air bag inflates?
After an air bag inflates, it quickly deflates, so quickly
that some people may not even realize the air bag
inflated. Some components of the air bag module
-- the
steering wheel hub for the driver's air bag, the instrument
panel for the right front passenger's bag, the side of the
seatback closest to the door for the driver and right front
passenger's side impact air bags
-- will be hot for a short
time. The parts of the bag that come into contact with
you may be warm, but not too hot to touch. There will
be some smoke and dust coming from the vents in the
deflated air bags. Air bag inflation doesn't prevent the
driver from seeing or being able to steer the vehicle,
nor does it stop people from leaving the vehicle.
CAUTION:
When an air bag inflates, there is dust in the air.
This dust could cause breathing problems for
people with a history of asthma or other
breathing trouble. To avoid this, everyone in the
vehicle should get out as soon as it is safe to do so.
If you have breathing problems but can't get out
of the vehicle after an air bag inflates, then get
fresh air by opening a window or a door.
Page 87 of 460
1-75
Restraint Systems for Children
An infant car bed (A), a special bed made for use in a
motor vehicle, is an infant restraint system designed to
restrain or position a child on a continuous flat surface.
Make sure that the infant's head rests toward the center
of the vehicle.
A rear-facing infant seat (B) provides restraint with
the seating surface against the back of the infant. The
harness system holds the infant in place and, in a crash,
acts to keep the infant positioned in the restraint.
Page 92 of 460
1-80
In Canada, the law requires that forward-facing child
restraints have a top strap, and that the strap be anchored.
In the United States, some child restraints also have a top
strap. If your child restraint has a top strap, it should
be anchored.
An anchor bar for a top strap is located at the rear of
the seat cushion for each second and third row outboard
seating positions, and for the center position of the
second row.
The anchor bar for the stowable bench seat is located
on the passenger's side of the crossbar. Use the center
seating position to use the anchor properly. If the
convenience center is in the vehicle, you must lift the
tray sill to use the anchor.
Second Row
Page 93 of 460
1-81
Third RowThird Row (Stowable Seat)
Don't use a child restraint with a top strap in the right
front passenger's position because there's no place to
anchor the top strap.
Page 110 of 460
1-98

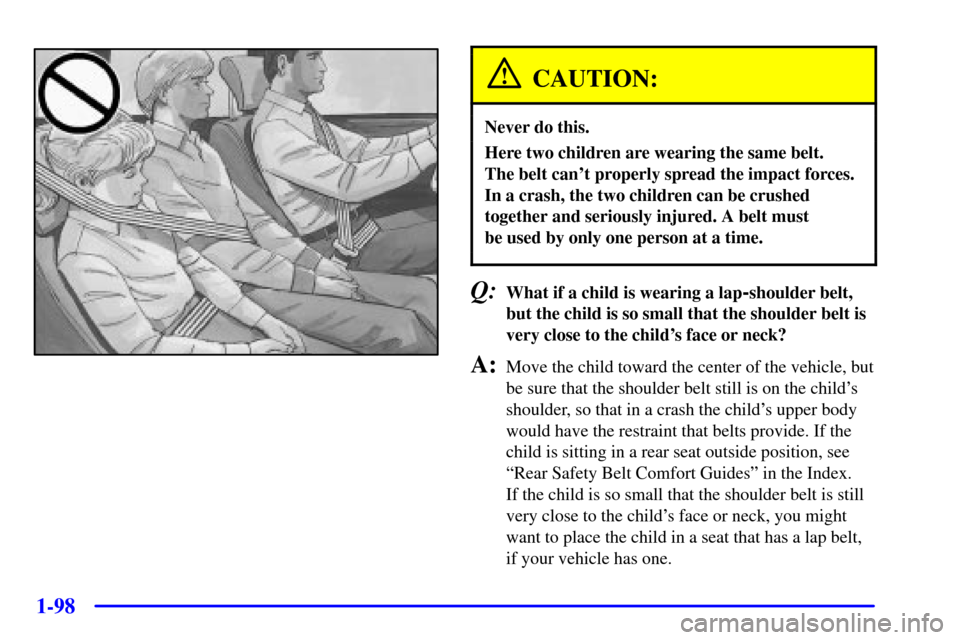

CAUTION:
Never do this.
Here two children are wearing the same belt.
The belt can't properly spread the impact forces.
In a crash, the two children can be crushed
together and seriously injured. A belt must
be used by only one person at a time.
Q:What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt is
very close to the child's face or neck?
A:Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child's
shoulder, so that in a crash the child's upper body
would have the restraint that belts provide. If the
child is sitting in a rear seat outside position, see
ªRear Safety Belt Comfort Guidesº in the Index.
If the child is so small that the shoulder belt is still
very close to the child's face or neck, you might
want to place the child in a seat that has a lap belt,
if your vehicle has one.
Page 120 of 460

2-7

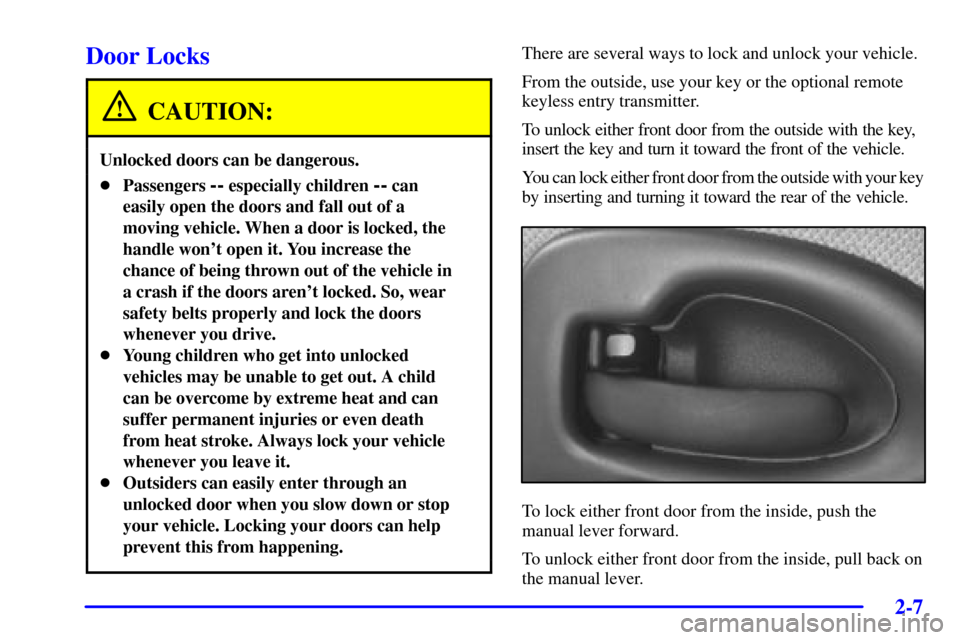

Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or the optional remote
keyless entry transmitter.
To unlock either front door from the outside with the key,
insert the key and turn it toward the front of the vehicle.
You can lock either front door from the outside with your key
by inserting and turning it toward the rear of the vehicle.
To lock either front door from the inside, push the
manual lever forward.
To unlock either front door from the inside, pull back on
the manual lever.
Page 121 of 460

2-8 Power Door Locks
From the inside, press the front of the power door lock
switch (on either front door) to unlock all doors and the
liftgate. If your vehicle has the optional content
theft
-deterrent system, the power door lock switch will
not unlock the doors until the system is disarmed. See
ªContent Theft
-Deterrentº in the Index for more details.
You can lock all doors and the liftgate from the inside
by pressing the rear of the power lock switch on either
front door. If your vehicle has the optional content
theft
-deterrent system, the power door lock switch may
cause the system to arm. See ªContent Theft
-Deterrentº
in the Index for more details.To unlock any door or the liftgate from the outside with
your key, turn the key toward the front of the vehicle
and release it. This will only unlock that door or the
liftgate. To unlock all the doors and the liftgate at once,
insert the key into the key cylinder, then turn it toward
the front of the vehicle and hold it for one second.
With power door locks, you can lock all the doors from
the outside by inserting the key and turning the key
toward the rear of the vehicle.
Also, when the doors are locked with the power door
locks, the inside as well as the outside door handle
cannot open the doors. This safety feature prevents a
door from being accidentally opened from the inside by
moving the handle.
To override this safety feature, unlock the door you
want to open.
When the liftgate has been unlocked with the power
door locks, you won't need the key to open it. Simply
squeeze the handle located above the license plate. This
is also true if you use the optional remote keyless entry
transmitter. See ªRemote Keyless Entry Systemº later in
this section.
