2001 CHEVROLET BLAZER battery

2-22

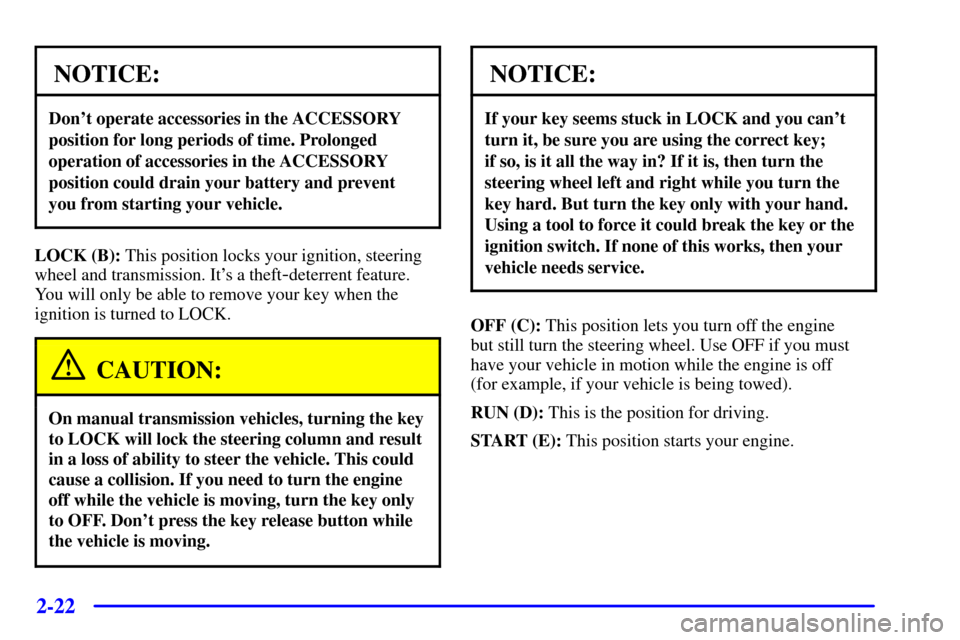

NOTICE:
Don't operate accessories in the ACCESSORY
position for long periods of time. Prolonged
operation of accessories in the ACCESSORY
position could drain your battery and prevent
you from starting your vehicle.
LOCK (B): This position locks your ignition, steering
wheel and transmission. It's a theft
-deterrent feature.
You will only be able to remove your key when the
ignition is turned to LOCK.
CAUTION:
On manual transmission vehicles, turning the key
to LOCK will lock the steering column and result
in a loss of ability to steer the vehicle. This could
cause a collision. If you need to turn the engine
off while the vehicle is moving, turn the key only
to OFF. Don't press the key release button while
the vehicle is moving.
NOTICE:
If your key seems stuck in LOCK and you can't
turn it, be sure you are using the correct key;
if so, is it all the way in? If it is, then turn the
steering wheel left and right while you turn the
key hard. But turn the key only with your hand.
Using a tool to force it could break the key or the
ignition switch. If none of this works, then your
vehicle needs service.
OFF (C): This position lets you turn off the engine
but still turn the steering wheel. Use OFF if you must
have your vehicle in motion while the engine is off
(for example, if your vehicle is being towed).
RUN (D): This is the position for driving.
START (E): This position starts your engine.

2-24

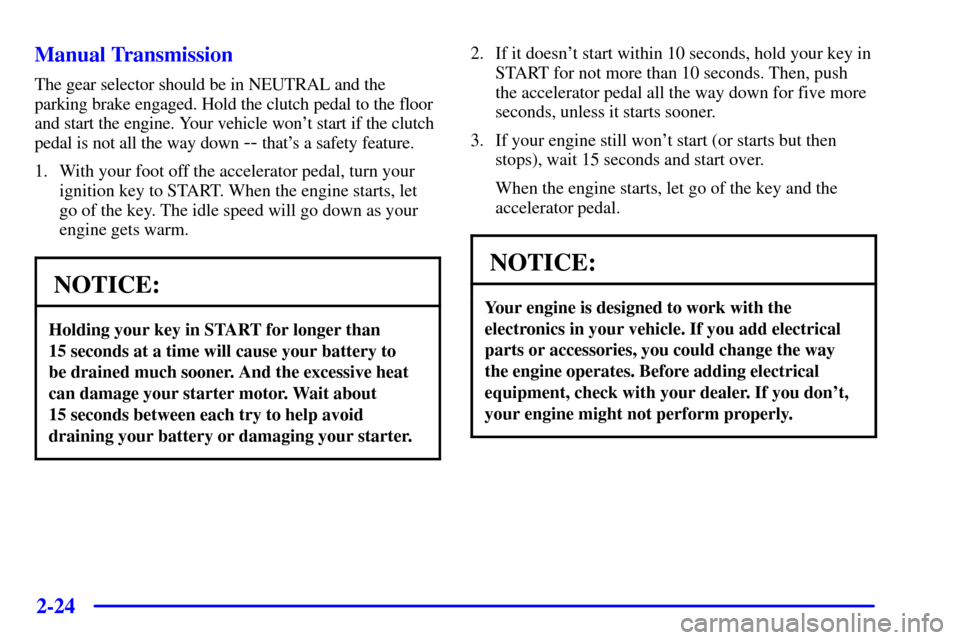

Manual Transmission
The gear selector should be in NEUTRAL and the
parking brake engaged. Hold the clutch pedal to the floor
and start the engine. Your vehicle won't start if the clutch
pedal is not all the way down
-- that's a safety feature.
1. With your foot off the accelerator pedal, turn your
ignition key to START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to
be drained much sooner. And the excessive heat
can damage your starter motor. Wait about
15 seconds between each try to help avoid
draining your battery or damaging your starter.
2. If it doesn't start within 10 seconds, hold your key in
START for not more than 10 seconds. Then, push
the accelerator pedal all the way down for five more
seconds, unless it starts sooner.
3. If your engine still won't start (or starts but then
stops), wait 15 seconds and start over.
When the engine starts, let go of the key and the
accelerator pedal.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check with your dealer. If you don't,
your engine might not perform properly.

2-26

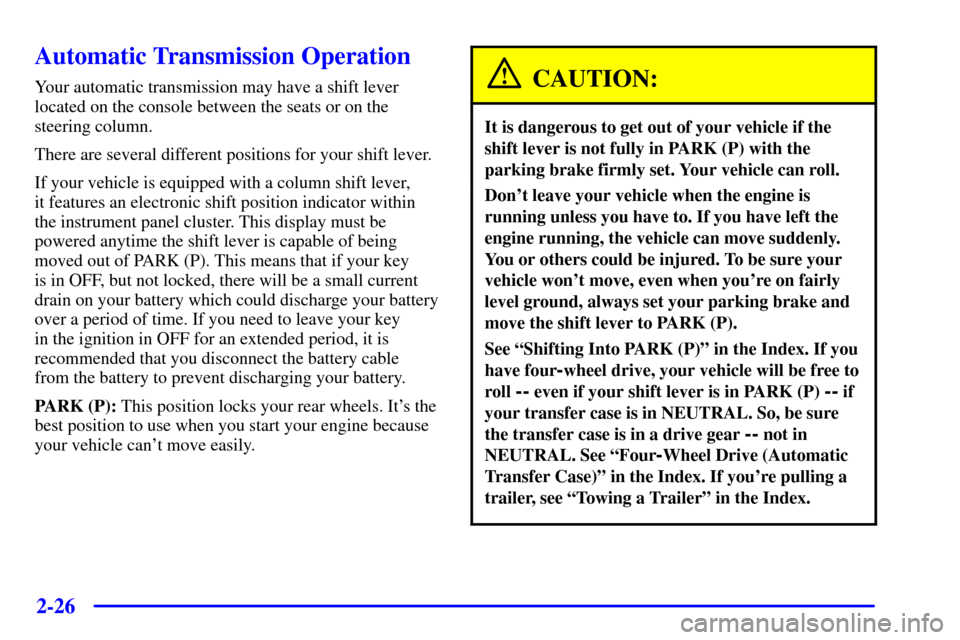

Automatic Transmission Operation
Your automatic transmission may have a shift lever
located on the console between the seats or on the
steering column.
There are several different positions for your shift lever.
If your vehicle is equipped with a column shift lever,
it features an electronic shift position indicator within
the instrument panel cluster. This display must be
powered anytime the shift lever is capable of being
moved out of PARK (P). This means that if your key
is in OFF, but not locked, there will be a small current
drain on your battery which could discharge your battery
over a period of time. If you need to leave your key
in the ignition in OFF for an extended period, it is
recommended that you disconnect the battery cable
from the battery to prevent discharging your battery.
PARK (P): This position locks your rear wheels. It's the
best position to use when you start your engine because
your vehicle can't move easily.CAUTION:
It is dangerous to get out of your vehicle if the
shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake and
move the shift lever to PARK (P).
See ªShifting Into PARK (P)º in the Index. If you
have four
-wheel drive, your vehicle will be free to
roll
-- even if your shift lever is in PARK (P) -- if
your transfer case is in NEUTRAL. So, be sure
the transfer case is in a drive gear
-- not in
NEUTRAL. See ªFour
-Wheel Drive (Automatic
Transfer Case)º in the Index. If you're pulling a
trailer, see ªTowing a Trailerº in the Index.

2-57
Front Map Lamps (If Equipped)
If your vehicle has front map lamps, they are located
on the inside rearview mirror. They will automatically
come on for approximately 40 seconds when the
doors are unlocked with the keyless entry transmitter
(if equipped) or until the ignition key is turned to
RUN or ACCESSORY. The lamps will also stay on
for approximately 40 seconds after you exit the
vehicle unless you lock the doors with the keyless
entry transmitter.
You can also turn the lamps on and off by pressing the
switch near each lamp.
Dome Lamps
The dome lamps will come on when you open a door.
You can also turn the dome lamps on by turning the
thumbwheel, located next to the parking/headlamps
knob, all the way up to the top detent position. In this
position, the dome lamps will remain on until they are
turned off.You can use the DOME OVERRIDE button, located
below the parking/headlamp knob, to set the dome
lamps to come on automatically when a door is opened,
or to remain off. To turn the lamps off, press the button
into the ªinº position. With the button in this position,
the dome lamps will remain off when a door is open.
To return the lamps to automatic operation, press the
button again and return it to the ªoutº position.
With the button in this position, the dome lamps will
come on when you open a door. This will override the
illuminated entry feature, unless you use your keyless
entry transmitter (if equipped) to unlock the vehicle.
Battery Run-Down Protection
This feature shuts off the dome, courtesy, vanity,
reading, glove box and underhood lamps if they are left
on for more than 20 minutes when the ignition is off.
This will keep your battery from running down.
If the battery run
-down protection shuts off the interior
lamps, it may be necessary to do one of the following to
return to normal operation:

Shut off all lamps and close all doors, or

turn the ignition key to RUN.

2-78
The light will be red in the event of an OnStar system
malfunction. If this occurs press the OnStar button to
attempt to contact an advisor. If the connection is made,
the advisor will assist you with steps to take to make
sure that the system is functioning properly. If you
cannot contact the advisor, take your vehicle to your
dealership as soon as possible for assistance.
Safety and Security Services

Automatic Notification of Air Bag
Deployment
-- If an air bag deploys, a priority
emergency signal is automatically sent to the center.
An advisor will locate your vehicle's position, try to
contact you and assist you in the situation. If the
center is unable to contact you, an emergency service
provider will be contacted.

Stolen Vehicle Tracking
-- Call the center at
1
-888-4-ONSTAR (1-888-466-7827) to report your
vehicle stolen. The system can then locate and track
your vehicle and the advisor will be able to notify
the proper authorities.

Roadside Assistance with Location
-- For vehicle
breakdowns, press the OnStar button. An advisor
will contact the appropriate help.
Remote Diagnostics
-- If an instrument panel light
comes on, the center can perform a check of the
engine on
-board computer. An advisor can then
recommend what action needs to be taken.

OnStar MED
-NET -- Med-Net can store your
personal medical history and provide it to emergency
personnel if necessary.

Accident Assist
-- An advisor can provide
step
-by-step guidance following an accident.

Remote Door Unlock
-- To contact the center,
call 1
-888-4-ONSTAR. You will be required to
provide your security information. An advisor will
send a command to your vehicle to unlock itself.
The advisor can delay unlocking your vehicle.
Remote Door Unlock is disabled 48 hours after
the vehicle is parked to maintain the battery charge.

Vehicle Locator Service
-- To contact the center,
call 1
-888-4-ONSTAR. You will be required to
provide your security information. An advisor will
send a command to your vehicle to sound the horn
and/or flash the lamps.
In order to provide you with excellent service, calls with
the OnStar Center may be monitored or recorded.

2-79
Premium Services (Includes Safety and
Security Services)

Route Support -- An advisor can provide directions
or guidance to anywhere you want to go. In addition,
they can help you locate gas stations, rest areas,
ATMs, hospitals, hotels, stores, eateries and more.

Concierge Services
-- The concierge advisor can
obtain tickets, reservations, or help with vacation/trip
planning and other unique items and services.

Ride Assist
-- An advisor can locate transportation
in the event that you are unable to drive.
OnStar System Limitations
Complete limitations can be found on the Subscriber
Services Agreement.
OnStar Service is:

available in the 48 contiguous United States, Alaska,
Hawaii and Canada;

available when the vehicle is within the operating
range of a cellular provider;
subject to limitations caused by atmospheric
conditions, such as severe weather or topographical
conditions, such as mountainous terrain;

subject to cellular carrier equipment limitations.
Global positioning capabilities used to deliver
OnStar Service will not be available if satellite
signals are obstructed.
OnStar will not function if the vehicle's battery is
discharged or disconnected. It may also be inoperative
if the vehicle is in an accident and the OnStar or vehicle
electrical system components are damaged.
Safety and security services are provided by existing
governmental emergency service providers. OnStar
will use reasonable efforts to contact the appropriate
emergency service provider and request assistance but
cannot promise that they will respond to the call in a
timely manner or at all.

2-82
3. Using both hands, press the hand-held transmitter
button and the desired button on the HomeLink
Transmitter. Continue to press both buttons
through Step 4.
4. Hold down both buttons until you see the red
light on the HomeLink Transmitter flash rapidly.
The rapid flashing indicates that the HomeLink
Transmitter has been programmed. Release both
buttons once the light starts to flash rapidly.
If you have trouble programming the HomeLink
Transmitter, make sure that you have followed the
directions exactly as described and that the battery in the
hand
-held transmitter is not dead. If you still cannot
program it, turn the hand
-held transmitter end over end
and try again. The HomeLink Transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards. If you cannot
program the transmitter after repeated attempts, refer to
ªTraining a Garage Door Opener with Rolling Codesº
later in this section or contact the manufacturer of the
unit at 1
-800-355-3515.
Be sure to keep the original hand
-held transmitter
in case you need to erase and reprogram the
HomeLink Transmitter.Canadian Owners: During programming,
the hand
-held transmitter may automatically stop
transmitting after one or two seconds. In this case, you
should press and re
-press the button on the hand-held
transmitter every two seconds without ever releasing the
button on the HomeLink Transmitter. Release both
buttons when the indicator light on the HomeLink
Transmitter begins to flash rapidly.
Operating the Transmitter
Press and hold the appropriate button on the
HomeLink Transmitter. The indicator light comes on
while the signal is being transmitted.
If the hand
-held transmitter appears to program the
HomeLink Transmitter but does not open your garage
door, and if the garage door opener was manufactured
after 1996, the garage door opener may have a ªrolling
codeº system. A rolling code system changes the code
of the garage door opener every time you open or close
the garage door.
To determine if you have this system, press the button on the
HomeLink Transmitter that you have programmed already.
If the indicator light flashes rapidly for one or two seconds,
then turns solid, the garage door opener has a rolling code
system. In a rolling code system, the garage door motor
head unit must be trained to the HomeLink Transmitter.

2-91
Charging System Indicator Light
The charging system light
will come on briefly when
you turn on the ignition,
but the engine is not
running, as a check to
show you it is working.
It should go out once the engine is running. If it stays
on, or comes on while you are driving, you may have a
problem with the charging system. It could indicate
that you have problems with a generator drive belt, or
another electrical problem. Have it checked right away.
Driving while this light is on could drain your battery.
If you must drive a short distance with the light on,
be certain to turn off all your accessories, such as the
radio and air conditioner.
Voltmeter Gage
When your engine is not
running, but the ignition
is on (in RUN), this gage
shows your battery's state
of charge in DC volts.
When the engine is running, the gage shows the
condition of the charging system. Readings between
the low and high warning zones indicate the normal
operating range.
Readings in the low warning zone may occur when a
large number of electrical accessories are operating in
the vehicle and the engine is left at an idle for an
extended period. This condition is normal since the
charging system is not able to provide full power
at engine idle. As engine speeds are increased, this
condition should correct itself as higher engine speeds
allow the charging system to create maximum power.
