2001 CHEVROLET ASTRO Owners Manual

2-10
3. You are now ready to program the automatic door
locks. Select one of the following four programming
options and follow the instructions. You will have
thirty seconds to begin programming. If you exceed the
thirty second limit, the locks will automatically lock
and unlock to indicate that you have left the program
mode. If this occurs, repeat the procedure beginning
with Step 1. You can exit the program mode any
time by turning the ignition to ON (the locks will
automatically lock and unlock to indicate that you are
leaving the program mode). If the lock/unlock switches
are not pressed while in the programming mode, the
auto lock/unlock setting will not be modified.
The following is a list of the available programming options:

All doors lock/Only the driver's door unlocks:
Press the lock side of the power lock switch on the
door panel once and then the unlock side once.

All doors lock/All doors unlock: Press the lock side
of the power lock switch on the door panel once, and
then the unlock side twice.
All doors lock/None of the doors unlock: Press the
lock side of the power lock switch on the door panel
once, and then the unlock side three times.

No doors lock/None of the doors unlock: Press the
lock side of the power lock switch on the door panel
twice. This turns off the automatic lock feature
(this is the factory setting).
For more information, see your dealer.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.

2-11
Keyless Entry System (Option)
If your vehicle has this feature, you can lock and unlock
your doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation of the device.Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
transmitter resynchronization is necessary.
See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-12 Operation
UNLOCK: When you
press UNLOCK, the
driver's door will
unlock automatically,
the parking lamps will
flash and the interior
lights will go on.
If you press UNLOCK again within five seconds, all
doors will unlock, the parking lamps will flash and the
interior lights will go on.
LOCK: Press LOCK to lock all the doors. Press LOCK
again within five seconds and the horn will chirp.REAR 2X: When you press the REAR button twice
within five seconds to unlock the rear hatch or cargo
doors, the parking lamps will flash and the interior lights
will go on. If the engine is running, the automatic
transmission must be in PARK (P) or NEUTRAL (N)
for the REAR 2X button to operate.
Remote Panic Alarm
When the button with the horn symbol on the key
transmitter is pressed, the horn will sound and the
headlamps and taillamps will flash for up to 30 seconds.
This can be turned off by pressing the horn button again,
waiting for 30 seconds, or starting the vehicle.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only two transmitters
matched to it.

2-13 Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
Use one Panasonic
three-volt, type CR2032, or
equivalent battery.To replace the battery, do the following:
1. Insert a thin coin or flat-tip screwdriver to separate
the bottom of the transmitter from the top.
2. Remove the battery and replace it with a new one,
making sure the positive (+) side of the battery is
facing down.
3. Snap the top and bottom together.
4. Test the operation of the transmitter with your
vehicle. If the transmitter does not work, try
resynchronizing the transmitter with the receiver.

2-14
Resynchronization
Resynchronization may be necessary due to the security
method used by this system. The transmitter does not
send the same signal twice to the receiver. The receiver
will not respond to a signal it has been sent previously.
This will prevent anyone from recording and playing
back the signal from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and simultaneously press and hold the LOCK
and UNLOCK buttons on the transmitter for eight
seconds. The door locks should cycle to confirm
synchronization. If the locks do not cycle, see your
dealer for service.Sliding Door
To open the sliding side door, pull the handle toward the
back and slide the door to the rear until it rests in the
open position.
To close the sliding side door, pull the handle toward the
front and slide the door forward.

2-15 Sliding Door Security Lock
Your vehicle's sliding side
door is equipped with a
security door lock located at
the front of the sliding door.
There are two labels on your vehicle to remind you that
you have this feature. One can be seen from the outside
on your sliding door. It is located near the bottom
of the door glass, toward the front of the door. The other
label is at the front of the sliding door, near the security
door lock.This feature prevents passengers from opening the
sliding side door from the inside.
To use this feature, do the following:
1. Move the lever all the way up.
2. Close the door.
To open the sliding side door while the security lock is
engaged, unlock the door and open it from the outside.
If you don't cancel the security lock feature, adults or
older children who ride in the rear won't be able to open
the sliding door from the inside. You should let adults
and older children know how the security door lock
works, and how to cancel the lock.
Canceling the Sliding Door Security Lock
To cancel the security lock, do the following:
1. Unlock the door and open it from the outside.
2. Move the lever all the way down.

2-16

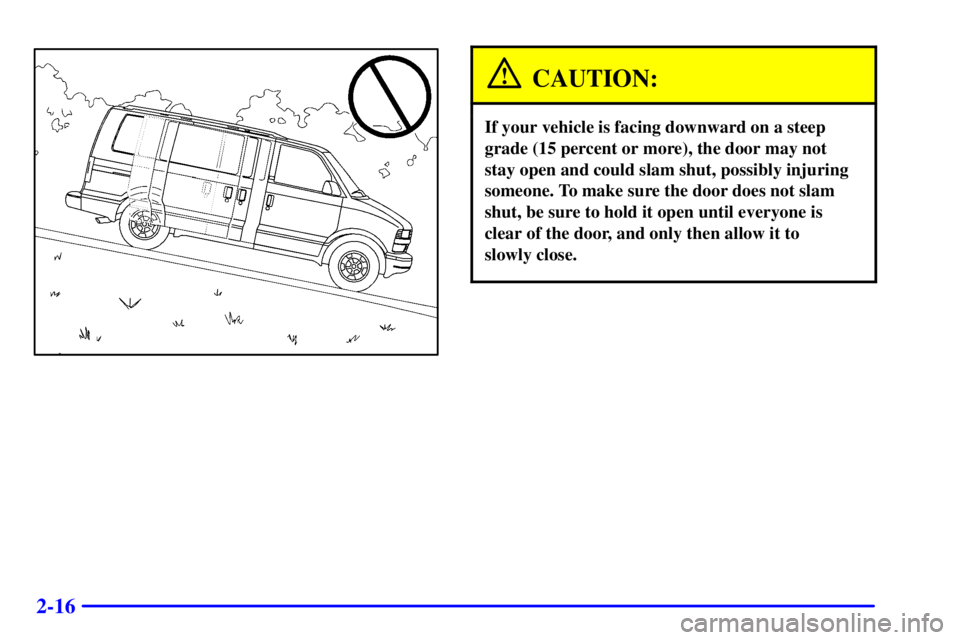

CAUTION:
If your vehicle is facing downward on a steep
grade (15 percent or more), the door may not
stay open and could slam shut, possibly injuring
someone. To make sure the door does not slam
shut, be sure to hold it open until everyone is
clear of the door, and only then allow it to
slowly close.

2-17
Hatch
CAUTION:
It can be dangerous to drive with the rear hatch
or rear doors open because carbon monoxide
(CO) gas can come into your vehicle. You can't
see or smell CO. It can cause unconsciousness
and even death.
If you must drive with the rear hatch or rear
doors open or if electrical wiring or other cable
connections must pass through the seal between
the body and the rear hatch or rear doors:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on anything but MAX A/C. That will
force outside air into your vehicle.
See ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Hatch Release
You can use your key to unlock the hatch and all of the
other doors from the outside. Insert the key into the
hatch release button and turn it counterclockwise.
All of the doors will unlock.
You may also use the keyless entry system
described earlier.
The hatch can be opened or closed without a key if the
door lock system is unlocked.
To open the hatch, unlock it, then press the button and
lift the handle located in the center of the door.
