7000.0 COMPONENT LOCATION CHART











COMP. DESCRIPTION LOCATION7100.0 8500.0
A2w . . . INSTRUMENT CLUSTER . . . . . . . . . . . . . . . LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-2

A12 . . .
SUPPLEMENTAL RESTRAINT SYSTEM
CONTROL MODULE . . . . . . . . . . . . . . . . .
below center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22-2


A18 . . .
HIFI AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . .
in RH side of luggage compartment (ROADSTER) . . . . . . . . . . . . . . . . . . . . . . . . . .
25-1

A18 . . . HIFI AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment (COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-3


A22z . .

ELECTROCHROMIC REAR VIEW
MIRROR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in interior rear view mirror




A35y . . BOARD COMPUTER (BC – LOW) . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-1


A36 . . .

REAR WIPER/WASHER INTERVAL
CONTROL MODULE . . . . . . . . . . . . . . . . .
in lift gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


24-2

A51 . . . WIPER/WASHER MODULE . . . . . . . . . . . . . behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3
A52 . . . SLIP CONTROL MODULE (ABS/ASC) . . . . front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

A65 . . .
DYNAMIC STABILITY CONTROL UNIT
(DSC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11-2


A104 . .
BODY ELECTRONICS CONTROL
MODULE (ZKE IV) . . . . . . . . . . . . . . . . . . .
behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12-3

A113 . . . SEAT OCCUPANCY DETECTOR . . . . . . . . under RH front seat

A194y .

REMOTE CONTROL MODULE . . . . . . . . . .

in interior rear view mirror




A605 . . FUSE HOLDER . . . . . . . . . . . . . . . . . . . . . . . . center console (radio and console removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-1


A837 . .

ELECTRONIC IMMOBILIZER CONTROL
MODULE (EWS III) . . . . . . . . . . . . . . . . . . .
LH side of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


15-1



A3984 .

OIL–/OUTSIDE TEMPERATURE GAUGE
CONTROL MODULE . . . . . . . . . . . . . . . . .
under glove box




A6000 . ENGINE CONTROL MODULE (DME) . . . . . rear RH side of engine compartment in E–Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-1



COMPONENT LOCATION CHART










COMP.8500.0 7100.0LOCATION DESCRIPTION


A7000 .

TRANSMISSION CONTROL MODULE
(EGS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear RH side of engine compartment in E–Box




A9008 . CRUISE CONTROL INTERFACE . . . . . . . . near steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

A19007
THERMAL OIL LEVEL SENSOR (TOENS)
CONTROL MODULE . . . . . . . . . . . . . . . . .
behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12-2

B1 . . . . . RIGHT FRONT SPEED SENSOR – ABS . . on RH front wheel, above brake caliper

B2 . . . . .

LEFT FRONT SPEED SENSOR – ABS . . .

on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

04-2


B3 . . . . . RIGHT REAR SPEED SENSOR – ABS . . . on RH rear wheel, above brake caliper
B4 . . . . . LEFT REAR SPEED SENSOR – ABS . . . . on LH rear wheel, above brake caliper
B6y . . . . FUEL SENSOR . . . . . . . . . . . . . . . . . . . . . . . . in fuel tank

B8y . . . .
PRESSURE SWITCH . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment



B9 . . . . . INTERMEDIATE PRESSURE SWITCH . . . front RH side of engine compartment
B10 . . . VEHICLE SPEED SENSOR . . . . . . . . . . . . . on differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08-1
B14 . . . EVAPORATOR TEMPERATURE SENSOR RH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-2
B16 . . . LEFT FRONT BRAKE PAD SENSOR . . . . . on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04-2

B17 . . .

RIGHT REAR BRAKE PAD SENSOR . . . . .

behind RH rear wheel




B18 . . . BRAKE FLUID LEVEL SWITCH . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09-1


B21 . . .

ON–BOARD COMPUTER TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
in RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


04-1

B21z . . TEMPERATURE SENSOR . . . . . . . . . . . . . . on front LH wheel well . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-1
B28 . . . PITCH SENSOR (DWA) . . . . . . . . . . . . . . . . . in LH side of luggage compartment behind trim panel . . . . . . . . . . . . . . . . . . . . . . . 32-2
B59 . . . OIL TEMPERATURE GAUGE . . . . . . . . . . . center console

B74 . . .

TRANSVERSE ACCELERATION SENSOR

under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-2



COMPONENT LOCATION CHART










COMP.8500.0 7100.0LOCATION DESCRIPTION
B75 . . . RPM RATE SENSOR . . . . . . . . . . . . . . . . . . . under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-2

B76 . . .
PRESSURE SENSOR . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-3

B78 . . . DRIVER’S SIDE IMPACT SENSOR . . . . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07-3
B79 . . . PASSENGER’S SIDE IMPACT SENSOR . . under RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07-1
B921 . . OUTSIDE TEMPERATURE GAUGE . . . . . . center console
B5351 . EXHAUST TEMPERATURE SENSOR . . . . RH side of engine compartment

B6203 .
CRANKSHAFT POSITION/RPM SENSOR
rear LH side of engine compartment





B6204 .

CAMSHAFT POSITION SENSOR
(CYLINDER IDENTIFICATION) . . . . . . . .
front of engine



B6205 . INTAKE AIR TEMPERATURE SENSOR . . top center of engine
B6207 . HOT FILM AIR MASS METER . . . . . . . . . . . LH side of engine compartment


B6214 .

CAMSHAFT POSITION SENSOR 1
(INLET) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine






B6224 .

CAMSHAFT POSITION SENSOR 2
(OUTLET) . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine




B6231 . OIL PRESSURE SWITCH . . . . . . . . . . . . . . . LH side of engine compartment

B6232 .
ENGINE COOLANT TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine





B6236 .
ENGINE COOLANT TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine




B6238 . OIL TEMPERATURE SENSOR . . . . . . . . . . RH side of oil filter

B6241 .
CYL. 1–2 KNOCK SENSOR . . . . . . . . . . . . .
top LH side of engine



B6242 . CYL. 3–4 KNOCK SENSOR . . . . . . . . . . . . . top LH side of engine
B6243 . CYL. 5–6 KNOCK SENSOR . . . . . . . . . . . . . top LH side of engine



COMPONENT LOCATION CHART










COMP.8500.0 7100.0LOCATION DESCRIPTION
B6254 THERMAL OIL LEVEL SWITCH . . . . . . . . . lower LH side of engine compartment

B6279
THERMOSTAT, CHARACTERISTIC MAP
COOLING . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine





B9508 .
PRESSURE SWITCH . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30-2

B62101

OXYGEN SENSOR I (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . . . . .

on catalytic converter





B62102

OXYGEN SENSOR I (BEHIND CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . .

on catalytic converter





B62201

OXYGEN SENSOR II (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . . . . .

on catalytic converter





B62202
OXYGEN SENSOR II (BEHIND
CATALYTIC CONVERTER) . . . . . . . . . . . .
on catalytic converter





B62400
DOUBLE KNOCK SENSOR . . . . . . . . . . . . .
LH side of engine



C100 . . CONTACT RING . . . . . . . . . . . . . . . . . . . . . . . top of steering column
C101 . . CONTACT RING . . . . . . . . . . . . . . . . . . . . . . . top of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-3
C6000 . SUPPRESSION CAPACITOR . . . . . . . . . . . . top center of engine
D100 . . DATA LINK CONNECTOR . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

D110 . .

OBD II CONNECTOR . . . . . . . . . . . . . . . . . . .

center console right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

03-3


E7 . . . . . LEFT HEADLIGHT . . . . . . . . . . . . . . . . . . . . . front LH side of engine compartment
E8 . . . . . RIGHT HEADLIGHT . . . . . . . . . . . . . . . . . . . . front RH side of engine compartment
E9 . . . . . REAR DEFOGGER I . . . . . . . . . . . . . . . . . . . hard top

E11 . . . .
LEFT HIGH BEAM LIGHT . . . . . . . . . . . . . . .
near front LH headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29-1

E12 . . . RIGHT HIGH BEAM LIGHT . . . . . . . . . . . . . near front RH headlight
E13 . . . LEFT LOW BEAM LIGHT . . . . . . . . . . . . . . . near front LH headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-1



COMPONENT LOCATION CHART










COMP.8500.0 7100.0LOCATION DESCRIPTION

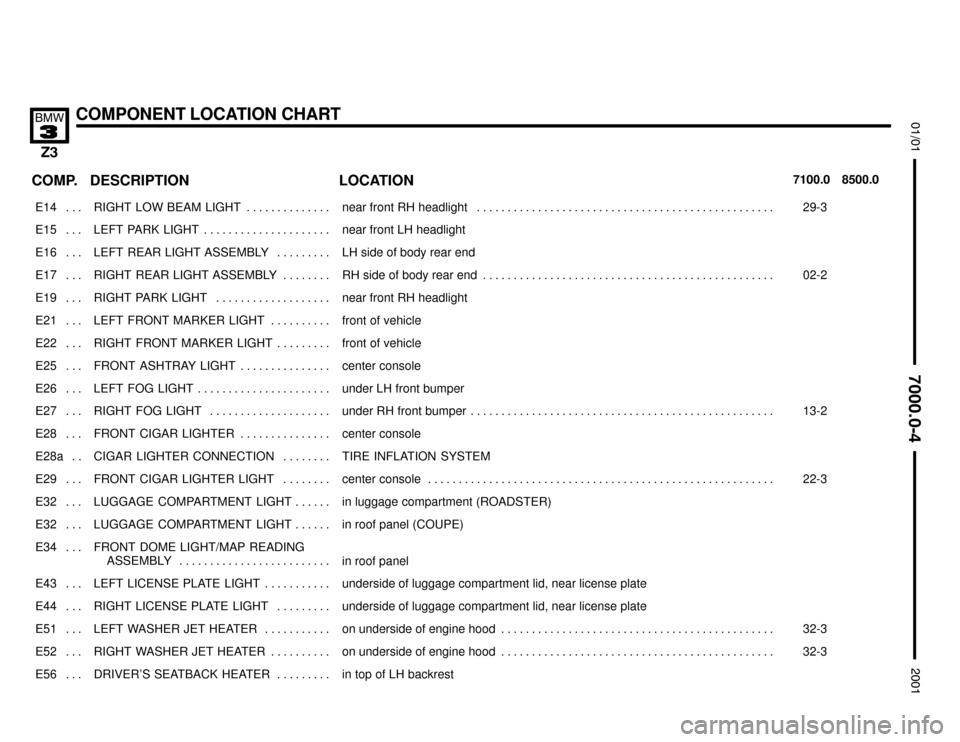

E14 . . . RIGHT LOW BEAM LIGHT . . . . . . . . . . . . . . near front RH headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-3

E15 . . .
LEFT PARK LIGHT . . . . . . . . . . . . . . . . . . . . .
near front LH headlight



E16 . . . LEFT REAR LIGHT ASSEMBLY . . . . . . . . . LH side of body rear end
E17 . . . RIGHT REAR LIGHT ASSEMBLY . . . . . . . . RH side of body rear end . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-2
E19 . . . RIGHT PARK LIGHT . . . . . . . . . . . . . . . . . . . near front RH headlight
E21 . . . LEFT FRONT MARKER LIGHT . . . . . . . . . . front of vehicle

E22 . . .
RIGHT FRONT MARKER LIGHT . . . . . . . . .
front of vehicle



E25 . . . FRONT ASHTRAY LIGHT . . . . . . . . . . . . . . . center console
E26 . . . LEFT FOG LIGHT . . . . . . . . . . . . . . . . . . . . . . under LH front bumper
E27 . . . RIGHT FOG LIGHT . . . . . . . . . . . . . . . . . . . . under RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2
E28 . . . FRONT CIGAR LIGHTER . . . . . . . . . . . . . . . center console

E28a . .

CIGAR LIGHTER CONNECTION . . . . . . . .

TIRE INFLATION SYSTEM




E29 . . . FRONT CIGAR LIGHTER LIGHT . . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-3
E32 . . . LUGGAGE COMPARTMENT LIGHT . . . . . . in luggage compartment (ROADSTER)
E32 . . . LUGGAGE COMPARTMENT LIGHT . . . . . . in roof panel (COUPE)

E34 . . .
FRONT DOME LIGHT/MAP READING
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . .
in roof panel





E43 . . .
LEFT LICENSE PLATE LIGHT . . . . . . . . . . .
underside of luggage compartment lid, near license plate



E44 . . . RIGHT LICENSE PLATE LIGHT . . . . . . . . . underside of luggage compartment lid, near license plate
E51 . . . LEFT WASHER JET HEATER . . . . . . . . . . . on underside of engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-3
E52 . . . RIGHT WASHER JET HEATER . . . . . . . . . . on underside of engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-3
E56 . . . DRIVER’S SEATBACK HEATER . . . . . . . . . in top of LH backrest



COMPONENT LOCATION CHART










COMP.8500.0 7100.0LOCATION DESCRIPTION
E57 . . . DRIVER’S SEAT HEATER . . . . . . . . . . . . . . . under LH front seat

E58 . . .
PASSENGER’S SEAT HEATER . . . . . . . . . .
underside of RH front seat



E59 . . . PASSENGER’S SEATBACK HEATER . . . . in top of RH backrest


E82 . . .

TRANSMISSION POSITION INDICATOR
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console




E96 . . . GEAR SHIFT LEVER INDICATOR . . . . . . . center console
E99 . . . HARD TOP CONNECTOR 1 . . . . . . . . . . . . . near LH rear wheel well

E105 . .
HEAT/A/C CONTROL PANEL
ILLUMINATION . . . . . . . . . . . . . . . . . . . . . .
center of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21-3


E106 . .
HEAT/A/C CONTROL PANEL
ILLUMINATION . . . . . . . . . . . . . . . . . . . . . .
center of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21-3

E800 . . FRONT LEFT INTERIOR LIGHT . . . . . . . . . near interior rear view mirror

G1 . . . .
BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
02-2

G5 . . . . DRIVER’S AIR BAG GAS GENERATOR . . behind steering wheel


G6 . . . .

PASSENGER’S AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . . . .
behind glove box above






G12 . . .

DRIVER’S SIDE PYROTECHNICAL BELT
TENSIONER . . . . . . . . . . . . . . . . . . . . . . . .
in LH front seat belt buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


27-2



G13 . . .

PASSENGER’S SIDE PYROTECHNICAL
BELT TENSIONER . . . . . . . . . . . . . . . . . . .
in RH front seat belt buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


27-2

G14 . . . LEFT SIDE AIR BAG GAS GENERATOR . LH front door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-2
G15 . . . RIGHT SIDE AIR BAG GAS GENERATOR RH front door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07-2
G19 . . . BATTERY SAFETY TERMINAL . . . . . . . . . . RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-1

G6400 .
B+ JUNCTION POINT E–BOX . . . . . . . . . . .
rear RH side of engine compartment in E–Box



COMPONENT LOCATION CHART











COMP.8500.0 7100.0LOCATION DESCRIPTION
M30 . . . BLOWER MOTOR . . . . . . . . . . . . . . . . . . . . . rear of engine compartment

M37a . .
AUXILIARY WATER PUMP . . . . . . . . . . . . . .
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31-3

M51 . . . DRIVER’S SEAT MOVEMENT MOTOR . . . under LH front seat
M52 . . . DRIVER’S SEAT HEIGHT MOTOR . . . . . . . under LH front seat
M59 . . . PASSENGER’S SEAT HEIGHT MOTOR . . under RH front seat

M60 . . .
PASSENGER’S SEAT MOVEMENT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
under RH front seat




M101 . . CONVERTIBLE TOP MOTOR . . . . . . . . . . . in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08-3

M111 . .
FRESH AIR RECIRCULATION MOTOR . . .
RH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21-2

M118 . . PRECHARGE PUMP . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
M119 . . LEAKAGE DIAGNOSIS PUMP . . . . . . . . . . . rear LH side of engine compartment
M805 . . ELECTRIC COMPRESSOR . . . . . . . . . . . . . TIRE INFLATION SYSTEM
M6506 . E–BOX FAN . . . . . . . . . . . . . . . . . . . . . . . . . . . in E–Box

M6510 .

STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

01-1


N5 . . . . ANALOG CLOCK . . . . . . . . . . . . . . . . . . . . . . center console
N8 . . . . ANTENNA AMPLIFIER AM/FM . . . . . . . . . . in LH side of luggage compartment behind trim panel (ROADSTER)
N8 . . . . ANTENNA AMPLIFIER AM/FM . . . . . . . . . . in roof panel (COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-3

N9 . . . .
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console





N12w . .

ANTI–THEFT CONTROL MODULE
(ALPINE) . . . . . . . . . . . . . . . . . . . . . . . . . . .
behind glove box



N17 . . .

CRASH CONTROL MODULE . . . . . . . . . . . .

footwell, driver’s side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

00-3


N22 . . . CD CHANGER . . . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment



COMPONENT LOCATION CHART










COMP.8500.0 7100.0LOCATION DESCRIPTION
N44 . . . SUBWOOFER AMPLIFIER MODULE . . . . . in LH forward side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

P90 . . .
FRONT POWER DISTRIBUTION BOX . . .
rear LH side of engine compartment



P97 . . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-3
P98 . . . FUSE HOLDER IN E–BOX . . . . . . . . . . . . . . rear RH side of engine compartment in E–Box
P99 . . . FUSE HOLDER . . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-1
P900 . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

R10 . . .
PEDAL POSITION SENSOR . . . . . . . . . . . .
behind gas pedal



R11 . . . . BLOWER RESISTORS . . . . . . . . . . . . . . . . . rear of engine compartment behind firewall
R33 . . . STEERING ANGLE SENSOR . . . . . . . . . . . on steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-3
R6252 . THROTTLE POSITION SENSOR . . . . . . . . LH side of engine compartment
R8554 . RESISTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . on cylinder head

S2 . . . . .

IGNITION SWITCH . . . . . . . . . . . . . . . . . . . . .

LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27-3


S4 . . . . . HORN SWITCH . . . . . . . . . . . . . . . . . . . . . . . . on steering wheel
S5 . . . . . WIPER/WASHER SWITCH . . . . . . . . . . . . . . LH side of dash RH side of steering column above
S6 . . . . . ASC SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . center console

S6y . . . .
DSC SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console



S7 . . . . . COMBINATION SWITCH . . . . . . . . . . . . . . . . LH side of dash LH side of steering column above
S8 . . . . . LIGHT SWITCH . . . . . . . . . . . . . . . . . . . . . . . . LH side of dash
S10 . . . FOG LIGHT SWITCH . . . . . . . . . . . . . . . . . . . LH side of dash
S13 . . . PASSENGER’S DOOR JAMB SWITCH . . . RH B–pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-1

S14 . . .

DRIVER’S DOOR JAMB SWITCH . . . . . . . .

LH B–pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-1


S17 . . . MIRROR CONTROL SWITCH . . . . . . . . . . . in upper LH front door
