Climate Control System

The main air flow is divided
between the floor vents and de-
froster vents at the base of the wind-
shield.
The main air flow comes
from the floor vents. The main air flow is divided
between the dashboard vents and the floor vents. The main air flow comes
from the dashboard vents.
CONTINUED
Comfort and Convenience Features

Climate Control System

The button directs the main
air flow to the windshield for faster
defrosting. It also overrides any
MODE selection you may have made. When you select the A/C
turns on automatically and thesystem selects Fresh Air mode. For
faster defrosting, manually set the
fan speed to high. You can also
increase air flow to the windshield by
closing the side vents in the
dashboard.
When you turn off by
pressing the button again, thesystem returns to its former settings.
Comfort and Convenience Features

Climate Control System

Recirculation Button

This button controls the source of the air going into the system. When
the indicator above this button is lit,air from the car's interior is sent
through the system again (Recircula-
tion mode). When the indicator is off, air is brought in from outside the car (Fresh Air mode).
You can, for example, manually put the system in recirculation mode
when driving through an area of smoke or fumes.

Fan Control Dial

You can manually select the fan speed by turning the fan control dial.
When you turn the dial clockwise, the fan is taken out of automatic
mode and starts to run at its lowestspeed. Turning the dial fully
clockwise increases the fan's speed,
which increases air flow.
FAN CONTROL DIAL

MODE BUTTON

RECIRCULATION BUTTON

Mode Button

Use the MODE button to select the
vents the air flows from. Some air will flow from the side vents and the dashboard corner vents in all modes.
Each time you press the MODE
button, the display shows the mode selected. Press the button four times
to see all the modes. CONTINUED

Comfort and Convenience Features

Climate Control System
The main air flow is divided
between the floor vents and de-
froster vents at the base of the wind-
shield.

The main air flow comes
from the floor vents.
The main air flow is divided
between the dashboard vents and the floor vents.
The main air flow comes
from the dashboard vents.
Comfort and Convenience Features

Climate Control System

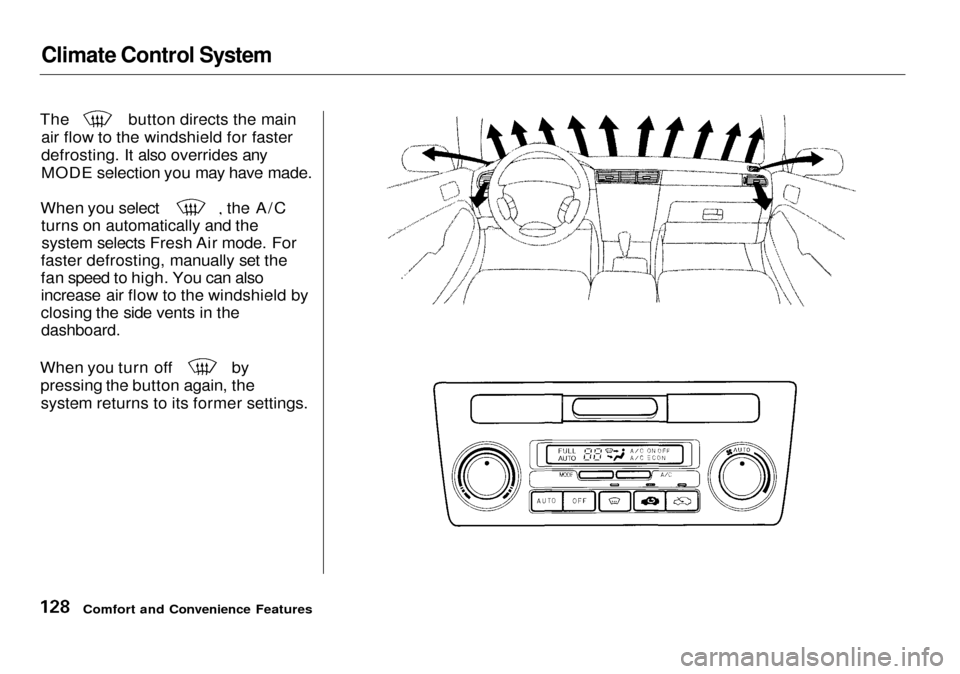

The button directs the main
air flow to the windshield for fasterdefrosting. It also overrides any
MODE selection you may have made. When you select the A/C
turns on automatically and thesystem selects Fresh Air mode. For
faster defrosting, manually set the
fan speed to high. You can also increase air flow to the windshield by
closing the side vents in the
dashboard. When you turn off by
pressing the button again, thesystem returns to its former settings.
Rear Window Defogger Button
This button turns the rear window defogger on and off (see page 71).
REAR WINDOW DEFOGGER BUTTONComfort and Convenience Features

Climate Control System

Sunlight Sensor/Temperature

Sensor
SUNLIGHT SENSOR
The climate control system has two sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the steering column. Do not cover the
sensors or spill any liquid on them. TEMPERATURE SENSOR
Comfort and Convenience Features

Security System

The security system helps to protect your car and valuables from theft.
The horn sounds and a combination of headlights, parking lights, side
marker lights and taillights flashes if someone attempts to break into your
car or remove the radio. This alarm
continues for two minutes, then the system resets. To reset an alarming
system before the two minutes have
elapsed, unlock either front door
with the key or the remote
transmitter.
The security system sets auto- matically fifteen seconds after you
lock the doors, hood, and trunk. For
the system to activate, you must lock
the doors from the outside with the
key, lock tab, door lock switch, or
remote transmitter. The security system light next to the driver's door
lock starts blinking immediately to show you the system is setting itself. Once the security system is set,
opening any door (without using the
key or the remote transmitter), or
the hood, will cause it to alarm. It also alarms if the radio is removed
from the dashboard or the wiring is

cut.
With the system set, you can still
open the trunk with the master key
or the remote transmitter without
triggering the alarm. The alarm will sound if the trunk lock is forced, or
the trunk is opened with the trunk
release button on the driver's door.
The security system will not set if the hood, trunk, or any door is not
fully closed. If the system will not set,check the Door and Brake Lamp
Monitor on the instrument panel (see page 57), to see if the doors
and trunk are fully closed. Since it is not part of the monitor display,
manually check the hood.
Do not attempt to alter this system
or add other devices to it.

Comfort and Convenience Features

SECURITY SYSTEM LIGHT

Service Station Procedures

5. Screw the fuel fill cap back on,
tighten it until it clicks several
times. If you do not properly tighten the cap, the MalfunctionIndicator Lamp may come on (see
page 287).

6. Push the fuel fill door closed until

it latches.

Opening the Hood
1. Shift to Park or Neutral and set

the parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.

2. Standing in front of the car, reach

in between the hood and the front
bumper with your finger. Slide the
latch handle.

Before Driving
HOOD RELEASE HANDLE

LATCH HANDLE
