DASHBOARD*23I-11
1Left hand air vent & Side glass demister vent.
2 Controls for: ¥ Lighting ¥ Direction indicators ¥ Horn ¥ Foglamp
3 Instrument panel.
4 Controls for: ¥ Windscreen wash ¥ Windscreen wiper
5 Centre air vents. 6
Radio housing or oddments pocket.
7 Right hand air vent & Side glassdemister vent.
8 Glovebox.
9 Heating/ventilation controls.
10 Ashtray & Cigar lighter.
11 Gear lever. 12
Controls for: ¥ Hazard warning lamps.
¥ Heated glass of hinged rear
doors.
¥ Air conditioning
¥ Demisting and defrosting of the rear view mirrors.
13 Steering lock and ignition switch.
14 Fuse box access.
15 Adjusting the headlamps.
16 Cruise control lever.
17 Bonnet release lever.
18 Cruise control switch.
* According to model or country

INSTRUMENT PANEL*33I-12
1Left hand air vent
2 Left hand loudspeaker (Tweeter)
3 Cruise control switch
4 Controls for: ¥ Horn¥ Lighting¥ Direction indicators¥ Front foglamps¥ Fog lamps
5 Instrument panel
6 Radio control on steering wheel
7 Controls for:¥ Windscreen wiper¥ Windscreen wash¥ Rear screen wiper
8 Centre air vents
9 Radio housing or oddments pocket
10 Electronic key indicator lamp 11
Passenger Airbag*
12 Right hand loudspeaker
(Tweeter)
13 Right hand air vent
14 Glovebox
15 Controls for:
¥ Air conditioning or heating/
air distribution
16 Front ashtray with cigar lighter
17 Gear lever
18 Controls for:
¥ Air conditioning¥ Hazard warning lamps¥ Rear screen demister
19 Steering lock and ignition switch
20 Fuse box access
21 Driver's airbag 22
Steering column adjustment lever
23 Cruise control lever
24 Controls for:
¥ Adjusting the headlamps¥ Dashboard lighting rheostat
25 Oddments pocket
26 Bonnet release lever
* According to model or country

SIGNALLING*41I-14
Horn Press the end of the stalk. Headlamp flash Pull the stalk towards you to flash headlamps.
The headlamp flash operates even with the ignition off. Direction indicators Left: move the stalk downwards.Right: move the stalk upwards.
Movement of the steering wheel returns the stalk to the off position automati-
cally. Hazard warning lamps
Operates the direction indicators simultaneously.
Use only in case of danger, emergency stop or in hazardous conditions.
Also operates with the ignition off.The direction indicators will not work when the hazard warning lamps are in use.
* According to model or country
Protection fuses under the dashboardF7 - F26 - F30Protection fuses under the dashboardF4 - F9 - F18 - F19
(under the bonnet)
F3 - F4 - F7 - F8 (with ABS)
F2 - F3 - F12 - F13 (without ABS)

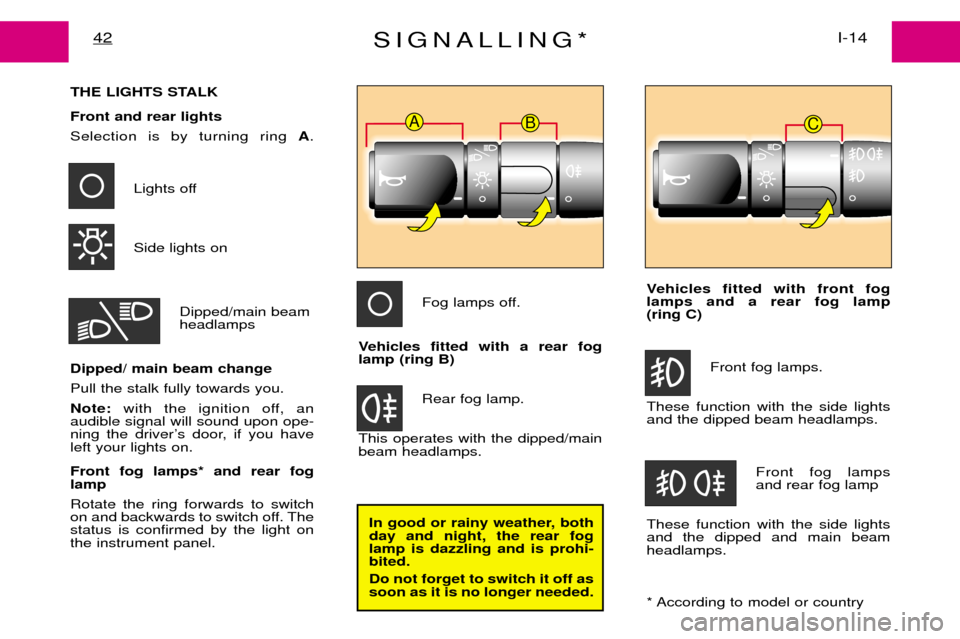

Vehicles fitted with front fog lamps and a rear fog lamp (ring C)Front fog lamps.
These function with the side lightsand the dipped beam headlamps.
Front fog lampsand rear fog lamp
These function with the side lightsand the dipped and main beamheadlamps.
Fog lamps off.
Vehicles fitted with a rear foglamp (ring B) Rear fog lamp.
This operates with the dipped/mainbeam headlamps.
THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights on
Dipped/main beam headlamps
Dipped/ main beam change Pull the stalk fully towards you. Note: with the ignition off, an
audible signal will sound upon ope-
ning the driverÕs door, if you haveleft your lights on. Front fog lamps* and rear fog lamp Rotate the ring forwards to switch
on and backwards to switch off. Thestatus is confirmed by the light onthe instrument panel.
SIGNALLING*I-14
42
BA
In good or rainy weather, both day and night, the rear foglamp is dazzling and is prohi-bited. Do not forget to switch it off as soon as it is no longer needed.
C
* According to model or country

SIGNALLING*43I-14
Adjusting the headlamps
You are advised to adjust the beam of the headlamps in accor- dance with vehicle load. Electrically operated adjustments* In the dashboard on the right hand side of the steering column.0 Empty
1 Lightly laden
2 Half laden
3 Fully laden
Manual adjustments*Using the controls located in the engine compartment behind eachheadlamp.
* According to model or country
Protection fuses under the dashboardF4

VISIBILITYI-15
44

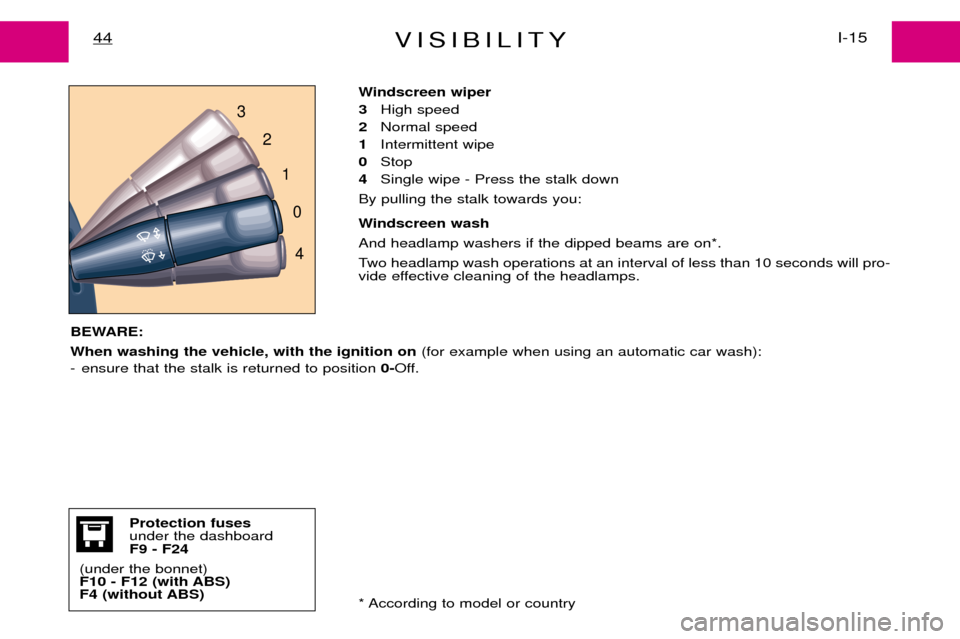

Windscreen wiper
3 High speed
2 Normal speed
1 Intermittent wipe
0 Stop
4 Single wipe - Press the stalk down
By pulling the stalk towards you:
Windscreen wash And headlamp washers if the dipped beams are on*.
Two headlamp wash operations at an interval of less than 10 seconds will pro-
vide effective cleaning of the headlamps.
BEWARE: When washing the vehicle, with the ignition on (for example when using an automatic car wash):
- ensure that the stalk is returned to position 0-Off.
* According to model or country
Protection fuses under the dashboardF9 - F24
(under the bonnet)
F10 - F12 (with ABS)
F4 (without ABS)
1
2
3
4
0

CHECKS*
Beware:When working under the bonnet, the cooling fan could operate if
the engine is hot (even when switched off). The engine oil level should be checked frequently between services (as recommended by the manufacturer), as well as before long journeys.
Air filter Follow the recommenda- tions in the maintenanceguide. Coolant The level should be bet- ween the maximum andminimum marks on the
reservoir. If the engine is hot, wait 15 minutes.Oil quality: see Ç Lubricants and
fluids È. Never work on the cooling sys- tem if the engine is hot. (see
Ç Levels È).
Windscreen, rear screenand headlamp washerfluid It is recommended to use
manufacturer approved products.
12 volt batterySee Ç Emergency starting with a slave battery È. Engine oil Check with the vehicle on level ground, and the
engine off for at least
10 minutes. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Take out the oil dipstick.The level must be bet- ween the MAX and MINmarks on the dipstick.
It must not exceed
the maximum mark. Brake fluid The level should be bet- ween the maximum andminimum marks on the
reservoir. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
If the warning lamp comes on: stop the vehicle
Power steering oilCheck the level with the
engine switched off. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
MaxMin
* According to model or country
75IV-1
B

CHECKS*77IV-2Beware:When working under the bonnet, the cooling fan could operate if
the engine is hot (even when switched off). The engine oil level should be checked frequently between services (as recommended by the manufacturer), as well as before long journeys.
Priming pump Refer to the section Ç Diesel injection equipment È. Coolant The level should be bet- ween the maximum andminimum marks on the
reservoir. If the engine is hot, wait 15 minutes.Oil quality: see Ç Lubricants and
fluids È. Never work on the cooling sys- tem if the engine is hot. (see
Ç Levels È).
Windscreen, rear screenand headlamp washerfluid It is recommended to use
manufacturer approved products.
12 volt batterySee Ç Emergency starting with a slave battery È. Engine oil Check with the vehicle on level ground, and the
engine off for at least
10 minutes. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Take out the oil dipstick.The level must be bet- ween the MAX and MINmarks on the dipstick.
It must not exceed
the maximum mark. Brake fluid The level should be bet- ween the maximum andminimum marks on the
reservoir. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
If the warning lamp comes on: stop the vehicle
Power steering oilCheck the level with the
engine switched off. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Air filterFollow the recommendations in the maintenance guide.
Max Min
* According to model or country
A
B
