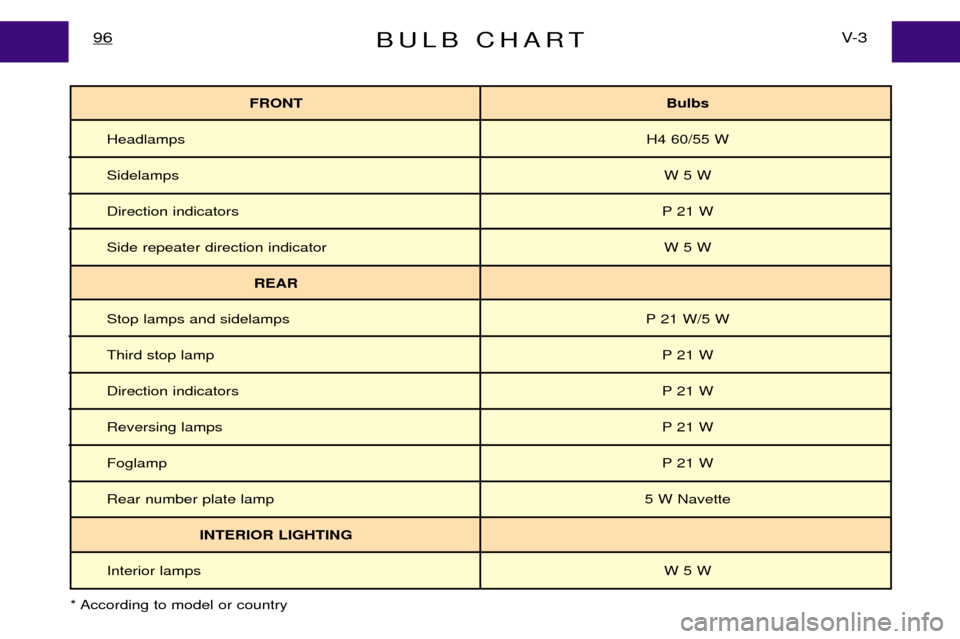

FRONT Bulbs
Headlamps H4 60/55 W
Sidelamps W 5 W
Direction indicators P 21 W
Side repeater direction indicator W 5 W
REAR
Stop lamps and sidelamps P 21 W/5 W
Third stop lamp P 21 W
Direction indicators P 21 W
Reversing lamps P 21 W
Foglamp P 21 W
Rear number plate lamp 5 W Navette
INTERIOR LIGHTING
Interior lamps W 5 W

REPLACING BULBS*97V- 3
Beware
The halogen bulbs should not be changed until they have been off for a few minutes (risk of serious burns). Do not touch the new bulb directly withyour fingers; use a lint-free cloth. After replacing a bulb, check the correct operation of the lighting and signalling.

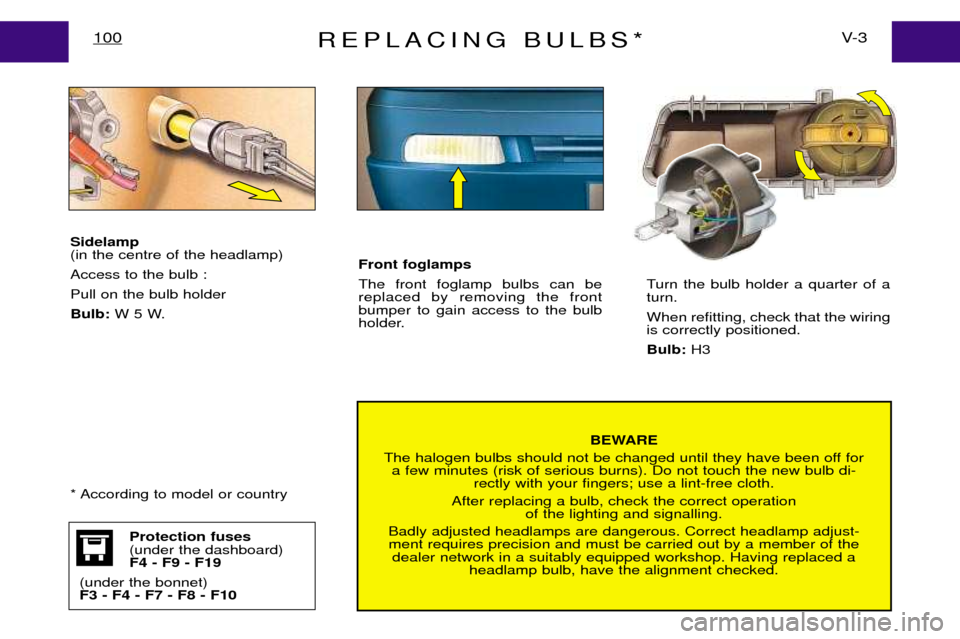

Headlamps Removal:
Remove the rubber cover and dis-connect the wiring connector.Release the spring clips.
Withdraw the bulb from its housing in the reflector. Refitting: Proceed in the reverse order to refit. Sidelamps Disconnect the lamp next to the headlamp.Rotate by a quarter of a turn.Remove the bulb.Protection fuses (under the dashboard)F4 - F9 - F19
(under the bonnet)
F3 - F4 - F7 - F8 (with ABS)
F2 - F3 - F12 - F13 (without ABS)
* According to specification

REPLACING BULBS*V- 3
98

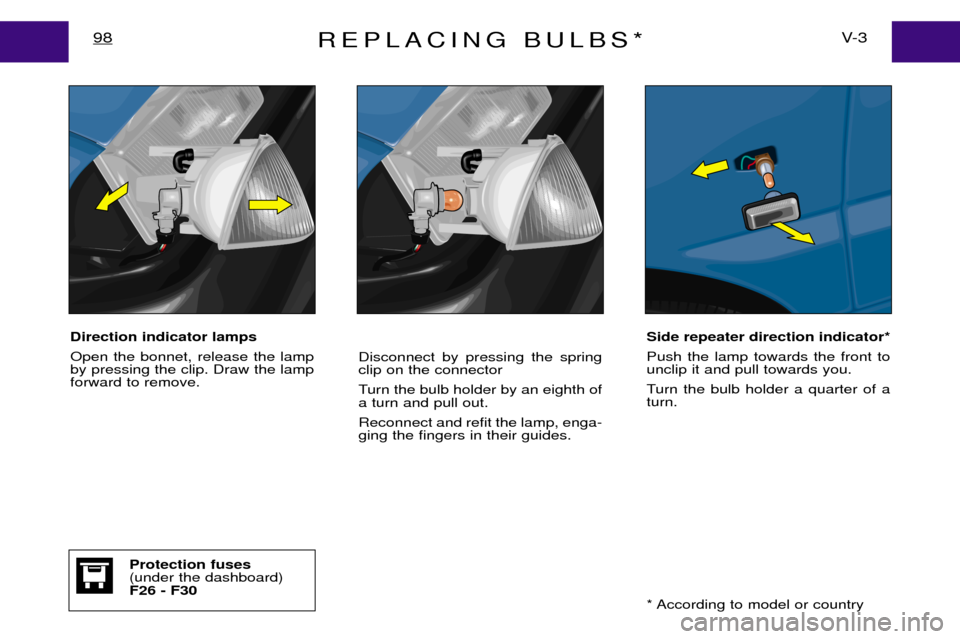

Direction indicator lamps Open the bonnet, release the lamp by pressing the clip. Draw the lampforward to remove. Disconnect by pressing the springclip on the connector
Turn the bulb holder by an eighth of a turn and pull out. Reconnect and refit the lamp, enga- ging the fingers in their guides.Side repeater direction indicator* Push the lamp towards the front to unclip it and pull towards you.
Turn the bulb holder a quarter of a turn.
* According to model or country
Protection fuses (under the dashboard)F26 - F30

REPLACING BULBS*99V- 3

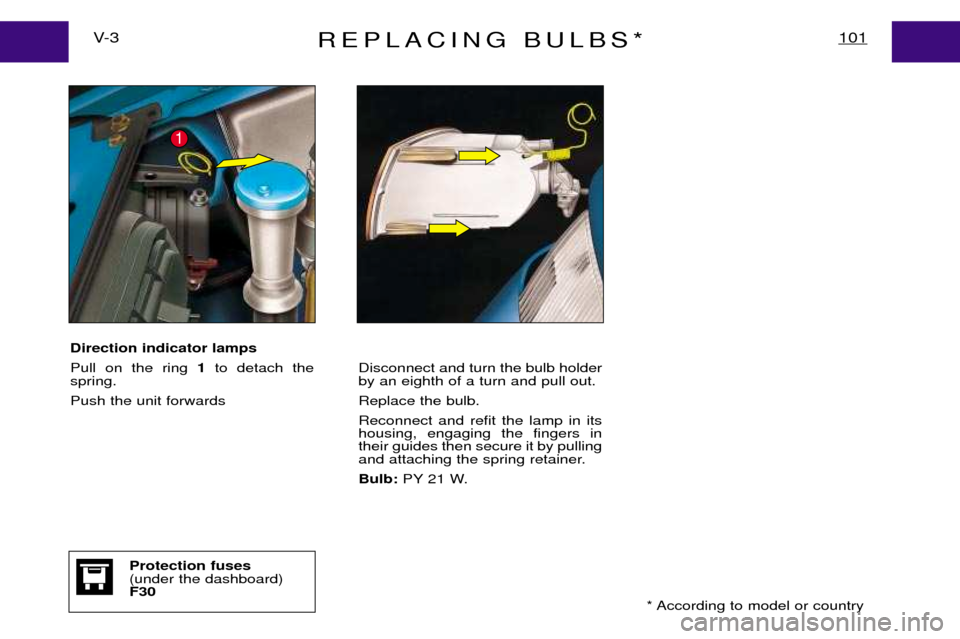

Headlamp Release the headlamp rear cover by pressing the two clips and swiv-
elling the cover.When refitting, ensure that the wiringis returned to its retaining clip.

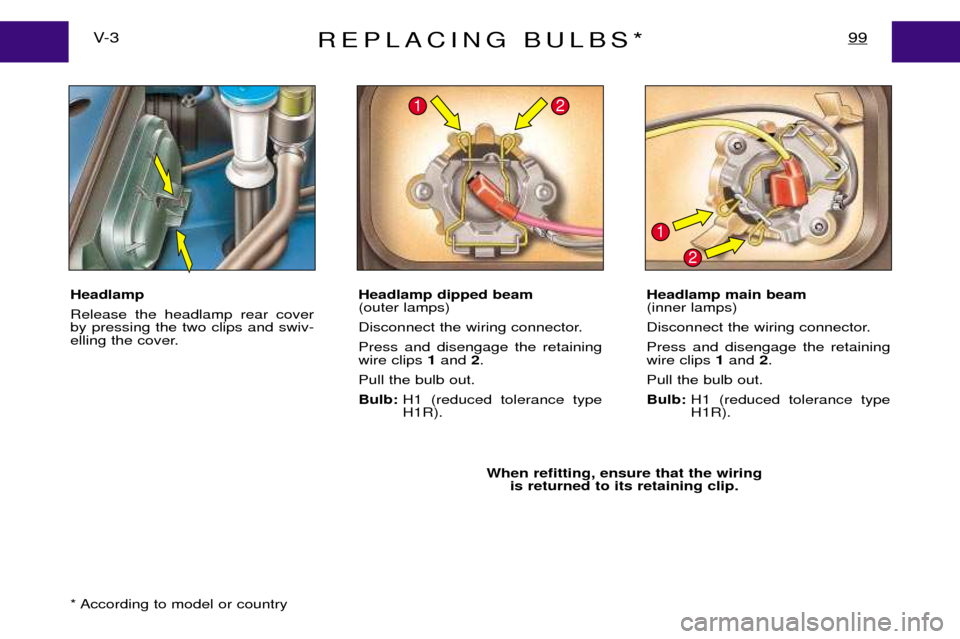

Headlamp dipped beam (outer lamps)
Disconnect the wiring connector.Press and disengage the retaining wire clips
1and 2.
Pull the bulb out. Bulb: H1 (reduced tolerance type H1R). Headlamp main beam(inner lamps)
Disconnect the wiring connector.Press and disengage the retaining wire clips
1and 2.
Pull the bulb out. Bulb: H1 (reduced tolerance type H1R).
21
1
2
* According to model or country

REPLACING BULBS*V- 3
100
BEWARE
The halogen bulbs should not be changed until they have been off for a few minutes (risk of serious burns). Do not touch the new bulb di- rectly with your fingers; use a lint-free cloth.
After replacing a bulb, check the correct operation of the lighting and signalling.
Badly adjusted headlamps are dangerous. Correct headlamp adjust- ment requires precision and must be carried out by a member of the dealer network in a suitably equipped workshop. Having replaced a headlamp bulb, have the alignment checked.
Sidelamp (in the centre of the headlamp) Access to the bulb :Pull on the bulb holderBulb:
W 5 W. Turn the bulb holder a quarter of a turn. When refitting, check that the wiring is correctly positioned. Bulb:
H3
Protection fuses (under the dashboard)F4 - F9 - F19
(under the bonnet)F3 - F4 - F7 - F8 - F10
Front foglamps The front foglamp bulbs can be replaced by removing the frontbumper to gain access to the bulb
holder.
* According to model or country

REPLACING BULBS*101V- 3
Direction indicator lamps Pull on the ring 1to detach the
spring.Push the unit forwards Disconnect and turn the bulb holder by an eighth of a turn and pull out. Replace the bulb.Reconnect and refit the lamp in its housing, engaging the fingers intheir guides then secure it by pulling
and attaching the spring retainer. Bulb:
PY 21 W.
1
* According to model or country
Protection fuses (under the dashboard)F30

REPLACING BULBSV- 3
102

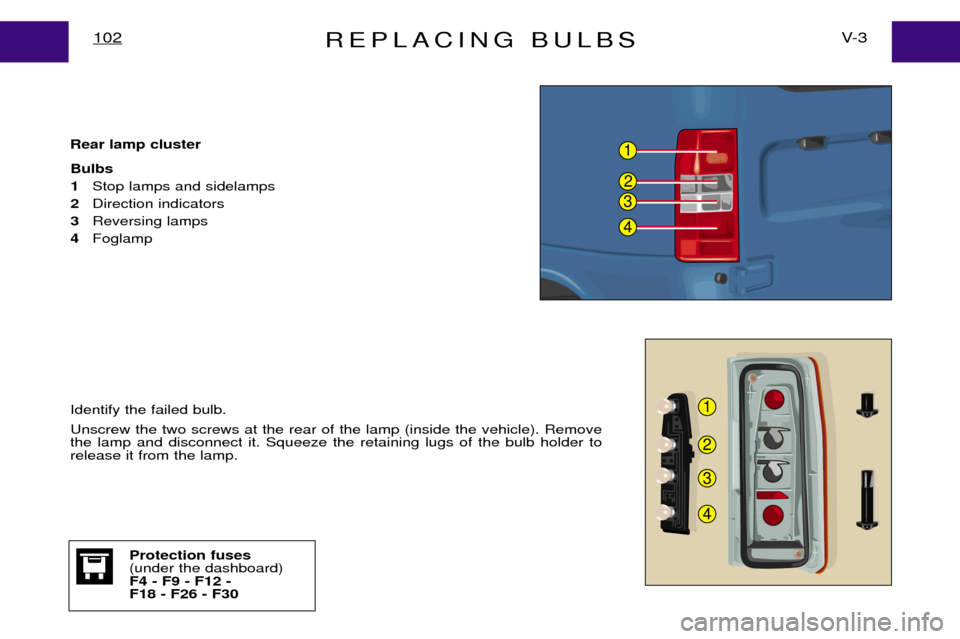

Identify the failed bulb. Unscrew the two screws at the rear of the lamp (inside the vehicle). Remove the lamp and disconnect it. Squeeze the retaining lugs of the bulb holder torelease it from the lamp.
Rear lamp cluster Bulbs
1 Stop lamps and sidelamps
2 Direction indicators
3 Reversing lamps
4 Foglamp
Protection fuses (under the dashboard)F4 - F9 - F12 -F18 - F26 - F30
1
2
3
4
1
2
3
4

REPLACING BULBS103V- 3

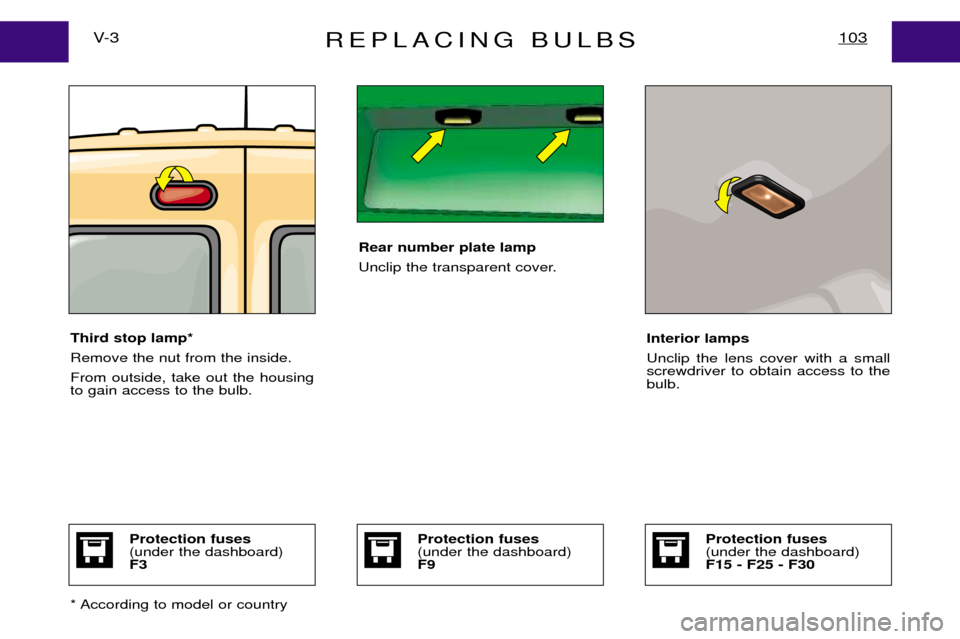

Third stop lamp* Remove the nut from the inside.From outside, take out the housing to gain access to the bulb.Interior lamps Unclip the lens cover with a small screwdriver to obtain access to thebulb.
Rear number plate lamp
Unclip the transparent cover.
* According to model or country
Protection fuses (under the dashboard)F3Protection fuses (under the dashboard)F15 - F25 - F30Protection fuses (under the dashboard)F9
