Page 73 of 123
YOUR 206 CC IN DETAIL73
Closing the roof
With the vehicle stationary and
the handbrake applied, turn the ignition key to position M.
Press switch 3 until you hear a
signal to indicate that the roof ope-ning operation is complete.
When carrying out this operation, thefront windows and then the rear quar-ter panel windows open, the boot lidopens and the detachable parcel shelffolds up, the boot lid opens, the roofsunfolds and positions itself, then theboot lid closes again. Lock the two hooks 2.
Note: The control buttons for the win-
dows become operational again at the end of the roof operation. Operating hitch : If the operation is
interrupted, a continuous audible signal sounds: Release switch 3, then press it
again to finish closing the roof.
If the problem persists, contact a
PEUGEOT dealer to have the systemchecked. When the vehicle is moving, if a conti-nuous audible signal can be heard,this means that the roof or the boot lid,or both, are not locked:
Stop the vehicle and apply the handbrake,
Open the roof and close it again
completely, in accordance with theprocedure.
If the problem persists, contact a
PEUGEOT dealer to have the systemchecked.The roof must not be oper- ated when a loaded lug-gage carrier is fitted to theboot lid.
During roof opening and closingoperations, to avoid any risk of
injury, ensure that there is no-onein the proximity of the movingparts.
In the event of danger, release the control knob, the operation
will stop instantly. Never release button 3 for any length of time, and do not
switch off the ignition when theroof is in an intermediate posi-tion (neither completely open orclosed).
In the case of an electric or hydraulic malfunction of the roof, it is possible
to close the roof manually. When the side windows no longer
open completely, it is impossible tooperate the roof; however it is possi-ble to close it by using a special pro-cedure. Please consult the breakdown pro- cedure described at the end of thishandbook.
Page 74 of 123
YOUR 206 CC IN DETAIL
74
Dipped beam/main beam change Pull the stalk fully towards you. Note:
with the ignition off, if the driver's
door or the front passenger door* is open, a buzzer sounds if you have leftyour lights on. Front fog lamps and rear fog lamp Rotate the ring Bforwards to switch on
and backwards to switch off. The sta- tus is confirmed by the light on theinstrument panel.
Front fog lamps (1st forwardsturn of the ring)
These operate with the dipped/mainbeam headlamps. Front fog lamps and rear fog lamp (2nd forwards turn of the ring)
THE LIGHTS STALK Front lights Selection is by turning ring
A.
Lights off Side lights on Dipped / main beam headlamps
Automatic switching onof lights* When the side lights are switched off,the front fog lamps position is resu-med. Note:
to switch off the rear fog lamp
and the front fog lamps, turn the ring twice backwards.
In good or rainy weather, both day and night, the rear fog lamp is dazzling andis prohibited. Do not forget to switch the fog lamp off when it is no longer needed. Direction indicators (flashers)
Left: downwards.
Right: upwards.
* According to specification
Page 75 of 123
YOUR 206 CC IN DETAIL75
*According to specification
AUTOMATIC SWITCHING ON OF LIGHTS* Side lights and dipped beam head- lamps switch on automatically if the
light is poor. They switch off as soonas the light becomes bright enough orthe windscreen wipers stop. Note:
In foggy weather the brightness
sensor can detect sufficient light. As a consequence, the lights will not come
on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Start with the key in the accessories
position (1st notch),
- Press the end of the stalk for more than two seconds.
Note: after the ignition is switched off
and depending on the brightness, the lights remain on for 45 seconds or untilthe vehicle is locked.
Comment: The brightness sensor,
coupled with the rain sensor, is loca-ted in the centre of the windscreen,
behind the interior mirror. It is usedfor automatic switching on of thelights. Operating check Activation Acivation of this function is accompanied by an audible signal
"Automatic ligh-
ting'' on the multifunction display.
Disarming of the function is not accom-panied by any audible signal Note: the function is temporarily disar-
med when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audiblesignal, accompanied by the message"switching on of lights faulty" .
Contact a PEUGEOT dealer to have thesystem checked.
Page 76 of 123
YOUR 206 CC IN DETAIL
76
* According to specification Windscreen and headl amp wash*
Pull the wiper stalk towards you. The windscreen wash, then thewindscreen wipers, operate for aspecified time. The windscreen
and the headlamp
wash operate simultaneously for two seconds, only if the dipped beam
lights or the headlamps areswitched on.
Operation In position
1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed, then resumesits initial speed when the vehicle startsagain. In the Intermittent position, the wiping speed is proportional to the speed ofthe vehicle. In the AUTO* position, the wiping
speed is proportional to the heaviness of the rain. When the ignition has been switched off for more than oneminute with the stalk in the wipeposition, it is necesary to reactivatethis function. To do this, move the
stalk to any position, then move it backto the required position .
WINDSCREEN WIPER STALK Stalk with intermittent wipe Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press downwards).
Stalk with automatic wipe* Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe*.
0 Off.
Single wipe (press downwards).
Page 77 of 123
YOUR 206 CC IN DETAIL77

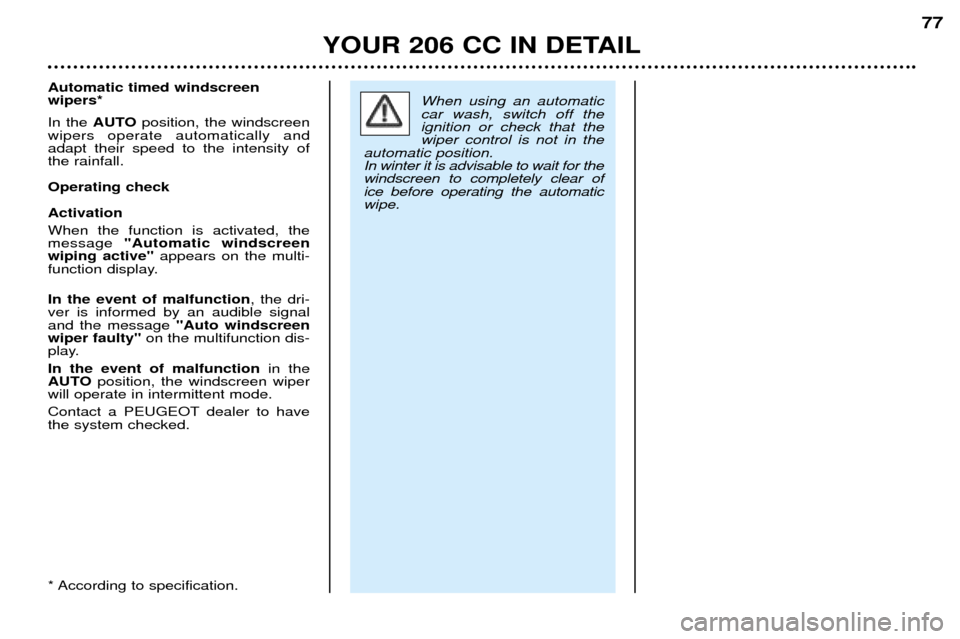

When using an automatic car wash, switch off theignition or check that thewiper control is not in the
automatic position.In winter it is advisable to wait for thewindscreen to completely clear ofice before operating the automaticwipe.
Automatic timed windscreenwipers* In the
AUTO position, the windscreen
wipers operate automatically and adapt their speed to the intensity ofthe rainfall. Operating checkActivation When the function is activated, the message "Automatic windscreen
wiping active" appears on the multi-
function display. In the event of malfunction , the dri-
ver is informed by an audible signal and the message "Auto windscreen
wiper faulty" on the multifunction dis-
play. In the event of malfunction in the
AUTO position, the windscreen wiper
will operate in intermittent mode.
Contact a PEUGEOT dealer to have the system checked.
* According to specification.
Page 78 of 123
YOUR 206 CC IN DETAIL
78
TRIP COMPUTER
Pressing the button on the end of the wash/wipe stalkenables the following data to be
displayed:
Display B
- the range,
- the distance travelled,
- the average consumption,
- the current consumption,
- the average speed. Zero reset Press the stalk for more than two seconds. Display C*
- the current consumption and the range,
- the average consumption, the distance travelled and the
average speed calculated over a period "1";
- the average consumption, the distance travelled and the average speed calculated over a period "2";
Periods "1"and "2"are defined by the frequency of the
zero reset. They allow, for instance, daily calculations over period "1"and monthly calculations over period "2".
Zero reset When the required period is displayed, press the stalk for more than two seconds.
Page 79 of 123
YOUR 206 CC IN DETAIL79
* According to specification
Range The display shows the distance that can still be covered with the fuel remai-ning in the tank. Note:
this figure may rise if there is
a change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. If there are less than 3 litres of fuel in the tank, only three segments willbe displayed.
Current fuel consumption This gives the fuel consumption recorded during the last two
seconds. This function is only disl-payed when the vehicle is travellingat more than 12 m.p.h. (20 km/h). (The display stops at 30 l/100km).
Average consumption This is the ratio between the amount of fuel consumed and the distancetravelled since the computer waslast reset to zero. (The display stops at 30 l/100km).
Average speed This is obtained by dividing the dis- tance travelled by the period of timethe vehicle has been in use (with theignition on), since the computer waslast reset to zero. Distance travelled This shows the distance travelled since the computer was last reset tozero. After the trip computer has been reset to zero, the range data becomes mea-ningful only after the vehicle has beenin use for a certain period. If horizontal segments are displayed instead of figures when driving, contact
a PEUGEOT dealer.
Page 80 of 123
YOUR 206 CC IN DETAIL
80
Electric windows
1. DriverÕs electric window switch.
2. PassengerÕs electric window
switch.
Each switch controls, on its own side, the front window and the rear quarter
panel window. Manual operation Press the switch (to open) or pull it (to close) without going beyond thepoint of resistance. The window stops when the switch is released. The rear quarter panel window can only be opened when the frontwindow is completely open, after aninactive period of one second.
Automatic operation
Opening
The windows open automatically(when the ignition key is in the ÔonÕposition, with the engine running orthe vehicle moving).
Press the switch past the point ofresistance:
- Press briefly to completely open the front window; press brieflyagain to completely open the
rear quarter panel window,
- Sustained pressure opens the front window, then the rear quar-
ter panel, completely.
Closing
Only the front window on the driverÕsside closes automatically (enginerunning or vehicle moving), whenthe rear quarter panel is closed. Briefly pull the switch past the point of resistance to completely
close the driverÕs front window.
Note: the window switches do not
function while the roof is being opera-ted.
