2000 VOLVO V70 remote control

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]
NOTE:
· As an added anti-theft measure, new keys have been developed which may take slightly longer to copy or replace if
the original keys are misplaced. Duplicate keys may be ordered from your Volvo retailer.
· The key number codes are stamped on a separate tag supplied with the keys. This tag should be separated from the
key ring and kept in a safe place.
Immobilizer (start inhibitor)
Each of the keys supplied with your car contains a coded transmitter and receiver (transponder). The code in the key is
transmitted to an antenna in the ignition switch where it is compared to the code stored in the start inhibitor module.
The car can only be started if a properly coded key is used.
If you misplace a key, take the other keys to an authorized Volvo retailer. The existing code in the start inhibitor
module and all the keys will be erased as an antitheft measure and a new code will be programmed in.
NOTE:
Not more than one of the keys for your car should be kept on the same key ring. This could cause conflicting signals to
be transmitted to the ignition switch, making it impossible to start the car.
This device complies with part 15 of the FCC rules. Operation is subject to the following condition: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
pg. 45 Doors and locks
Doors and locks
Your car is equipped with a central locking system.
The key, used on the driver's door, the remote control, or central locking button, will lock/unlock all doors,
trunk/tailgate.
Turn the key once to unlock the driver's door only.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]

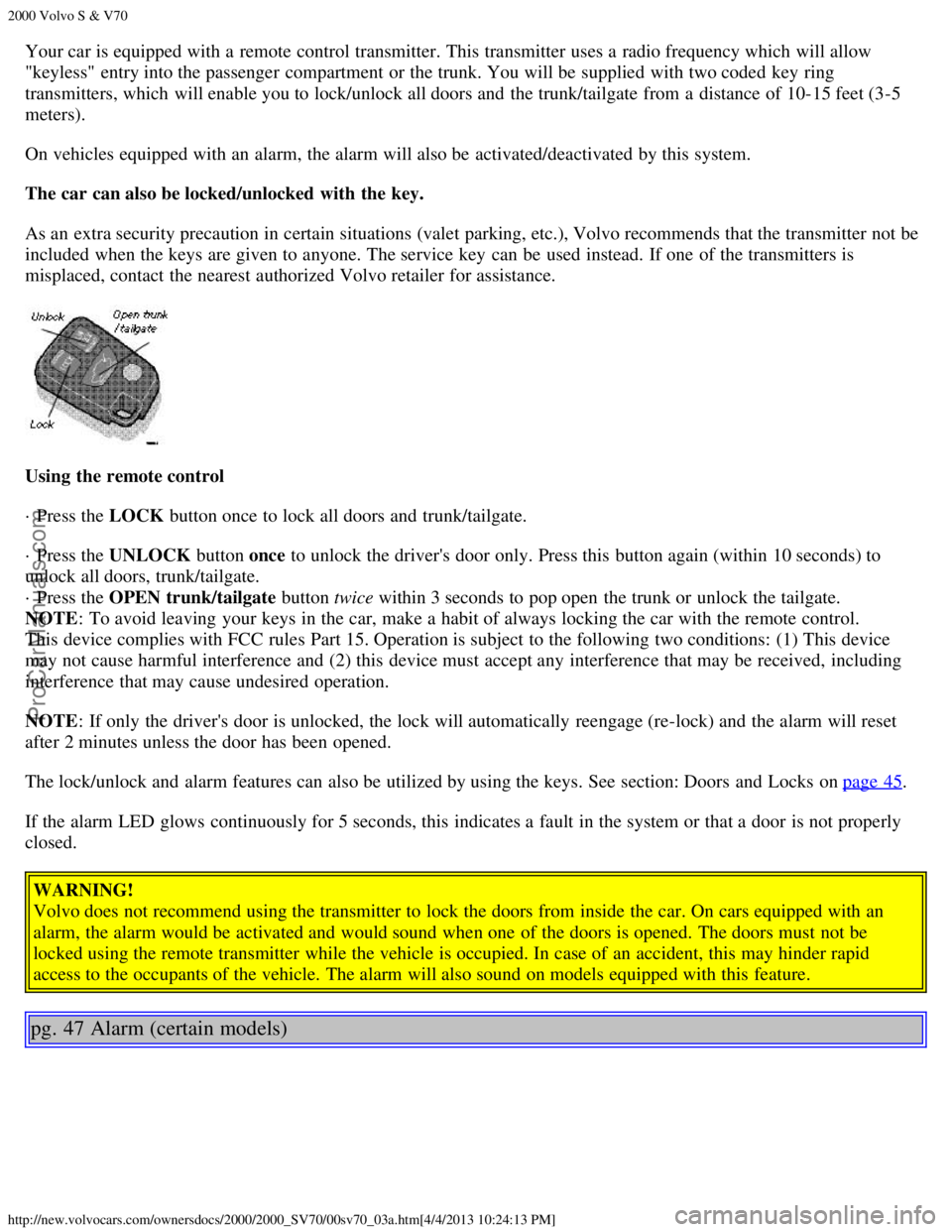

Your car is equipped with a remote control transmitter. This transmitter uses a radio frequency which will allow
"keyless" entry into the passenger compartment or the trunk. You will be supplied with two coded key ring
transmitters, which will enable you to lock/unlock all doors and the trunk/tailgate from a distance of 10-15 feet (3-5
meters).
On vehicles equipped with an alarm, the alarm will also be activated/deactivated by this system.
The car can also be locked/unlocked with the key.
As an extra security precaution in certain situations (valet parking, etc.), Volvo recommends that the transmitter not be
included when the keys are given to anyone. The service key can be used instead. If one of the transmitters is
misplaced, contact the nearest authorized Volvo retailer for assistance.
Using the remote control
· Press the LOCK button once to lock all doors and trunk/tailgate.
· Press the UNLOCK button once to unlock the driver's door only. Press this button again (within 10 seconds) to
unlock all doors, trunk/tailgate.
· Press the OPEN trunk/tailgate button twice within 3 seconds to pop open the trunk or unlock the tailgate.
NOTE : To avoid leaving your keys in the car, make a habit of always locking the car with the remote control.
This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference and (2) this device must accept any interference that may be received, including
interference that may cause undesired operation.
NOTE : If only the driver's door is unlocked, the lock will automatically reengage (re-lock) and the alarm will reset
after 2 minutes unless the door has been opened.
The lock/unlock and alarm features can also be utilized by using the keys. See section: Doors and Locks on page 45
.
If the alarm LED glows continuously for 5 seconds, this indicates a fault in the system or that a door is not properly
closed.
WARNING!
Volvo does not recommend using the transmitter to lock the doors from inside the car. On cars equipped with an
alarm, the alarm would be activated and would sound when one of the doors is opened. The doors must not be
locked using the remote transmitter while the vehicle is occupied. In case of an accident, this may hinder rapid
access to the occupants of the vehicle. The alarm will also sound on models equipped with this feature.
pg. 47 Alarm (certain models)
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]
LED alarm status indicator
Alarm
The radio signal emitted from the transmitter, which is used to set/unset the alarm, is a "rolling code" signal. This
means that the signal is changed randomly for each transmission and is intended to help prevent unauthorized
recording of the code.
When armed (set), the alarm continuously monitors a number of points on the car. The following conditions will set off
the alarm:
· The hood is opened
· The trunk/tailgate is opened
· A door is opened
· The ignition switch is tampered with
· The car is lifted or towed (if the car is equipped with the optional inclination sensor)
· The battery is disconnected (if the car is equipped with the optional backup battery siren). The alarm will sound for
ten 30 second intervals, with a 5 second pause between intervals. This function cannot be interrupted.
Arming (setting) the alarm
Press the LOCK button on the remote control, lock the car using the key in the driver's door or press the central lock
button on one of the front doors with the door open. One long flash of the turn signals will confirm that the alarm is
set.
Disarming the alarm
Press the UNLOCK button on the remote control or unlock the doors with the key.
Turning off (stopping) the alarm
If the alarm is sounding, it can be stopped by pressing the UNLOCK button on the remote control or by unlocking the
driver's door with the key.
If the alarm is stopped with the remote control, this will be confirmed by two short flashes from the turn signals.
Visual alarm signal
The visual alarm signal is given by flashing all turn signals and turning on the interior lighting for approximately 5
minutes.
Audible alarm signal
An audible alarm signal is given either by a separate alarm horn or by the optional back-up siren. One alarm cycle
lasts for 30 seconds.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]
"Panic" function
In an emergency situation, this feature can be used to attract attention.
Activate the "panic" function by pressing the red panic button on the remote control for at least 3 seconds or by
pressing this button twice within 3 seconds. The turn signals will flash, the interior lights will go on and the alarm will
sound.
The function can be turned off by pressing any of the buttons on the remote control or will stop automatically
after 25 seconds.
NOTE: This button will NOT unlock the car.
pg. 48 Alarm
LED alarm status signals
The status of the alarm system is indicated by the red LED at the top center of the dash:
· LED off - the alarm is not armed (set)
· LED flashes once per second - the alarm is armed (set)
· LED flashes rapidly before the ignition is switched on - the alarm has been triggered
· LED flashes rapidly for 15 seconds after the ignition has been switched on - a fault has been detected in the alarm
system. Contact a Volvo retailer.
Automatic reset function
If only the driver's door is unlocked with the remote control, the lock will automatically reengage (re-lock) and the
alarm will reset after 2 minutes unless the door has been opened.
Temporarily disconnecting the alarm sensor(s)
In certain situations it may be desirable to disconnect the optional alarm sensors, particularly the inclination sensor, if,
for example, you drive your car onto a ferry where the rocking of the boat could trigger the alarm.
To temporarily disconnect the sensor(s) from the alarm system:
· With all doors closed, switch off the ignition and remove the key from the ignition switch
· Press the locking (left) side of the central locking button on the driver's door for at least 3 seconds
· The doors will first lock and then unlock after 3 seconds to confirm that the sensors have been disconnected
The car can then be locked in the usual way to set the alarm.
NOTE: The sensors will automatically be reconnected to the alarm system the next time the ignition is switched on.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]
Batteries
Each remote transmitter is powered by a three-volt battery, type CR 2016. If the range of the transmitter is noticeably
reduced, this indicates that the battery is weak and should be replaced.
Replacement: Remove the battery cover on the back of the transmitter with a coin. Replace the battery. Reinstall the
cover, making sure it is secured tightly to help protect the transmitter.
CAUTION: Do not attempt to service or repair any components of the alarm system yourself. This should only be
done by an authorized Volvo retailer.
pg. 49 Trunk/Tailgate
Unlocking the trunk/tailgate
The trunk/tailgate locks are incorporated in the central locking system and are locked or unlocked when the driver's
door is locked/unlocked.
The trunk can be unlocked by:
· Pressing the button on the remote control (A) twice
· Using the master key in the trunk
· Using the trunk/tailgate control on the driver's door (B)
Refer to page 44
for information on the remote control locking system.
Disconnecting the trunk lock
The trunk lock can also be disconnected from the central locking system by turning the key counterclocKWise as
shown below:
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]
Withdraw the key in the horizontal position ***
The trunk is now always locked. The optional folding rear seatback can also be locked from the trunk (see page 57).
This feature can be used for e.g., valet parking. If you give only the service key to the driver, it will not be possible to
gain access to the trunk. Please be aware that this setting may preclude access to the spare tire and jack.
To reconnect the lock to the central locking system:
Withdraw the key in the vertical position
*** In this position, the trunk cannot be opened with the control on the driver's door or the remote control.
Unlocking tailgate from the inside
Tailgate lock button
If the doors and tailgate are locked, the tailgate can be unlocked from the inside by pulling up the lock button (see
illustration). This unlocks the tailgate only. Please note that this button will only function if the child safety lock in
the tailgate is disengaged (see page 50
).
WARNING!
Do not drive with the tailgate open! Poisonous exhaust gases may enter via the open tailgate.
pg. 50 Child safety locks (sedan/wagon)
Location and setting of child safety lock
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_06.htm[4/4/2013 10:24:41 PM]
12 Fuel pump, fuel injection system20A
13 Control module - automatic transmission10A
14 A/C relay, emissions systems 10A
* Some of the equipment/systems listed may be available on certain models only.
pg. 106 Fuses (supplementary fuse box)
Location * Amperage
1 -
2 Central locking, driving mode selectors (aut. trans.) 10A
3 ABS 10A
4 Immobilizer (Canada only) 10A
5 Climate systems, Onboard diagnostics OBDII 15A
6 -
7 Audio system 15A
8 Immobilizer (Canada only), trip computer, headlight switch 15A
9 Electrically heated rear seat (certain models) 20A
10 Ignition switch 15A
11 Brake lights 10A
12 -
13 Hazard warning flashers, headlight flashers, remote
operated central locking system 15A
14 Heated rear window and door mirrors 30A
15 Courtesy lights, door open warning lights, trunk/cargo
space light, seat belt reminder, glove compartment light 10A
16 Power antenna, electrical connector for trailer, accessories 30A
17 Front fog lights 20A
18 Key reminder 10A
19 Left high beam 15A
20 Right high beam, high beam indicator light 15A
21 Left low beam 15A
22 Right low beam 15A
23 Left front/rear parking lights, left tail light, license plate lights 10A
24 Right front/rear parking lights, right tail light 10A
25 Rear fog light, rear fog light indicator lamp 10A
26 Headlight switch 15A
27 Backup lights, turn signals 15A
28 Heated seats - front/rear (certain models) 25A
29 Heated rear window, shiftlock, seat belt reminder, cruise
control, heated door mirrors, bulb failure warning sensor 10A
30 -
31 Passenger compartment blower-climate systems 25A
32 Audio system 10A
33 Tailgate wiper/washer 15A
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_10a.htm[4/4/2013 10:25:18 PM]
2 0 0 0
VOLVO
S & V70
Chapter 10 - Audio systems
pg. 141 Audio systems
This chapter describes the audio system in your car. SC-813 142
SC-816155
SC-901171
General information194
pg. 142 Audio system SC813 (certain models)
The following pages describe the use of your SC813 Cassette radio and CD remote control
1. On/off (push)
2. · Volume (turn)
· Pause/Mute (push)
· Balance (pull)
3. Active Sound Control
4. CD changer selector
5. · Tape mode selector
· Tape direction selector PROG
6. Bass control
