2000 TOYOTA SIENNA warning

00 SIENNA(U)
124
(k) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ACC” or
“ON” position. After about 6 seconds,
the light will go off. This means the
system of the airbag and front seat belt
pretensioners are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position or remains on.
The light comes on or flashes while
driving.
(l) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” in Section 7−3.)(m) Low Tire Pressure Warning Light
This light warns that the tire pressure of
any one of the tires is critically reduced.
The light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the low tire pressure warning system is
functioning properly.
If the light comes on while driving, adjust
tire pressure to the specified level. (See
“Tires” in Section 8.) After the tire pres-
sure is adjusted, the light should go off
after driving at about more than 30 km/h
(19 mph) for some time. If the light still
remains, have the low tire pressure warn-
ing system checked at your Toyota dealer.
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the “ACC” or “LOCK”
position.CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level warning
light and low windshield washer fluid
level warning light)
1. Apply the parking brake.
2. Open one of the doors.
The open door warning light should
come on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to “ACC”.
The SRS warning light should come on.
It goes off after about 6 seconds.
5. Turn the ignition key to “ON”, but do
not start the engine.
All the service reminder indicators ex-
cept the open door warning light, open
power sliding door warning light and
SRS warning light should come on. The
“ABS” warning light and low tire pres-
sure warning light go off after a few
seconds.
ProCarManuals.com

00 SIENNA(U)
125
6. Vehicles with a power sliding door:
Open the right side sliding door.
The open power sliding door warning
light should come on.
Close the right side sliding door.
The open power sliding door warning
light should go off.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, either the bulb is burned out or the
circuit is in need of repair. Have it
checked by your Toyota dealer as soon as
possible.
ProCarManuals.com

00 SIENNA(U)
135
RESETTING TO A FASTER SPEED
Push the lever up in the “RES/ACC” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held up, the vehicle will gradually
gain speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “SET/COAST” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “SET/COAST”
direction and hold it. Release the lever
when the desired speed is attained. While
the lever is held down, the vehicle speed
will gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “SET/COAST” direction.
Even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal or clutch pedal, pushing the
lever up in the “RES/ACC” direction will
restore the speed set prior to cancellation.
However, once the vehicle speed falls be-
low about 40 km/h (25 mph), the preset
speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light in the in-
strument cluster flashes when using the
cruise control, press the “CRUISE ON−
OFF” button to turn the system off and
then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.
ProCarManuals.com

00 SIENNA(U)
171
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock172 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray172 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets173 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box173 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener box174 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes177 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder178 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
First−aid kit and warning reflector holder179 . . . . . . . . . . . . . . . . . . . . . .
Tire pressure warning system180 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat181 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 9
ProCarManuals.com

00 SIENNA(U)
179

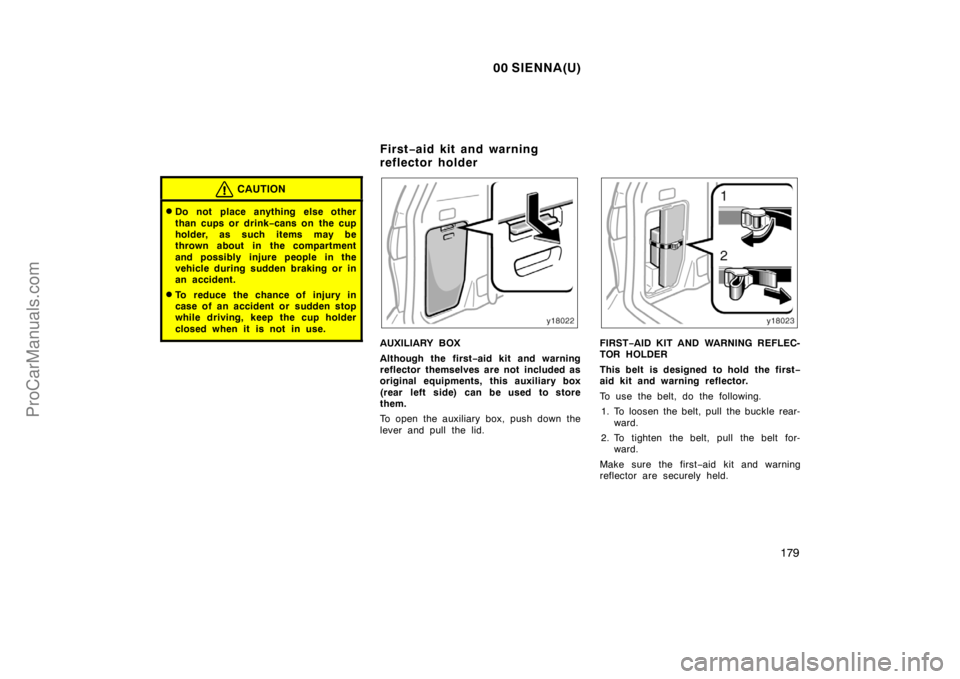

CAUTION
Do not place anything else other
than cups or drink−cans on the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
AUXILIARY BOX
Although the first−aid kit and warning
reflector themselves are not included as
original equipments, this auxiliary box
(rear left side) can be used to store
them.
To open the auxiliary box, push down the
lever and pull the lid.FIRST−AID KIT AND WARNING REFLEC-
TOR HOLDER
This belt is designed to hold the first−
aid kit and warning reflector.
To use the belt, do the following.
1. To loosen the belt, pull the buckle rear-
ward.
2. To tighten the belt, pull the belt for-
ward.
Make sure the first−aid kit and warning
reflector are securely held.
First−aid kit and warning
reflector holder
ProCarManuals.com

00 SIENNA(U)
180
Tire pressure warning system
The tire pressure warning system is de-
signed to provide warning when tire
pressure of any one of the tires is criti-
cally reduced while the vehicle is mov-
ing. The low tire pressure warning light
comes on to inform you that such low
tire pressure may hamper driving.
This system is not designed to operate
when the vehicle is stopped. Therefore,
check the tire pressures regularly. The
recommended cold tire pressures, tire size
and the vehicle capacity weight are on the
tire pressure label. (For instruction, see
“Checking tire pressure” in Section 7−2.)
Installed tires should be of the specified
size. They should be of the same size
and construction. If tires other than of the
specified size are used, or if tires of dif-
ferent sizes or constructions are mixed,
the tire pressure warning system will not
function properly.
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
If the low tire pressure warning light
comes on while driving, adjust tire
pressure to the specified level. (See
“Tires” in Section 8.)
After the tire pressure is adjusted, the
light should go off after driving at about
more than 30 km/h (19 mph) for some
time. If the light still remains, have the
tire pressure warning system checked at
your Toyota dealer.The tire pressure warning system does
not function properly under certain cir-
cumstances. In the following cases, the
low tire pressure warning light may not
come on even if the tire pressure is
low, or it may come on when the tire
pressure is actually normal.
If the tread wear is uneven among the
installed tires,
If a compact spare tire, snow tires, or
tire chains are used,
If the tire pressure is excessively high-
er than specified, or if tire pressure is
suddenly reduced due to bursts or oth-
er causes,
If the vehicle is driven on a slippery
road surface such as rough road and
frozen road,
If the vehicle speed is less than 30
km/h (19 mph) or more than 100 km/h
(62 mph), and if the driving duration is
less than 5 minutes,
ProCarManuals.com

00 SIENNA(U)
181
AFTER REPLACING OR ROTATING
TIRES OR WHEELS
Initial adjustment of the tire pressure
warning system is necessary after you
have replaced or rotated your tires or
wheels.
1. Park the vehicle at a safe place and
apply the parking brake. Stop the en-
gine.
2. Adjust pressures of all the installed
tires to the specified level. (See “Tires”
in Section 8.)
3. Turn the ignition key to “ON”.4. With the vehicle stopped, push the re-
set switch on the left lower instrument
panel and hold it until the low tire
pressure warning light blinks for three
times.
5. The initial adjustment is completed af-
ter driving at the speeds of 30 km/h
(19 mph) or over for about total 8
hours, when the tire pressure warning
system detects the normal tire pres-
sures.
Do not push the reset switch without ad-
justing the tire pressure to the specified
level. Otherwise, the low tire pressure
warning light may not come on even if the
tire pressure is low, or it may come on
when the tire pressure is actually normal.
If you push the reset switch while the
vehicle is moving, the initial adjustment is
not performed.
If the low tire pressure warning light does
not blink when you push and hold the
reset switch, have the low pressure warn-
ing system checked at your Toyota dealer.
Floor mat
Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.
ProCarManuals.com

00 SIENNA(U)
189
IMPORTANCE OF ENGINE OIL LEVEL
CHECK
One of the most important points in prop-
er vehicle maintenance is to keep the en-
gine oil at the optimum level so that oil
function will not be impaired. Therefore, it
is essential that the oil level be checked
regularly. Toyota recommends that the oil
level be checked every time you refuel
the vehicle.
NOTICE
Failure to check the oil level regularly
could lead to serious engine trouble
due to insufficient oil.
For detailed information on oil level check,
see “Checking the engine oil level” in Sec-
tion 7−2.
Your engine is fitted with twin ground
electrode platinum−tipped spark plugs.
NOTICE
Use only twin ground electrode plati-
num−tipped spark plugs for your en-
gine performance.
Brake system
TANDEM MASTER CYLINDER BRAKE
SYSTEM
The tandem master cylinder brake system
is a hydraulic system with two separate
sub−systems. If either sub−system should
fail, the other will still work. However, the
pedal will be harder to press, and your
stopping distance will be longer. Also, the
brake system warning light may come on.
CAUTION
Do not drive your vehicle with only a
single brake system. Have your
brakes fixed immediately.
BRAKE BOOSTER
The brake booster uses engine vacuum to
power−assist the brakes. If the engine
should quit while you are driving, you can
bring the vehicle to a stop with normal
pedal pressure. There is enough reserved
vacuum for one or two stops—but no
more!
Twin ground electrode
platinum−tipped spark plugs
ProCarManuals.com
