2000 TOYOTA SIENNA warning

00 SIENNA(U)
69
The SRS (Supplemental Restraint Sys-
tem) airbags are designed to provide
further protection for the driver and
front passenger in addition to the pri-
mary safety protection provided by the
seat belts.
In response to a severe frontal impact,
the SRS airbags work together with the
seat belts to help reduce injury by inflat-
ing. The SRS airbags help to reduce inju-
ries mainly to the driver’s or front passen-
ger ’s head or chest directly hitting the
steering wheel or dashboard. The passen-
ger airbag is activated even with no pas-
senger in the front seat.
Be sure to wear your seat belt.
CAUTION
A driver or front passenger too close
to the steering wheel or dashboard
during airbag deployment can be
killed or seriously injured. Toyota
strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.This indicator comes on when the igni-
tion key is turned to the “ACC” or
“ON” position. It goes off after about
6 seconds. This means the SRS airbags
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, inflators, warning light, interconnect-
ing wiring and power sources. (For details,
see “Service reminder indicators and
warning buzzers” in Section 1−5.)
SRS driver and front
passenger airbags
ProCarManuals.com

00 SIENNA(U)
71
Landing hard or vehicle falling Hitting a curb, edge
of pavement or
hard materialFalling into or
jumping over
a deep hole
The SRS airbags may deploy if a seri-
ous impact occurs to the underside of
your vehicle. Some examples are shown
in the illustration.The SRS airbag system consists mainly of
the following components, and their loca-
tions are shown in the illustration.
1. Front airbag sensors
2. Airbag module for driver (airbag and
inflator)
3. Airbag module for passenger (airbag
and inflator)
4. Airbag sensor assembly
5. SRS warning light
The airbag sensor assembly consists of a
safing sensor and airbag sensor.In a severe frontal impact, sensors detect
deceleration and the system triggers the
airbag inflators. Then a chemical reaction
in the inflators quickly fills the airbags
with non−toxic gas to help restrain the
forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non−toxic gas. This
does not indicate a fire. This gas is nor-
mally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once.
ProCarManuals.com

00 SIENNA(U)
80
This child restraint is designed for use
only by children who weigh between 10
and 18 kg (22.1 and 39.5 lb.) and whose
height is between 85 and 101 cm (33.5
and 40.0 in.).
The child should be at least one year
old and must be capable of sitting up-
right alone and whose shoulder height
is at or below the maximum shoulder
height indicator. See indicator label be-
hind child seat pad.
It is important to use a rear−facing
child restraint until the child is about
a year old. A rear−facing restraint gives
the child’s head, neck and body the
support they would need in a crash.
See “—Child restraint system” for more
information.
If your child’s shoulders are above the
indicator position, do not use the built−
in child restraint. Your child should use
the adult lap and shoulder belt.
According to accident statistics, children
are safer when properly restrained in the

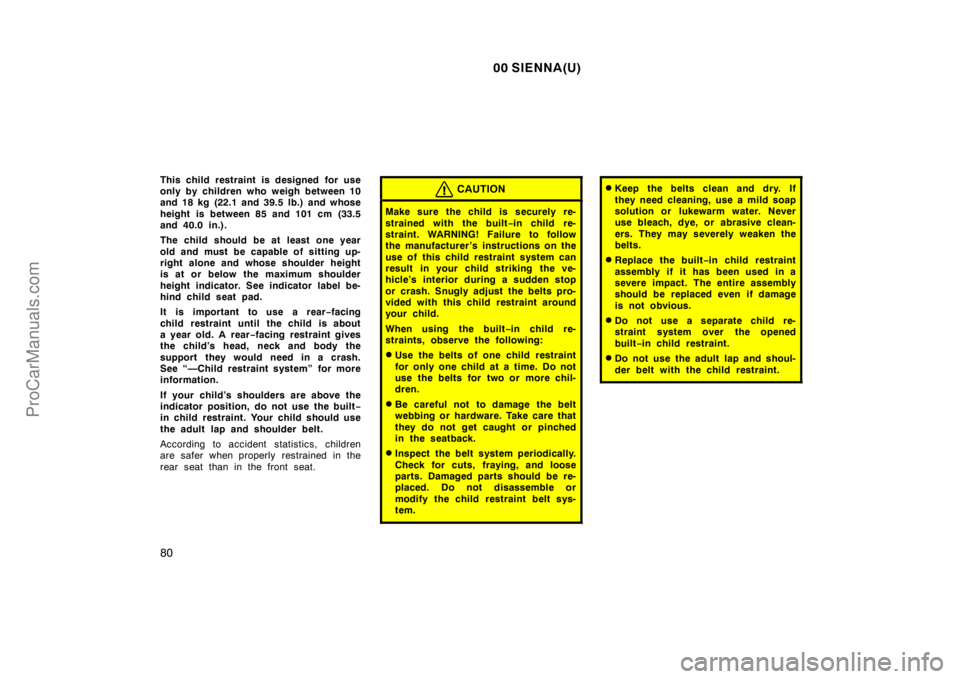

rear seat than in the front seat.CAUTION
Make sure the child is securely re-
strained with the built−in child re-
straint. WARNING! Failure to follow
the manufacturer ’s instructions on the
use of this child restraint system can
result in your child striking the ve-
hicle’s interior during a sudden stop
or crash. Snugly adjust the belts pro-
vided with this child restraint around
your child.
When using the built−in child re-
straints, observe the following:
Use the belts of one child restraint
for only one child at a time. Do not
use the belts for two or more chil-
dren.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seatback.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the child restraint belt sys-
tem.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers. They may severely weaken the
belts.
Replace the built−in child restraint
assembly if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Do not use a separate child re-
straint system over the opened
built−in child restraint.
Do not use the adult lap and shoul-
der belt with the child restraint.
ProCarManuals.com

00 SIENNA(U)
11 7
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge11 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge11 8 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer11 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers120 . . . . . . . . . . . . . .
SECTION 1− 5
ProCarManuals.com

00 SIENNA(U)
11 8
Fuel gauge
With tachometer
Low fuel
level warning
light
Without tachometer
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
This fuel gauge has a non−return type
needle which remains at the last indicated
position when the ignition switch is turned
off.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
With tachometer
Without tachometer
Engine coolant temperature
gauge
ProCarManuals.com

00 SIENNA(U)
121
(h) Take vehicle to
Toyota dealer. (g) Stop and check. (f) Fill up tank.
Low fuel level
warning light
(type A)
(type B)
(type A)
(type B)
(e) Take vehicle to
Toyota dealer.
(type A)
(type B)
If the indicator or
buzzer comes on...Do this.
(l) Add washer
fluid. (k) Take vehicle to
Toyota dealer
immediately. (j) Close the right
side sliding door. (i) Close all doors.
(m) Adjust tire
pressure.
(n) Remove key.
Key reminder
buzzer
(indicator and buzzer)
If the indicator or
buzzer comes on...Do this.(a) Brake System Warning Light
This light has the following functions:
Parking brake reminder
If this light is on, make sure the parking
brake is fully released. The light should
go off.
Low brake fluid level warning
If this light comes on and stays on while
you are driving, slow down and pull off
the road. Then stop the vehicle carefully.
Remember that stopping distance and ped-
al effort may be increased. There maybe
a problem somewhere in the brake sys-
tem. Check the fluid level of the see−
through reservoir.
To make sure the parking brake has not
caused the warning light to come on,
check to see that the parking brake is
fully released.
If the brake fluid level is low...
At a safe place, test your brakes by start-
ing and stopping.
If you judge that the brakes still work
adequately, drive cautiously to your
nearest dealer or shop for repairs.
If the brakes are not working, have the
vehicle towed in for repairs. (For tow-
ing information, see Section 4.)
ProCarManuals.com

00 SIENNA(U)
122
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
If the brake fluid level is correct...
Have the warning system checked by your
Toyota dealer.
(b) Driver’s Seat Belt Reminder Light
and Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not pulled out. Unless the driver starts to
pull the shoulder belt out of the retractor,
the light keeps flashing and the buzzer
stops after about 4 to 8 seconds.
(c) Front Passenger ’s Seat Belt Re-
minder Light
This light reminds you to buckle up the
front passenger ’s seat belt.Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not pull out the seat belt. Un-
less the front passenger starts to pull the
shoulder belt out of the retractor, the light
stays flashing.
If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, built−in
sensors in the seat cushion may detect
the pressure, causing the reminder light to
come on.
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Malfunction Indicator Lamp
This lamp comes on in the following
cases.
a. The fuel tank is completely empty. (See
“Fuel gauge” in Section 1−5 for instruc-
tions.)
b. The fuel tank cap is not tightened se-
curely. (See “Fuel tank cap” in Section
1−2 for instructions.)
c. There is a problem somewhere in your
engine or automatic transmission electrical
system.
If it comes on while you are driving in
case c, have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible.
(f) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
ProCarManuals.com

00 SIENNA(U)
123
(g) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(h) “ABS” Warning Light
This light warns that there is a problem
somewhere in your anti−lock brake sys-
tem.
If the light comes on while you are driv-
ing, have your vehicle checked by your
Toyota dealer as soon as possible.
The light will come on when the ignition
key is turned to the “ON” position. After
a few seconds, the light will go off.
When the “ABS” warning light is on (and
the brake system warning light is off), the
brake system operates conventionally but
anti−lock brake system is not assisting
brake performance so that the wheels can
lock−up during sudden braking or braking
on slippery road surfaces.
(i) Open Door Warning Light
This light remains on until all the doors
and back door are completely closed.
When the ignition switch is “OFF” and this
light stays lighting on, the light will turn
off automatically after 30 minutes with the
light flashing five times. See “Personal
lights” and “Interior light” for details in
Section 1−4.(j) Open Power Sliding Door Warning
Light and Buzzer
This light comes on if the power sliding
door is not completely closed with the
ignition key in the “ON” position.
If you forcibly close the power sliding door
by hand when the ignition key is in the
“ON” position, the open power sliding door
warning light may stay on. In this case,
try opening and closing the power sliding
door again by hand slowly, or use one of
the “PWR DOOR” switches or wireless
remote control transmitter.
If you shift out of “P” when the power
sliding door is opened or in the process
of closing with the power sliding door sys-
tem on, a buzzer will sound and the open
power sliding door warning light will flash.
This is a warning that the sliding door is
not completely closed.
ProCarManuals.com
