Celica_U
752000 CELICA (OM20735U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior light 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Luggage compartment light 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1− 4
ProCarManuals.com
Celica_U
812000 CELICA (OM20735U)
INTERIOR LIGHT CUT OFF OPERATION
If you remove the key and the interior
light in the vehicle remains on with the
switch in “DOOR” position, it will cut off
automatically after 20 minutes.
If the key is in the ignition switch, this
system does not operate.
If you open any closed doors while this
system is in operation, this system will
reset itself.

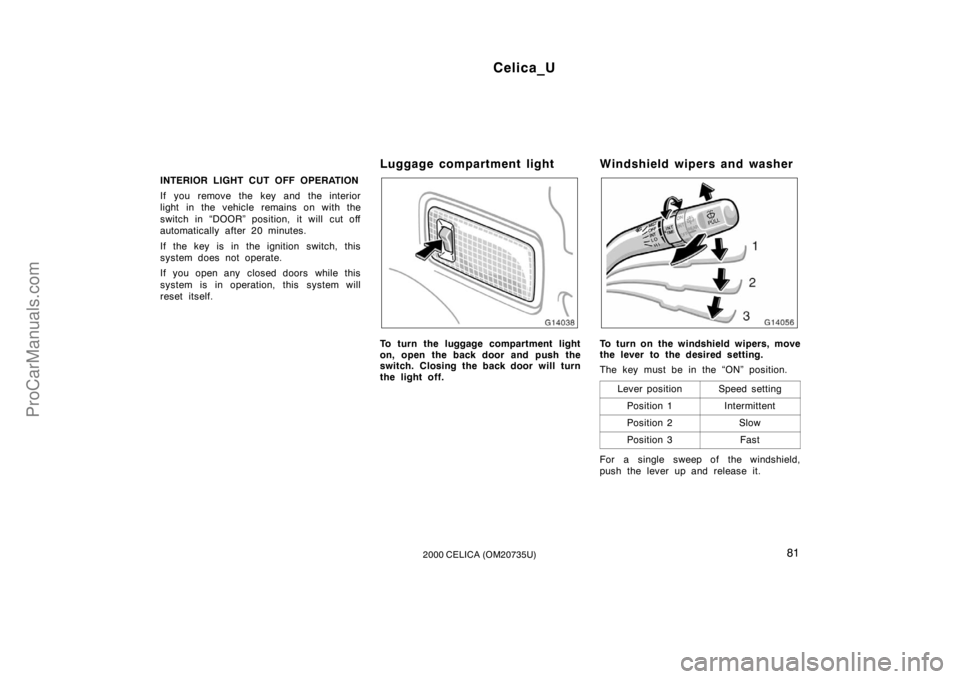

Luggage compartment light
To turn the luggage compartment light
on, open the back door and push the
switch. Closing the back door will turn
the light off.
Windshield wipers and washer
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.
ProCarManuals.com
Celica_U
822000 CELICA (OM20735U)
With interval adjuster: The “INT TIME”
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.

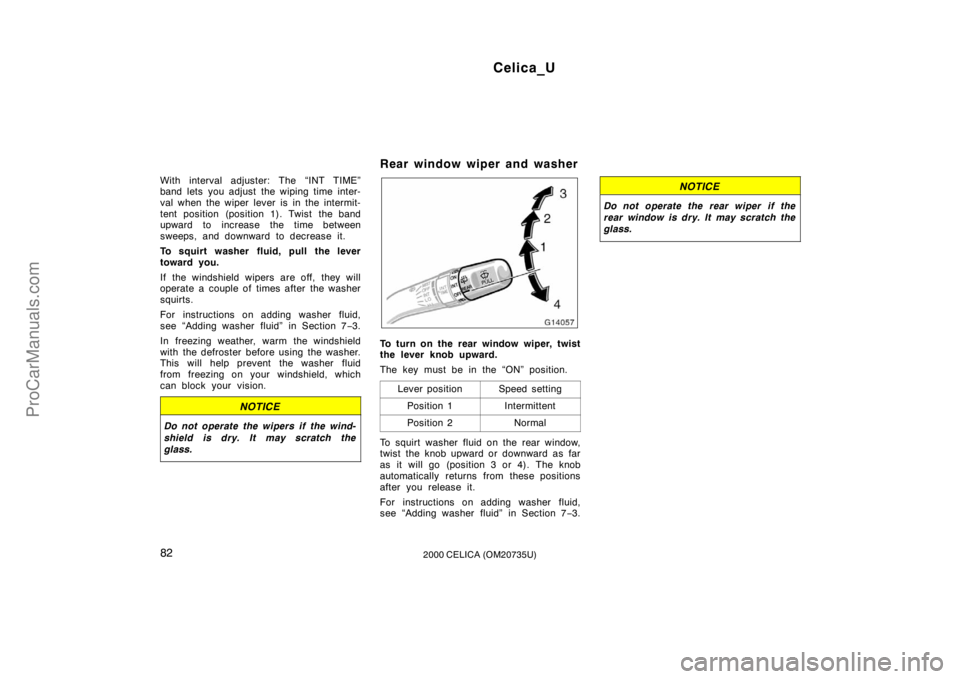

Rear window wiper and washer
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 7 −3.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
ProCarManuals.com
Celica_U
2502000 CELICA (OM20735U)
20. HEAD RH UPR 10 A: Right−hand
headlight (high beam), daytime running
light system
21. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
22. S/ROOF 15 A: Electric moon roof
23. CIG 15 A: Cigarette lighter
24. FL P/W 20 A: Power windows
25. AM1 25 A: Starting system, “CIG”,
“ECU ACC”, “SRS −IG”, “WASHER”,
“WIPER”, “BK/UP LP”, “TENS RDC”,
“DEF RLY”, “BODY ECU −IG”, “TURN”,
“HTR”, “WARNING”, “FAN RLY”, “ABS −
IG” and “ECU −IG” fuses
26. STOP 10 A: Stop lights, anti −lock
brake system, high mounted stoplight,
multiport fuel injection system/sequen-
tial multiport fuel injection system, elec-
tronically controlled automatic transmis-
sion system, cruise control system
27. DOOR 20 A: Power door lock system
28. SRS −IG 7.5 A: SRS airbag system
29. FR FOG 15 A: Front fog lights
30. WASHER 15 A: Windshield wipers and
washer, rear window wiper and washer
31. OBD 7.5 A: On−board diagnosis sys-
tem 32. RADIO 15 A:
Car audio system
33. WIPER 25 A: Windshield wipers and
washer
34. TURN 7.5 A: Turn signal lights
35. MIR HTR 10 A: No circuit
36. HTR 10 A: Air conditioning system
37. RR WIPER 15 A: Rear window wiper
and washer
38. TAIL 10 A: Tail lights, instrument panel
lights, license plate lights, front side
maker lights
39. FR P/W 20 A: Power windows
Fuses (type B)
40. SPARE 7.5 A: Spare fuse
41. a. MPX −B 7.5 A: Wireless remote con-
trol system
b. RR FOG 7.5 A: No circuit
c. DOME 7.5 A: Clock, interior lights
d. ECU −B 7.5 A: Air conditioning sys-
tem, gauges and meters
42. a. WARNING 5 A: Charging system,
gauges and meters
b. ECU −IG 5 A: Cruise control system
c. ABS −IG 5 A: Anti−lo
ck brake sys-
tem
d. FAN RLY 5 A: Electric cooling
fans 43. a. PANEL1 7.5 A:
Gauges and meters,
air conditioning system, electronical-
ly controlled automatic transmission
system, headlight beam level control
system, front fog lights, emer gency
flasher, turn signal lights
b. PANEL2 7.5 A: Car audio system,
cigarette lighter, glove box light
c. ECU −ACC 7.5 A: Clock, car audio
system, power rear view mirror con-
trols
44. a. BK/UP LP 5 A: Back−up lights
b. DEF RLY 5 A: Power windows, rear
window defogger
c. BODY ECU −IG 5 A: Theft deterrent
system
d. TENS RDC 5 A: Electronically con-
trolled automatic transmission sys-
tem, shift lock control system, elec-
tric moon roof
Fuses (type C)
45. ABS NO.1 40 A: Anti−lock brake sys-
tem
46. MAIN 40 A: Starting system, daytime
running light system
47. HTR 50 A: Air conditioning system
48. DEF 30 A: Rear window defogger
