2000 TOYOTA CELICA fog light

Celica_U
32000 CELICA (OM20735U)

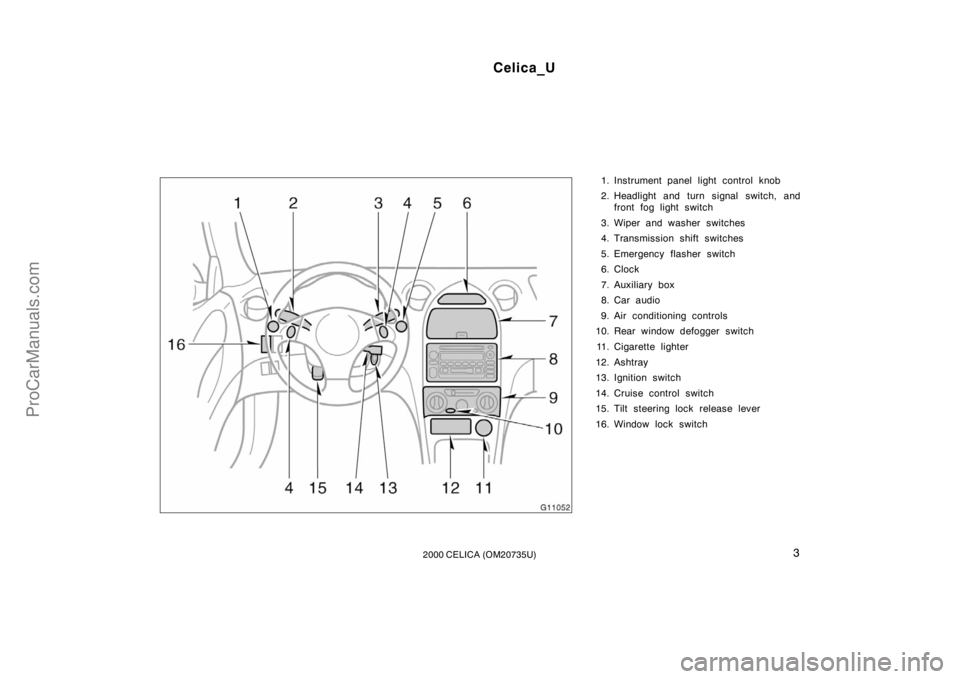

1. Instrument panel light control knob
2. Headlight and turn signal switch, andfront fog light switch
3. Wiper and washer switches
4. Transmission shift switches
5. Emergency flasher switch
6. Clock
7. Auxiliary box
8. Car audio
9. Air conditioning controls
10. Rear window defogger switch
11. Cigarette lighter
12. Ashtray
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. Window lock switch
ProCarManuals.com

Celica_U
752000 CELICA (OM20735U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior light 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Luggage compartment light 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1− 4
ProCarManuals.com

Celica_U
792000 CELICA (OM20735U)
Front fog lights
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Interior light (with moon roof)
To turn the interior light on, push the
“ON” or “DOOR” side switch. To turn
the light off, push the switch lightly on
the opposite side.
The interior light switch has the following
positions:
“ON”—The light stays on all the time.
“DOOR”—Turns the light on when either
side door or the back door is opened. The
light goes off when both side doors and
back door are closed.ILLUMINATED ENTRY SYSTEM
(vehicles with power door lock system)
With the switch in “DOOR” position, the
light comes on when either side door or
back door is opened. After both side
doors and back door are closed, the light
remains on for about 15 seconds and then
fades out.
However, in the following cases, the light
fades out immediately.
Both side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
Both side doors and back door are
closed and both side doors are locked.
When both side doors and back door are
unlocked simultaneously with a key or
wireless remote control transmitter, the in-
terior light comes on for about 15 seconds
and then fades out, even if the door is
not opened.
ProCarManuals.com

Celica_U
832000 CELICA (OM20735U)
Rear window defogger
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop
−and−
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires.
ProCarManuals.com

Celica_U
2332000 CELICA (OM20735U)
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if scratched
or dropped. Hold a bulb only by its
plastic or metal case. Do not touch
the glass part of a bulb with bare
hands.
NOTICE
Only use a bulb of the listed type.
Light bulbsBulbNo.WTy p e
Headlights (low beam)—55A
Headlights (high beam)900565B
Front fog light—55C
Parking lights—5D
Light bulbsBulb
No.WTy p e
Front turn signal
lights—21E
Front side marker
lights—5D
Rear turn signal
lights—21D
Stop and tail lights—21/5D
Back −up lights—18D
License plate lights—5D
Interior light
(with moon roof)—10E
Interior lights
(without moon roof)—8F
Glove box light—1.2D
Luggage
compartment light—5F
A: H7 halogen bulbs
B: HB3 halogen bulbs
C: H3 halogen bulbs
D: Wedge base bulbs
E: Single end bulbs
F: Double end bulbs
ProCarManuals.com

Celica_U
2382000 CELICA (OM20735U)
4. Insert the bulb base into the mount-ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.5. RIGHT SIDE HEADLIGHT: Install the cover.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
If either the left or right front fog or
front side marker lights burns out, con-
tact your Toyota dealer.
NOTICE
Do not try to replace the front fog or
front side marker light bulbs by your-
self. You may damage the vehicle.
—Front fog and front side
marker lights
ProCarManuals.com

Celica_U
2502000 CELICA (OM20735U)
20. HEAD RH UPR 10 A: Right−hand
headlight (high beam), daytime running
light system
21. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
22. S/ROOF 15 A: Electric moon roof
23. CIG 15 A: Cigarette lighter
24. FL P/W 20 A: Power windows
25. AM1 25 A: Starting system, “CIG”,
“ECU ACC”, “SRS −IG”, “WASHER”,
“WIPER”, “BK/UP LP”, “TENS RDC”,
“DEF RLY”, “BODY ECU −IG”, “TURN”,
“HTR”, “WARNING”, “FAN RLY”, “ABS −
IG” and “ECU −IG” fuses
26. STOP 10 A: Stop lights, anti −lock
brake system, high mounted stoplight,
multiport fuel injection system/sequen-
tial multiport fuel injection system, elec-
tronically controlled automatic transmis-
sion system, cruise control system
27. DOOR 20 A: Power door lock system
28. SRS −IG 7.5 A: SRS airbag system
29. FR FOG 15 A: Front fog lights
30. WASHER 15 A: Windshield wipers and
washer, rear window wiper and washer
31. OBD 7.5 A: On−board diagnosis sys-
tem 32. RADIO 15 A:
Car audio system
33. WIPER 25 A: Windshield wipers and
washer
34. TURN 7.5 A: Turn signal lights
35. MIR HTR 10 A: No circuit
36. HTR 10 A: Air conditioning system
37. RR WIPER 15 A: Rear window wiper
and washer
38. TAIL 10 A: Tail lights, instrument panel
lights, license plate lights, front side
maker lights
39. FR P/W 20 A: Power windows
Fuses (type B)
40. SPARE 7.5 A: Spare fuse
41. a. MPX −B 7.5 A: Wireless remote con-
trol system
b. RR FOG 7.5 A: No circuit
c. DOME 7.5 A: Clock, interior lights
d. ECU −B 7.5 A: Air conditioning sys-
tem, gauges and meters
42. a. WARNING 5 A: Charging system,
gauges and meters
b. ECU −IG 5 A: Cruise control system
c. ABS −IG 5 A: Anti−lo
ck brake sys-
tem
d. FAN RLY 5 A: Electric cooling
fans 43. a. PANEL1 7.5 A:
Gauges and meters,
air conditioning system, electronical-
ly controlled automatic transmission
system, headlight beam level control
system, front fog lights, emer gency
flasher, turn signal lights
b. PANEL2 7.5 A: Car audio system,
cigarette lighter, glove box light
c. ECU −ACC 7.5 A: Clock, car audio
system, power rear view mirror con-
trols
44. a. BK/UP LP 5 A: Back−up lights
b. DEF RLY 5 A: Power windows, rear
window defogger
c. BODY ECU −IG 5 A: Theft deterrent
system
d. TENS RDC 5 A: Electronically con-
trolled automatic transmission sys-
tem, shift lock control system, elec-
tric moon roof
Fuses (type C)
45. ABS NO.1 40 A: Anti−lock brake sys-
tem
46. MAIN 40 A: Starting system, daytime
running light system
47. HTR 50 A: Air conditioning system
48. DEF 30 A: Rear window defogger
