2000 TOYOTA CAMRY CNG Owners Manual

’00CAMRY CNG (L/O9908)
12000 CAMRY CNG (OM33519U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 1

’00CAMRY CNG (L/O9908)
22000 CAMRY CNG (OM33519U)
Instrument panel overview
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Glove box
6. Garage door opener box or
auxiliary box
7. Power door lock switches
8. Power window switches
9. Cup holders
10. Cup holder or rear ashtray
11. Parking brake lever
12. Automatic transmission selector lever
13. Auxiliary box
14. Hood lock release lever
15. Window lock switch

’00CAMRY CNG (L/O9908)
32000 CAMRY CNG (OM33519U)
1. Power rear view mirror control switch
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Clock/outside temperature gauge
5. Emergency flasher switch
6. Car audio
7. Rear window and outside rear view
mirror defoggers switch
8. Air conditioning controls
9. Front ashtray
10. Power outlet
11. Cigarette lighter
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Instrument panel light control knob

’00CAMRY CNG (L/O9908)
42000 CAMRY CNG (OM33519U)
Instrument cluster overview
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Fuel gauge4. Speedometer
5. Odometer and two trip meters
6. Tachometer7. Trip meter reset knob
8. Low fuel level warning light

’00CAMRY CNG (L/O9908)
52000 CAMRY CNG (OM33519U)
Indicator symbols on the instrument panel
∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 1−5.
∗
2: If this light flashes, see “Cruise control” in Section 1−6.
Brake system warning light∗
1
Seat belt reminder light∗
1
Discharge warning light∗
1
Malfunction indicator lamp∗
1
Low oil pressure warning light∗
1
Anti−lock brake system warning light∗
1
Open door warning light∗
1
Rear light failure warning light∗
1
SRS warning light∗
1
Low windshield washer fluid level warning light∗
1
Overdrive−off indicator light
Cruise control indicator light
∗
2
Headlight high beam indicator light Turn signal indicator lights
Automatic transmission indicator lights

’00CAMRY CNG (L/O9908)
62000 CAMRY CNG (OM33519U)

’00CAMRY CNG (L/O9908)
72000 CAMRY CNG (OM33519U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Refueling14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 2

’00CAMRY CNG (L/O9908)
82000 CAMRY CNG (OM33519U)

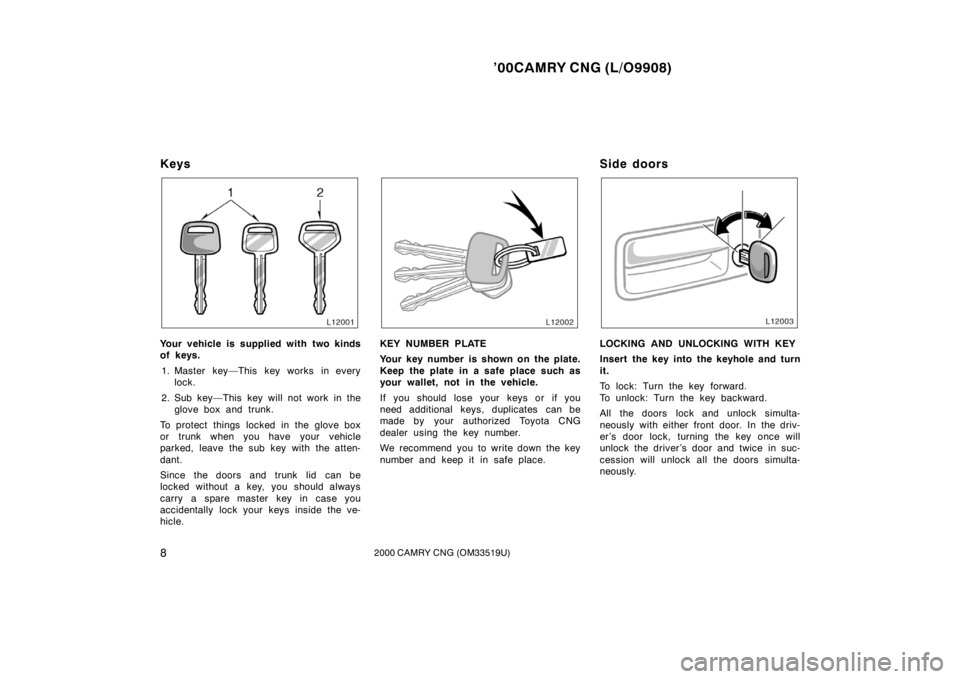

Keys
Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box and trunk.
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by your authorized Toyota CNG
dealer using the key number.
We recommend you to write down the key
number and keep it in safe place.
Side doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.
