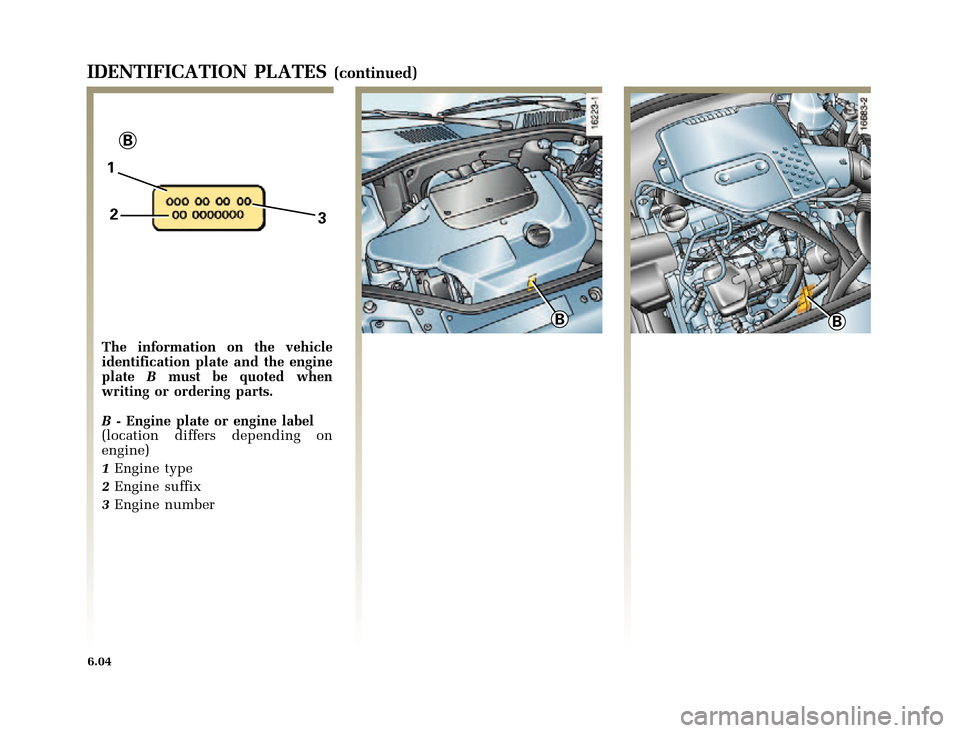

IDENTIFICATION PLATES(continued)
The information on the vehicle
identification plate and the engine
plateBmust be quoted when
writing or ordering parts.
B- Engine plate or engine label
(location differs depending on
engine)
1Engine type
2Engine suffix
3Engine number

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page5
6.05
ENGINE SPECIFICATIONS
Versions 1.2 1.4 1.416V1.6 1.616V2.016V1.9 D 1.9 dTi
Vehicle type
(see vehicle
identification plate)B/C/SB0A
B/C/SB0FB/CB0C
B/CB0G
B/CB0SB/CB0L
B/CB0PB/CB0D CB0T
CB0HCB0M
CB1CB/C/SB0E
B/C/SB0J
B/CB0N
SB0RB/C/SB0U
B/CSB0V
Engine type
(see engine
plate)
D7F E7J K4J K7M K4M F4R F8QF9Q Turbo
Bore x Stroke(mm)69×76.8 75.8×77 79.5×70 79.5×80.5 79.5×80.5 82.7×93 80×93 80×93
Capacity(cc) 1 149 1 390 1 390 1 598 1 598 1 998 1 870 1 870
Fuel gradeUnleaded fuel Gazole
Octane rating95 or 98 (1) 98 (2) –
Spark plugsOnly use the type specified
for your vehicle’s engine.
Their type is shown on a label in
the engine compartment,
otherwise consult your Renault Dealer.
Fitting spark plugs which
are not to specification
may damage the engine.—
(1) If unavailable, unleaded fuel with an octane rating of 91 may be used.
(2) If unavailable, unleaded fuel with an octane rating of 95 may be used.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page7
6.07
WEIGHTS(continued)
(1)Towed weight
(Towing a caravan, boat, etc.)
- It is important that the towing weights in each country governed by local legislation are respected. Consult your Renault
Dealer for all towing attachments.In all cases, never exceed the maximum permissible total train weight (vehicle +
trailer).
- If your vehicle is already being used fully laden (maximum permitted all up weight); your maximum speed must be
limited to 60 mph (100 km/h) and the tyre inflation pressures should be increased by 0.2 bar.
- Engine output and performance on hills are reduced with altitude. We recommend that you reduce the maximum load by
10% at an altitude of 1000 metres, then by an additional 10% for each 1000 metres thereafter.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page9
6.09
WEIGHTS(continued)
(1)Towing weight (towing a caravan, boat, etc.)
- It is important to comply with the towing weights, governed by local legislation in each country and, in particular laid
down in the Road Traffic Regulations. Consult your Renault Dealer about any attachments.Under no circumstances may
the total train weight (= max. permissible all-up weight and weight towed) be exceeded.
- If your vehicle is already used at full load (max. permissible all-up weight), the maximum speed must be limited to
60 mph (100 km/h) and the tyre inflation pressure increased by 0.2 bar.
- The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced
by 10% at an altitude of 1000 metres and by an additional 10% for each 1000 metres thereafter.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page11
6.11

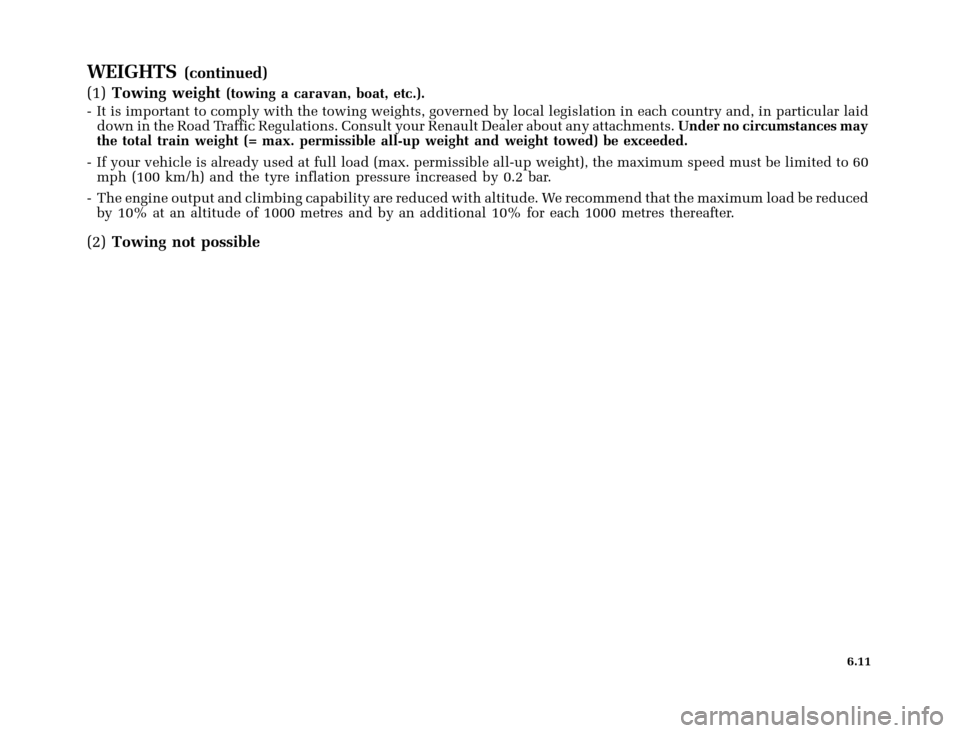

WEIGHTS(continued)
(1)Towing weight
(towing a caravan, boat, etc.).
- It is important to comply with the towing weights, governed by local legislation in each country and, in particular laid
down in the Road Traffic Regulations. Consult your Renault Dealer about any attachments.Under no circumstances may
the total train weight (= max. permissible all-up weight and weight towed) be exceeded.
- If your vehicle is already used at full load (max. permissible all-up weight), the maximum speed must be limited to 60
mph (100 km/h) and the tyre inflation pressure increased by 0.2 bar.
- The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced
by 10% at an altitude of 1000 metres and by an additional 10% for each 1000 metres thereafter.
(2)Towing not possible

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page12
6.12
WEIGHTS(in kg) -Basic vehicle without option, likely to change in the course of the model year.
Consult your Renault Dealer.
Utility versions
(versions marketed depend on country)1.2 1.9 D 1.9 dTi
Vehicle type
(see vehicle identification plate)SB0A
SB0FSB0E
SB0J
SB0RSB0U
SB0V
Kerb
weight
without driverTo t a l
Front
Rear880 975 1 000
540 635 650
340 340 350
Maximum permitted
axle loadFront
Rear780 860 860
785 785 785
Maximum permissible all up weight1 420 1 530 1 490
Maximum permissible towed weight,
unbraked475 525 535
Maximum permissible towed weight,
braked(1) driver only 1 100 1 200 1 150
other cases 850 900 950
Maximum permissible total train weight(= maximum permissible all up weight
+ trailer)2 200 2 400 2 500
Permissible nose weight75 50
Max. permissible load on roof rack60
(1)Towed weight
(Towing a caravan, boat, etc.)
-It is important that the towing
weights in each country governed
by local legislation are respected.
Consult your Renault Dealer for all
towing attachments.In all cases,
never exceed the maximum
permissible total train weight
(vehicle + trailer).
- If your vehicle is already being
used fully laden (maximum
permitted all up weight); your
maximum speed must be limited
to 60 mph (100 km/h) and the tyre
inflation pressures should be
increased by 0.2 bar.
- Engine output and performance
on hills are reduced with altitude.
We recommend that you reduce
the maximum load by 10% at an
altitude of 1000 metres, then by an
additional 10% for each 1000
metres thereafter.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page16
ALPHABETICAL INDEX
AABS .......................................................................... 2.14
Accessories - installation ....................................... 5.28
Accessories .............................................................. 5.28
Additional driving lights ........................................ 5.12
Adjusting the driver's position ................... 1.13 - 1.14
Air bag ......................................................... 1.15
¬1.20
Air conditioning ................... 3.02 - 3.03 - 3.10¬3.14
Air filter .................................................................... 4.12
Air vents ....................................................... 3.02 - 3.03
Anti-lock braking system ....................................... 2.14
Anti-pollution (advice) .............................. 2.06
¬2.08
Ashtrays ................................................................... 3.24
Automatic transmission (use) .................... 2.10
¬2.12
Automatic transmission selector lever ..... 2.10¬2.12
BBattery ................................................ 4.10 - 5.18 - 5.19
Bodywork (maintenance) ............................. 4.12 - 4.13
Bonnet ...................................................................... 4.02
Brake fluid ............................................................... 4.08
Bulbs (changing) ......................................... 5.10
¬5.17
Buzzer (lights on) ......................................... 1.04 - 1.55
CCapacity of mechanical components .......... 4.07 - 4.09
Catalytic converter (special points) ....................... 2.04
Catalytic converter .................................................. 2.04
Central door locking ......................... 1.02 - 1.03 - 1.05
Changing a wheel ................................................... 5.05
Changing bulbs ........................................... 5.10
¬5.17
Child booster seat ....................................... 1.24¬1.28
Childproof locks 1.04 - 1.19 - 1.24¬1.30 - 3.17 - 3.20
Children ........... 1.04 - 1.19 - 1.24¬1.30 - 3.17 - 3.20
Cigar lighter ............................................................. 3.24
Clock ........................................................................ 1.31
Controls ....................................................... 1.32
¬1.35
Coolant ..................................................................... 4.09
Courtesy lights .............................................. 3.15 - 3.16Ddashboard .................................................... 1.32
¬1.35
Demisting: Windscreen ........................................... 1.57
Rear screen ........................................... 1.57
Dimensions .............................................................. 6.13
Dipstick ....................................................... 4.03
¬4.06
Direction indicators ..... 1.62 - 5.10 - 5.11 - 5.13 - 5.15
Door locking ............................................... 1.03
¬1.06
Doors ............................................................. 1.04 - 1.05
Driver's layout ..................... 1.32
¬1.35 - 1.50¬1.52
Driving ......................................................... 2.02¬2.12
EEmbellisher spanner .................................... 5.03 - 5.04
Embellishers ............................................................ 5.04
Emergency spare wheel .......................................... 5.02
Engine (technical specifications) ........................... 6.05
Engine coolant ......................................................... 4.09
Engine immobiliser ...................................... 1.07 - 1.08
Engine oil .................................................... 4.03
¬4.07
Engine specifications .............................................. 6.05
Environment ............................................................ 2.09
External lighting and signals ..................... 1.56
¬1.58
External temperature .............................................. 1.31
FFaults (operating faults) ............................. 5.29
¬5.34
Fitting a radio .......................................................... 5.27
Fog lights ...................................................... 1.56 - 5.12
Front seat adjustment .................................. 1.11 - 1.12
Front seat belt pretensioners .................................. 1.15
Front seats (adjustment) ............................ 1.09
¬1.12
Fuel (advice on economy) ......................... 2.06¬2.08
Fuel (filling) ............................................................ 1.64
Fuel (grade) ................................................... 1.64 - 6.05
Fuel cut-off in the event of a
severe impact ...................................................... 5.23

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page18
ALPHABETICAL INDEX
RRadio (fitting) .......................................................... 5.27
Rear bench seat ...................................................... 3.25
Rear parcel shelf .......................................... 3.27 - 3.28
Rear screen (demisting) ......................................... 1.61
Rear screen demisting ............................................ 1.57
Rear seats ................................................................ 3.25
Rear view mirrors ........................................ 1.53 - 1.54
Remote control door locking - batteries ............... 5.22
Remote control door locking ...................... 1.02 - 1.03
Replacement parts .................................................. 6.14
Reverse gear ............................................................ 2.13
Running in .............................................................. 2.02
SSeat belts .................................................... 1.13
¬1.23
Side repeaters ......................................................... 5.15
Speakers (location) ................................................. 5.27
Special features of the petrol and diesel
versions .................................................... 2.04 - 2.05
Starting the engine ...................................... 2.02 - 2.03
Steering wheel (adjusting) ..................................... 1.54
Storage compartments ................................. 3.22 - 3.23
Sun visor ................................................................. 3.18
Sunroof ....................................................... 3.19
¬3.21
TTank fuel ...................................................... 1.63 - 1.64
Technical specifications ............................ 6.02
¬6.12TTowing (attachments) ............................................. 5.20
Towing (breakdown) .................................... 5.24 - 5.25
Towing a caravan ....................................... 6.06
¬6.12
Towing weights .......................................... 6.06¬6.12
Transporting objects in the luggage
compartment ....................................................... 3.29
Turning circle ......................................................... 6.13
Tyre pressures .............................................. 0.04 - 0.05
Tyres ...................................... 0.04 - 0.05 - 5.06
¬5.08
VVanity mirror .......................................................... 3.18
Vehicle identification ................................ 6.02
¬6.04
Vehicle identification plates ....................... 6.02 - 6.03
Ventilation and heating ............................. 3.02
¬3.14
WWashing ...................................................... 4.12
¬4.14
Weights ....................................................... 6.06¬6.12
Wheelbrace ............................................................. 5.03
Wheels (safety) ........................................... 5.06
¬5.08
Window riser ............................................... 3.17 - 3.18
Windscreen ............................................................. 3.18
Windscreen de-icing .............................................. 1.57
Windscreen washer .......................... 1.59 - 1.60 - 4.11
Wiper blades ........................................................... 5.09
Wipers ................................................ 1.59 - 1.60 - 5.09
