5.25

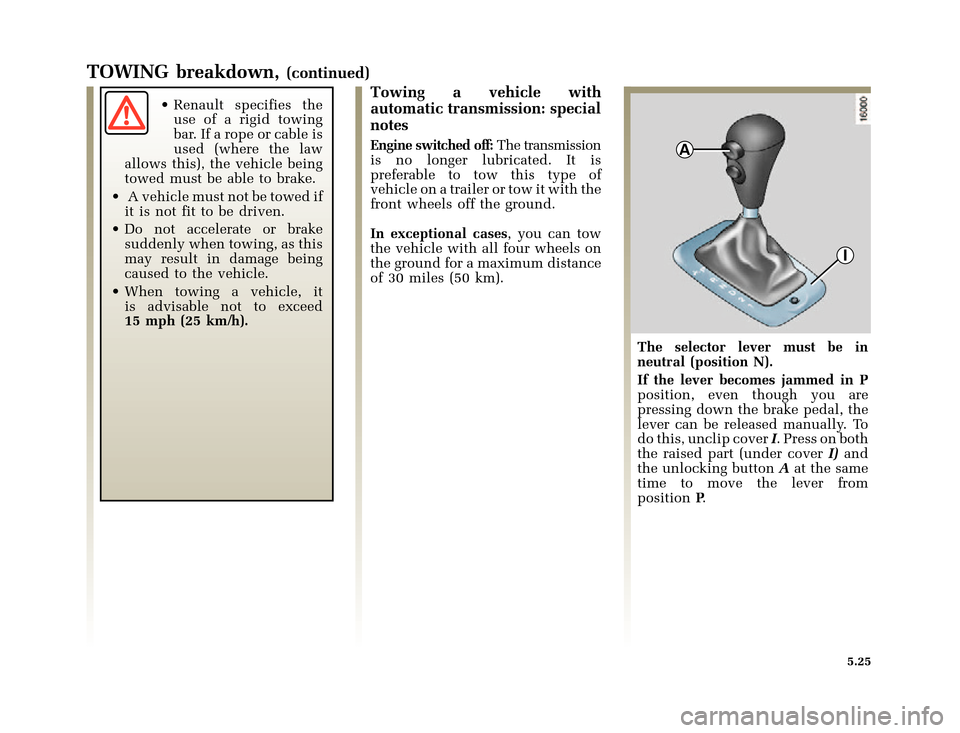

TOWING breakdown,(continued)
• Renault specifies the
use of a rigid towing
bar. If a rope or cable is
used (where the law
allows this), the vehicle being
towed must be able to brake.
• A vehicle must not be towed if
it is not fit to be driven.
• Do not accelerate or brake
suddenly when towing, as this
may result in damage being
caused to the vehicle.
• When towing a vehicle, it
is advisable not to exceed
15 mph (25 km/h).Towing a vehicle with
automatic transmission: special
notes
Engine switched off:The transmission
is no longer lubricated. It is
preferable to tow this type of
vehicle on a trailer or tow it with the
front wheels off the ground.
In exceptional cases, you can tow
the vehicle with all four wheels on
the ground for a maximum distance
of 30 miles (50 km).
The selector lever must be in
neutral (position N).
If the lever becomes jammed in P
position, even though you are
pressing down the brake pedal, the
lever can be released manually. To
do this, unclip coverI. Press on both
the raised part (under coverI)and
the unlocking buttonAat the same
time to move the lever from
positionP.
Page 158 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page28
5.28
ACCESSORIES
Using mobile phones and
CB equipment
Mobile phones and CB
equipment with integrated
aerials may cause interference to
the original electronic systems
fitted to the vehicle: it is advisable
only to use equipment with an
external aerial.
Also, for your own safety, we
would advise you always to take
account of traffic conditions and
not to use this type of equipment
when you are driving.After-sales installation of
electric or electronic
accessories
•Anyworkontheelectric
circuit of the vehicle must be
carried out by Renault network
engineers: if the system is
connected incorrectly, it may
result in damage being caused to
the electrical installation and/or
the units connected to it.
• If the vehicle is retrofitted with
any electrical equipment, make
sure that the unit is correctly
protected by a fuse. Ask for
information on the rating and
position of this fuse.
After-sales installation of
non-electrical accessories (roof
bars, towing attachments, etc.)
Accessories approved by Renault
are based on a strict specification
and are regularly tested. We would
recommend that you use approved
accessories (particularly where
these affect safety) because they are
particularly reliable and
appropriate for your vehicle.
Page 159 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page29
5.29
OPERATING INCIDENTS
Your vehicle should not be affected by incidents likely to keep it off the road for long periods if you have followed the
Renault Servicing Programme regularly.
The following advice will allow you to get going again quickly, albeit temporarily: for reasons of safety, you should
always consult a Renault Dealer as soon as possible.
When starter is activated CAUSES REMEDIAL ACTION
• There is no response. The warning
lights fail to illuminate and the starter
does not turn.Battery lead disconnected or terminals
oxidised.Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
Battery unserviceable. Replace the battery.
• Warning lights go dim and starter
turns very slowly.Battery terminals not tight.
Battery terminals oxidised.Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
• The engine is difficult to start in
damp conditions or after washing.Poor ignition, ignition system damp. Dry the plug leads and ignition coil.
• The engine is difficult to start when
hot.Poor carburation (bubbles of vaporised
fuel in the circuit).Let the engine cool down.
Lack of compression. Consult a Renault Dealer.
Page 160 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page30
5.30
OPERATING INCIDENTS(continued)
When starter is activated CAUSES REMEDIAL ACTION
• The engine fires once or twice then
dies and is difficult to start when cold.Immobiliser active. Refer to the “Engine immobiliser”
section.
Starting procedure incorrect Refer to the “starting the engine”
section.
or
Poor fuel supply or ignition fault. If the vehicle will not start, do not
keeptryingtostartit.
Consult a Renault Dealer.
System for cutting off fuel supply
activated if vehicle has been subject to
severe impact.See a Renault Dealer. (Refer to
information on fuel cut-off system in
section 5.)
• Vibrations. Tyres incorrectly inflated, incorrectly
balanced or damaged.Check the tyre pressures and, if they
are correct, have a Renault Dealer check
the condition of the tyres.
• Coolant boiling in expansion bottle. Mechanical fault: cylinder head gasket
blown, water pump faulty.Stop the engine.
Consult a Renault Dealer.
Engine cooling fan not working. Check the appropriate fuse, otherwise
consult a Renault Dealer.
Page 161 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page31
5.31
OPERATING INCIDENTS(continued)
On the open road CAUSES REMEDIAL ACTION
• Abnormal white smoke from the
exhaust.Mechanical fault: cylinder head gasket
blown.Stop the engine.
Consult a Renault Dealer.
• Smoke under the bonnet. Short circuit. Stop the vehicle, switch off the
ignition, disconnect the battery.
Cooling circuit fault. Consult a Renault Dealer.
• The oil pressure warning light
illuminates
- when cornering or braking. The level is too low. Top up the oil.
- at idle speed. The oil pressure is too low. Consult the nearest Renault Dealer.
- is slow to extinguish or remains
illuminated on acceleration.Loss of oil pressure. Stop and call for the assistance of a
Renault Dealer.
• The engine lacks power. Dirty air filter. Replace the cartridge.
Fuel supply fault. Check the fuel level.
Spark plugs faulty, incorrect gap. Consult a Renault Dealer.
• Idle speed unsteady or engine stalls. Lack of compression (spark plugs,
ignition, air leak)Consult a Renault Dealer.
Page 162 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page32
5.32
OPERATING INCIDENTS(continued)
On the open road CAUSES REMEDIAL ACTION
• Steering becomes hard to turn. Belt broken. Have the belt replaced.
Lack of oil in pump. Top up oil (see maintenance section).
If the fault persists, consult your
Renault Dealer.
• The engine overheats. The coolant
temperature warning light illuminates
(or the needle on the gauge is in the
red zone).Water pump: belt slack or broken.
Faulty engine cooling fan.Stop the vehicle, switch off the engine
and call for the assistance of a Renault
Dealer.
Coolant leaks. Check the condition of the hoses and
clips.
Check the expansion bottle: it should
contain coolant. If it does not, top up
the level (after letting the engine cool
down). Take care not to burn yourself.
This action is only temporary: consult
your Renault Dealer as soon as
possible.
Radiator
Never fill a hot radiator with cold coolant if a considerable quantity has been lost. After any operation
on the vehicle which has involved even partial draining of the cooling system, it must be refilled with a
new mixture prepared in the correct proportions. Reminder: only products approved by our Technical
Department may be used for this purpose.
Page 165 of 184
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page1
6.01
Section 6: Technical specifications
Identification plates ............................................................................................................................. 6.02 ¬6.04
Engine specifications ........................................................................................................................................ 6.05
Weights .................................................................................................................................................. 6.06
¬6.12
Towing weights .................................................................................................................................... 6.06
¬6.12
Dimensions ........................................................................................................................................................ 6.13
Replacement parts ............................................................................................................................................ 6.14
Page 167 of 184
1
3
B
B
B
B
B 2
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T6.WIN 16/10/2000 11:26-page3
6.03
IDENTIFICATION PLATES(continued)
The information on the vehicle
identification plate and the engine
plateBmust be quoted when
writing or ordering parts.
B- Engine plate or engine label
(location differs depending on engine)
1Engine type
2Engine suffix
3Engine number
