ADVICE ON ANTIPOLLUTION AND HOW TO ECONOMISE ON FUEL WHEN DRIVING(continued)
Monitoring exhaust gas
The exhaust gas monitoring system
will detect any malfunctioning of
the vehicle’s exhaust gas
depollution system.
If this system malfunctions, toxic
substances may be released into the
atmosphere or mechanical damage
may occur.
This warning light on the
instrument panel will
indicate if there are any
problems with the system.
It illuminates when the ignition is
switched on and extinguishes
within 3 seconds.
- If it illuminates continuously,
consult your Renault Dealer as
soon as possible.
- If it flashes, reduce the engine
speed until the light stops
flashing. Consult your Renault
Dealer as soon as possible.
Driving
•Drive carefully for the first few
miles until the engine reaches its
normal operating temperature
rather than letting it warm up
while stationary.
• Speed is expensive.
• “Snappy” driving uses a lot of
fuel: drive with a “light right
foot”.• Brake as little as possible by
suitably anticipating an obstacle
or bend and then simply releasing
the accelerator pedal.
• Avoid sudden acceleration.
• Do not overrev the engine in
intermediate gears.
Use the highest gear possible
without labouring the engine.
(On versions with an automatic
transmission, try to always use
positionD.)
• Try not to maintain the same
speed up a hill as you would on
the level; keep your foot in the
same position on the accelerator
pedal.
• Double declutching and
accelerating before switching off
the engine are superfluous
actions in modern cars.
• Bad weather, flooded roads
Do not drive on flooded
roads if the depth of
water is above the lower
edge of the wheel rims.

A
I
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page12
2.12
PROACTIVE AUTOMATIC TRANSMISSION(continued)
Economical driving
On the open road, always leave the
lever in positionD. Press the
accelerator pedal lightly to ensure
that the gears change automatically
at a low engine speed.
Never use positions D3, 2, 1 and the
snow position unless special
circumstances apply.
Parking the vehicle
When the vehicle is stationary,
whilst keeping your foot on the
brake pedal, place the lever in
positionP: the automatic
transmission is in neutral and the
drive wheels are mechanically
locked by the transmission.
Apply the handbrake.
Operating faults
• If the lever remains locked in P
when your foot is on the brake
pedal, the lever may be moved
manually.
To do this, unclip coverIand then
press the raised area (under cover
I)and,atthesametime,press
unlocking buttonAto remove the
lever from positionP.
Take the vehicle to your Renault
Dealer.
•While driving,if this
warning light illuminates,
there is a fault. Refer to
the
information on the “Instrument
panel” in section 1.
•Towing a vehicle with an
automatic transmission,refer to
the information on “Towing” in
section 5.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page14
2.14
ANTI-LOCK BRAKING SYSTEM (ABS)
When braking sharply, the two main
aims are to reduce the stopping
distance and to keep the vehicle
under control. However, depending
on the nature of the ground, the
atmospheric conditions and your
reactions, dangers due to loss of
adherence may exist: the wheels
may lock and directional control
may be lost. To avoid these risks,
your vehicle has been fitted with
the anti-lock braking system (ABS).
The safety enhancement is that the
brake control system prevents the
wheels from locking, even if the
brakes are applied too sharply,
allowing the vehicle to be steered
and thus its direction to be controlled.
Under these circumstances, it is quite
possible for the driver to steer the
vehicle and avoid an obstacle whilst
at the same time applying the brake.
This system also allows stopping
distances to be improved, especially
when adhesion is limited (wet roads,
slippery or uneven road surface).Although this system allows this
optimisation, the ABS system in no
way increases performance which is
physically related to the local
adherence conditions between the
tyres and the ground. You must still
follow the rules of good driving
practice (driving at a safe distance
from the vehicle in front etc.).The
fact that the vehicle’s safety has been
increased should not encourage you
to take risks.
Each time the system is activated,
you will feel a certain degree of
pulsation at the brake pedal. These
tangible signs will warn you that the
adhesion between the tyres and the
ground has reached its limit and
enable you to adapt your driving
style to suit the road conditions.Operating incidents
Two situations must be considered:
1 - The warning light is
illuminated on the instrument
panel.
Braking is still assured, but
without the action of the ABS
system. Consult a Renault Dealer
as soon as possible.
2 - The warning lights
are illuminated on the instrument
panel.
This indicates a fault in one of
the ABS braking components.
Braking may be partially assured.
It is howeverdangerous to brake
sharply,soyoumuststop
immediately as soon as traffic
conditions allow. Call for the
assistance of a Renault Dealer as
soon as possible.
The braking modulation provided by the ABS system is independent of the force applied at the pedal. In an
emergency, applyfirm, continuous pressureat the brake pedal - there is no need to pump it repeatedly.

12
33
4
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page3
3.03

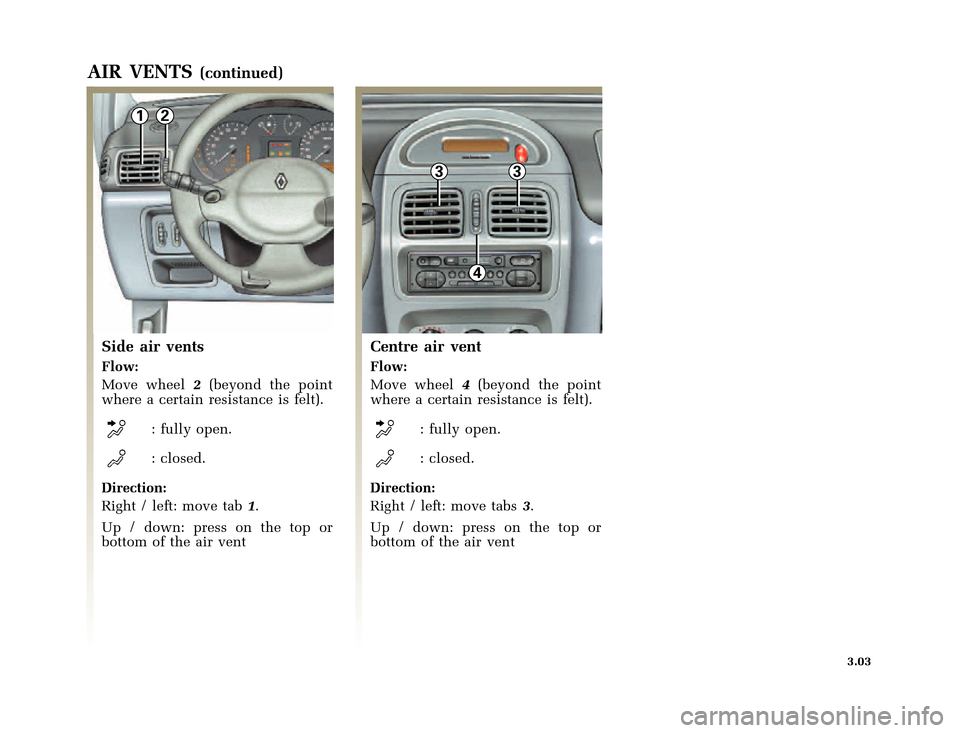

AIR VENTS(continued)
Side air vents
Flow:
Move wheel2(beyond the point
where a certain resistance is felt).
: fully open.
: closed.
Direction:
Right / left: move tab1.
Up / down: press on the top or
bottom of the air vent
Centre air vent
Flow:
Move wheel4(beyond the point
where a certain resistance is felt).
: fully open.
: closed.
Direction:
Right / left: move tabs3.
Up / down: press on the top or
bottom of the air vent

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T4.WIN 16/10/2000 11:23-page12
4.12
BODYWORK MAINTENANCE
Protection against the action of
corrosive agents
Although your vehicle has been
treated with very effective
anti-corrosion products, it is still
subject to the action of:
• corrosives in the atmosphere
- atmospheric pollution (urban
and industrial areas),
- saline atmosphere (near the sea,
particularly in hot weather),
- seasonal and humid climatic
conditions, especially road salt
in winter.
• abrasives
- wind-carried dust and sand, mud,
road grit thrown up by other
vehicles.
• minor impacts
To avoid losing the benefits of this
protection, a minimum number of
precautions should be taken to
ensure against this risk.
What you must not do
• Wash the vehicle in bright sunlight
or in freezing temperatures.
• Scrape off mud or dirt without
pre-wetting.
• Allow external dirt to accumulate.
• Allow rust to form after minor
impacts.
• Use solvents not recommended
by Renault's Technical Department
to remove spots as they may
damage the paintwork.
• Drive frequently in snow or muddy
conditions without periodically
washing the car, particularly
under the wheel arches and under
the body.• Degrease or clean mechanical
components (e.g. engine
compartment), underneath the
bodywork, parts with hinges (e.g.
inside the fuel tank flap, sunroof)
and painted plastic external
fittings (e.g. bumpers) using high
pressure cleaning apparatus or
spraying on products which are
not approved by our Technical
Department as this could give rise
to corrosion or incorrect operation.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T4.WIN 16/10/2000 11:23-page13
4.13
BODYWORK MAINTENANCE(continued)
What you should do
• Wash your car frequently, using our
recommended cleaning products
anduseahighpressurejettorinse
off the wheel arches and under the
body to get rid of:
- spots of tree resin and industrial
grime;
-bird droppings, which contain
chemicals whichrapidly
discolour paintwork and may
even cause the paint to peel off;
The vehiclemustbe washed
immediately to remove these
marks since they cannot be
removed by polishing;
- salt from the wheel arches and
under the body, after the vehicle
has been driven in areas where
the roads are chemically treated;
- mud forming damp patches in
the wheel arches and under the
body.• Keep well away from the vehicle
in front when driving on a freshly
laid surface to avoid damage to
your paintwork.
• Have patches where the paint has
been damaged repaired quickly to
avoid corrosion spreading.
• If your vehicle is covered by the
Renault anti-corrosion warranty,
remember to visit the bodyshop
periodically. Refer to your vehicle’s
Warranty and Servicing booklet.
• Respect local regulations relating
to washing your vehicle (e.g. do
not wash your vehicle on a public
highway).• Before using a revolving brush
type car wash, check the mounting
of exterior equipment, additional
headlights and rear view mirrors.
Secure the wiper blades and radio
aerial with adhesive tape.
Remove the car phone aerial if the
vehicle has one.
• If mechanical components such
as hinges have to be cleaned, their
protection must be reapplied by
spraying on products approved
by Renault's Technical Department.
We have selected special products
to care for your vehicle which
may be obtained from Renault
Accessory Outlets.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page1
5.01
Section 5: Practical advice
Emergency spare wheel .................................................................................................................................... 5.02
Tool kit (Jack - Wheelbrace - Wheel spanners, etc.) ...................................................................................... 5.03
Wheel embellishers .......................................................................................................................................... 5.04
Changing a wheel ............................................................................................................................................. 5.05
Tyres (tyre safety, wheels, winter precautions) ................................................................................. 5.06
¬5.08
Wiper blades ..................................................................................................................................................... 5.09
Replacing bulbs: ................................................................................................................................... 5.10
¬5.17
Headlights ........................................................................................................................................... 5.10 - 5.11
Fog lights ....................................................................................................................................................... 5.12
Rear lights ........................................................................................................................................... 5.13 - 5.14
Side repeaters ................................................................................................................................................ 5.15
Interior lights ...................................................................................................................................... 5.16 - 5.17
Battery ..................................................................................................................................................... 5.18 - 5.19
Fuses ....................................................................................................................................................... 5.20 - 5.21
Remote control locking device (replacing batteries) ..................................................................................... 5.22
System for cutting off the fuel supply in the event of a severe impact ...................................................... 5.23
Towing (breakdown - trailer) ................................................................................................................ 5.24 - 5.26
Fitting a radio/accessories .................................................................................................................... 5.27 - 5.28
Operating incidents ............................................................................................................................. 5.29
¬5.34

1
3
2
4
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page2
5.02
EMERGENCY SPARE WHEEL
Emergency spare wheel2
This is located in the luggage
compartment.
To reach the emergency spare
wheel:
• Open the tailgate.
• Lift the luggage compartment
carpet using circular cut-out1.
If the spare wheel has
been stored for several
years, have it checked by
your Dealer to ensure
that it is safe to use.• Slacken central fastener3.
• Remove the tool kit4.
• Release the emergency spare
wheel2.Certain versions are fitted with a
limited use emergency spare wheel
which has restrictive conditions of
use, shown on a label indicating:
50 mph (80 km/h) maximum.
The emergency spare wheel must only be
used for a short period, and only if a wheel
needs to be changed. You must not drive
faster than 50 mph (80 km/h) and you must
not drive with more than one emergency
spare wheel fitted.
These conditions of use must be observed for
your safety.
Special note for limited use emergency spare
wheel. This cannot be fitted with chains.
If a puncture occurs on a front wheel, one of
the rear wheelsmustbe fitted in place of the
punctured front wheel and the emergency
spare wheel fitted in place of the rear wheel.
