2000 PONTIAC GRAND AM glove box

2-15 Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it's best to lock it up and take your keys.
But what if you have to leave your key?

If possible, park in a busy, well lit area.

Put your valuables in a storage area, like your
trunk or glove box. Be sure to close and lock the
storage area.

Close all windows.

Move the trunk release lockout switch to the
ON position.

Lock the glove box.

Lock all the doors except the driver's.

If your vehicle has a remote keyless entry system,
take the transmitter with you.
Passlock
Your vehicle is equipped with the Passlock
theft
-deterrent system.
Passlock is a passive theft
-deterrent system. Passlock
enables fuel if the ignition lock cylinder has not been
tampered with.
During normal operation, the SECURITY light will go
off approximately five seconds after the ignition key is
turned to ON and the engine is started.
If the SECURITY light flashes with the key to ON, wait
10 minutes until the light goes off. Then turn the
ignition to OFF before attempting to start the engine.
In an emergency, call the Pontiac Roadside Assistance
Center at 1
-800-ROADSIDE or 1-800-762-3743.
(In Canada, call 1
-800-268-6800.)

2-46 Trunk Lamp
The trunk lamp comes on when you open your trunk.
Battery Saver
Your vehicle is equipped with a battery saver feature
designed to protect your vehicle's battery.
When any interior lamp (trunk, mirror reading lamps,
footwell, dome lamp or glove box) is left on when the
ignition is turned off, the battery saver system will
automatically shut the lamp off after 20 minutes.
This will avoid draining the battery.
To reactivate the interior lamps, either:

Lift the driver's door handle, or

open any door, or

press any keyless entry transmitter button
(if equipped), or

press the power door lock switch, or

press the remote trunk release, or

turn the lamp that was left on to off then to on again.

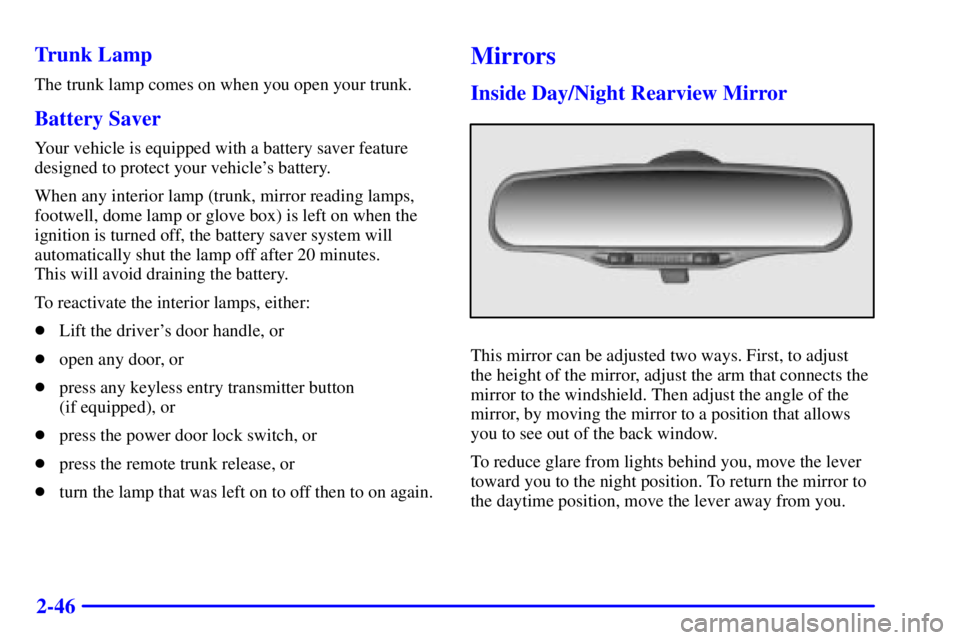

Mirrors
Inside Day/Night Rearview Mirror
This mirror can be adjusted two ways. First, to adjust
the height of the mirror, adjust the arm that connects the
mirror to the windshield. Then adjust the angle of the
mirror, by moving the mirror to a position that allows
you to see out of the back window.
To reduce glare from lights behind you, move the lever
toward you to the night position. To return the mirror to
the daytime position, move the lever away from you.

2-48
Storage Compartments
Glove Box
Use the key to lock and unlock the glove box.
To open, pull the glove box handle up.
Center Console Storage Area
The center console has two separate storage areas. The
upper compartment, which is also the armrest, can be
used to store maps, gloves, etc. To open, pull up on the
driver's side of the lid.
Rear Seat Cupholder
Pull down the door on the rear of the center console to
use the rear seat cupholder.
Convenience Net (If Equipped)
Your vehicle may have a convenience net. You'll see it
just inside the back wall of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns or
quick starts and stops.
The net isn't for larger, heavier loads. Store them in the
trunk as far forward as you can.
You can unhook the net so that it will lie flat when
you're not using it.
Ashtray and Lighter (If Equipped)
To use the lighter, just push it in all the way and let go.
NOTICE:
Don't put papers and other things that burn into
your ashtrays. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
You can also remove the cigarette lighter to plug in
additional accessories. Be sure to follow the proper
installation instructions that are included with any
electrical accessory you install.

6-56
Fuse Usage
Mini
-Fuses
47 Canister Vent Valve, Exhaust
Oxygen Sensors
48 Fuel Pump Injectors
49 Generator
50 Right Headlamp
51 Left Headlamp
52 Cooling Fan # 2
53 HVAC Blower (Climate Control )
54 Not Used
55 Cooling Fan #2 Ground
56 Fuse Puller for Mini Fuses
57 Not Used
Replacement Bulbs
Exterior Lamps (Rear) Bulb
Back
-Up Lamps 3156. . . . . . . . . . . . . . . . . . . . . . .
Center High
-Mounted Stoplamp 912. . . . . . . . . . . .
Fascia Rear Cornering Lamps 912. . . . . . . . . . . . . .
Turn Signal lamps 3156. . . . . . . . . . . . . . . . . . . . . .
Stop/Taillamps 3157. . . . . . . . . . . . . . . . . . . . . . . .
Exterior Lamps (Front) Bulb
Halogen Headlamps 9007. . . . . . . . . . . . . . . . . . . .
Parking/Turn Signal Lamps 3157NA. . . . . . . . . . . .
Side Marker Lamps 194NA. . . . . . . . . . . . . . . . . . . .
Fog Lamps 880X *. . . . . . . . . . . . . . . . . . . . . . . . .
Interior Lamps Bulb
Dome (Base) 561 *. . . . . . . . . . . . . . . . . . . . . . . . . .
Dome (Uplevel) 212
-2 * . . . . . . . . . . . . . . . . . . . . .
Glovebox 194 *. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
* For information on these bulbs, contact your Pontiac
dealer service department.
