2000 Lexus GS300 Electrical Components

SECTION 6 ± 4
440
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications 441. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

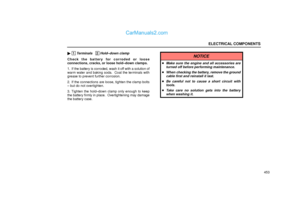

Checking battery condition 450. . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 454. . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 455. . . . .
Checking the cartridge type fuses 461. . . . . . . . . . . . . . .
Adding washer fluid 462. . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the headlight aim 463. . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 467. . . . . . . . . . . . . . . . . . . . . . . . . .

ELECTRICAL COMPONENTS
441
SPECIFICATIONS
± FUSE LOCATION
64G004±1

1Engine compartment
2Passenger's side kick panel
3Driver's side kick panel
4Engine compartment (Canada only)
± FUSES

ELECTRICAL COMPONENTS
442
64G015

Driver's side kick panel
64G014

Passenger's side kick panel

64G013
ELECTRICAL COMPONENTS
443

Engine compartment
64G026

ELECTRICAL COMPONENTS
444

Engine compartment (Canada only)

ELECTRICAL COMPONENTS
445
No.FUSEAMPERECIRCUIT
1 WASHER20Windshield washer
2 FR FOG15Fog lights
3 TAIL10Tail lights, Side marker lights,
License plate lights,
Parking lights
4 SRS±ACC15SRS
5 GAUGE10Back±up lights, Gauges and
meters, service reminder
indicators and buzzers
6 FUEL OPN10Fuel filler door opener
7 D FR
DOOR20Power window system,
Door lock system,
Wireless remote control
8 PANEL7.5Emergency flashers,
Headlight cleaner
9 HEATER10Air conditioning
10 SRS±B5Gauges and meters, service
reminder indicators and
warning buzzers
11 D P/SEAT30Power seat system
12 RADIO
NO.215Audio, Shift lock system
13 WIPER25Windshield wipers
14 OBD7.5On±board diagnosis

ELECTRICAL COMPONENTS
446
No.FUSEAMPERECIRCUIT
15 STOP15Stop lights,
Anti±lock brake system,
Traction control system
16 CIG15Cigarette lighter, Power outlet
17 ECU±IG15Power window, Door lock
system, Wireless remote
control, Theft deterrent system
18 STARTER5Starting system
19 IGN5
Multiport fuel injection
system/sequential multiport fuel
injection system, SRS,
Anti±lock brake system,
Vehicle skid control system,
Cruise control system
20 D RR
DOOR20Power window system,
Door lock system,
Wireless remote control
21 RR FOG10No circuit
22 M/R HTR10Outside rear view mirror
23 S/ROOF25Moon roof
24 P FR
DOOR20Power window system,
Door lock system,
Wireless remote control
25 P P/SEAT30Power seat system,
Tilt and telescopic steering

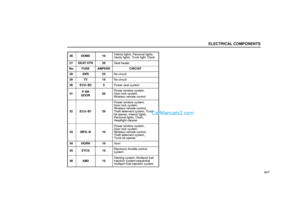

ELECTRICAL COMPONENTS
447
26 DOME10Interior lights, Personal lights,
Vanity lights, Trunk light, Clock
27 SEAT HTR20Seat heater
No.FUSEAMPERECIRCUIT
28 4WS25No circuit
29 TV15No circuit
30 ECU±B25Power seat system
31 P RR
DOOR20Power window system,
Door lock system,
Wireless remote control
32 ECU±B120
Power window system,
Door lock system,
Wireless remote control,
Theft deterrent system, Trunk
lid opener, Interior lights,
Personal lights, Clock,
Headlight cleaner
33 MPX±B10
Power window system,
Door lock system,
Wireless remote control,
Theft deterrent system,
Trunk lid opener
34 HORN10Horn
35 ETCS15Electronic throttle control
system
36 AM215Starting system, Multiport fuel
injection system/sequential
multiport fuel injection system
